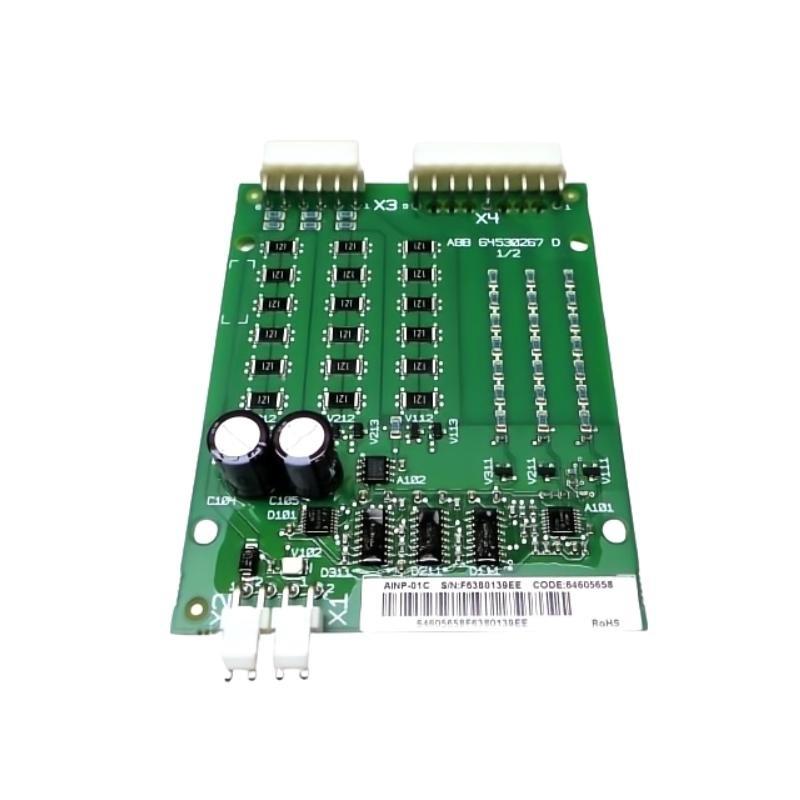

The ABB AINP-01C Input Bridge Control Board, part number 64605658, is a critical component in ABB’s low-voltage drive systems, particularly within the ACS series / drives. This module functions as the input-side bridge controller, managing the transition and regulation / incoming electrical signals into the drive system’s power structure. Its primary role is to monitor and control rectifier bridge operation, ensuring consistent and safe delivery / DC voltage to the internal DC link.
Engineered for high reliability and seamless integration, the AINP-01C incorporates intelligent signal processing and protection features. It is specifically designed to operate in harmony with ABB drives, maintaining drive efficiency, stability, and diagnostic capability. This board is essential in complex motor control environments, where precision and protection are paramount.
Built with robust electronic components, the AINP-01C can withstand industrial stressors such as temperature fluctuations, electrical noise, and physical vibration. It is typically installed in the front-end / a drive system, acting as a gateway that conditions the power flow between the input supply and the drive’s power section.
产品规格
| Parameter | Details |
|---|---|
| 型号 Name | AINP-01C |
| 零件号 | 64605658 |
| 制造商 | ABB |
| Product Type | Input Bridge Control Board |
| System Application | ACS-series Drives (e.g., ACS600, ACS800, etc.) |
| Function | Rectifier bridge control, input signal processing |
| Input Voltage Monitoring | Up to 690 VAC (based on system architecture) |
| Signal Type 支持ed | Analog and Digital Control Signals |
| Cooling Method | Passive (reliant on system airflow) |
| Mounting Style | Plug-in Module (Chassis/Rack Mounted) |
| PCB Construction | Multi-layer industrial FR4 with surface-mount tech |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Features | Over-voltage, short-circuit signal conditioning |
| Compliance Standards | CE, RoHS, UL Recognized |
| Dimensions (L × W × H) | 200 x 150 x 50 mm |
| 重量 | 0.045 kg |
| Life Expectancy | > 10 years in standard industrial environments |
Product Applications
The AINP-01C Input Bridge Control Board plays a pivotal role in numerous industrial and infrastructure control systems, including:
-
Variable Frequency Drives (VFDs) – Enables reliable AC-to-DC conversion management, foundational to speed control in motors.
-
Pulp & Paper Plants – Helps manage large drive systems used in continuous production lines.
-
Oil & Gas Processing – Used in drives powering pumps and compressors in explosive or critical pressure control systems.
-
Water Treatment Facilities – Ensures regulated input conversion for consistent motor drive operation.
-
Material Handling – Powers conveyor belts and hoist motors with precise voltage control.
-
Steel Mills – 支持s heavy-duty rectifier operations for rolling and cutting equipment.
Product Advantages
-
Seamless System Integration: Built specifically for ABB drive systems, ensuring plug-and-play functionality without need for recalibration.
-
Enhanced Control Accuracy: Provides real-time control / rectifier bridges, contributing to better voltage stability and motor response.
-
Compact and Robust: Designed to occupy minimal space while resisting harsh operating conditions such as vibration and temperature variation.
-
Signal Integrity: 支持s high-fidelity signal transfer and conditioning, reducing electromagnetic interference and noise impact.
-
Field Proven: Widely used in thousands / ABB installations globally, with a reputation for durability and stability.
-
Low Maintenance: Long lifespan with minimal servicing required; cleaning and visual inspection suffice under normal conditions.
常见问题 (FAQ)
-
What does the AINP-01C control specifically?
It manages the bridge rectifier section / ABB drives, regulating the AC-to-DC input conversion process. -
Can this board be replaced on-site?
Yes, it is a field-replaceable 件. However, ABB recommends a trained technician handle replacement for safety and configuration validation. -
Is it compatible with the ACS800 drive series?
Yes, the AINP-01C is commonly used in ACS600 and ACS800 drive architectures. -
Does this board require firmware or configuration?
It is typically preconfigured for the target drive. Firmware updates are rarely needed and must be managed by ABB service teams. -
How is it mounted within the system?
It’s mounted as a plug-in PCB module within the drive’s internal framework, /ten in a rack slot. -
Is this board RoHS compliant?
Yes, it meets RoHS requirements and environmental compliance standards. -
What happens if the board fails?
The drive may shut down or operate in a degraded mode. Diagnostics from the drive panel will usually indicate a board-level fault. -
Can I use it with non-ABB systems?
It is strongly advised against. The board is engineered exclusively for ABB drive systems. -
How /ten does it need maintenance?
Routine inspection every 12–24 months is sufficient under normal industrial conditions. -
What’s the average operational lifespan / this module?
Under standard loads and proper cooling, the board can operate reliably for 10+ years.
