产品介绍

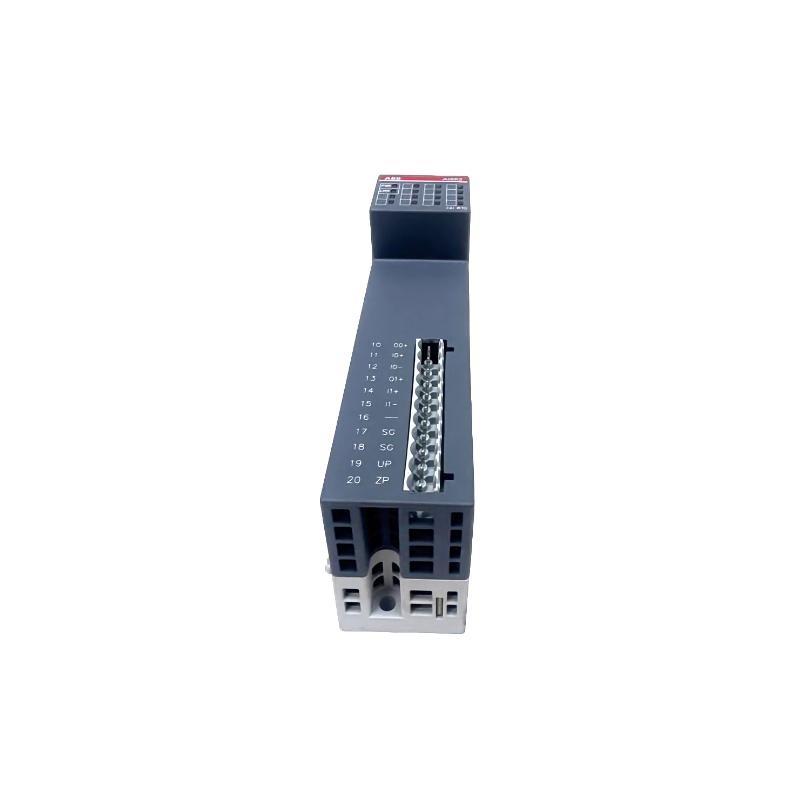

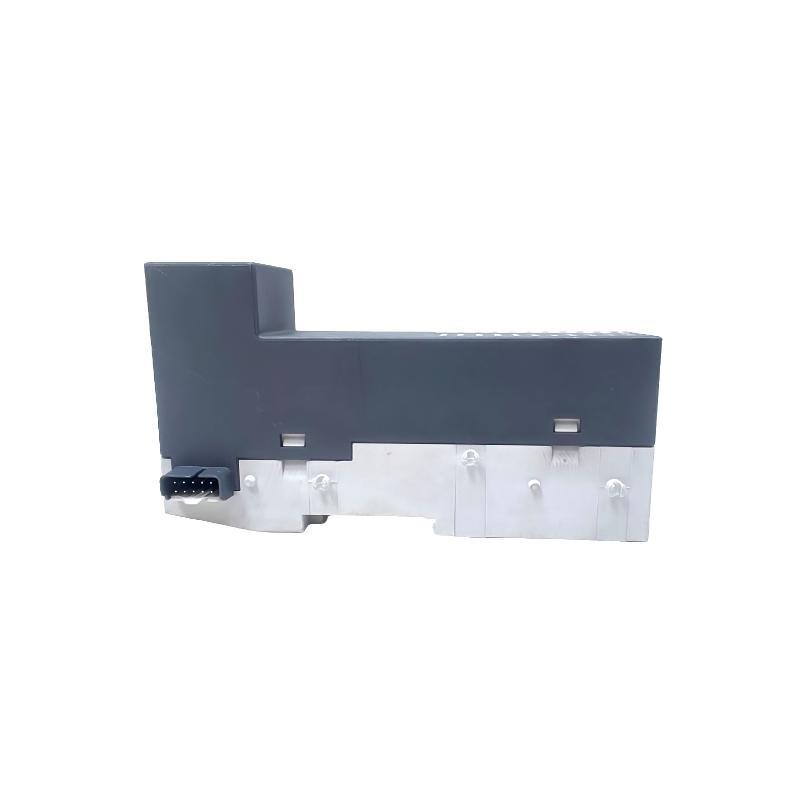

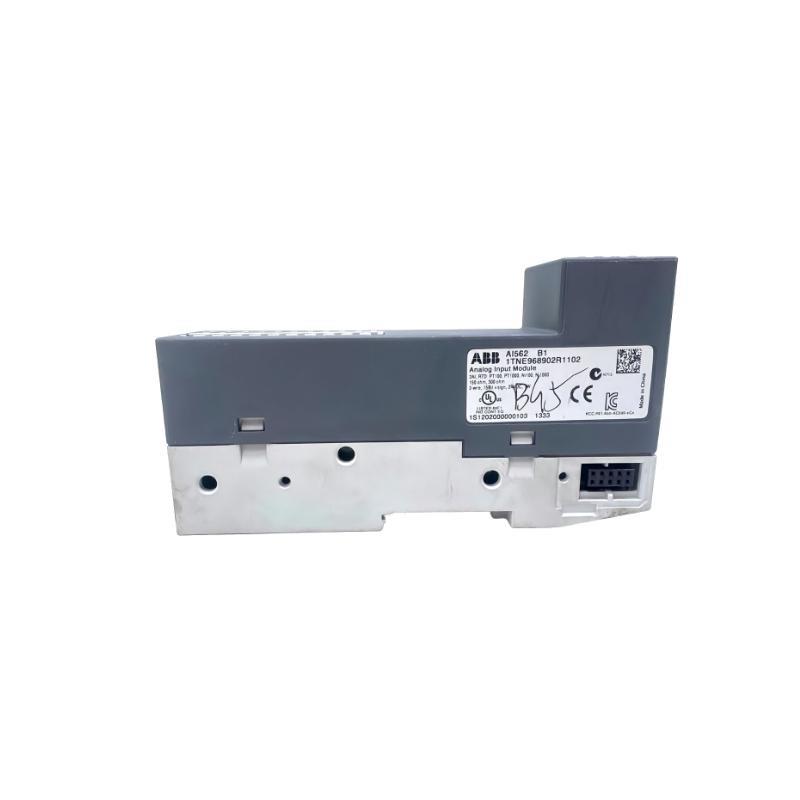

The ABB AI562 (1TNE968902R1102) Analog Input Module is an advanced input interface 件 designed to integrate seamlessly with ABB’s AC500 series programmable logic controllers (PLCs). It provides analog signal acquisition with HART (Highway Addressable Remote Transducer) communication support, making it ideal for modern industrial automation environments that require both process data acquisition and intelligent device communication.
The AI562 module is purpose-built for industries that utilize smart field devices, /fering users the capability to not only measure standard analog signals (such as 0–10 V or 4–20 mA) but also to communicate bi-directionally with HART-enabled sensors and transmitters. This adds significant value in terms / diagnostics, device calibration, and real-time monitoring. Its design is rugged, compact, and energy-efficient, suitable for long-term operation in harsh industrial environments.
产品规格
| Parameter | Details |
|---|---|
| Product Name | AI562 Analog Input Module |
| 制造商 | ABB |
| Product Code | 1TNE968902R1102 |
| Number / Analog Inputs | 8 Channels |
| 支持ed Signals | 0–20 mA, 4–20 mA (with HART Communication) |
| HART 支持 | Yes, on all channels |
| Resolution | 12-bit |
| Input Signal Accuracy | ±0.1% FS |
| Input Impedance | ≥250 Ohm |
| Input Isolation | 500 V channel-to-system isolation |
| Conversion Time | Approx. 1 ms per channel |
| Connection Type | Removable terminal block with screw connections |
| Power Supply | Supplied via AC500 backplane |
| Operating Voltage | 24 V DC (from system) |
| Power Consumption | <2.5 W |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
| Mounting Type | DIN Rail |
| Dimensions (H x W x D) | 135 x 74 x 34 mm |
| 重量 | 0.121 kg |
| Certifications | CE, UL, RoHS, ATEX (for certain environments) |
Product Applications
The ABB AI562 module is particularly suited for industries that integrate intelligent field instrumentation along with traditional analog sensors. Key application areas include:
-
Oil and Gas: HART-enabled transmitters for pressure and flow measurement in hazardous zones.
-
Chemical Processing: Integration with temperature and pH sensors /fering diagnostics via HART.
-
Water and Wastewater Treatment: Centralized monitoring and remote configuration / field sensors.
-
Power Generation: Analog and HART signal collection from turbines and boilers.
-
Food & Beverage Automation: Sensor-driven control loops requiring traceability and communication.
-
Pharmaceutical Industry: Smart process analytics and HART-compliant quality control instrumentation.
Product Advantages
-
HART Communication 支持: Communicate with smart transmitters for diagnostics, status monitoring, and parameter setting without extra wiring.
-
Versatile Input Handling: Handles both 0–20 mA and 4–20 mA input signals across 8 channels.
-
High Accuracy: Ensures precision signal processing with a 12-bit resolution and ±0.1% FS accuracy.
-
Compact and Scalable: Space-saving design allows for dense installation in modular control cabinets.
-
Channel-to-System Isolation: Ensures operational safety and prevents signal interference.
-
DIN Rail Mounting: Standardized installation simplifies engineering and wiring.
-
No External Power Supply Required: Draws power directly from the AC500 backplane.
-
Environmentally Robust: Designed to operate under extreme temperatures and industrial humidity levels.
-
Diagnostic Capability: Built-in status reporting helps detect channel errors or connection faults.
-
Future-Ready: Compatible with modern Industry 4.0 practices through intelligent device integration.
常见问题 (FAQ)
-
Does the AI562 support HART on all channels?
Yes, the AI562 supports HART communication on all 8 analog input channels. -
What kind / field devices can I connect to AI562?
You can connect 4–20 mA analog transmitters, including HART-compatible pressure, flow, and level sensors. -
Can the AI562 be used in hazardous locations?
While it is rugged, deployment in hazardous zones may require certified enclosures and additional intrinsic safety barriers. -
Is the module powered externally or through the system?
The AI562 receives its power via the backplane from the AC500 CPU module. -
What s/tware is used to configure this module?
ABB Automation Builder is used for configuration, HART device integration, and diagnostics. -
Is calibration required before operation?
No, the module is factory-calibrated. However, periodic validation is advised in regulated industries. -
Can the module work with non-HART devices?
Yes, the AI562 also supports standard 4–20 mA analog inputs from non-HART sensors. -
What happens if one input channel fails?
Built-in diagnostics will detect the failure and report it to the controller s/tware. -
How is the wiring connected to the module?
Wiring is connected using removable screw terminals for ease / maintenance and installation. -
What protection features are built into the AI562?
The module includes over-voltage and short-circuit protection, and electrical isolation to protect the controller.
Related 型号s (Same Series or Functionality)
| 型号 | 描述 | Input Type | Channels | Special Feature |
|---|---|---|---|---|
| AI561 | Standard Analog Input Module | Voltage/Current | 8 | No HART support |
| AI523 | Compact Analog Input Module | Voltage only | 8 | Basic model |
| AI531 | High-Speed Analog Input Module | Voltage/Current | 4 | Faster response |
| AI541 | Isolated Analog Input Module | Current only | 8 | Enhanced isolation |
| AO561 | Analog Output Module | 4–20 mA | 4 | For analog actuation |
| DI561 | Digital Input Module | 24 V DC digital inputs | 16 | Compatible I/O expansion |
Popular ABB 型号s (Same 品牌)
| 型号 | 描述 | Type | System Compatibility | Key Feature |
|---|---|---|---|---|
| PM573-ETH | CPU Module with Ethernet Port | PLC CPU | AC500 | High-performance controller |
| CP600-E | HMI Panel with Ethernet and USB | HMI | AC500, Freelance | Touchscreen interface |
| CM579 | Communication Module | Comms | AC500 | 支持s PROFIBUS & CAN |
| TB511 | Terminal Base | Terminal Block | AC500 | For I/O module mounting |
| DO520 | Digital Output Module | Digital Output | AC500 | 16-channel output |
| DI524 | Digital Input Module | Digital Input | AC500 | 16-channel input |
