产品介绍

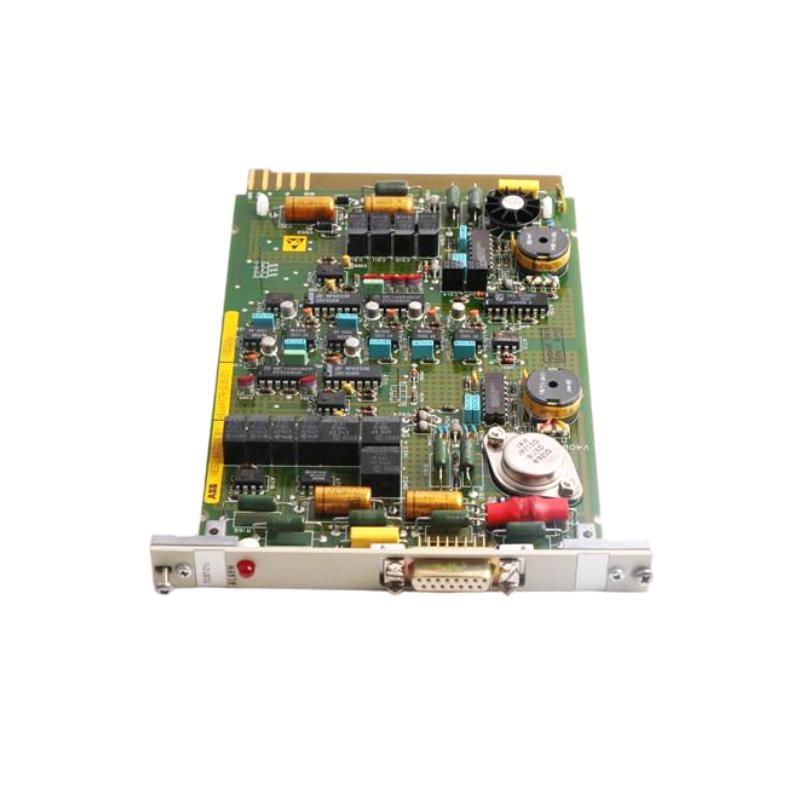

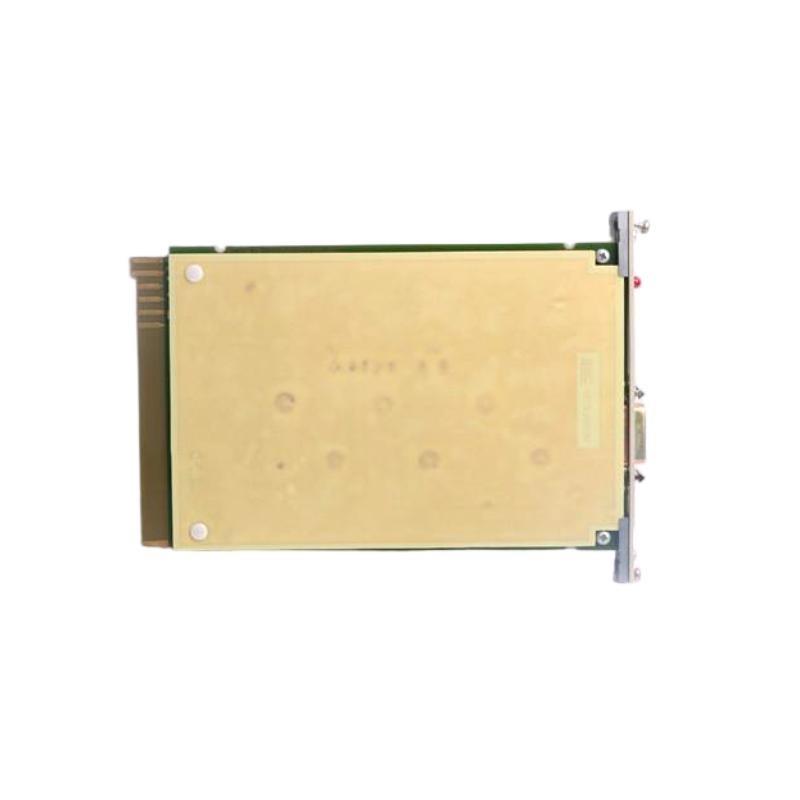

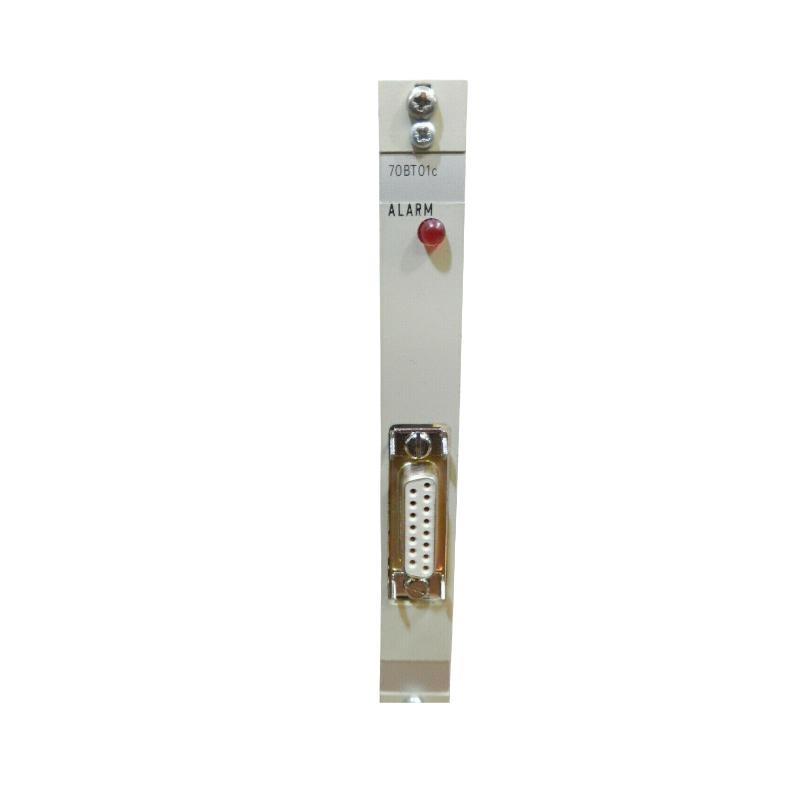

The ABB 70BT01C HE664174-318/21 bus transmitter is a reliable and high-performance component designed for seamless communication within industrial automation systems. It provides accurate data transmission between controllers and field devices, ensuring efficiency in monitoring and controlling processes. This device is known for its robustness and suitability for various industrial environments, including manufacturing, energy management, and process control.
产品规格
| Parameter | Details |
|---|---|
| 型号 | 70BT01C HE664174-318/21 |
| Dimensions | 17 x 205 x 147 mm |
| 重量 | 0.28 kg |
| Power Supply | 24V DC |
| Communication Protocol | Modbus RTU |
| Max Operating Temperature | 70°C |
| Enclosure Rating | IP20 |
| Mounting | DIN Rail |
| Signal Output | Digital (Discrete) |
| Connection Type | Screw terminal block |
| Data Transmission Rate | 9600 to 115200 baud |
Applications
The ABB 70BT01C bus transmitter serves a wide range / applications in industrial systems, including:
-
Industrial Automation: Connecting controllers to field devices like sensors and actuators.
-
Process Control: Ensuring accurate data transmission for real-time monitoring and control.
-
Remote Monitoring: Facilitating the remote monitoring / industrial devices and systems.
-
Manufacturing: Monitoring and controlling automated processes such as assembly lines and packaging.
-
Energy Management: Enabling energy monitoring and control in various industries.
Product Advantages
The ABB 70BT01C bus transmitter /fers several advantages:
-
Reliable Data Transmission: The use / Modbus RTU ensures efficient, dependable communication.
-
Compact Design: With its compact dimensions (17 x 205 x 147 mm), the device is easy to install in space-constrained environments.
-
High Durability: The IP20 rating provides solid protection against dust and light contact, making it suitable for industrial environments.
-
Easy Installation: Designed for quick and simple mounting on DIN rails.
-
Versatile Compatibility: Compatible with a broad range / industrial controllers and devices.
-
Cost-Effective: A reliable, budget-friendly solution for industrial automation and communication needs.
常见问题 (FAQs)
Q1: What is the communication protocol used by the ABB 70BT01C bus transmitter?
A1: The device uses the Modbus RTU protocol, a standard communication method in industrial automation for reliable data transmission.
Q2: What is the maximum operating temperature / the device?
A2: The ABB 70BT01C operates in environments up to 70°C.
Q3: How is the ABB 70BT01C mounted?
A3: It can be easily mounted on a DIN rail, making installation simple and secure.
Q4: What power supply does the ABB 70BT01C require?
A4: The device operates on a 24V DC power supply.
Q5: How does the ABB 70BT01C transmit data?
A5: The bus transmitter uses digital signals for data transmission between controllers and field devices.
Q6: Can the ABB 70BT01C be used in hazardous environments?
A6: The ABB 70BT01C is suitable for industrial settings with moderate environmental conditions. It has an IP20 rating, which protects against dust and light contact but is not suitable for hazardous areas.
Q7: What is the weight / the ABB 70BT01C bus transmitter?
A7: The device weighs 0.28 kg, making it lightweight for easy handling during installation.
Q8: What type / connection does the ABB 70BT01C use?
A8: The device features a screw terminal block connection for secure and easy wiring.
Q9: What is the data transmission rate / the ABB 70BT01C?
A9: The device supports data transmission rates ranging from 9600 to 115200 baud, /fering flexibility for different system requirements.
Q10: Is the ABB 70BT01C compatible with other ABB devices?
A10: Yes, it is fully compatible with other ABB devices that support the Modbus RTU communication protocol.
Related 型号s
| 型号 | 描述 | Communication Protocol | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| 70BT02C | Similar bus transmitter model | Modbus RTU | 20 x 210 x 150 | 0.30 |
| 70BT03C | Enhanced model with faster baud rates | Modbus RTU | 18 x 200 x 140 | 0.35 |
| 70BT04C | High-capacity model for large systems | Modbus RTU | 22 x 215 x 160 | 0.38 |
| 70BT05C | Extended temperature range model | Modbus RTU | 17 x 205 x 145 | 0.29 |
| 70BT06C | 型号 with additional signal processing | Modbus RTU | 19 x 205 x 148 | 0.32 |
| 70BT07C | Compact version for tight spaces | Modbus RTU | 16 x 200 x 145 | 0.27 |
Popular 型号s
| 型号 | 描述 | Communication Protocol | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| 80BT01C | Advanced bus transmitter | Modbus RTU | 25 x 230 x 170 | 0.45 |
| 80BT02C | Digital I/O model for larger systems | Modbus RTU | 28 x 240 x 180 | 0.50 |
| 70BT10C | Dual port bus transmitter | Modbus RTU | 20 x 220 x 160 | 0.42 |
| 70BT12C | Power-efficient bus transmitter | Modbus RTU | 21 x 225 x 165 | 0.40 |
| 70BT15C | High-speed model with extended features | Modbus RTU | 23 x 210 x 175 | 0.44 |
| 70BT20C | Multi-protocol bus transmitter | Modbus RTU, Pr/ibus | 24 x 230 x 180 | 0.48 |
