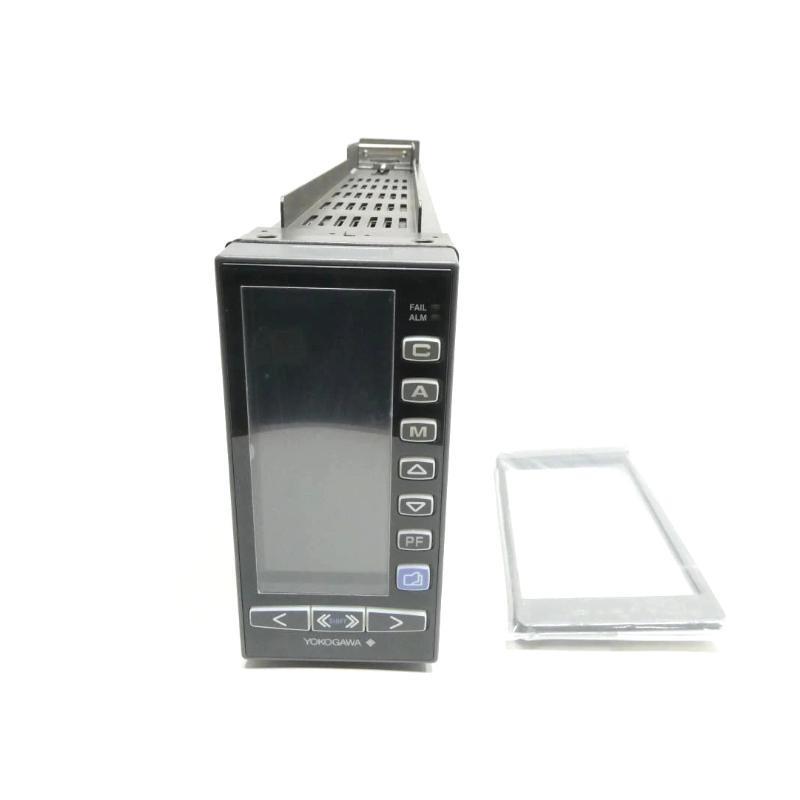

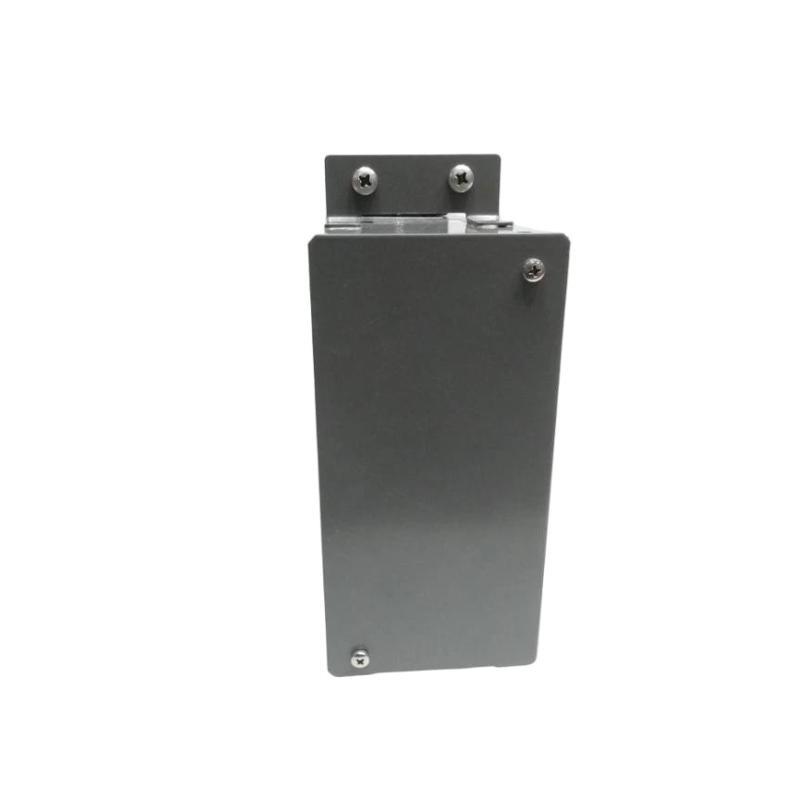

Product Overview
The Yokogawa YS1700 S2 Programmable Indicating Controller is a versatile, high-performance process controller designed to handle a wide variety of industrial applications. It provides real-time indication, control, and monitoring of processes, offering precision and flexibility for system integration in demanding environments. The YS1700 S2 is highly configurable and supports multiple input types, including analog and digital signals, making it ideal for controlling temperature, pressure, flow, and other critical parameters in industrial systems.
Key Features
-
Multiple Input Types – Supports analog, digital, and thermocouple inputs for versatile applications.
-
High-Precision Control – Offers accurate, stable control with a wide control range.
-
Flexible Configuration – Easily configurable to meet the specific needs of different applications.
-
Real-time Process Monitoring – Continuous process monitoring and control for optimal system performance.
-
User-Friendly Interface – Intuitive interface for easy configuration, operation, and diagnostics.
-
Compact Design – Space-saving design that fits easily into standard control panels.
-
Multiple Control Modes – Supports on/off, PID, and manual control modes.
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | YS1700 S2 |
| Module Type | Programmable Indicating Controller |
| Input Types | Analog, Digital, Thermocouple |
| Control Modes | On/Off, PID, Manual |
| Display Type | LCD display, backlit |
| Input Range | 0–10V DC, 4–20mA, Thermocouple |
| Output Type | Relay, SSR, 4–20mA (depending on configuration) |
| Power Supply | 100–240V AC |
| Mounting | Panel Mount |
| Dimensions | 250 x 144 x 72 mm |
| Weight | 1.6 kg |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH, non-condensing |
Industry Applications
-
Industrial Automation – Temperature, pressure, and flow control in process industries.
-
Oil & Gas – Real-time process control and monitoring for upstream and downstream processes.
-
Power Generation – Monitoring and control of critical equipment parameters such as temperature and pressure.
-
Chemical & Petrochemical – Ensuring accurate control in chemical processing applications.
-
Water Treatment – Monitoring and control in water treatment plants, ensuring efficient operation.
Advantages
-
High Precision – Accurate and stable process control across a wide range of parameters.
-
Wide Compatibility – Supports various input types, making it ideal for different process control needs.
-
Flexible Control – Multiple control modes for different applications and processes.
-
Compact and Reliable – Designed for industrial environments with a robust, compact design.
-
Easy Integration – Simple configuration and integration into existing systems, with intuitive interface for ease of use.
Frequently Asked Questions (FAQ)
Q1: What types of inputs does the YS1700 S2 support?
It supports analog, digital, and thermocouple inputs.
Q2: What control modes are available on the YS1700 S2?
The YS1700 S2 supports on/off, PID, and manual control modes.
Q3: Can the YS1700 S2 be used for temperature control applications?
Yes, it is ideal for temperature control and can handle thermocouple inputs for temperature monitoring.
Q4: How is the YS1700 S2 mounted?
It is designed for panel mounting, making installation easy and efficient.
Q5: What is the power supply range for the YS1700 S2?
The module supports a 100–240V AC power supply range.
Q6: What is the display type used on the YS1700 S2?
It features a backlit LCD display for clear and easy monitoring.
Q7: What is the operating temperature range for the YS1700 S2?
The operating temperature range is 0 °C to 50 °C.
Q8: Is the YS1700 S2 suitable for use in industrial environments?
Yes, it is designed for use in demanding industrial environments and provides reliable control in harsh conditions.
Q9: What are the dimensions of the YS1700 S2?
The YS1700 S2 measures 250 x 144 x 72 mm.
Q10: How much does the YS1700 S2 weigh?
It weighs approximately 1.6 kg.
Related Modules
| Model Number | Description |
|---|---|
| YS1700 S2 | Programmable Indicating Controller |
| AAI143 | Analog Input Module, 4-20mA |
| ADO143 | Analog Output Module, 4-20mA |
| DDI144 | Digital Input Module, 24VDC |
| DDO144 | Digital Output Module, 24VDC |
| F3KX00-0N | Field Termination Assembly |
Popular Yokogawa Modules
| Model Number | Description |
|---|---|
| AAI143 | Analog Input Module, 4-20mA |
| ADO143 | Analog Output Module, 4-20mA |
| DDI144 | Digital Input Module, 24VDC |
| DDO144 | Digital Output Module, 24VDC |
| F3PS01-0N | Power Supply Module |
| F3CT04-0N | Temperature Control/Monitoring Module |
