Product Introduction

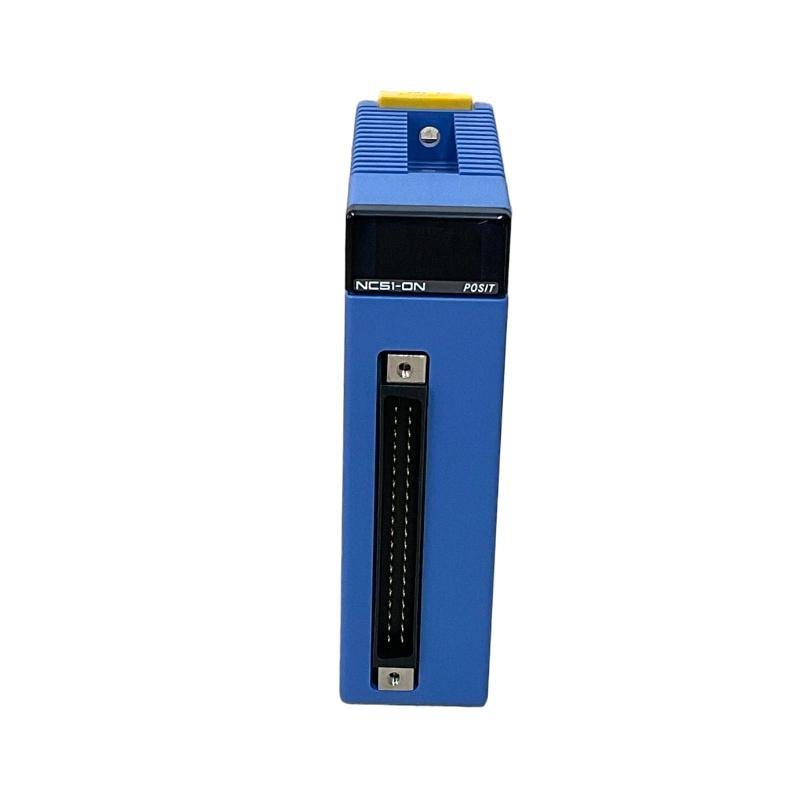

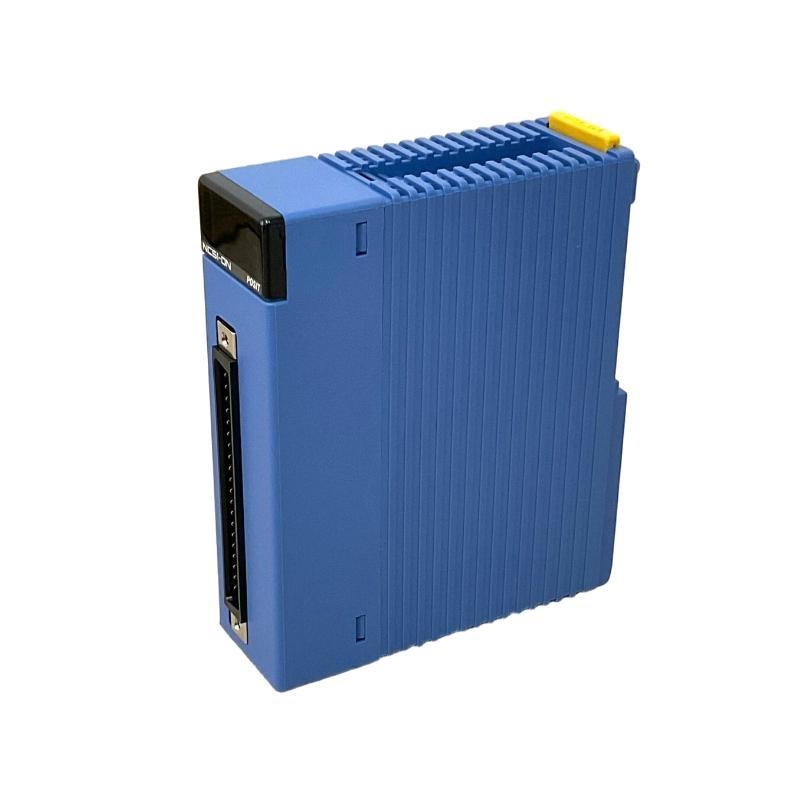

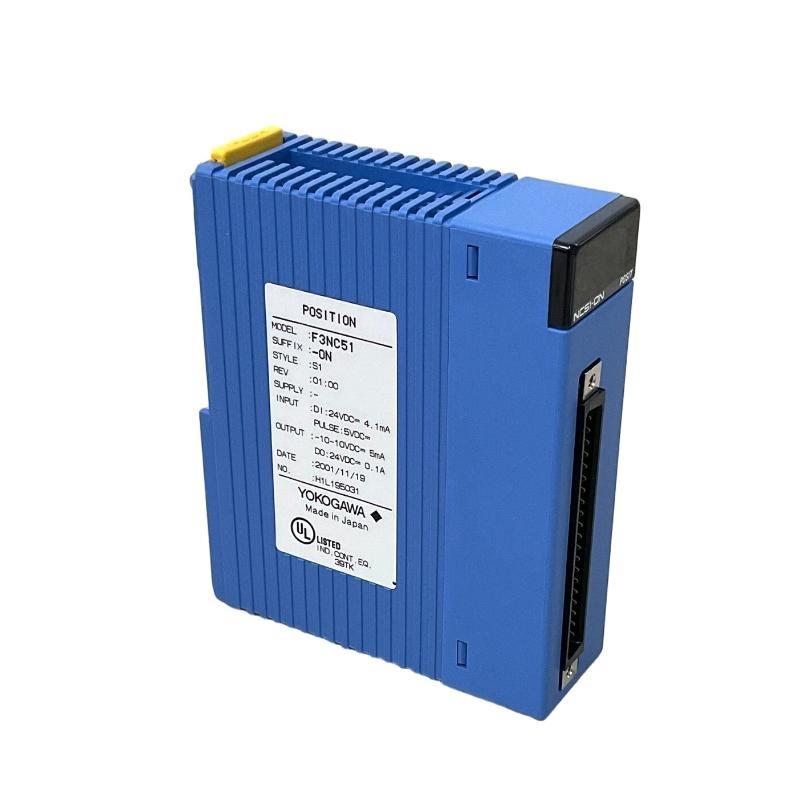

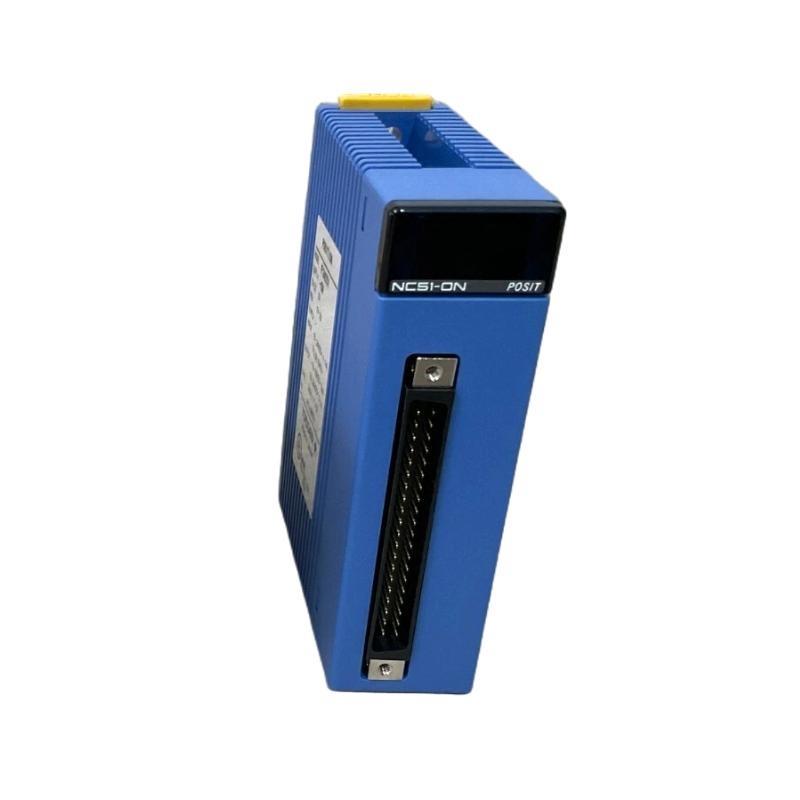

The Yokogawa F3NC51-0N Positioning Module is a high-performance motion control unit developed for precision automation applications. As part of the Yokogawa FA-M3 series, this module delivers exceptional control capabilities for servo and stepper motors, enabling complex and accurate motion sequences within industrial environments.
The F3NC51-0N supports high-speed motion processing, synchronized multi-axis control, and flexible configuration to meet the needs of advanced machinery and production lines. Designed for integration with FA-M3 PLC systems, it combines reliability with advanced diagnostics and configuration tools, making it an ideal choice for applications that demand accuracy, efficiency, and operational stability.
Product Specifications
| Parameter | Details |
|---|---|
| Model | Yokogawa F3NC51-0N |
| Product Type | Positioning Module |
| Control Type | Servo / Stepper Motor Control |
| Number of Control Axes | 4 axes |
| Positioning Method | Absolute / Incremental Encoder Feedback |
| Power Supply Voltage | 24 VDC |
| Current Consumption | Approx. 320 mA |
| Communication Protocol | FA-M3 Dedicated Protocol |
| Response Time | High-speed motion command processing |
| Acceleration/Deceleration Control | Supported |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +75°C |
| Relative Humidity | 10%–90% (non-condensing) |
| Dimensions (H x W x D) | 28.9 x 100 x 83.2 mm |
| Weight | 0.13 kg |
Applications
The F3NC51-0N Positioning Module is designed for advanced motion control applications where precision and reliability are critical. Typical use cases include:
-
CNC Machines: Precise multi-axis control for cutting, milling, and drilling.
-
Robotics: High-accuracy motion control for assembly robots and pick-and-place systems.
-
Packaging Systems: Coordinated motion for high-speed labeling and filling lines.
-
Textile Equipment: Synchronization in weaving and cutting operations.
-
Printing and Converting: Ensuring exact alignment during high-speed printing processes.
-
Semiconductor and Electronics Manufacturing: Ultra-precise control in automated assembly lines.
Product Advantages
-
Advanced Multi-Axis Control: Capable of controlling up to four axes simultaneously.
-
High-Speed Operation: Optimized for rapid motion command execution with minimal latency.
-
Enhanced Precision: Supports absolute and incremental positioning for diverse application needs.
-
Smooth Motion Profiles: Configurable acceleration and deceleration curves for improved machine stability.
-
Fault Detection and Diagnostics: Built-in error detection for encoder failures, motor overload, and communication issues.
-
Modular Design: Easy integration into Yokogawa FA-M3 PLC systems for scalable automation solutions.
-
Compact and Durable: Space-saving structure with robust industrial-grade construction.
FAQ
-
What types of motors are supported by F3NC51-0N?
The module supports both servo and stepper motors with compatible drivers. -
How many control axes can this module manage?
It supports up to four independent motion axes. -
Does the module allow synchronized motion across axes?
Yes, it supports axis synchronization for coordinated movement. -
Is absolute positioning supported?
Yes, the module works with both absolute and incremental encoders. -
What is the communication method for data exchange?
It uses Yokogawa’s FA-M3 dedicated communication protocol for high-speed data transfer. -
Can acceleration and deceleration profiles be customized?
Yes, the module allows full configuration of acceleration and deceleration rates. -
Does the F3NC51-0N provide diagnostic features?
Yes, it includes comprehensive diagnostics for motor and encoder feedback errors. -
What is the typical response time for motion commands?
The module is designed for high-speed response suitable for real-time applications. -
Is there a configuration tool available for this module?
Yes, it can be configured using Yokogawa’s FA-M3 programming environment. -
Can the module be used with PLC logic for complex sequences?
Yes, it integrates seamlessly with FA-M3 PLC systems for advanced control logic.
