Product Introduction

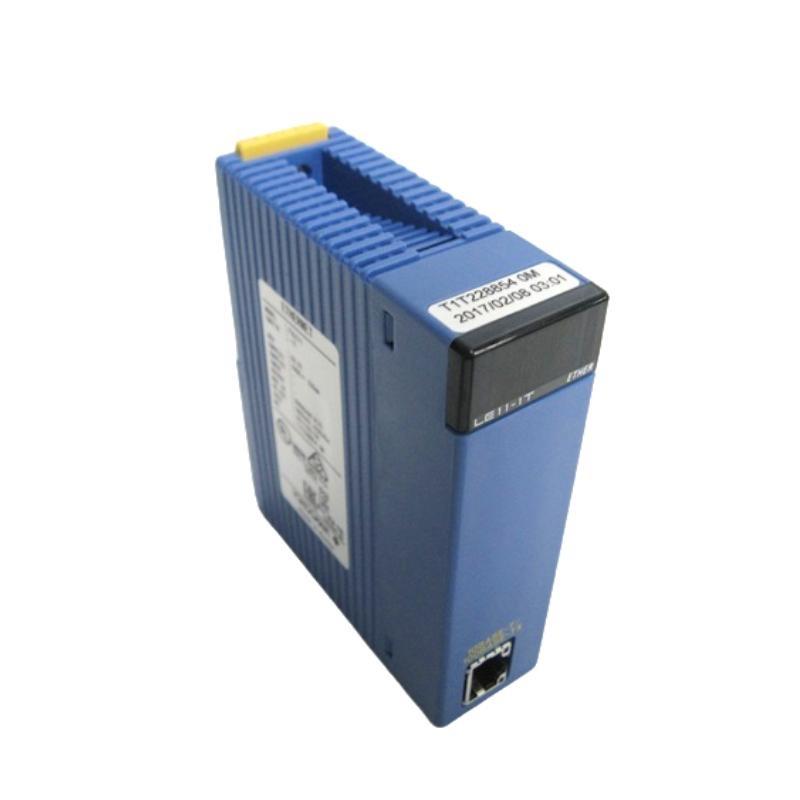

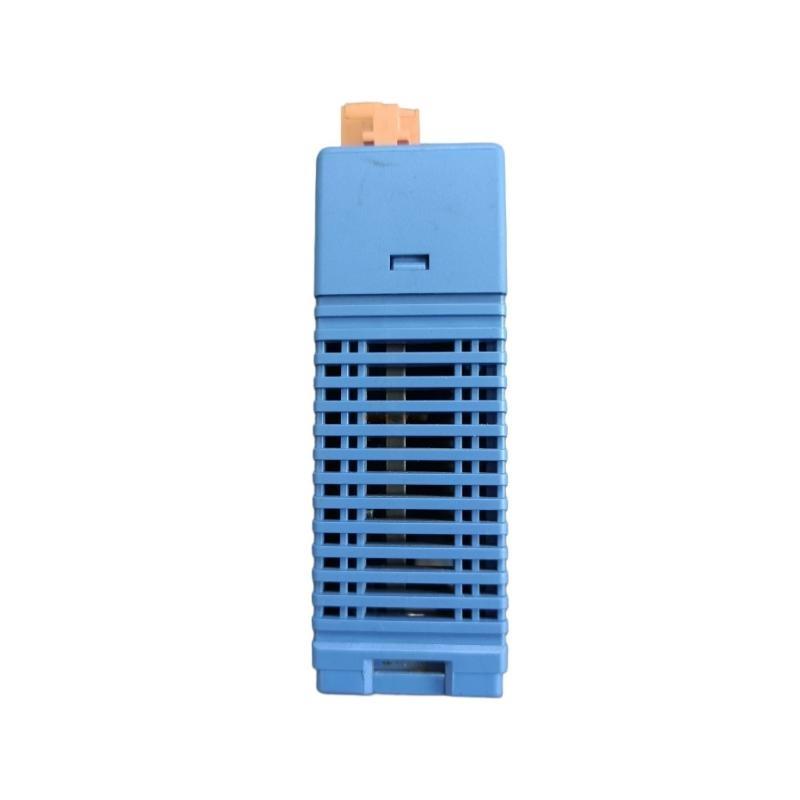

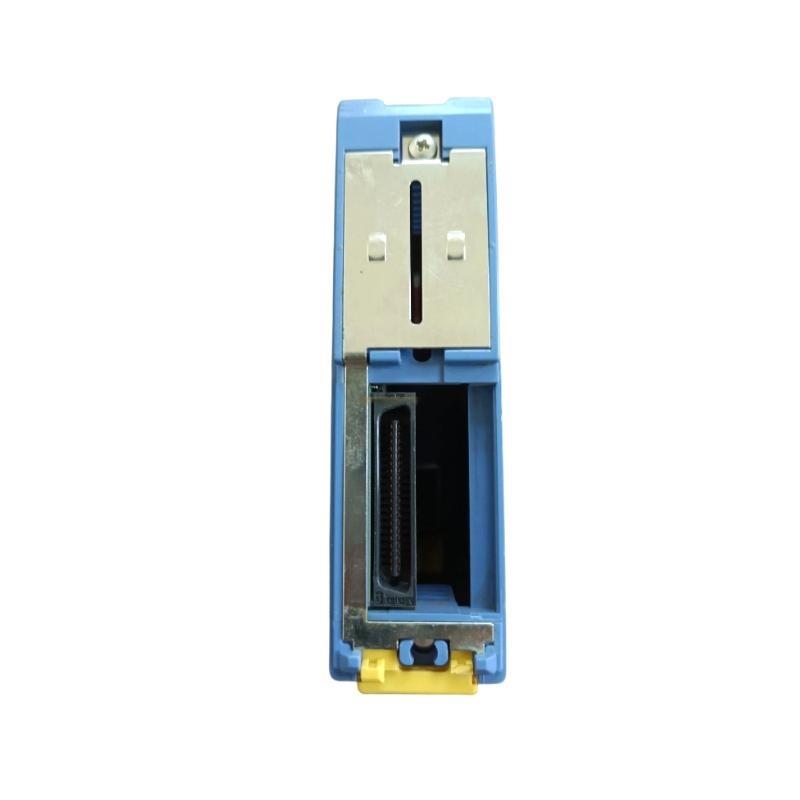

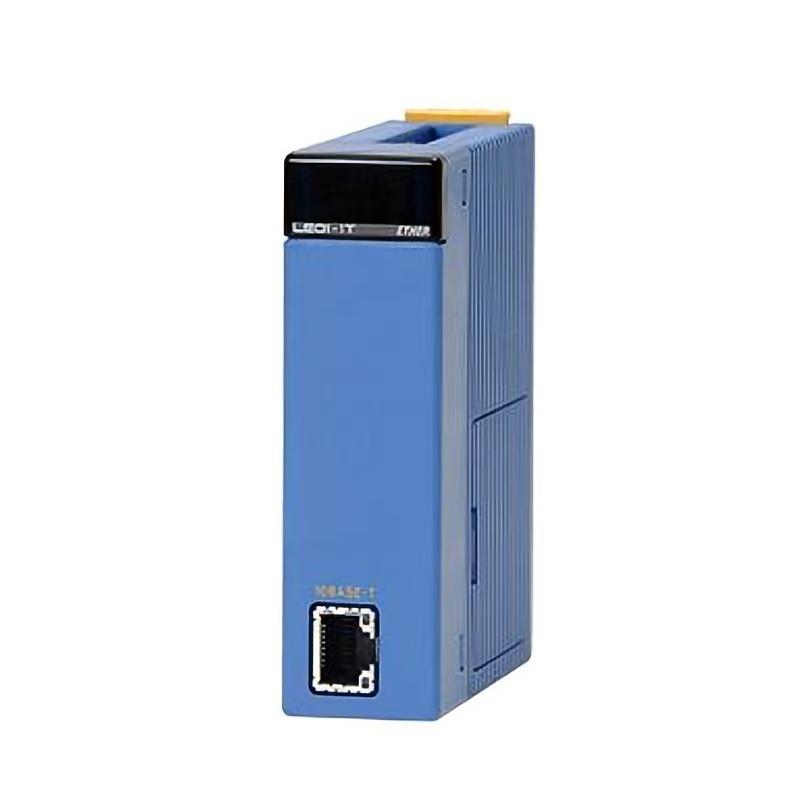

The Yokogawa F3LE12-1T Ethernet Interface Module is an advanced communication module designed to provide robust and high-speed Ethernet connectivity for Yokogawa’s FA-M3 PLC systems. It ensures seamless data transmission between control systems, SCADA, and higher-level enterprise networks. Featuring industry-standard Ethernet protocols and reliable integration capabilities, this module is built for critical process automation environments that demand stability and high availability.
The F3LE12-1T supports Ethernet TCP/IP communication, enabling remote diagnostics, programming, and real-time data exchange. It plays a vital role in ensuring interoperability between devices within distributed control systems, reducing downtime, and improving system scalability.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | F3LE12-1T |
| Function | Ethernet Interface for FA-M3 PLC |
| Supported Protocols | TCP/IP, UDP, Modbus/TCP |
| Number of Ports | 1 Ethernet Port (RJ-45) |
| Communication Speed | 10/100 Mbps (Auto Negotiation) |
| Bus Interface | FA-M3 System Bus |
| Power Supply Voltage | 5V DC (from PLC backplane) |
| Power Consumption | Approx. 4.5W |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 75°C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Isolation | Ethernet Port to Internal Circuit Isolation |
| Dimensions (W × H × D) | 28.98 x 100 x 83.2 mm |
| Weight | 0.1 kg |
| Mounting | DIN Rail or Panel Mount |
| Status Indicators | LINK, ACT, POWER LEDs |
Applications
The Yokogawa F3LE12-1T Ethernet Interface Module is widely used in industrial automation systems, enabling seamless communication between PLCs, operator stations, and supervisory systems. Its main applications include:
-
Process Control Systems in oil & gas, petrochemicals, and power generation.
-
Manufacturing Plants requiring high-speed Ethernet-based control networks.
-
Remote Monitoring and Diagnostics for distributed systems.
-
Data Integration with SCADA, MES, and ERP systems for real-time performance monitoring.
-
Industrial IoT Connectivity for smart factories and digitalization initiatives.
Product Advantages
-
High-Speed Communication: Supports fast and stable Ethernet connectivity for real-time operations.
-
Reliable Integration: Seamlessly integrates with Yokogawa FA-M3 PLCs and other network devices.
-
Enhanced Diagnostics: Built-in status indicators simplify troubleshooting and maintenance.
-
Flexible Protocol Support: Compatible with multiple Ethernet protocols like TCP/IP and Modbus/TCP.
-
Compact Design: Saves space in control cabinets while providing robust functionality.
-
Energy Efficient: Low power consumption with high reliability in harsh industrial environments.
FAQ
1. What Ethernet protocols does the F3LE12-1T support?
It supports TCP/IP, UDP, and Modbus/TCP protocols for seamless communication with industrial networks.
2. Can the F3LE12-1T be used for remote PLC programming?
Yes, it enables remote programming and diagnostics of FA-M3 PLC systems through Ethernet.
3. How many Ethernet ports are available on this module?
The module comes with one standard RJ-45 Ethernet port.
4. What is the maximum communication speed supported?
The module supports 10/100 Mbps auto-negotiation for flexible network integration.
5. Does it provide network isolation for enhanced security?
Yes, the Ethernet port is isolated from the internal circuit to ensure system safety.
6. What diagnostic features are included in the module?
It includes LED indicators for LINK, ACT, and POWER for easy troubleshooting.
7. Can this module be used with Modbus/TCP networks?
Yes, Modbus/TCP protocol is fully supported for interoperability with third-party systems.
8. Is it possible to connect this module to SCADA systems?
Yes, it is designed for integration with SCADA, DCS, and enterprise-level systems.
9. What is the typical power consumption of this module?
The typical power consumption is approximately 4.5W.
10. Does the F3LE12-1T support redundant Ethernet connections?
No, the module provides a single Ethernet interface and does not support native redundancy.
