Product Overview

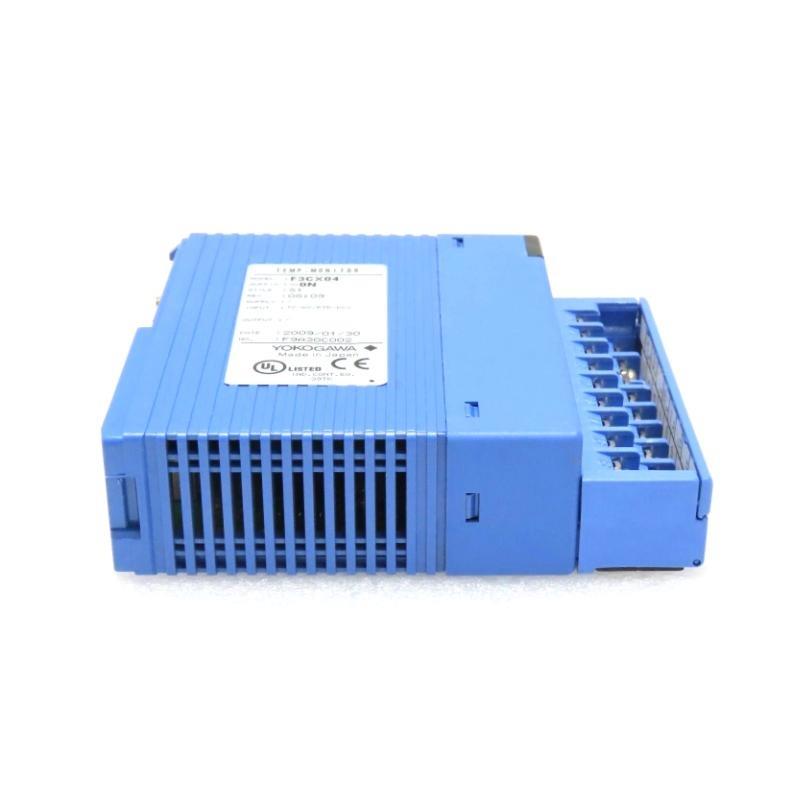

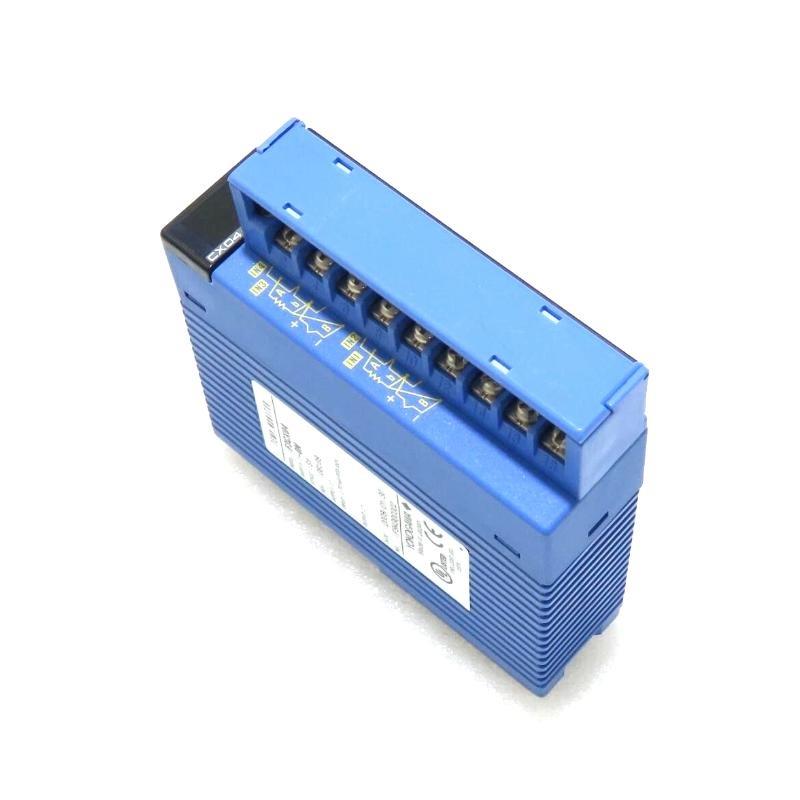

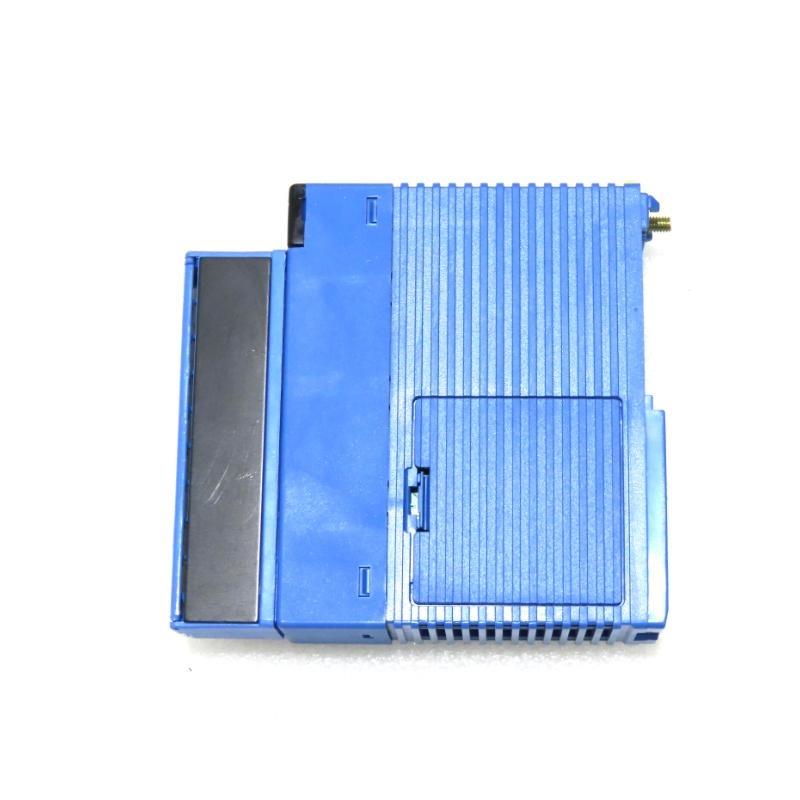

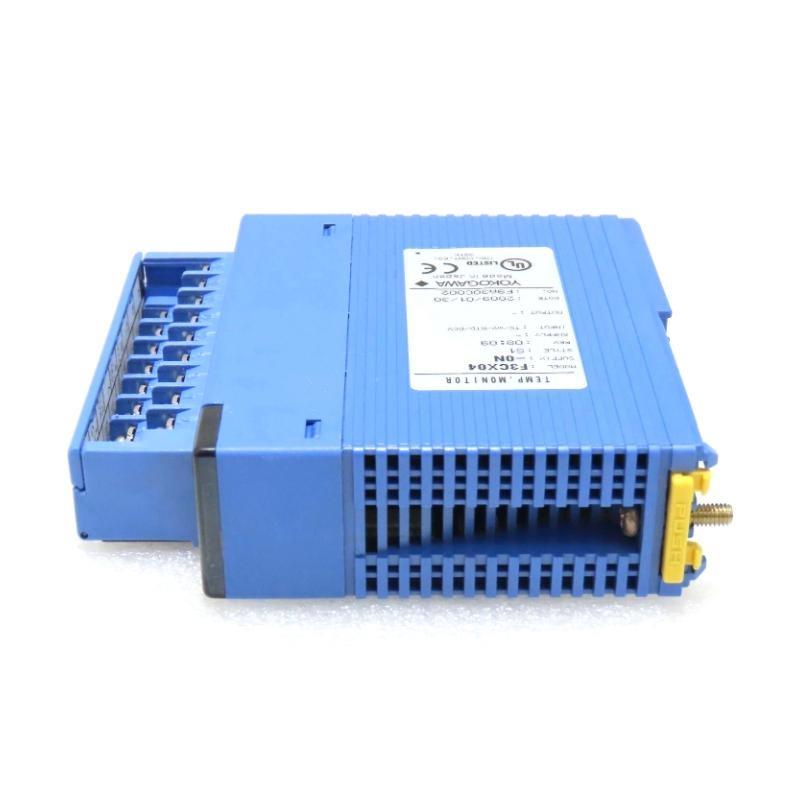

The Yokogawa F3CX04-0N Temperature Monitoring Module is a high-precision industrial module designed for temperature monitoring in automation systems. It supports multiple sensor types, providing reliable temperature data for process control and safety management. Its compact design ensures seamless integration with Yokogawa FA-M3 series PLCs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 4 channels |
| Supported Sensors | Thermocouples (various types), RTDs |
| Measurement Range | -200°C to 850°C (depending on sensor type) |
| Accuracy | ±0.1% of full scale |
| Resolution | 0.1°C |
| Alarm Functions | High/Low temperature alarms |
| Data Backup | Yes, preserves configuration on power loss |
| Mounting | Single FA-M3 base slot |
| Dimensions | 28.9 × 100 × 106.1 mm |
| Weight | 0.2 kg |
Applications
-
Industrial process control requiring precise temperature measurement
-
Safety monitoring in chemical, pharmaceutical, and energy sectors
-
Integration with FA-M3 PLC systems for automated control
-
Thermal management in production lines
Advantages
-
High accuracy and resolution for precise temperature monitoring
-
Supports multiple sensor types for flexible installation
-
Built-in alarm functions for immediate fault detection
-
Data backup ensures system configuration reliability
-
Compact and easy to integrate into existing PLC systems
FAQ
1. What sensor types are compatible with the F3CX04-0N?
Thermocouples of various types (K, J, T, etc.) and RTDs are supported.
2. How many input channels does the module have?
It provides four independent input channels.
3. What is the measurement range?
It ranges from -200°C to 850°C, depending on the sensor type.
4. Does it provide alarm functions?
Yes, it has configurable high and low temperature alarms.
5. How accurate is the temperature measurement?
The module offers ±0.1% full-scale accuracy.
6. Can it retain settings during a power failure?
Yes, the module features data backup to preserve configurations.
7. What is the module’s size and weight?
Dimensions are 28.9 × 100 × 106.1 mm and it weighs 0.2 kg.
8. Can it be mounted on a standard FA-M3 PLC rack?
Yes, it occupies a single slot in the FA-M3 base.
9. Is it suitable for chemical plant applications?
Yes, it is designed for industrial environments including chemical and pharmaceutical sectors.
10. Can multiple modules be used together?
Yes, multiple F3CX04-0N modules can be integrated for larger systems.
Related and Recommended Models
| Model | Description | Channels | Sensor Types | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| F3CX01-0N | 2-channel temperature module | 2 | Thermocouple, RTD | 28.9 × 100 × 106.1 | 0.2 |
| F3CX02-0N | 4-channel temperature module | 4 | Thermocouple, RTD | 28.9 × 100 × 106.1 | 0.2 |
| F3CX03-0N | 8-channel temperature module | 8 | Thermocouple, RTD | 28.9 × 100 × 106.1 | 0.3 |
| F3CX05-0N | Temperature module with extended range | 4 | Thermocouple, RTD | 28.9 × 100 × 106.1 | 0.2 |
| F3CX06-0N | High-accuracy 4-channel module | 4 | Thermocouple, RTD | 28.9 × 100 × 106.1 | 0.2 |
| F3CX07-0N | Alarm-oriented temperature module | 4 | Thermocouple, RTD | 28.9 × 100 × 106.1 | 0.2 |
Popular Yokogawa Models
| Model | Description | Channels | Sensor Types | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| F3AX02-0N | Analog input module | 8 | Voltage, Current | 28.9 × 100 × 106.1 | 0.25 |
| F3DX04-0N | Digital I/O module | 16 | Digital | 28.9 × 100 × 106.1 | 0.3 |
| F3TX01-0N | Thermocouple module | 4 | Thermocouple | 28.9 × 100 × 106.1 | 0.2 |
| F3CX08-0N | Temperature & humidity module | 4 | RTD, Humidity | 28.9 × 100 × 106.1 | 0.2 |
| F3EX02-0N | Expansion module | 2 | Digital/Analog | 28.9 × 100 × 106.1 | 0.25 |
| F3HX03-0N | High-speed input module | 4 | Pulse, Digital | 28.9 × 100 × 106.1 | 0.25 |
