Product Overview

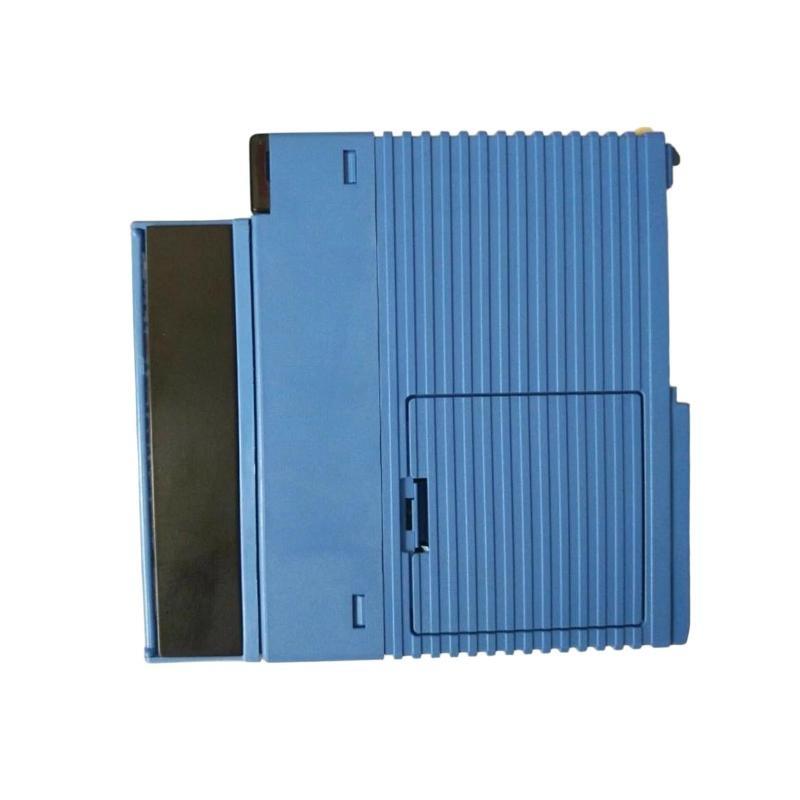

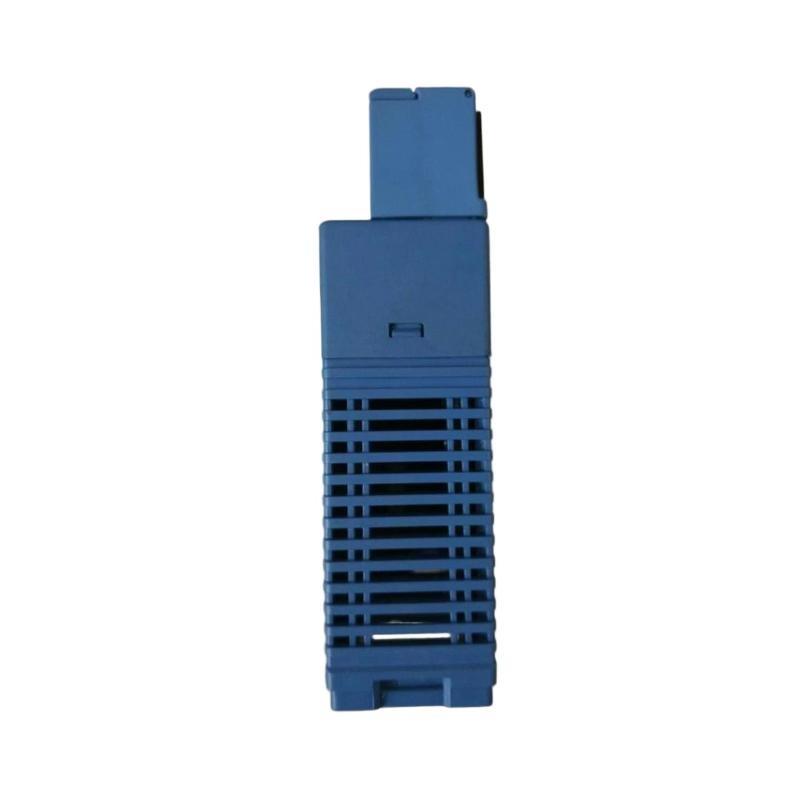

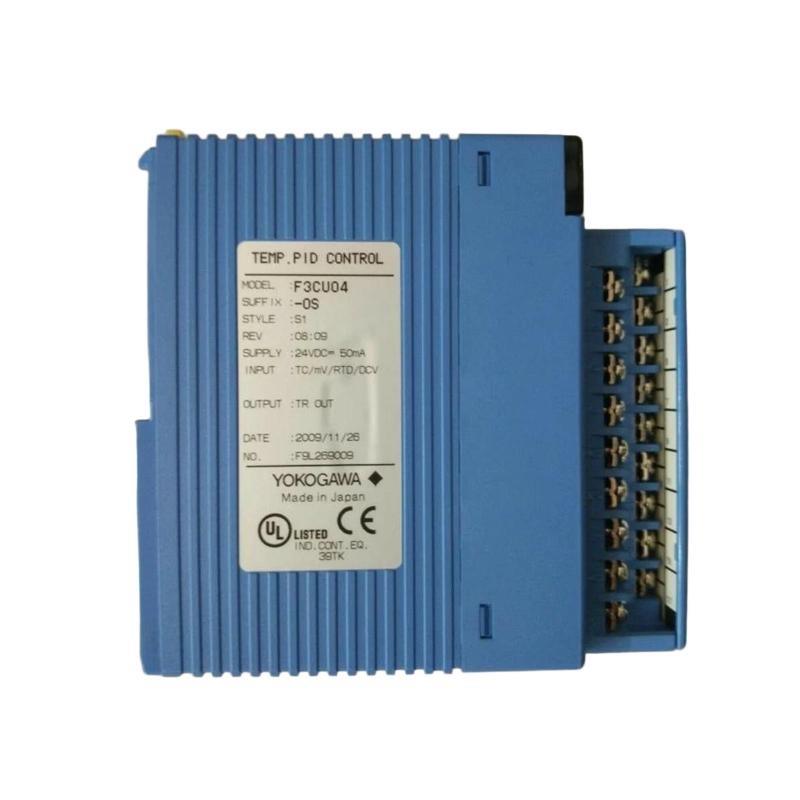

The Yokogawa F3CU04-0S Temperature Monitoring Module is a highly reliable module designed for temperature monitoring in industrial automation systems. It is part of the Yokogawa F3 Series and is equipped to monitor temperature readings from various types of temperature sensors, including RTDs and thermocouples. The module provides real-time data acquisition, enabling accurate monitoring of temperature in critical equipment, ensuring optimal performance and safety.
Key Features
-
Wide Sensor Compatibility – Supports RTDs, thermocouples, and other temperature sensors.
-
Real-time Monitoring – Provides continuous, high-precision temperature data for process control and safety.
-
High Accuracy – ±0.1% of reading accuracy for precise temperature measurement.
-
Multiple Input Channels – Supports multiple temperature inputs for monitoring various points in a system.
-
Simple Integration – Easily integrates into Yokogawa F3 Series systems.
-
Compact Design – Suitable for space-constrained installations with simple DIN rail mounting.
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | F3CU04-0S |
| Module Type | Temperature Monitoring Module |
| System Compatibility | Yokogawa F3 Series |
| Supported Sensors | RTD, Thermocouple |
| Input Type | Multiple input channels |
| Temperature Range | -200 °C to 1800 °C (depending on sensor type) |
| Accuracy | ±0.1% of reading |
| Output Type | Analog or Digital (depending on configuration) |
| Communication Bus | System bus for inter-module communication |
| Mounting | DIN rail mounting |
| Dimensions | 28.9 × 100 ×106.1 mm |
| Weight | 0.2 kg |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH, non-condensing |
Industry Applications
-
Industrial Automation – Continuous temperature monitoring in process systems.
-
Power Generation – Monitoring critical temperature points in turbines, reactors, and boilers.
-
Oil & Gas – Monitoring temperatures in drilling, refining, and production systems.
-
Chemical & Petrochemical – Ensures temperature control and monitoring in chemical processes.
-
Food & Beverage – Accurate temperature tracking in food processing and packaging systems.
Advantages
-
Real-time Monitoring – Provides high-speed, accurate temperature data for critical operations.
-
Versatile Sensor Support – Compatible with various types of temperature sensors for different applications.
-
Simple Integration – Easily integrates with Yokogawa F3 Series systems for streamlined operation.
-
High Accuracy – ±0.1% accuracy ensures precise temperature measurement.
-
Compact and Durable – Space-efficient design with durable construction suitable for industrial use.
Frequently Asked Questions (FAQ)
Q1: What types of sensors are supported by the F3CU04-0S module?
It supports RTDs, thermocouples, and other temperature sensors for monitoring.
Q2: What is the temperature measurement range of the module?
The range is from -200 °C to 1800 °C, depending on the sensor type.
Q3: How many input channels can the module handle?
It supports multiple input channels, allowing monitoring of various temperature points.
Q4: What is the accuracy of the temperature measurement?
The module offers ±0.1% of reading accuracy for precise measurements.
Q5: How is the F3CU04-0S module mounted?
It can be mounted on a DIN rail for easy integration into control panels.
Q6: What is the weight of the module?
The module weighs approximately 0.2 kg.
Q7: What is the operating temperature range for this module?
The operating temperature range is from 0 °C to 60 °C.
Q8: Is the F3CU04-0S module suitable for use in the food processing industry?
Yes, it is suitable for temperature monitoring in food processing, packaging, and related applications.
Q9: How does the module communicate with other components in the system?
It uses a system bus for inter-module communication, allowing seamless data exchange.
Q10: Can I use this module in hazardous environments?
While the module is designed for industrial environments, specific installation and safety standards should be followed for hazardous locations.
