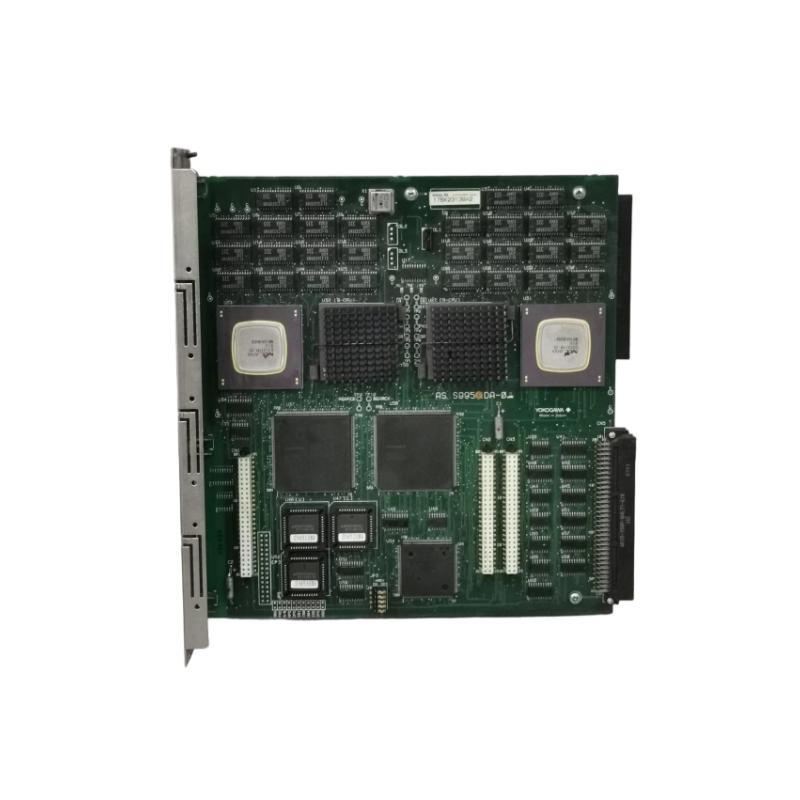

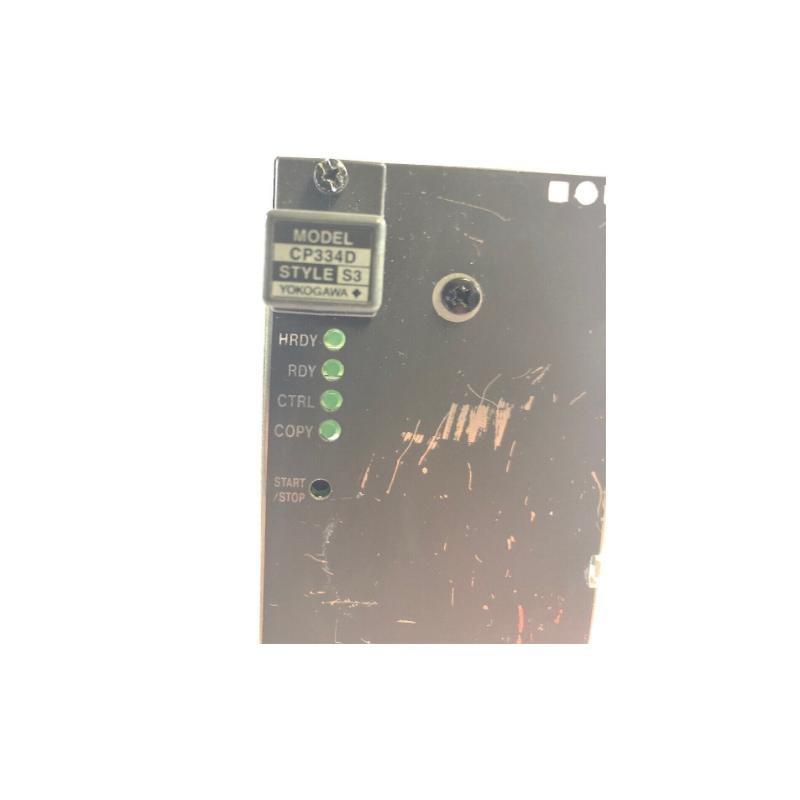

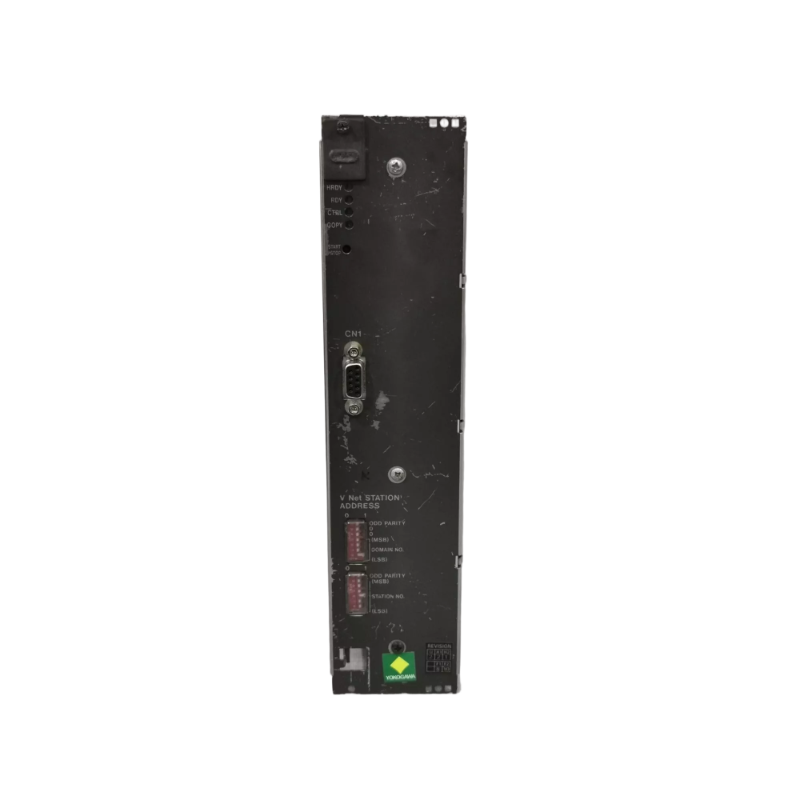

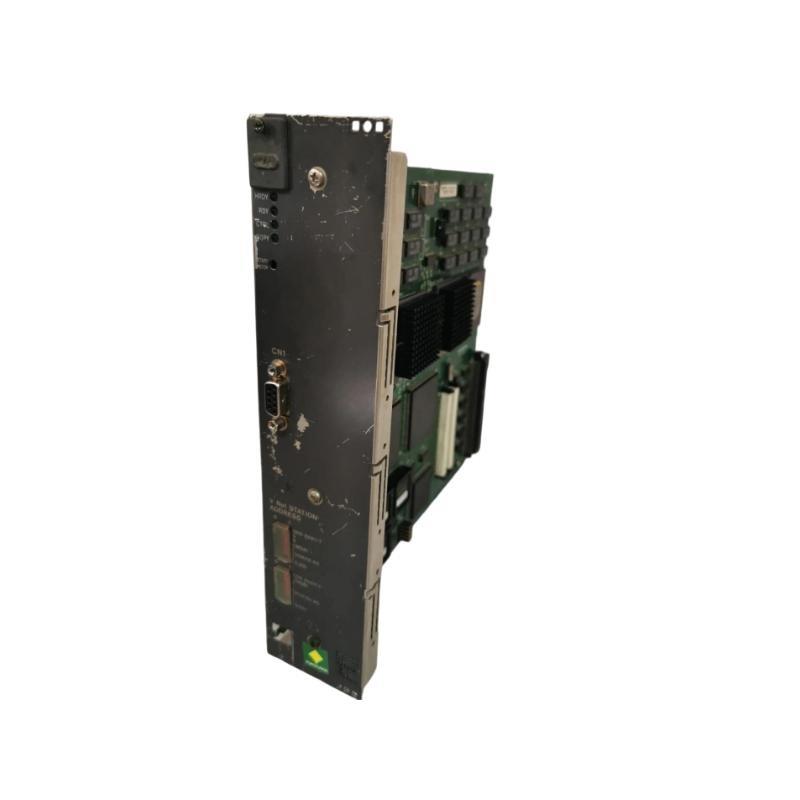

Yokogawa CP334D S3 Product Overview
The Yokogawa CP334D S3 is a high-performance signal conditioner designed for industrial automation and process control applications. It provides precise signal conversion, isolation, and transmission, ensuring reliable operation in harsh environments. This product is part of Yokogawa’s extensive lineup of signal conditioning solutions, known for their durability, accuracy, and advanced features.
Product Parameters
| Parameter | Specification |
|---|---|
| Input Signal | DC Voltage, DC Current, Thermocouple, RTD, etc. |
| Output Signal | 4-20 mA, 1-5 V, etc. |
| Isolation | Input/Output/Power: 1500 V AC |
| Accuracy | ±0.1% of span |
| Operating Temperature | -20°C to +60°C |
| Power Supply | 24 V DC (10.8-32 V DC range) |
| Dimensions | 150 x 100 x 35 mm |
| Weight | 0.5 kg |
| Mounting | DIN rail mounting |
| Certifications | CE, UL, CSA, IECEx, ATEX |
Product Applications
The CP334D S3 is widely used in industries requiring precise signal conditioning and isolation, including:
-
Oil & Gas: For monitoring pressure, temperature, and flow signals in hazardous areas.
-
Chemical Processing: Ensures accurate signal transmission in corrosive environments.
-
Power Generation: Used in control systems for turbines and boilers.
-
Water Treatment: Facilitates reliable signal conversion for pH, level, and flow sensors.
-
Manufacturing: Integrates with PLCs and DCS for automation control.
Product Advantages
-
High Accuracy: ±0.1% accuracy ensures precise signal conversion.
-
Robust Isolation: 1500 V AC isolation protects against noise and ground loops.
-
Wide Compatibility: Supports multiple input/output signal types.
-
Durable Design: Operates in extreme temperatures and harsh conditions.
-
Easy Installation: DIN rail mounting simplifies setup.
-
Global Certifications: Complies with international safety standards (CE, UL, ATEX, etc.).
Frequently Asked Questions (FAQ)
-
What input signals does the CP334D S3 support?
It supports DC voltage, DC current, thermocouples, RTDs, and other analog signals. -
Is the CP334D S3 suitable for hazardous areas?
Yes, it is certified for use in hazardous locations (IECEx, ATEX). -
What is the operating temperature range?
It operates from -20°C to +60°C. -
Can the CP334D S3 be mounted on a DIN rail?
Yes, it is designed for DIN rail mounting. -
What is the isolation voltage?
1500 V AC between input, output, and power supply. -
Does it require external power?
Yes, it operates on 24 V DC (10.8-32 V DC range). -
What certifications does it have?
CE, UL, CSA, IECEx, and ATEX. -
What is the weight of the CP334D S3?
Approximately 200 grams. -
Can it be used with PLCs?
Yes, it is compatible with PLCs and DCS systems. -
What is the typical accuracy?
±0.1% of span.
Recommended Related Models
| Model | Description |
|---|---|
| CP334D S1 | Basic signal conditioner, lower cost |
| CP334D S2 | Enhanced accuracy, mid-range option |
| CP334D S4 | Advanced features, higher isolation |
| CP341 | Multi-channel signal conditioner |
| CP451 | High-density signal converter |
| CP401 | Compact design for space-limited setups |
