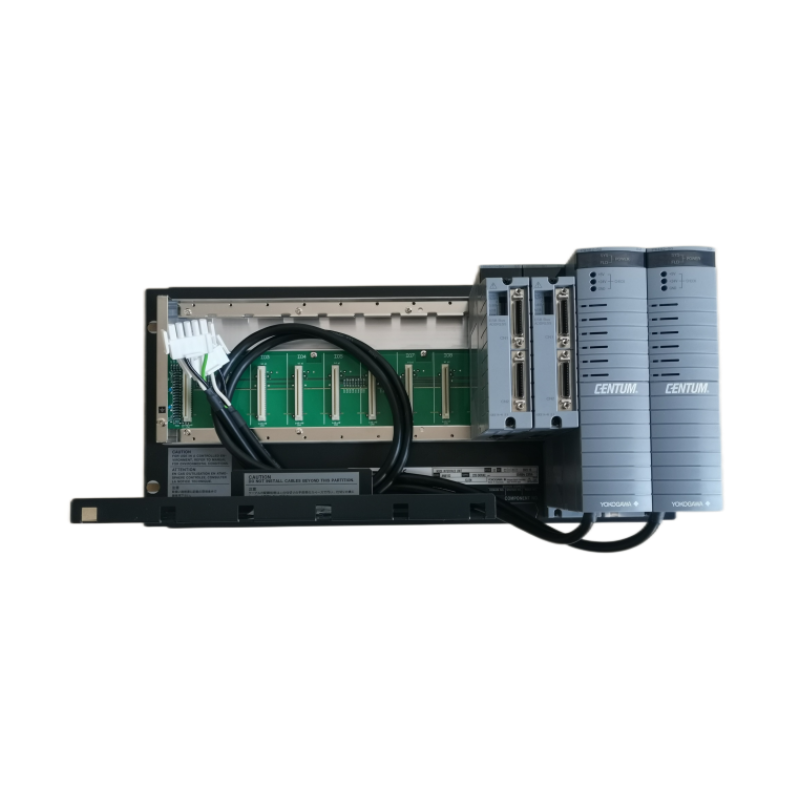

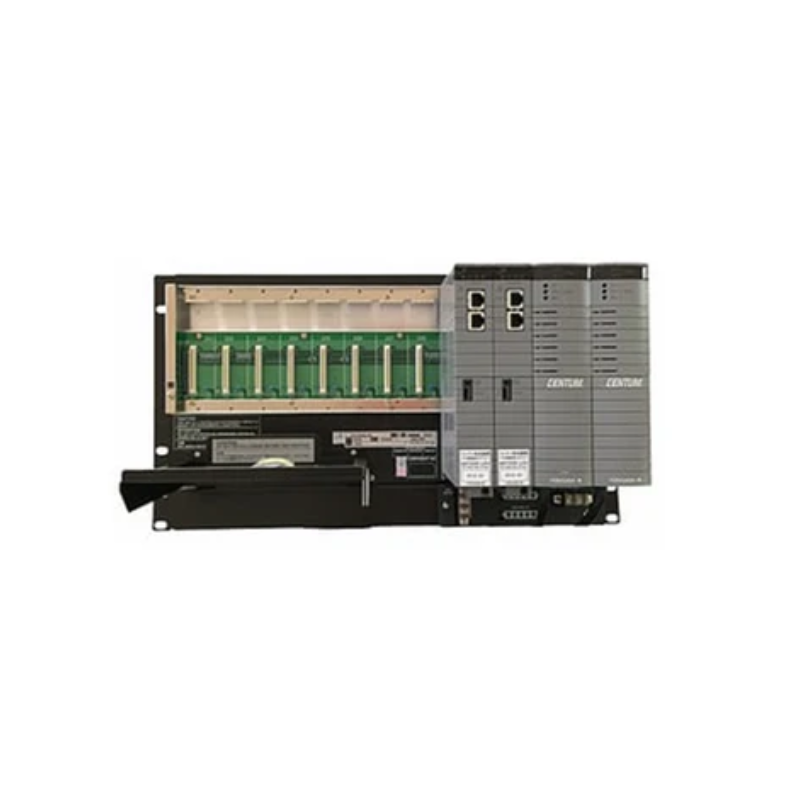

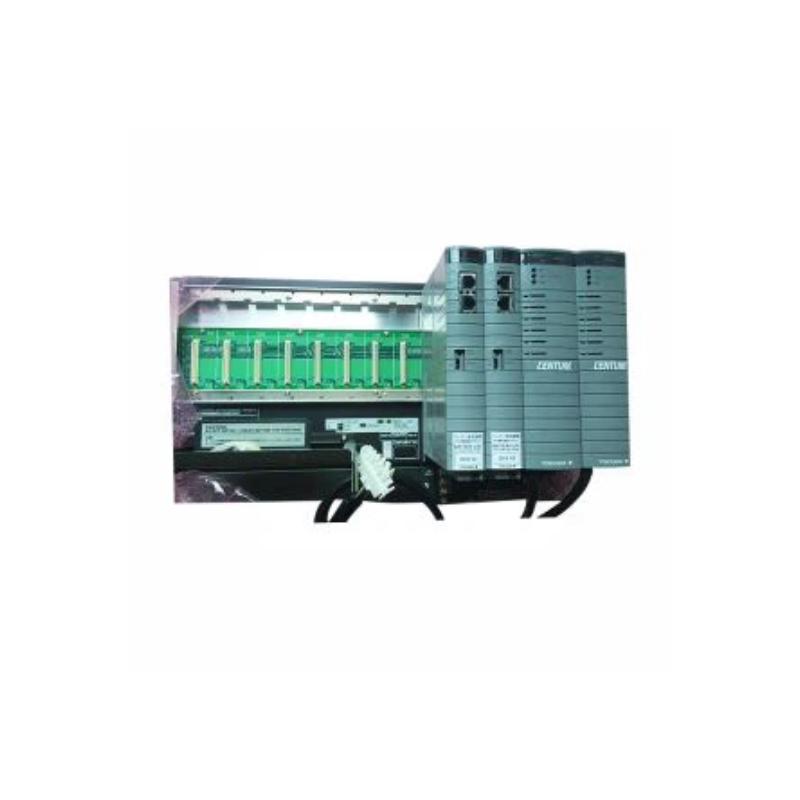

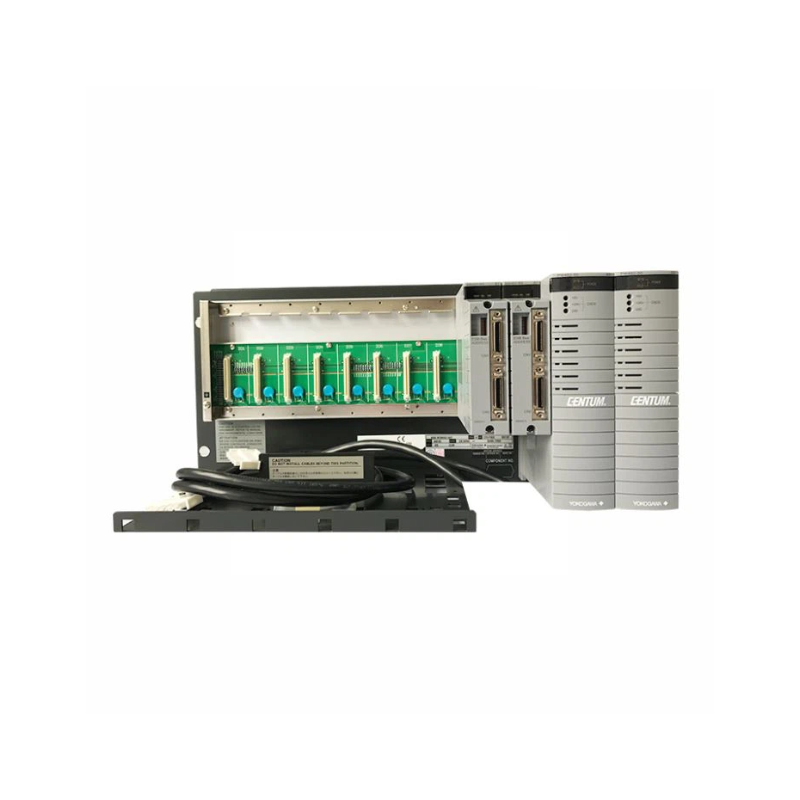

Yokogawa ANB10S Product Overview
The Yokogawa ANB10S is a high-performance signal conditioner designed for industrial automation and process control applications. It provides precise signal conversion, isolation, and amplification, ensuring reliable data transmission in harsh environments. The ANB10S is widely used in industries such as oil & gas, chemical, power generation, and water treatment.
Product Parameters
| Parameter | Specification |
|---|---|
| Input Signal | Analog voltage/current, thermocouple, RTD, etc. |
| Output Signal | 4-20 mA, 0-10 V, etc. |
| Isolation | Channel-to-channel, input-to-output |
| Accuracy | ±0.1% of span |
| Power Supply | 24 VDC (±10%) |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg |
| Protection Rating | IP20 |
| Certifications | CE, UL, ATEX (optional) |
Product Applications
The ANB10S is ideal for:
-
Process Control Systems: Converts and isolates signals for PLCs and DCS.
-
HVAC Systems: Ensures accurate temperature and pressure monitoring.
-
Power Plants: Isolates signals to prevent noise interference.
-
Oil & Gas: Operates reliably in hazardous environments.
-
Water Treatment: Monitors flow, pH, and other critical parameters.
Product Advantages
-
High Accuracy: ±0.1% accuracy ensures precise signal conditioning.
-
Robust Isolation: Prevents ground loops and electrical noise.
-
Compact Design: Saves space in control panels.
-
Wide Compatibility: Supports multiple input/output signals.
-
Durability: Built to withstand harsh industrial environments.
Frequently Asked Questions (FAQ)
-
What signals can the ANB10S handle?
It supports analog voltage/current, thermocouples, RTDs, and more. -
Is the ANB10S suitable for hazardous areas?
Yes, it can be configured with ATEX certification for hazardous zones. -
What is the operating temperature range?
-20°C to +60°C. -
How does the isolation feature work?
It separates input/output/channels to prevent interference. -
Can the ANB10S be mounted on a DIN rail?
Yes, it supports DIN rail mounting. -
What is the power supply requirement?
24 VDC (±10%). -
Does it require calibration?
Periodic calibration is recommended for maintaining accuracy. -
What certifications does it have?
CE, UL, and optional ATEX. -
What is the typical response time?
Less than 100 ms for most signals. -
Can it be used in outdoor environments?
Only with proper enclosures due to its IP20 rating.
