Product Introduction

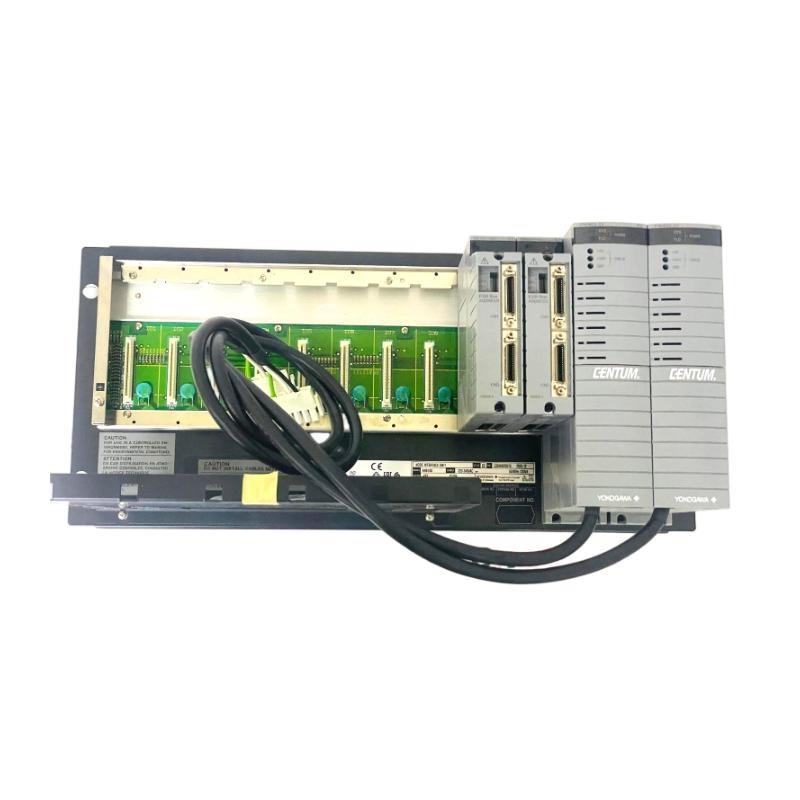

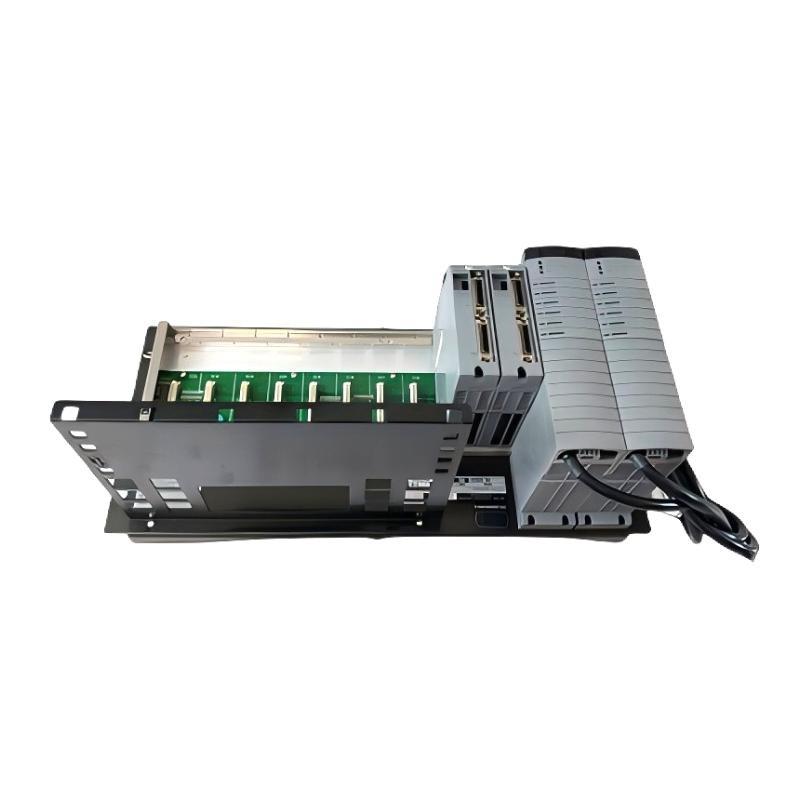

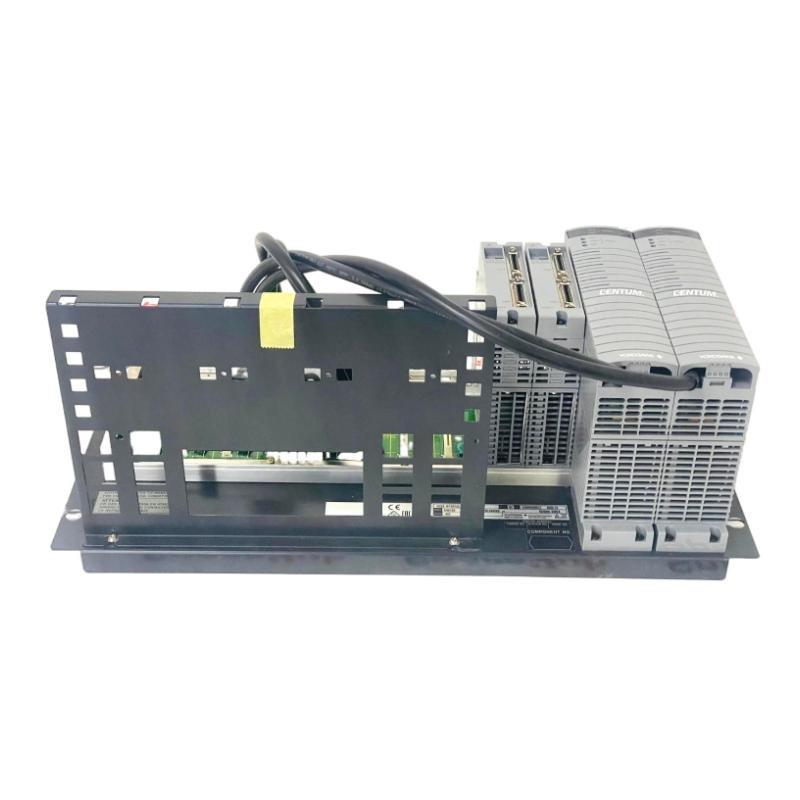

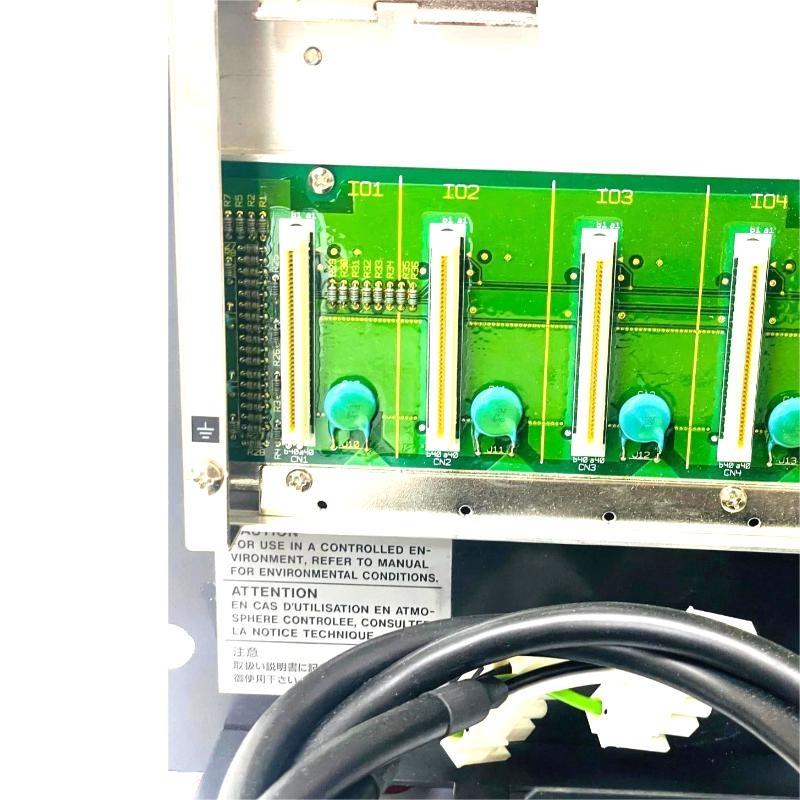

The Yokogawa ANB10D-427/CU2N is a high-performance ESB (Ethernet Service Bus) bus node unit designed to facilitate seamless communication in industrial automation systems. It plays a pivotal role in connecting various field devices, sensors, and control systems via an Ethernet-based communication network, ensuring that the entire system operates efficiently and reliably.
This unit supports high-speed communication and offers robust features for easy integration into large-scale automation networks. It is specifically designed to meet the needs of complex control systems, providing real-time data transfer, superior signal processing, and flexible configuration options. Whether used in process control, manufacturing automation, or remote monitoring applications, the ANB10D-427/CU2N ensures optimal performance under demanding industrial conditions.
With its compact design and high functionality, the ANB10D-427/CU2N is a reliable choice for applications requiring continuous and uninterrupted communication between devices across various systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg |
| Supported Protocols | Ethernet (ESB) |
| Operating Voltage | 24 VDC ±20% |
| Communication Speed | 100 Mbps |
| Mounting Type | Rack Mount |
| I/O Channels | 16 |
| Environmental Conditions | -20°C to +60°C |
| Power Consumption | 10 W |
| Connector Type | RJ45 (Ethernet) |
Product Applications
The ANB10D-427/CU2N ESB Bus Node Unit is widely used across various industries that rely on Ethernet-based communication networks for industrial control, automation, and monitoring. Some of its key applications include:
-
Industrial Automation: Connects multiple devices such as PLCs, sensors, and actuators, enabling seamless communication for process control and automation.
-
Process Control Systems: Ensures real-time data exchange and management between control systems and field devices, making it ideal for large-scale process monitoring and control.
-
Data Acquisition: Facilitates the collection and transmission of data from field devices to central systems for further analysis and reporting in real-time.
-
Distributed Control Systems (DCS): Integrates with DCS to provide efficient communication between remote devices and central control systems for synchronized data processing.
-
Remote Monitoring and Control: Enables the connection of remote sensors and actuators, making it suitable for applications requiring real-time monitoring and adjustments over long distances.
Product Advantages
-
High-Speed Ethernet Communication: The unit supports 100 Mbps Ethernet communication, ensuring fast and efficient data transfer and minimizing communication delays.
-
Scalability: With support for 16 I/O channels, the ANB10D-427/CU2N can handle a wide range of field devices, allowing for future expansion and scalability of your automation systems.
-
Compact and Robust Design: Despite its compact size (482.6 × 221.5 × 205 mm), the unit is built to withstand harsh industrial environments, with a temperature range of -20°C to +60°C.
-
Easy Integration: Compatible with other Yokogawa products and systems, the unit simplifies integration into existing control and monitoring systems, reducing setup complexity.
-
Energy-Efficient: With a low power consumption of 10 W, the unit provides optimal performance while minimizing energy usage and operational costs.
-
Reliable and Durable: Built to operate continuously in challenging conditions, the unit offers exceptional reliability and longevity, ensuring consistent performance over time.
FAQ
1. What communication protocol does the ANB10D-427/CU2N support?
The ANB10D-427/CU2N supports Ethernet communication using the ESB (Ethernet Service Bus) protocol for efficient and high-speed data transfer.
2. How many I/O channels can the ANB10D-427/CU2N support?
The unit supports 16 I/O channels, providing enough capacity for a wide range of field devices.
3. What is the required power supply for the ANB10D-427/CU2N?
The unit requires a 24 VDC power supply with a tolerance of ±20%.
4. What is the communication speed of the ANB10D-427/CU2N?
The communication speed is 100 Mbps, which allows for fast and reliable data transmission between devices.
5. What is the temperature range in which the ANB10D-427/CU2N operates?
The ANB10D-427/CU2N operates in a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments.
6. How is the ANB10D-427/CU2N mounted?
This unit is designed for rack mounting, making installation straightforward and easy within control panels or server racks.
7. What types of connectors are used with the ANB10D-427/CU2N?
The unit uses RJ45 Ethernet connectors for seamless network communication with other devices.
8. How much power does the ANB10D-427/CU2N consume?
The unit consumes only 10 W of power, ensuring low energy usage while maintaining high performance.
9. Can the ANB10D-427/CU2N be integrated with other Yokogawa systems?
Yes, the unit is fully compatible with other Yokogawa products, enabling easy integration and communication within Yokogawa-based control systems.
10. What is the weight of the ANB10D-427/CU2N unit?
The ANB10D-427/CU2N weighs 10 kg, which is manageable for installation while being robust enough for industrial applications.
Recommended Models in the Same Series/Related Models
| Model Number | Description |
|---|---|
| ANB10D-427/CU1N | ESB Bus Node Unit with Single Protocol |
| ANB10D-425/CU2N | ESB Bus Node Unit |
| ANB10D-428 | Advanced I/O Node for ESB System |
| ANB30D-600 | Multi-Protocol ESB Node Unit |
| ANB10D-400 | Basic ESB Node Unit |
| ANB10D-425/CU3N | ESB Node Unit with Extended I/O |
Popular Yokogawa Models
| Model Number | Description |
|---|---|
| AKB337-M020 | Signal Cable, 20 meters |
| ANB10D-425/CU2 | Signal Cable, 25 meters |
| SSB401-53 S1 | Power Cable, 53 meters |
| AKB337-M025 | Signal Cable, 25 meters |
| ANB10D-425/CU3 | High-Flex Signal Cable, 30 meters |
| SSB401-53 S2 | Power Cable, 60 meters |
