Product Introduction

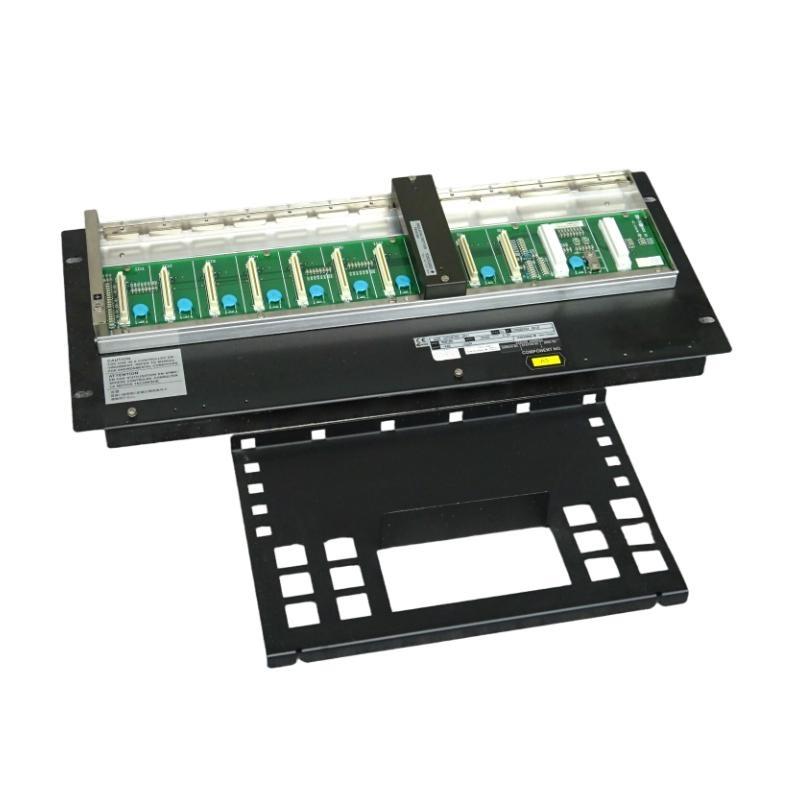

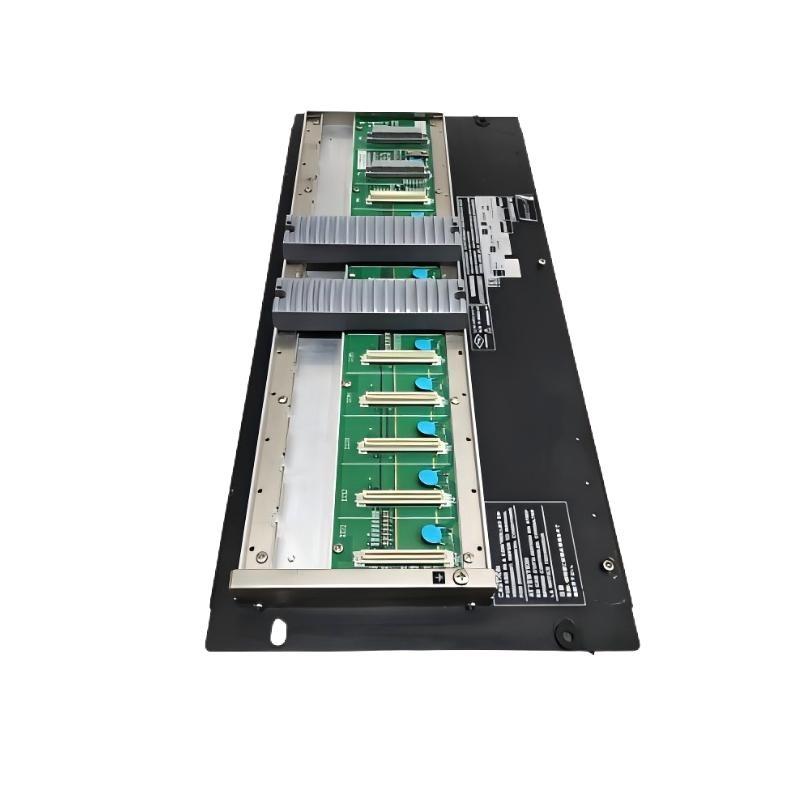

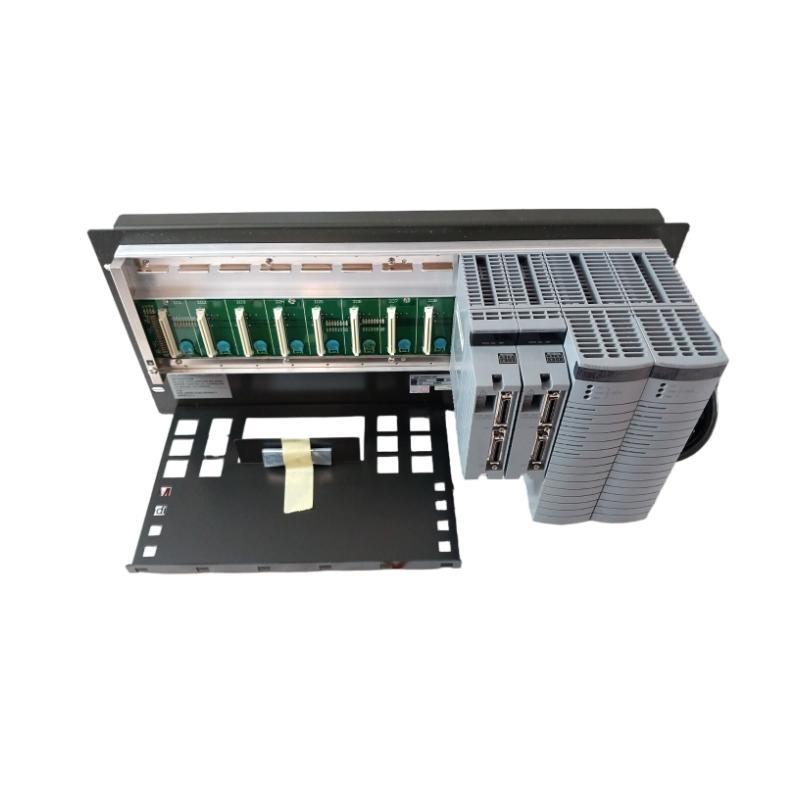

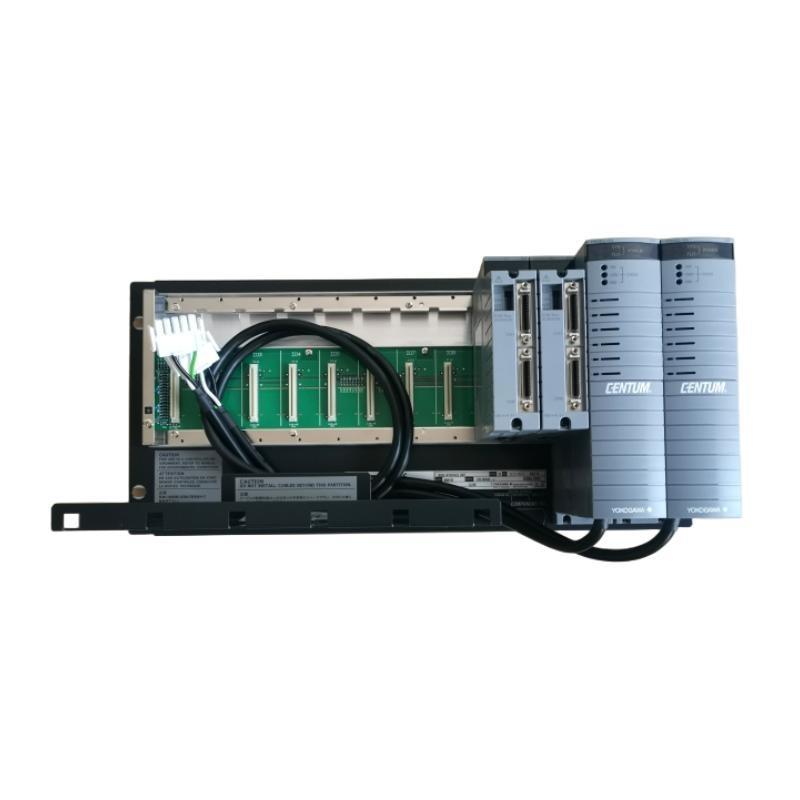

The Yokogawa ANB10D-426/CU2N is an advanced ESB (Ethernet Service Bus) node unit designed to facilitate high-speed communication within industrial control systems. This unit is crucial for connecting field devices and control systems through the ESB network, ensuring efficient data transfer and real-time communication. The ANB10D-426/CU2N is equipped with cutting-edge features that support a broad range of industrial applications, including process control, automation, and data acquisition systems.
Its robust design ensures reliable operation in harsh industrial environments, providing high availability and performance across a variety of operational conditions. This unit supports Ethernet-based communication protocols, making it a versatile and scalable solution for complex industrial automation systems. Additionally, the compact form factor and easy integration with other Yokogawa systems make the ANB10D-426/CU2N an excellent choice for applications where space, speed, and reliability are critical.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg |
| Supported Protocols | Ethernet (ESB) |
| Operating Voltage | 24 VDC ±20% |
| Communication Speed | 100 Mbps |
| Mounting Type | Rack Mount |
| I/O Channels | 16 |
| Environmental Conditions | -20°C to +60°C |
| Power Consumption | 10 W |
| Connector Type | RJ45 (Ethernet) |
Product Applications
The ANB10D-426/CU2N ESB Bus Node Unit is ideally suited for a wide range of applications within industrial control, automation, and data acquisition systems. Some of its key uses include:
-
Industrial Automation: Enables fast and reliable communication between field devices, sensors, and control systems, ensuring seamless automation in manufacturing processes.
-
Process Control Systems: Used to interconnect various process control devices, providing real-time data and enabling efficient system management.
-
Data Acquisition Systems: Ideal for collecting data from remote or widely distributed sensors, transmitting it via Ethernet for processing and analysis in central control systems.
-
Distributed Control Systems (DCS): Serves as a communication node, enabling the connection of multiple DCS components and ensuring synchronized data transfer and control.
-
Remote Monitoring and Control: Facilitates remote monitoring and management of field devices across large installations, enabling real-time adjustments and data collection.
Product Advantages
-
High-Speed Ethernet Communication: The ANB10D-426/CU2N supports 100 Mbps Ethernet communication, providing fast and reliable data transfer for real-time control and monitoring applications.
-
Scalable Solution: With support for up to 16 I/O channels, this unit can handle a wide range of field devices, offering flexibility and scalability for growing automation systems.
-
Robust and Reliable: Built to operate in extreme industrial conditions, the ANB10D-426/CU2N is designed to withstand temperatures ranging from -20°C to +60°C, ensuring reliable performance in harsh environments.
-
Easy Integration: The unit is fully compatible with other Yokogawa systems, ensuring seamless integration and reducing setup complexity in new or existing control systems.
-
Energy-Efficient Operation: With a power consumption of just 10 W, this unit delivers high performance without compromising on energy efficiency, reducing operational costs.
-
Compact and Efficient Design: The unit’s compact dimensions (482.6 × 221.5 × 205 mm) and lightweight design (10 kg) make it easy to install and integrate into control panels and server racks.
FAQ
1. What communication protocol does the ANB10D-426/CU2N support?
The ANB10D-426/CU2N supports Ethernet communication using the ESB (Ethernet Service Bus) protocol, allowing for fast and efficient data transfer.
2. How many I/O channels does the ANB10D-426/CU2N support?
The ANB10D-426/CU2N supports 16 I/O channels, providing sufficient capacity for connecting a wide range of field devices.
3. What is the power supply requirement for the ANB10D-426/CU2N?
The unit requires a 24 VDC power supply with a tolerance of ±20%, ensuring stable operation even in fluctuating power conditions.
4. What is the communication speed of the ANB10D-426/CU2N?
The ANB10D-426/CU2N operates at a communication speed of 100 Mbps, ensuring fast and reliable data exchange within the control system.
5. What is the operating temperature range of the ANB10D-426/CU2N?
The unit is designed to operate in a wide temperature range of -20°C to +60°C, making it suitable for use in various industrial environments.
6. How is the ANB10D-426/CU2N mounted?
The unit is designed for rack mounting, which allows for easy and secure installation in industrial control panels.
7. What type of connectors are used on the ANB10D-426/CU2N?
The ANB10D-426/CU2N uses RJ45 Ethernet connectors for network communication, ensuring compatibility with standard Ethernet cables.
8. What is the power consumption of the ANB10D-426/CU2N?
The unit consumes just 10 W of power, making it energy-efficient while still offering reliable performance.
9. Can the ANB10D-426/CU2N be integrated with other Yokogawa systems?
Yes, the ANB10D-426/CU2N is fully compatible with other Yokogawa devices and systems, facilitating easy integration into existing setups.
10. What is the weight of the ANB10D-426/CU2N?
The unit weighs 10 kg, making it manageable for installation and maintenance tasks while still being robust and durable.
Recommended Models in the Same Series/Related Models
| Model Number | Description |
|---|---|
| ANB10D-426/CU1N | ESB Node Unit with single protocol |
| ANB10D-425/CU2N | ESB Bus Node Unit |
| ANB10D-420 | Modular Ethernet Bus Node |
| ANB10D-425/CU3N | ESB Node Unit with extended I/O channels |
| ANB30D-600 | Multi-Protocol ESB Node Unit |
| ANB10D-400 | Basic ESB Node Unit |
Popular Yokogawa Models
| Model Number | Description |
|---|---|
| AKB336-M002 | Signal Cable, 2 meters |
| AKB336-M010 | Signal Cable, 10 meters |
| AKB337-M005 | Shielded Signal Cable, 5 meters |
| AKB336-M005 | Signal Cable, 5 meters |
| AKB337-M010 | Shielded Signal Cable, 10 meters |
| AKB336-M020 | Signal Cable, 20 meters |
