Product Overview

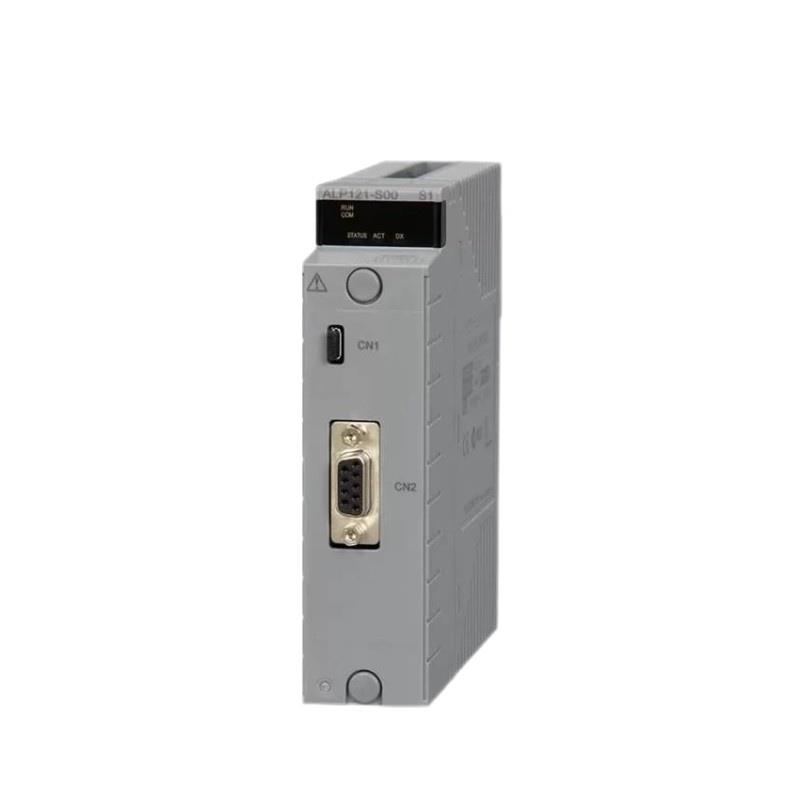

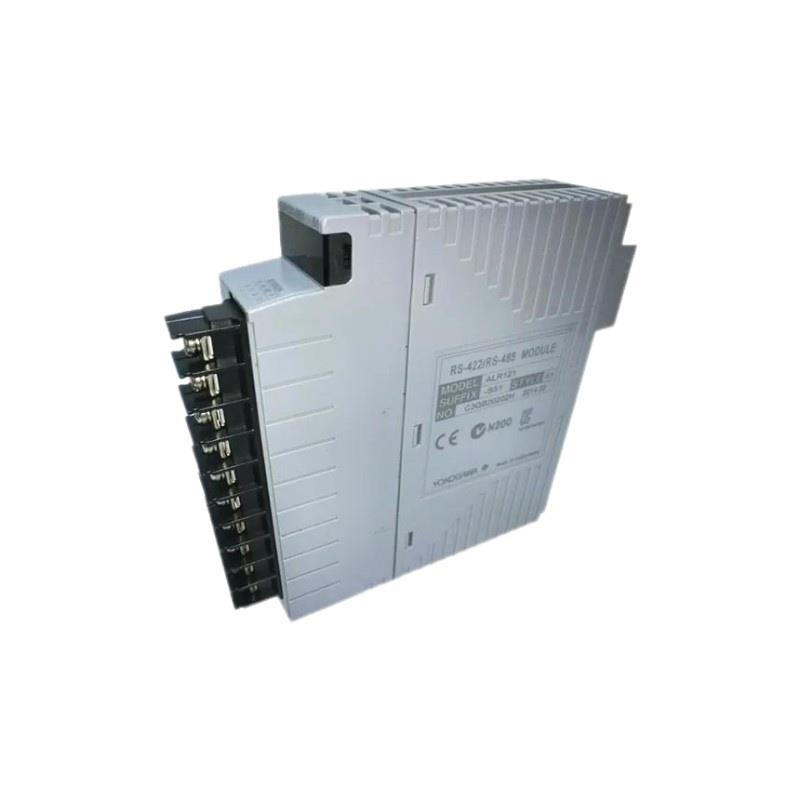

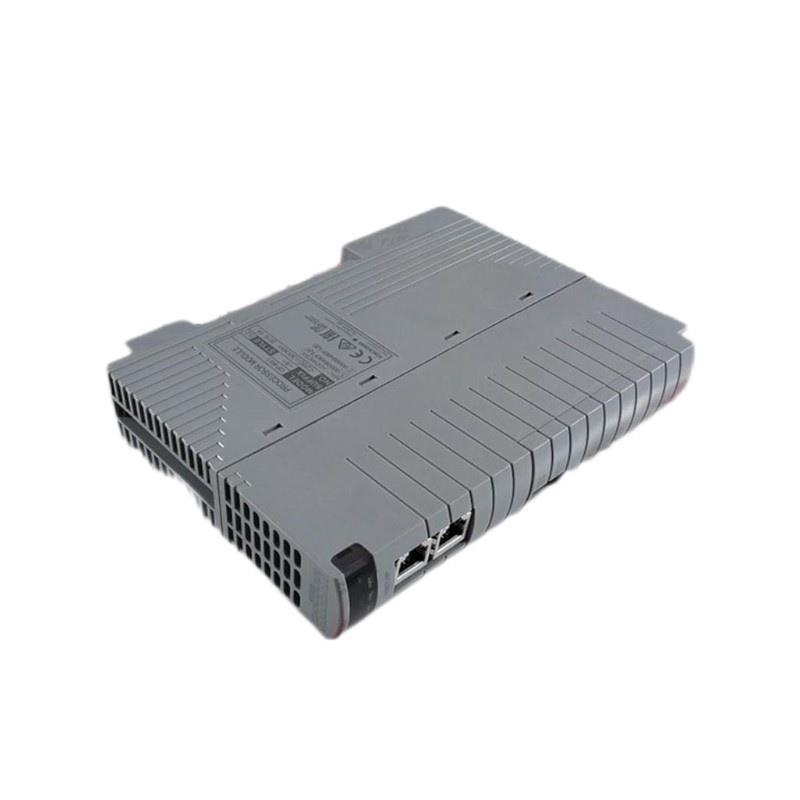

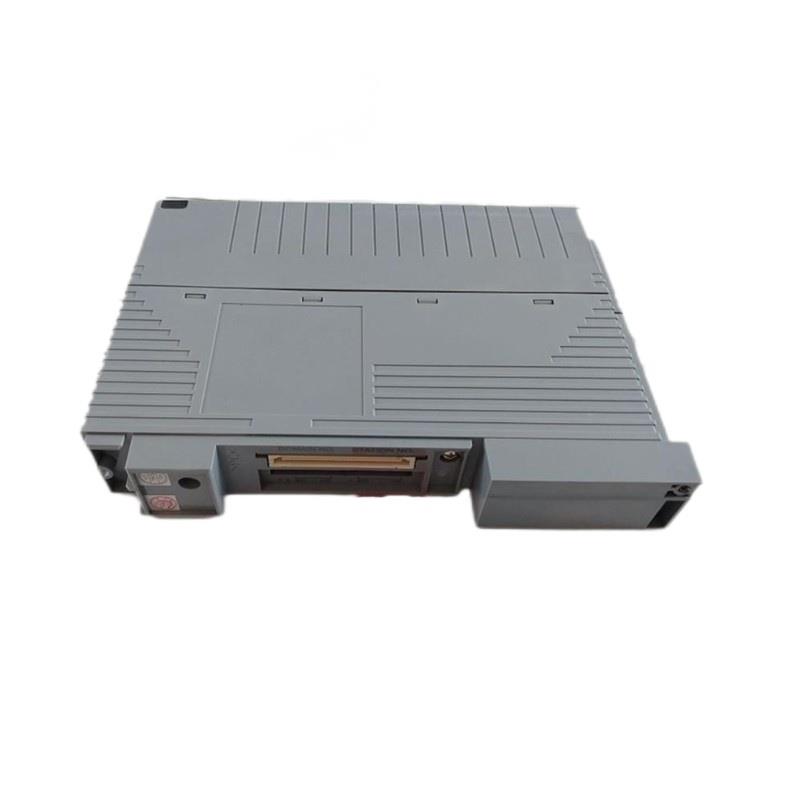

The Yokogawa ALP121-S01 Communication Module is a versatile and highly reliable communication interface designed to integrate with Yokogawa’s Centum VP Distributed Control System (DCS) and external field devices or third-party systems. It acts as a critical bridge, enabling seamless communication and data exchange between the Centum VP system and field devices, such as PLC systems, SCADA systems, and instrumentation. This module supports multiple communication protocols and is essential for industries requiring robust, real-time data transfer and system integration.
The ALP121-S01 is engineered for high-speed communication, ensuring minimal latency and exceptional data throughput. It also features redundancy support to enhance system reliability, making it ideal for mission-critical applications in sectors like oil and gas, chemical processing, power generation, and more. This module ensures smooth, reliable communication in complex industrial environments while offering ease of installation and maintenance.
Key Features
-
Multi-Protocol Support: Supports Modbus, Profibus, Ethernet/IP, and Fieldbus protocols for flexible integration with a variety of field devices and control systems.
-
High-Speed Communication: Provides fast data transfer for time-sensitive applications, reducing latency and ensuring high system performance.
-
Redundancy Support: Features built-in redundancy options for increased system availability, preventing communication failures in case of module or network faults.
-
Compact Design: The module’s compact form factor allows for space-efficient installation in control panels and enclosures, optimizing overall system layout.
-
User-Friendly Configuration: Easy-to-use software tools enable rapid setup, configuration, and diagnostics, reducing engineering time and effort.
-
Extended Temperature Range: Designed to operate in extreme industrial environments, the ALP121-S01 can handle both high and low-temperature conditions, ensuring consistent performance in challenging applications.
-
Diagnostic Features: Equipped with advanced diagnostic capabilities for real-time fault detection, system health monitoring, and troubleshooting, ensuring maximum uptime.
-
Flexible Mounting Options: Supports both DIN rail and panel mounting, allowing for versatile installation depending on user needs and system requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | ALP121-S01 Communication Module |
| Part Number | ALP121-S01 |
| Supported Protocols | Modbus, Profibus, Ethernet/IP, Fieldbus |
| Communication Speed | Up to 10 Mbps for Ethernet, Up to 12 Mbps for Fieldbus |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply | 24 V DC |
| Dimensions | 126.7 × 32.8 × 130 mm |
| Weight | 0.3 kg |
| Mounting | DIN rail or panel-mounted |
| Certifications | CE, UL, RoHS, IEC 61508 |
| Diagnostic Features | LEDs for status, fault detection, and communication integrity |
| Redundancy | Yes, supports redundant communication for improved reliability |
| Security Features | Supports data encryption and access control for secure communication |
| Fieldbus Support | Yes, for integration with various Fieldbus devices |
| Status Indicators | LED indicators for operational status and diagnostic information |
Industry Applications
-
Oil & Gas – Provides seamless communication between DCS and various field devices in upstream and downstream applications, ensuring real-time data acquisition and process control.
-
Power Generation – Integrates with turbine control systems, generators, and other power plant equipment, facilitating reliable communication and system monitoring.
-
Chemical & Petrochemical – Ensures smooth data exchange between control systems and external field devices, enabling accurate process control in highly regulated environments.
-
Manufacturing & Industrial Automation – Used in factories and plants for PLC integration, process automation, and monitoring, improving overall productivity and efficiency.
-
Water Treatment – Facilitates communication between control systems and field sensors or actuators for efficient water management and treatment processes.
Product Advantages
-
Cost-Effective Integration: The ALP121-S01 offers a cost-efficient solution for integrating third-party systems with Yokogawa’s Centum VP DCS, reducing the need for additional modules or hardware.
-
High Performance and Reliability: With its support for multiple communication protocols, the module offers high throughput and reliable performance, ensuring continuous, real-time system operation.
-
Redundancy for Critical Applications: Supports redundancy for mission-critical environments where high availability and zero downtime are essential.
-
Easy Installation and Maintenance: The compact design and user-friendly configuration tool make the module easy to install, configure, and maintain, ensuring quick startup times.
-
Built-in Diagnostics: The advanced diagnostics features ensure proactive fault detection, minimizing downtime and providing real-time system health information.
-
Broad Industry Compatibility: Designed for compatibility with a wide range of industry-standard communication protocols, the ALP121-S01 can be easily integrated into any existing industrial system.
Frequently Asked Questions (FAQ)
-
What communication protocols does the ALP121-S01 support?
The module supports Modbus, Profibus, Ethernet/IP, and Fieldbus, ensuring compatibility with a wide range of field devices. -
Can the ALP121-S01 be used in harsh industrial environments?
Yes, it is designed for industrial applications with an operating temperature range of -20°C to +60°C and can handle high and low-temperature conditions. -
What redundancy options does the ALP121-S01 provide?
The module supports redundant communication, ensuring continuous data exchange even if one communication path fails, increasing system reliability. -
Is the ALP121-S01 compatible with Yokogawa’s Centum VP DCS?
Yes, the module is specifically designed for seamless integration with the Centum VP DCS, making it ideal for use in Yokogawa systems. -
What is the power supply requirement for the ALP121-S01?
The module operates on a 24 V DC power supply, which is standard for most industrial communication modules. -
How is the ALP121-S01 mounted?
It can be mounted on a DIN rail or directly on the panel, providing flexibility for installation in various control environments. -
Does the ALP121-S01 have built-in diagnostic features?
Yes, the module features LED indicators for status and diagnostics, which help in identifying faults or communication issues. -
What is the data transfer speed of the ALP121-S01?
The module supports up to 10 Mbps for Ethernet and up to 12 Mbps for Fieldbus communication. -
Can I use the ALP121-S01 with other field devices?
Yes, the module is designed to integrate with various field devices using the supported communication protocols like Modbus and Profibus. -
Is the ALP121-S01 secure against unauthorized access?
Yes, it supports data encryption and access control, ensuring secure communication between devices and control systems.
Related Models in the Same Series
| Model | Description |
|---|---|
| ALP120-S01 | A basic communication module designed for smaller-scale system integration |
| ALP122-S01 | Similar to ALP121-S01, with additional Ethernet/IP support for high-speed applications |
| ALP123-S01 | A redundant communication module designed for critical systems requiring failover capabilities |
| ALP124-S01 | Advanced version with higher throughput and multiple I/O ports for large-scale installations |
| ALP125-S01 | Designed for harsh industrial environments with extended temperature range and enhanced diagnostics |
| ALP126-S01 | Compact Fieldbus communication module for distributed control systems in industrial applications |
Popular Yokogawa Communication Modules
| Model | Description |
|---|---|
| ALP110-S01 | Entry-level communication module for small to medium-sized DCS systems |
| ALP150-S01 | High-performance redundant module with enhanced diagnostic capabilities |
| FCJ920-S01 | Provides integration for Ethernet-based communication in Yokogawa systems |
| FCJ940-S01 | Designed for field device integration with support for Modbus and PROFIBUS |
| APM910-S01 | Advanced communication module for large-scale industrial applications with high-speed data transfer capabilities |
