Product Introduction

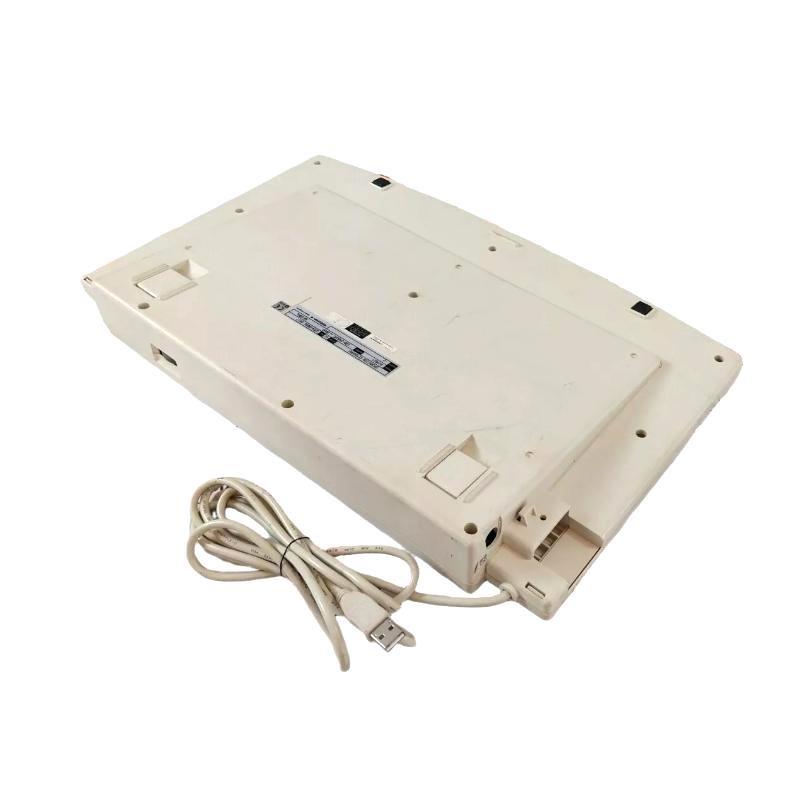

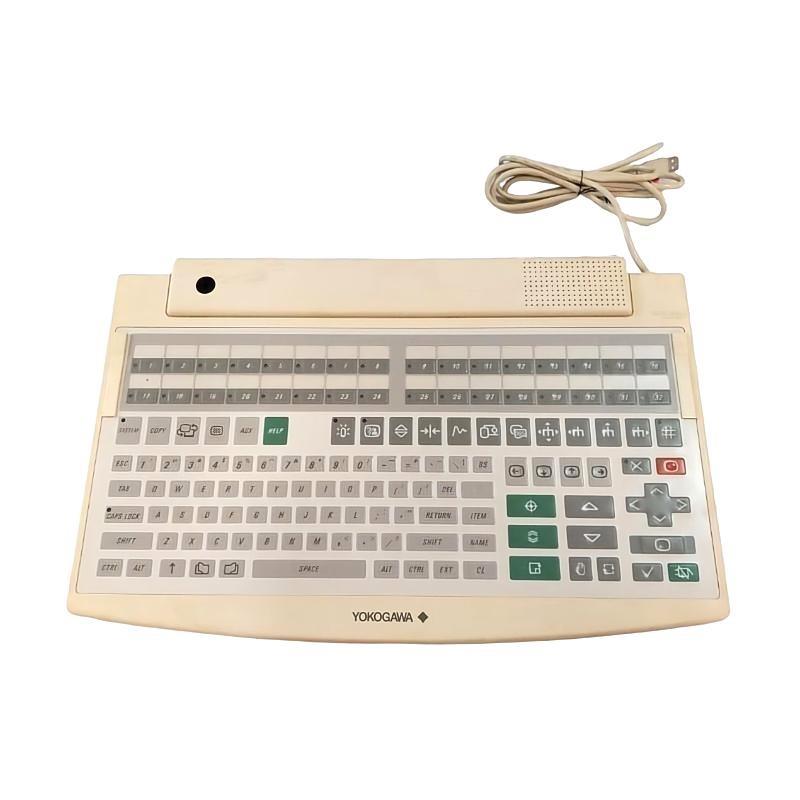

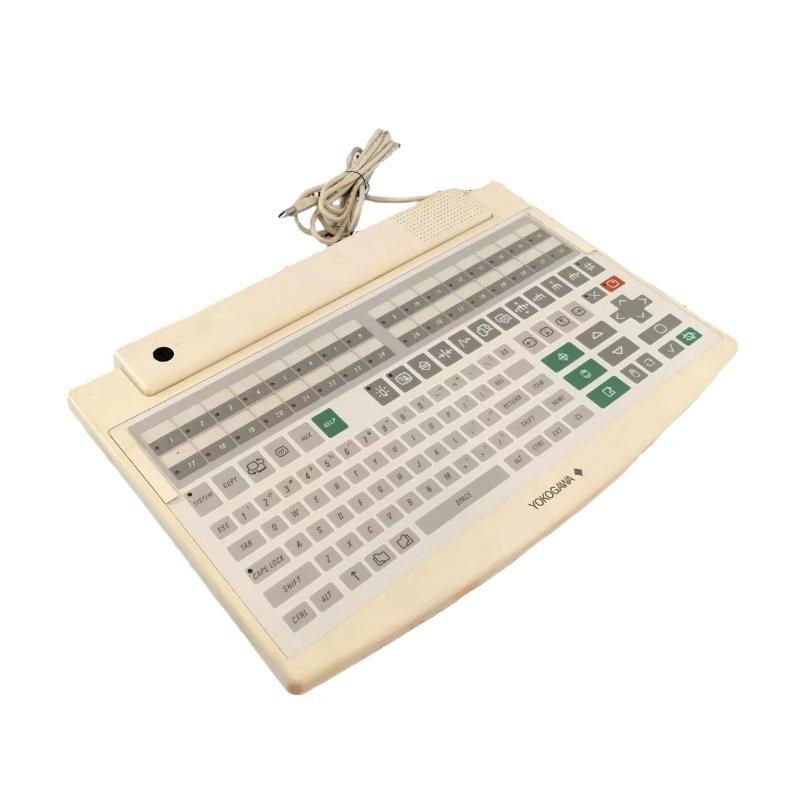

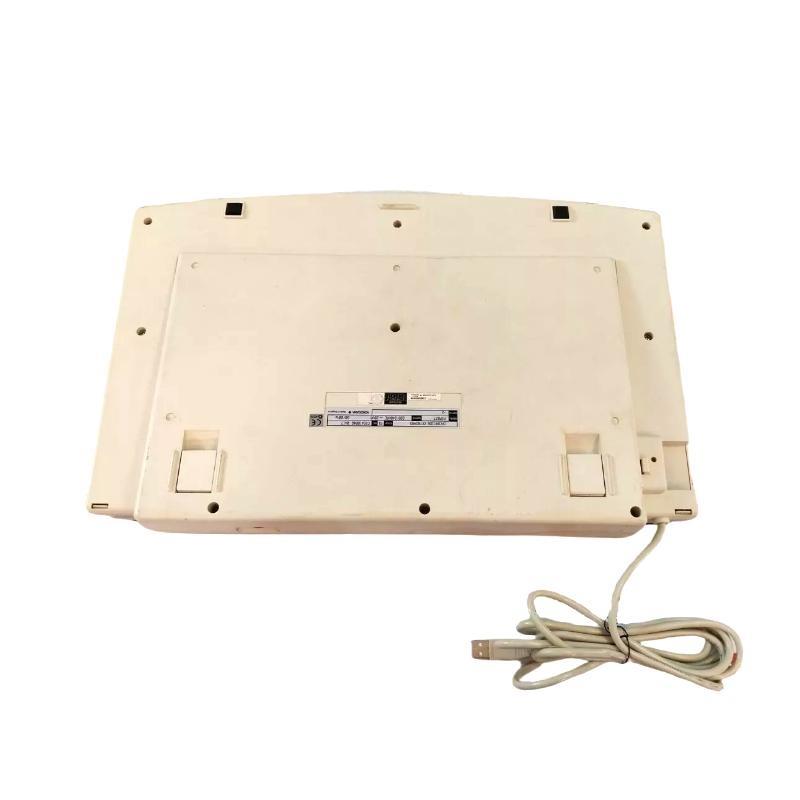

The Yokogawa AIP826-2 Operation Keyboard is a high-performance interface device designed for operation and monitoring within the Yokogawa CENTUM VP distributed control system (DCS). It serves as an operator’s primary interface to monitor, control, and manipulate process parameters across industrial environments. The AIP826-2 provides a tactile and responsive interface with robust functionality for managing multiple process units, alarms, and system diagnostics.
Engineered for industrial reliability, the AIP826-2 withstands electrical noise, vibration, and temperature variations common in process plants. Its ergonomic design supports intuitive operation, reduces operator fatigue, and ensures precise command input. The keyboard is compatible with a range of Yokogawa DCS components, providing seamless integration, high-speed data interaction, and flexible configuration options.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | AIP826-2 Operation Keyboard |
| Device Type | Operator Interface Keyboard |
| Interface | Ethernet / RIO / Serial (depending on system configuration) |
| Key Types | Tactile mechanical keys, function keys, navigation keys |
| Display Indicators | LED indicators for status and alarm conditions |
| Power Supply | 24 V DC ±10% |
| Power Consumption | ≤ 8 W |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -20°C to 70°C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Response Time | ≤ 50 ms |
| Mounting | Desk mount or panel mount |
| Dimensions (H × W × D) | 440 x 284 x 52 mm |
| Weight | 2.5 kg |
| Certifications | CE, UL, IEC standards |
| Connectivity | Multi-node network support for CENTUM VP DCS |
| Programmable Keys | Fully programmable function keys for operator convenience |
Product Applications
The AIP826-2 Operation Keyboard is designed for various industrial and process control scenarios:
-
Operator interface for monitoring and controlling distributed process units in Yokogawa DCS
-
Real-time alarm acknowledgment and process visualization
-
Remote or local operation of critical equipment in chemical, oil & gas, and power plants
-
Integration with control rooms for monitoring plant-wide operations
-
Facilitating complex control strategies such as batch processing or continuous flow operations
-
Supporting system diagnostics, configuration, and operator training environments
Product Advantages
-
Reliable Operation: Ensures consistent and accurate input even under high electrical noise or vibration.
-
Ergonomic Design: Tactile keys and logical layout reduce operator fatigue and errors.
-
High Integration: Compatible with Yokogawa CENTUM VP system, supporting multi-node communication.
-
Programmable Keys: Allows customization for repetitive operations and operator convenience.
-
Visual Feedback: LED indicators provide immediate confirmation of system states and alarms.
-
Flexible Mounting Options: Supports both desk and panel mounting, allowing adaptability in control rooms.
-
Fast Response: Low latency ensures timely execution of operator commands.
Frequently Asked Questions (FAQ)
-
What types of keys are used in the AIP826-2 keyboard?
Tactile mechanical keys are used for primary functions, along with dedicated function and navigation keys. -
Can the keyboard operate in a redundant DCS configuration?
Yes, the AIP826-2 is compatible with redundant CENTUM VP systems, supporting seamless failover. -
How is the keyboard connected to the DCS network?
It can connect via Ethernet, RIO, or serial interfaces depending on system architecture. -
Are the function keys programmable?
Yes, all function keys can be programmed through the engineering software to execute user-defined commands. -
Does the keyboard provide visual status for alarms?
Yes, LED indicators clearly display alarm conditions and system statuses. -
Can the keyboard handle simultaneous inputs from multiple operators?
It is designed for single-user operation per interface but can communicate in multi-node systems where each operator station is independent. -
What is the response time from key press to action execution?
The response time is typically ≤ 50 ms under normal operating conditions. -
Is the keyboard suitable for use in high-humidity environments?
Yes, it operates reliably within 5% to 95% RH non-condensing conditions. -
What diagnostic features are available on the AIP826-2?
It provides LED indicators and system software diagnostics for communication and operational status. -
Does the keyboard support updates or firmware upgrades?
Yes, firmware can be updated via the connected CENTUM VP system for new functionalities or bug fixes.
Related Models / Variants (Same Series or Functionally Similar)
| Model | Description |
|---|---|
| AIP826 | Standard Operation Keyboard for CENTUM VP |
| AIP827 | Advanced Operation Keyboard with additional programmable keys |
| AIP828 | Operator Keyboard with integrated touchpad |
| AIP829 | High-contrast display operation keyboard |
| AIP830 | Multi-language Operation Keyboard |
| AIP831 | Operation Keyboard with redundant network support |
Popular Models from Yokogawa
| Model | Description |
|---|---|
| AIP825 | Standard Operator Keyboard |
| AIP824 | Desk-Mounted Operation Keyboard |
| AIP823 | Panel-Mounted Operator Interface |
| AIP832 | Integrated Control Keyboard with LED indicators |
| AIP833 | Multi-Function Operation Keyboard |
| AIP834 | Touch-Enabled Operator Keyboard |
