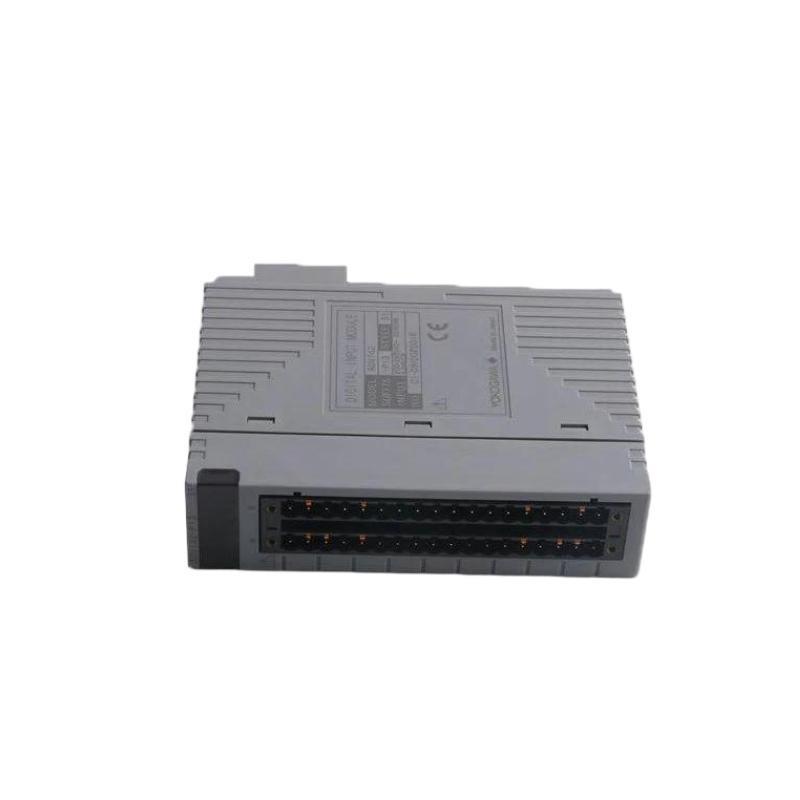

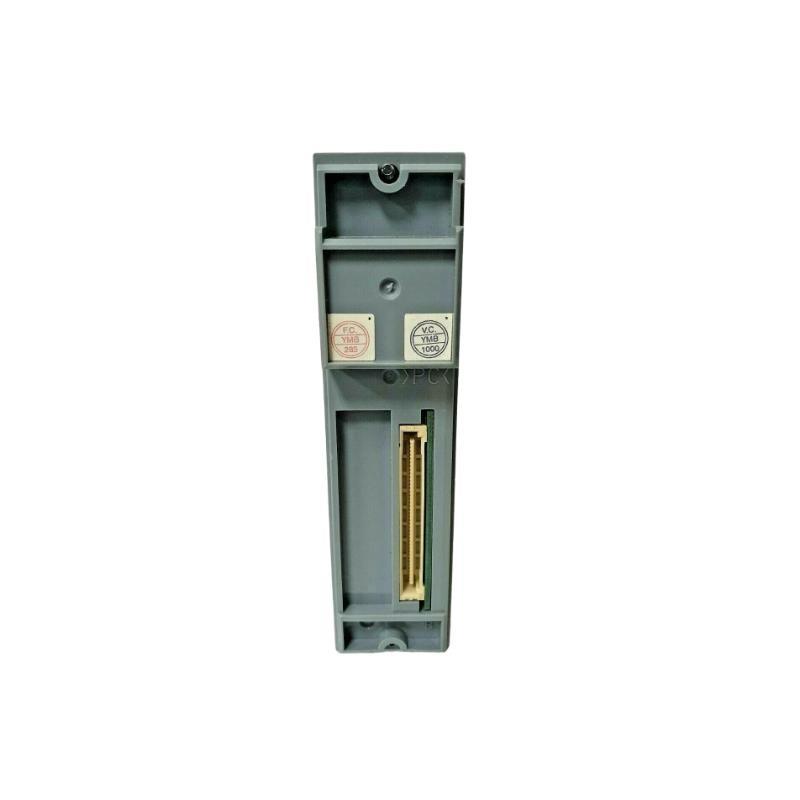

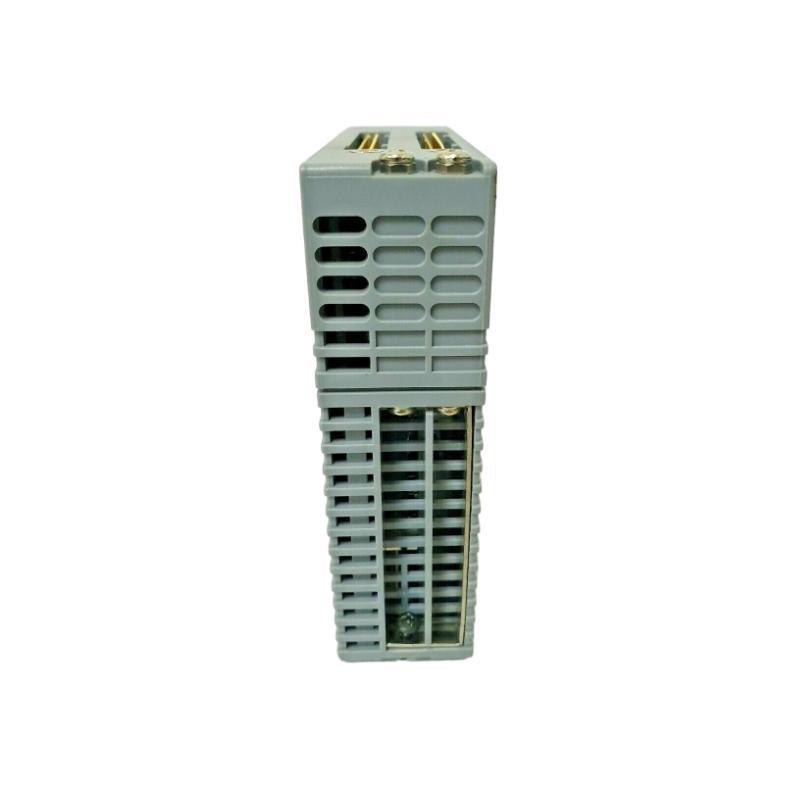

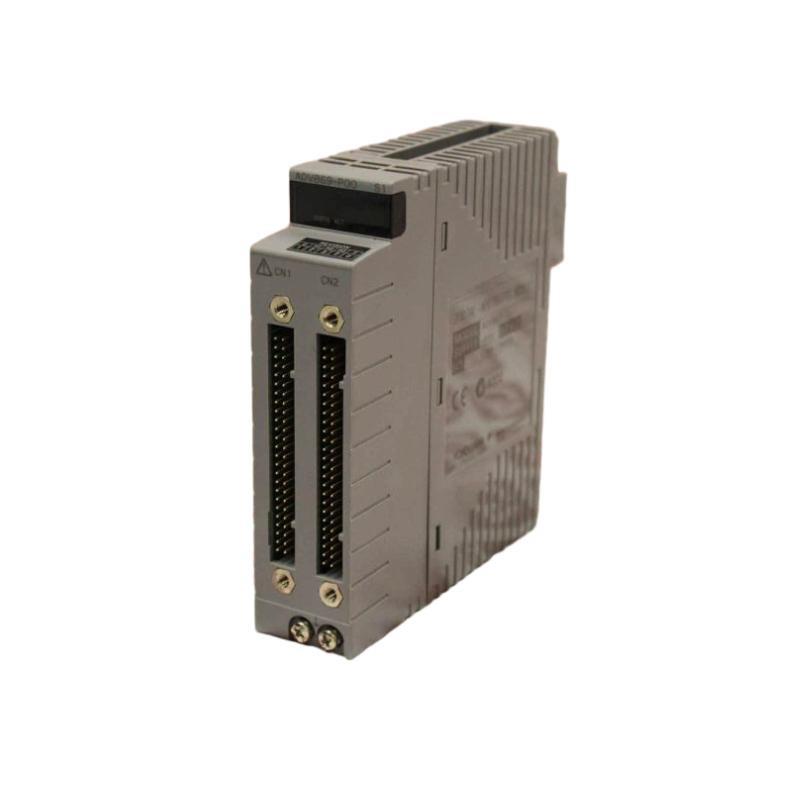

Product Introduction
The Yokogawa ADV869-P00 is a high-performance Digital I/O module designed to provide seamless integration into industrial control systems. As part of Yokogawa’s advanced automation portfolio, this module ensures robust, real-time data exchange between field devices and control systems. The ADV869-P00 is engineered for digital signal processing, offering superior flexibility and scalability for a variety of automation applications.
With a compact design of 130 x 127.2 x 32.8 mm and a weight of just 0.3 kg, this module is suitable for installations in space-constrained environments. The ADV869-P00 is ideal for applications that demand reliable, real-time control, such as manufacturing, power plants, and process industries. It offers advanced input and output signal management, ensuring high levels of accuracy, reliability, and operational efficiency.
Product Specifications
| Specification | Details |
|---|---|
| Model | Yokogawa ADV869-P00 |
| Type | Digital I/O Module |
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Input/Output Type | Digital Input/Output |
| I/O Points | 8 input channels / 8 output channels |
| Operating Voltage | 24 V DC |
| Mounting Type | DIN Rail |
| Temperature Range | -20°C to +60°C |
| Protection Rating | IP20 |
| Power Consumption | 1.2 W |
| Communication Protocol | Modbus/RTU, Yokogawa proprietary protocol |
| Signal Type | TTL/CMOS |
Product Applications
The Yokogawa ADV869-P00 Digital I/O module is designed for use in a variety of industrial and process control applications. Its flexibility and reliable performance make it ideal for the following:
-
Industrial Automation: The module provides essential I/O functionalities in manufacturing plants, automating processes such as assembly, packaging, and quality control.
-
Process Control: In industries like chemical, petrochemical, and food & beverage, the ADV869-P00 enables precise control over production lines and process monitoring.
-
Power Generation and Distribution: It is used in power plants and energy management systems to facilitate real-time monitoring and control of various digital inputs and outputs.
-
Building Automation: The module is employed in building systems for tasks such as controlling lighting, HVAC, and security systems.
-
Oil & Gas: It enables remote monitoring and control in oil refineries, pipeline monitoring, and other oil and gas applications.
-
Water Treatment Plants: This module is used in water and wastewater treatment for managing equipment such as pumps, motors, and valves.
In these industries, the ADV869-P00 ensures seamless integration into control systems, facilitating efficient operations and quick decision-making based on real-time data.
Product Advantages
-
Compact Size: With dimensions of 130 x 127.2 x 32.8 mm and a weight of only 0.3 kg, the module is perfect for space-limited installations.
-
High-Speed I/O: The ADV869-P00 provides fast and accurate processing of digital signals, ensuring immediate responses for time-sensitive operations.
-
Wide Temperature Range: With an operating temperature range of -20°C to +60°C, the module performs well in harsh industrial environments.
-
Flexible I/O Points: The module offers 8 input channels and 8 output channels, providing flexibility in controlling and monitoring multiple devices.
-
Energy-Efficient: Consuming just 1.2 W, the ADV869-P00 delivers high performance without significantly impacting the system’s energy consumption.
-
Wide Compatibility: Supports standard TTL/CMOS signals and integrates seamlessly into existing industrial control systems.
-
Reliable Communication: The module uses Modbus/RTU and Yokogawa proprietary protocols for reliable data communication.
-
Easy Mounting: Designed for DIN rail mounting, the ADV869-P00 can be installed quickly and securely in various environments.
-
Durability: With an IP20 rating, the module is protected from dust ingress and can be used in most industrial settings.
-
Cost-Effective: It provides reliable digital input/output functionality at a competitive price, making it an economical choice for industrial automation projects.
Frequently Asked Questions (FAQs)
-
What types of signals does the ADV869-P00 module handle?
The ADV869-P00 handles TTL and CMOS digital signals. -
What is the input/output capacity of the ADV869-P00?
The module offers 8 input channels and 8 output channels. -
What is the operating voltage of the ADV869-P00?
The module operates at a nominal 24 V DC. -
What are the dimensions of the module?
The module measures 130 x 127.2 x 32.8 mm. -
How much does the ADV869-P00 weigh?
The module weighs 0.3 kg. -
What is the temperature range for the ADV869-P00?
It operates in temperatures ranging from -20°C to +60°C. -
What communication protocols are supported by the ADV869-P00?
The module supports Modbus/RTU and Yokogawa proprietary protocols. -
Is the ADV869-P00 suitable for hazardous environments?
The module has an IP20 protection rating, making it suitable for use in industrial environments but not for highly hazardous areas. -
How is the ADV869-P00 mounted?
The module can be easily mounted on a DIN rail. -
What is the power consumption of the ADV869-P00?
The module consumes 1.2 W of power.
Related Models from the Same Series
| Model | Key Features |
|---|---|
| ADV869-P01 | 8-channel Digital I/O with extended input range |
| ADV869-P02 | Digital I/O with fault detection functionality |
| ADV869-P03 | Compact I/O module with faster communication speed |
| ADV869-P04 | Higher density digital input/output module |
| ADV869-P05 | Digital I/O with enhanced energy efficiency |
| ADV869-P06 | I/O module for remote monitoring applications |
Popular Models from Yokogawa
| Model | Key Features |
|---|---|
| ADV851 | High-performance signal processing |
| ADV569-P01 | Advanced analog output, stable performance |
| ADV569-P00 | Compact design, optimized for industrial control |
| ADV850 | Fast signal processing, robust integration |
| ADV870 | Enhanced diagnostics, flexible configurations |
| ADV875 | High reliability, real-time data transmission |
