Product Overview

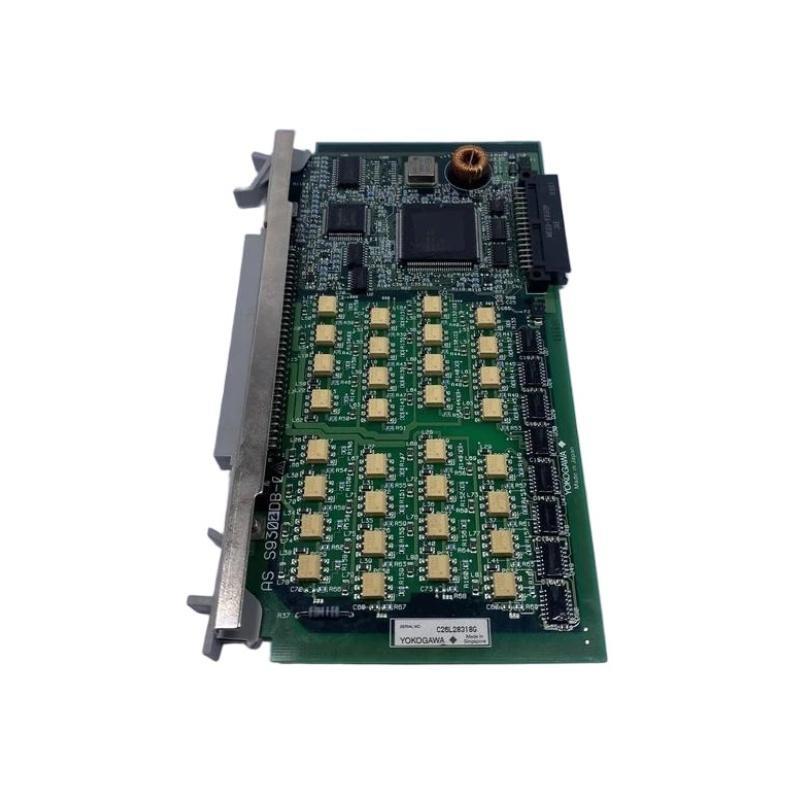

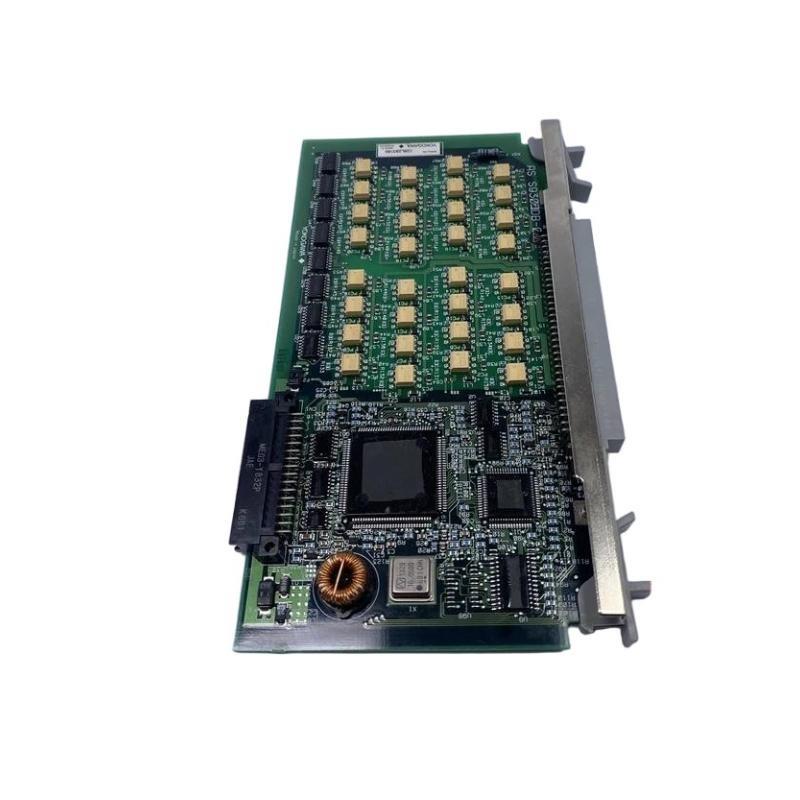

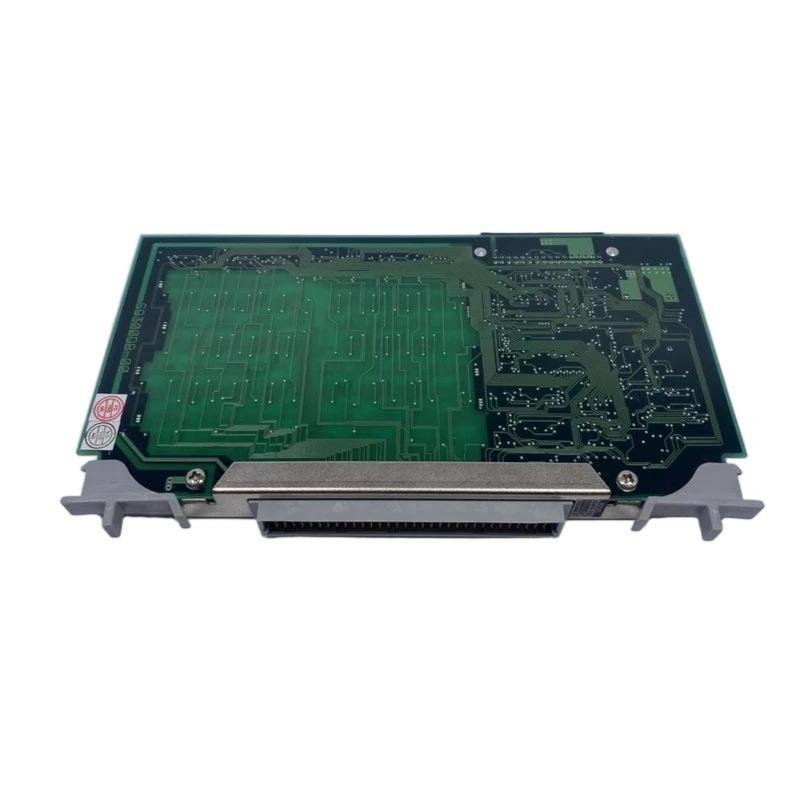

The Yokogawa ADM52C/CE1 Contact Output Module is a robust relay-based output module designed for Yokogawa distributed control systems (DCS). It provides isolated contact outputs to control external devices such as alarms, actuators, valves, and motors.The module ensures precise, safe switching operations with high electrical isolation, making it suitable for industrial environments that require reliable digital output performance. Its compact design allows efficient integration into ADM series racks.
Key Features
-
Provides isolated relay contact outputs for industrial control
-
Compatible with Yokogawa ADM series DCS racks
-
Supports multiple output channels for versatile control
-
Electromechanical relay with normally open (NO) and normally closed (NC) contacts
-
LED indicators for output status monitoring
-
Compact, modular design for easy installation
-
Hot-swappable for maintenance without system downtime
-
Reliable operation in harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Part Number | ADM52C/CE1 |
| Product Type | Contact Output Module |
| Output Channels | 8 contact outputs per module |
| Output Type | Electromechanical relay, NO/NC contacts |
| Contact Rating | 2 A @ 250 VAC / 30 VDC |
| Response Time | < 10 ms |
| Isolation | 1500 V AC between channels and backplane |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Mounting | ADM series rack |
| Dimensions | 130 × 100 × 30 mm |
| Weight | 1.5 kg |
| Applications | Control of alarms, actuators, valves, and other industrial devices |
Industry Applications
-
Power generation and distribution
-
Petrochemical and chemical plants
-
Oil and gas processing
-
Water and wastewater treatment
-
Manufacturing and process automation
-
Distributed control systems (DCS) output control
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ADM52C/CE1 module?
It provides isolated contact outputs for controlling external devices.
Q2: How many output channels does it support?
8 contact outputs per module.
Q3: What types of relay contacts are used?
Electromechanical relay contacts, normally open (NO) and normally closed (NC).
Q4: What is the contact rating?
2 A @ 250 VAC or 30 VDC.
Q5: Can it operate in industrial environments?
Yes, it is rated for 0 °C to +55 °C and suitable for harsh conditions.
Q6: How is the module mounted?
It is installed in ADM series racks.
Q7: Are there status indicators?
Yes, LED indicators show the output status of each channel.
Q8: Is the module hot-swappable?
Yes, it can be replaced without shutting down the system.
