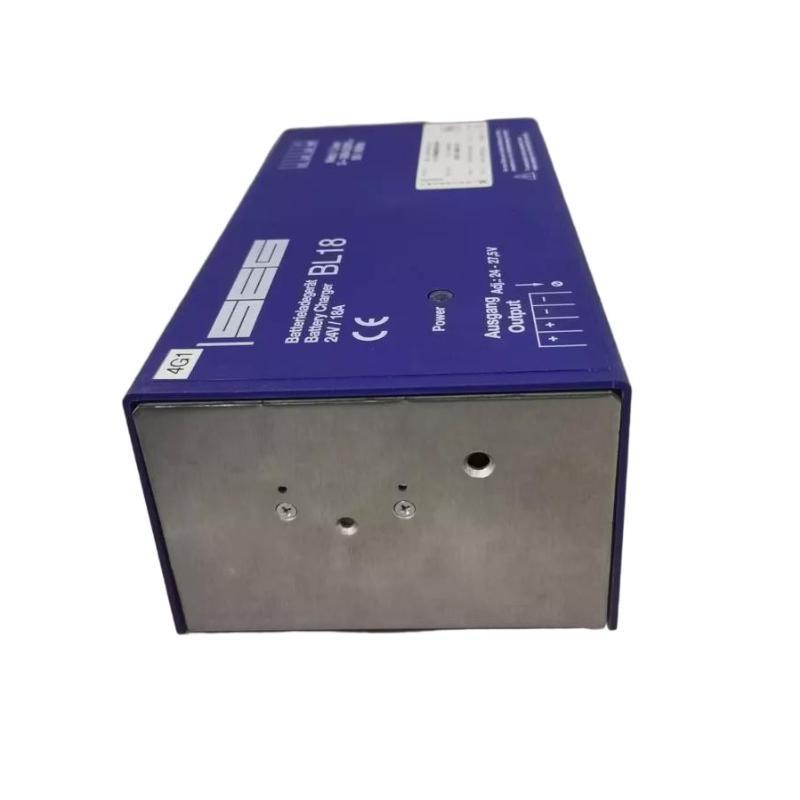

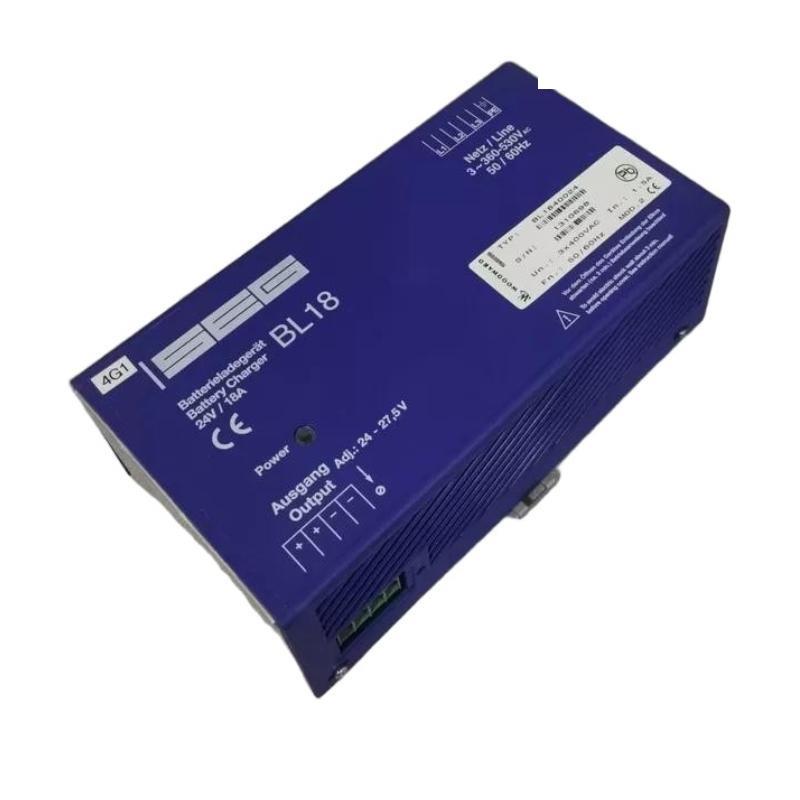

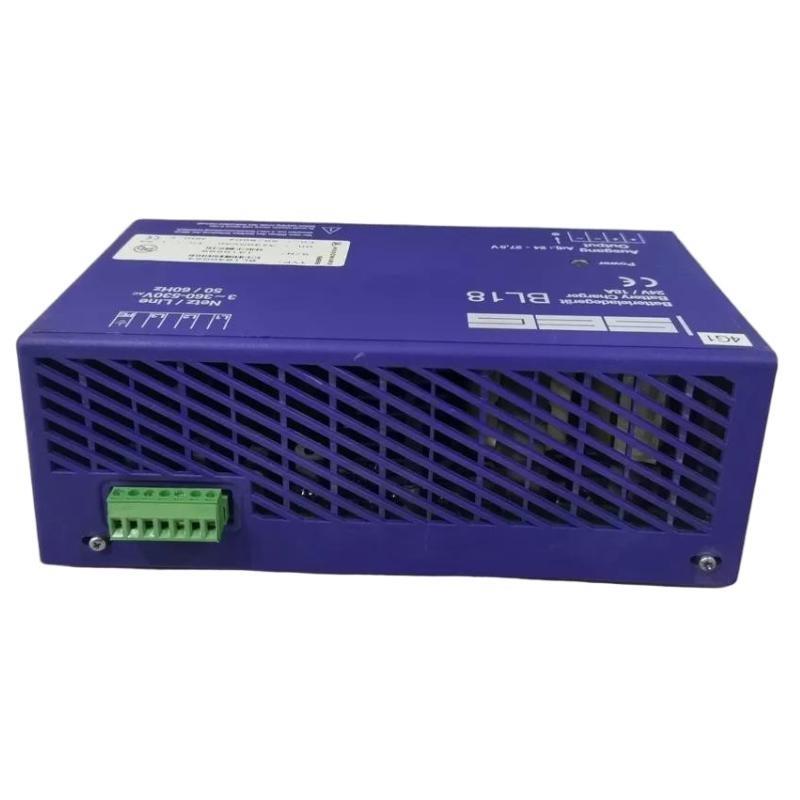

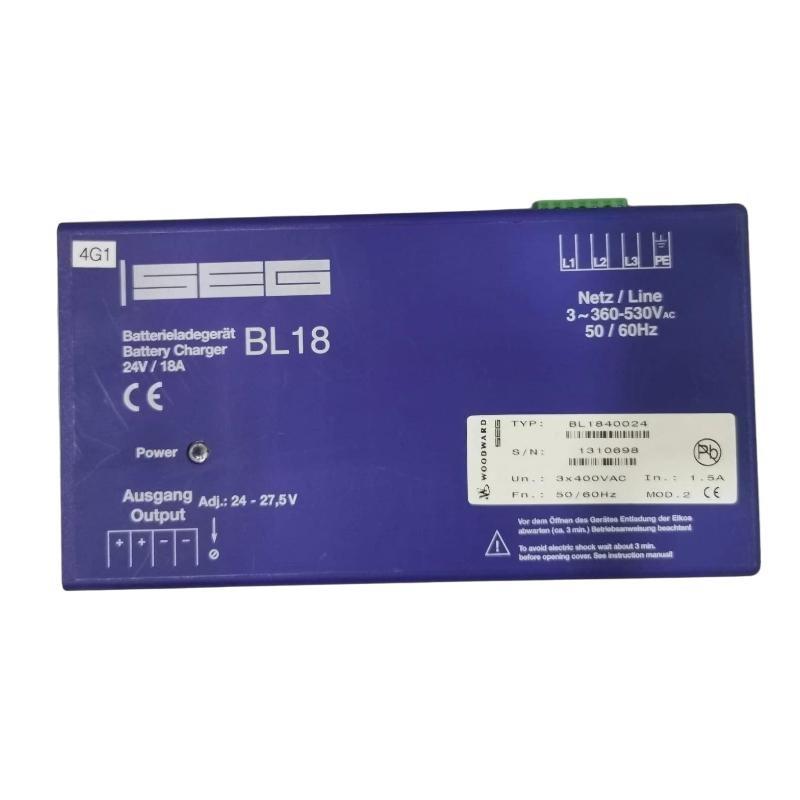

Product Overview
The Woodward BL1840024 is a high-reliability battery charger designed for use in industrial, marine, and power generation applications. It ensures safe and efficient charging of lead-acid or gel batteries used to power control systems, backup systems, and auxiliary devices.
Key Features
-
Reliable charging for lead-acid and gel batteries
-
Compact, industrial-grade design
-
Overvoltage, overcurrent, and short-circuit protection
-
LED indicators for charging status and fault conditions
-
Wide input voltage range for versatile installation
-
Maintains battery health and extends service life
-
Compatible with Woodward control and backup systems
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | BL1840024 |
| Type | Battery Charger |
| Battery Type | Lead-acid, Gel |
| Output Voltage | 24 VDC nominal |
| Output Current | 2–10 A (application-dependent) |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Charging Mode | Float and boost charging |
| Protection | Overvoltage, overcurrent, short-circuit |
| Indicators | LED for charging, fault, and status |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Dimensions | 180 × 120 × 60 mm |
| Weight | 0.61 kg |
| Compliance | CE, UL, RoHS |
Industry Applications
-
Power Generation – battery backup for control and monitoring systems
-
Marine – maintaining reliable power for shipboard control systems
-
Oil & Gas – powering remote instrumentation and backup systems
-
Industrial Automation – reliable supply to PLCs, sensors, and control modules
-
Emergency Backup Systems – ensures battery readiness for critical operations
Advantages
-
Provides stable and safe charging to extend battery life
-
LED indicators simplify monitoring and maintenance
-
Compact design for easy installation in control cabinets
-
Built-in protection ensures reliable operation in harsh conditions
-
Compatible with Woodward and other industrial systems
-
Supports both float and boost charging modes for versatile applications
Frequently Asked Questions (FAQ)
Q1: What type of batteries does the BL1840024 support?
Lead-acid and gel batteries.
Q2: What is the nominal output voltage?
24 VDC.
Q3: What is the maximum output current?
Typically 2–10 A, depending on application.
Q4: What protections are included?
Overvoltage, overcurrent, and short-circuit protection.
Q5: Does it support different charging modes?
Yes, it supports both float and boost charging.
Q6: What is the operating temperature range?
-20 °C to +60 °C.
Q7: What are the module dimensions?
Approx. 180 mm × 120 mm × 60 mm.
Q8: How much does it weigh?
Approx. 0.61 kg.
Q9: Can it be used in marine environments?
Yes, it is suitable for industrial and marine applications.
Q10: Which certifications does it comply with?
CE, UL, and RoHS.
