Product Overview

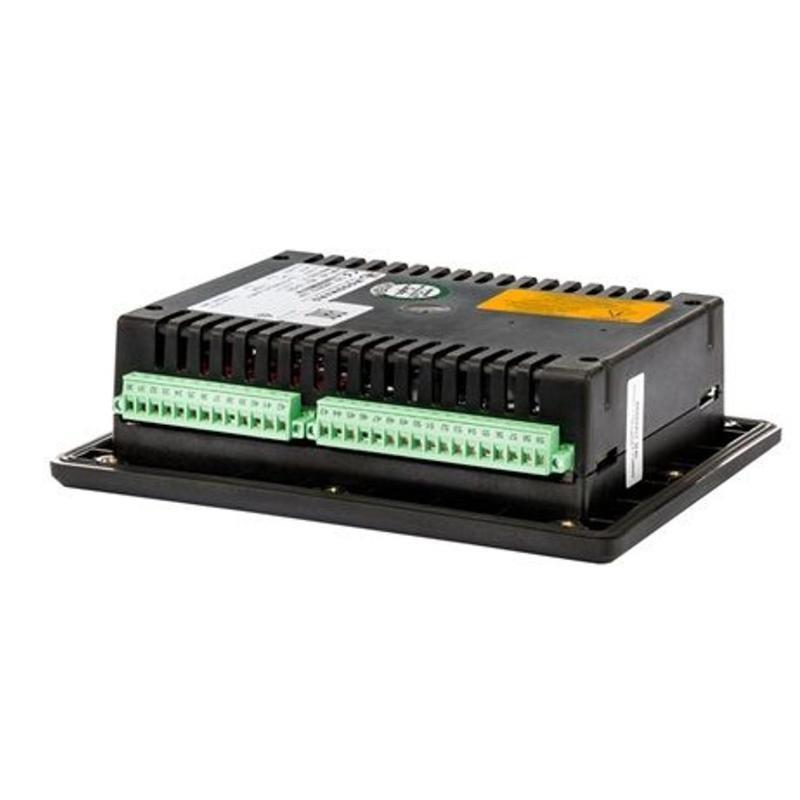

The Woodward 8440-2150A Controller is a high-performance industrial control unit designed for advanced monitoring and control of engines, turbines, and generators. As part of the Woodward easYgen™ 3000 series, this controller delivers comprehensive functionality, including load sharing, synchronization, protection, and power management. It is widely used in critical power systems where reliability, flexibility, and precision are essential.
Key Features
-
Advanced genset control with flexible configuration
-
Synchronization, load sharing, and breaker control
-
Support for multiple communication protocols (Modbus, CAN, Ethernet)
-
Intuitive user interface with multilingual support
-
Built-in PLC logic for customized control strategies
-
Extensive protection features for engine and generator
-
Remote monitoring and configuration capability
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8440-2150A |
| Product Series | easYgen™ 3000 Series |
| Control Functions | Synchronization, load sharing, protection, power management |
| Communication Interfaces | RS-232, RS-485, CANopen, Modbus RTU/TCP, Ethernet |
| Display | Graphical LCD with LED indicators |
| Digital Inputs | 16 configurable |
| Digital Outputs | 8 configurable relays |
| Analog Inputs | 3 (configurable for sensors: V, A, temp, pressure) |
| Analog Outputs | 2 (0–10 V or 4–20 mA) |
| Rated Voltage | 12/24 VDC |
| Frequency Measurement | 40–70 Hz |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Protection Class | Front: IP65 / Rear: IP20 |
| Dimensions | 240 × 172 × 65 mm |
| Weight | 1.5 kg |
| Certifications | CE, UL, CSA, EAC |
| Mounting Type | Panel mount |
Industry Applications
-
Diesel and gas generator sets
-
Marine and offshore power systems
-
CHP (Combined Heat and Power) systems
-
Emergency and standby power control
-
Industrial and utility power distribution
Frequently Asked Questions (FAQ)
-
What is the primary use of the 8440-2150A controller?
It is used to control, synchronize, and protect generators in power systems. -
Does it support communication over Ethernet?
Yes, it supports Modbus TCP/IP over Ethernet. -
Is the controller suitable for marine applications?
Yes, it is designed to meet the needs of marine and offshore environments. -
How many gensets can it control?
It can be used in applications with up to 32 gensets in load-sharing mode. -
Can I configure the I/O channels?
Yes, both digital and analog I/O channels are user-configurable. -
Is the display multilingual?
Yes, the user interface supports multiple languages for global usability. -
What protection features are included?
Engine, generator, and power system protections including over/under voltage, frequency, and current. -
Does it include PLC functionality?
Yes, it has integrated PLC logic for custom control strategies. -
What is the rated power supply for the device?
It operates on 12 or 24 VDC power input. -
Can it be remotely monitored?
Yes, it supports remote monitoring and control via communication interfaces.
Related Modules
| Model Number | Description |
|---|---|
| 8440-1805 | easYgen-3200-5 Controller |
| 8440-2085 | easYgen-3500-5 Controller |
| 8440-2050 | easYgen-3400-5 Controller |
| 8440-2080 | easYgen-3400XT-5 Controller |
| 8440-2165 | easYgen-3100XT Controller |
