Product Introduction

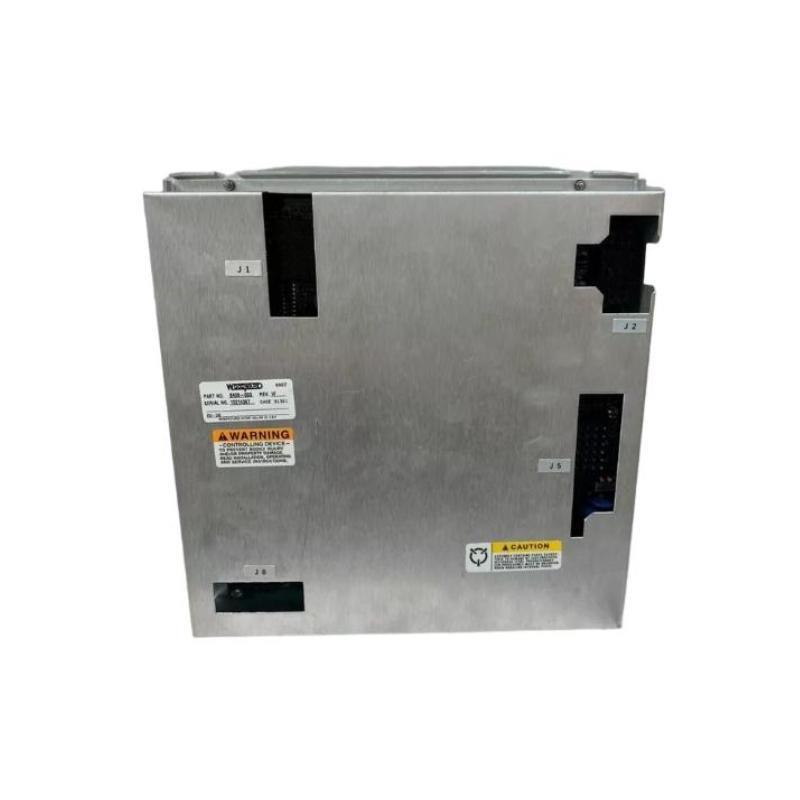

The Woodward 8406-003 Operator Interface is a high-performance human-machine interface (HMI) specifically engineered for use with Woodward’s control systems. Designed to facilitate seamless interaction between operators and automation equipment, this unit provides real-time visualization, data access, and system diagnostics in complex industrial environments.
Built for rugged applications, the 8406-003 offers an intuitive interface, customizable screen layouts, and reliable communication protocols to help operators monitor, control, and optimize machinery operation efficiently. Its industrial-grade construction ensures durability in harsh operating conditions, including temperature fluctuations, vibrations, and electrical noise.
Whether deployed in power generation, marine, oil & gas, or manufacturing sectors, the Woodward 8406-003 stands as a trusted interface solution to enhance control system responsiveness and minimize downtime.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 8406-003 |
| Type | Operator Interface (HMI) |
| Display Size | 6.5″ TFT LCD |
| Display Resolution | 640 x 480 pixels (VGA) |
| Touchscreen | Resistive touchscreen |
| Processor | ARM-based processor |
| Memory | 128 MB Flash / 64 MB RAM |
| Communication Ports | 2 x RS-232, 1 x RS-485, 2 x USB, 1 x Ethernet |
| Power Supply | 24 VDC |
| Mounting Style | Panel mount |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions (W x H x D) | 120 × 100 × 60 mm |
| Weight | 1.13 kg |
| Certifications | CE, UL, CSA, RoHS compliant |
Applications
The Woodward 8406-003 is suitable for a wide array of industrial applications, including:
-
Power Generation Systems: For monitoring and controlling turbines, generators, and auxiliary equipment.
-
Marine Automation: Used in ship engine monitoring and control consoles.
-
Oil & Gas Platforms: For interface with compressor and pump control systems.
-
Manufacturing & Automation: Seamlessly integrated with PLCs and SCADA systems.
-
Utility & Energy Sectors: Supervisory interface for grid and substation control.
-
Transportation Systems: Embedded into control cabinets in rail and industrial vehicle systems.
Product Advantages
-
Robust Design: Industrial-grade build ensures longevity in demanding environments.
-
Intuitive Operation: User-friendly interface with clear visuals and responsive touch.
-
Flexible Connectivity: Multiple communication interfaces support system integration.
-
Fast Data Access: Efficient data retrieval and diagnostics in real time.
-
Compact & Efficient: Space-saving form factor with high performance.
-
Seamless Woodward Integration: Fully compatible with Woodward control systems, reducing configuration time.
Frequently Asked Questions (FAQ)
-
What is the display size of the 8406-003 Operator Interface?
It has a 6.5-inch TFT LCD with VGA resolution. -
Is the screen touch-enabled?
Yes, it features a resistive touchscreen for operator input. -
Can this interface connect via Ethernet?
Yes, it includes an Ethernet port for network communication. -
What power supply is required for the 8406-003?
It operates on a 24 VDC power supply. -
Is the front panel waterproof or dustproof?
The front panel has an IP65 rating, offering protection against dust and water spray. -
Which Woodward systems are compatible with the 8406-003?
It is compatible with most Woodward control products such as easYgen™, Micronet™, and other embedded controllers. -
Can the interface be panel-mounted?
Yes, it is designed specifically for panel mounting. -
Is the software interface customizable?
Yes, screen layouts and functions can be customized using Woodward tools. -
Is it possible to update firmware on the device?
Yes, firmware updates can be performed via USB or Ethernet. -
What is the weight of the device?
It weighs 1.13 kg.
Related Models from the Same Series or Application
| Model | Description | Display Size | Communication | Mounting |
|---|---|---|---|---|
| 8406-002 | Basic Operator Interface | 5.7″ | RS-232/RS-485 | Panel mount |
| 8406-004 | Advanced HMI with extended I/O | 10.4″ | Ethernet/USB | Panel mount |
| 8406-010 | Touchscreen HMI for rugged applications | 7″ | RS-485, Modbus | Panel mount |
| 8406-006 | Marine-rated operator interface | 6.5″ | Ethernet/Serial | Bulkhead mount |
| 8406-007 | Sunlight-readable display variant | 8.4″ | Ethernet/USB | Panel mount |
| 8406-008 | Operator panel with integrated CPU | 12.1″ | Ethernet, CAN | Panel mount |
