Product Introduction

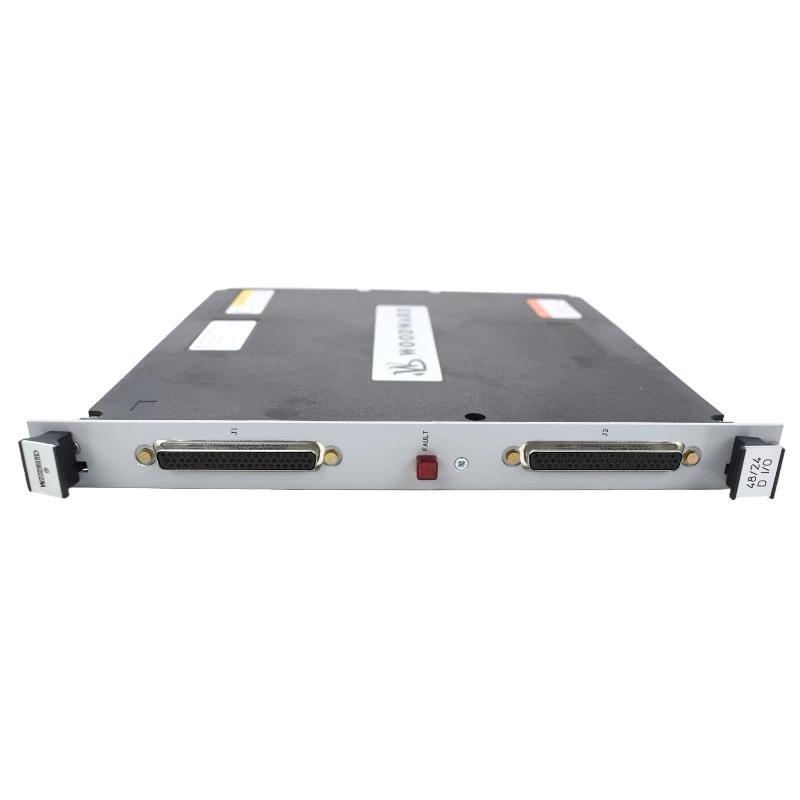

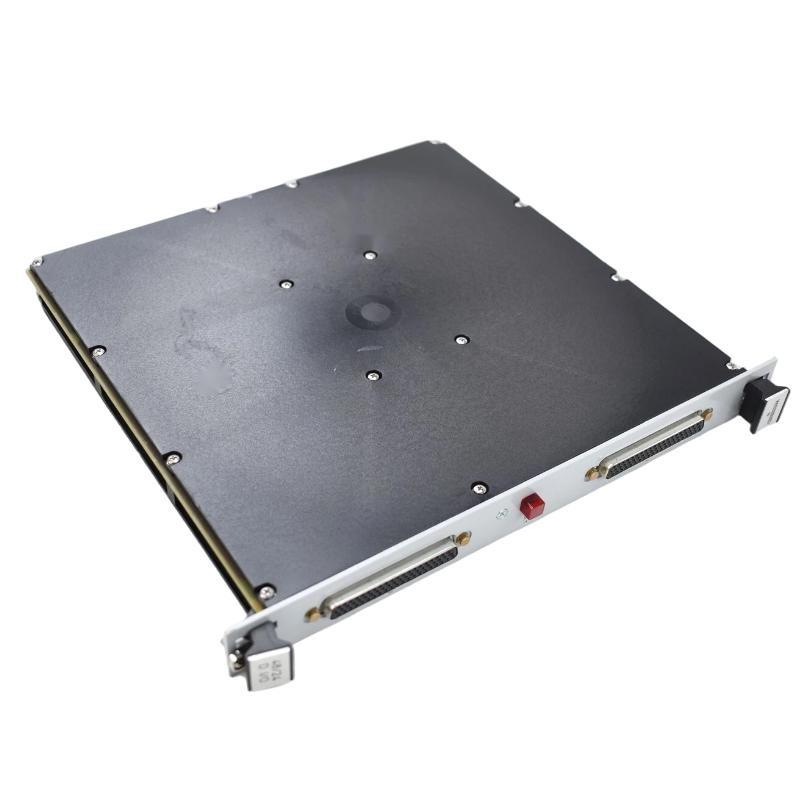

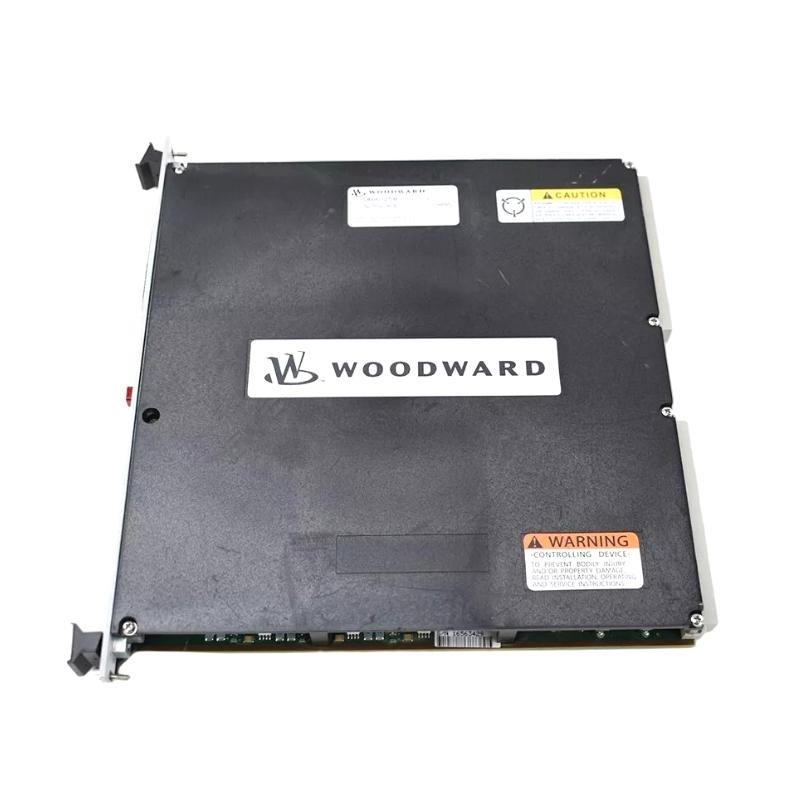

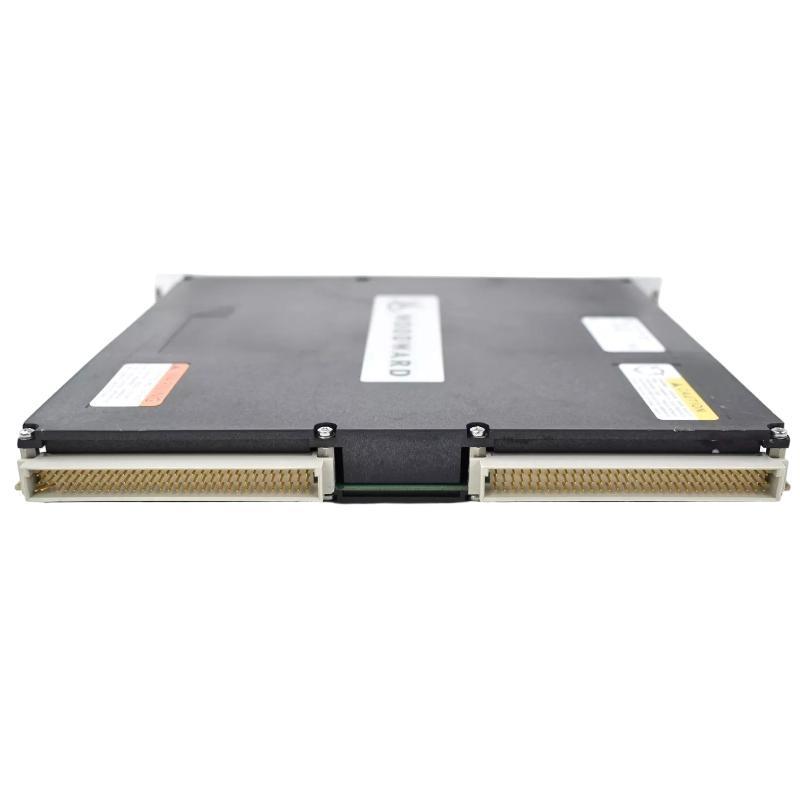

The Woodward 5466-1145 Digital Control Module is a high-performance processing and control unit designed for integration into Woodward MicroNet™ control systems. This module serves as the central controller for executing digital control strategies in mission-critical applications such as turbines, compressors, and industrial process systems. Built with a powerful embedded processor and high-speed communication interfaces, the 5466-1145 provides deterministic control performance, ensuring reliable operation in demanding environments.
Its modular design allows seamless integration with other Woodward I/O and communication modules, making it a versatile solution for both new installations and retrofit projects. The 5466-1145 is engineered to meet industrial standards, offering robust diagnostics, secure communication protocols, and long-term operational stability.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | Woodward 5466-1145 Digital Control Module |
| Product Type | Digital Control CPU Module |
| Processor Type | Embedded high-performance CPU |
| I/O Support | Interfaces with discrete and analog I/O modules |
| Communication Protocols | Modbus RTU/TCP, proprietary Woodward protocols |
| Memory | Onboard RAM and non-volatile flash storage |
| Control Execution | Real-time deterministic processing |
| Diagnostics | Self-test, status monitoring, event logging |
| Power Supply Requirement | 24 VDC nominal |
| Operating Temperature | –20°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Mounting Type | Rack-mounted (MicroNet™ control rack) |
| Compliance Standards | CE, UL, CSA, IEC |
| Dimensions (H x W x D) | 240 x 25 x 160 mm |
| Weight | 0.48 kg |
Product Applications
The Woodward 5466-1145 Digital Control Module is widely used in applications that demand precise and reliable control logic execution:
-
Gas and Steam Turbine Control: Executes digital control strategies for turbine operation and protection.
-
Compressor Management: Handles process logic for industrial compressor systems.
-
Power Generation Systems: Coordinates generator control, load sharing, and system protection.
-
Industrial Automation: Implements digital process control in complex industrial plants.
-
Distributed Control Systems: Serves as a core CPU for networked control architectures.
-
Retrofit Projects: Upgrades legacy systems to modern digital control platforms.
Product Advantages
-
High-Performance CPU: Provides deterministic, real-time control for critical applications.
-
Robust Diagnostics: Includes self-test, status monitoring, and detailed event logging.
-
Flexible Communication: Supports Modbus RTU/TCP and proprietary Woodward communication protocols.
-
Modular Integration: Compatible with a wide range of Woodward I/O and communication modules.
-
Industrial-Grade Design: Built for continuous operation in harsh and demanding environments.
-
Scalable Architecture: Suitable for both small control systems and large, distributed installations.
FAQ
-
What is the primary function of the 5466-1145 Digital Control Module?
It serves as the main CPU for executing control logic and managing I/O within a MicroNet™ control system. -
Which communication protocols are supported by this module?
The 5466-1145 supports Modbus RTU/TCP as well as proprietary Woodward protocols. -
Does the module support real-time deterministic control?
Yes, it is designed for deterministic execution of control algorithms in mission-critical systems. -
What types of I/O modules can be interfaced with the 5466-1145?
It is compatible with Woodward discrete, analog, and mixed-signal I/O modules. -
Is the module capable of handling redundant configurations?
Yes, it supports redundant CPU setups for high-availability control systems. -
Does the 5466-1145 provide diagnostic capabilities?
It includes built-in self-tests, continuous status monitoring, and event logging for troubleshooting. -
What is the required power supply for the module?
The module operates on a nominal 24 VDC power supply. -
Can the module be used in retrofit applications?
Yes, its modular design makes it ideal for upgrading existing MicroNet™ systems. -
What is the typical operating temperature range?
The 5466-1145 operates reliably between –20°C and +65°C. -
Which industries commonly use the 5466-1145 module?
It is extensively used in power generation, oil & gas, industrial automation, and process control systems.
Related Models (Same Series or Similar)
| Model | Description | Key Features |
|---|---|---|
| Woodward 5466-1138 | Digital Control CPU Module | High-speed processing with advanced diagnostics |
| Woodward 5466-1140 | Digital Control Module | Modular CPU for MicroNet™ systems |
| Woodward 5466-1148 | Redundant Control CPU Module | Supports high-availability architectures |
| Woodward 5466-258M | Discrete I/O Module | 16 inputs and 16 outputs with isolation |
| Woodward 5466-256M | Analog I/O Module | Processes multiple analog control signals |
| Woodward 5466-260M | High-Speed Digital Input Module | Designed for critical event detection |
Popular Models from the Same Brand
| Model | Product Type | Application |
|---|---|---|
| Woodward 9907-164 | Speed Control Module | Gas and steam turbine speed control |
| Woodward 8200-226 | Actuator Controller | Industrial actuator control applications |
| Woodward 5501-471 | Digital Control Module | Process automation and turbine control |
| Woodward 8239-124 | Servo Position Controller | Precise servo valve control for turbines |
| Woodward 8440-225 | Overspeed Protection Device | Critical overspeed protection for turbines |
| Woodward 5417-028 | I/O Expansion Module | Adds additional I/O to MicroNet™ systems |
