Product Introduction

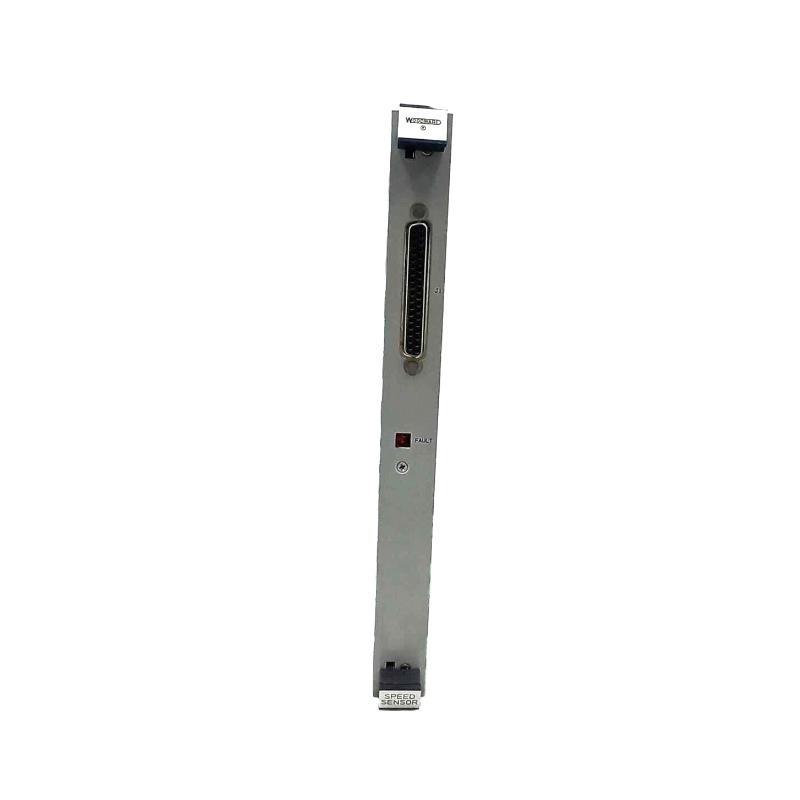

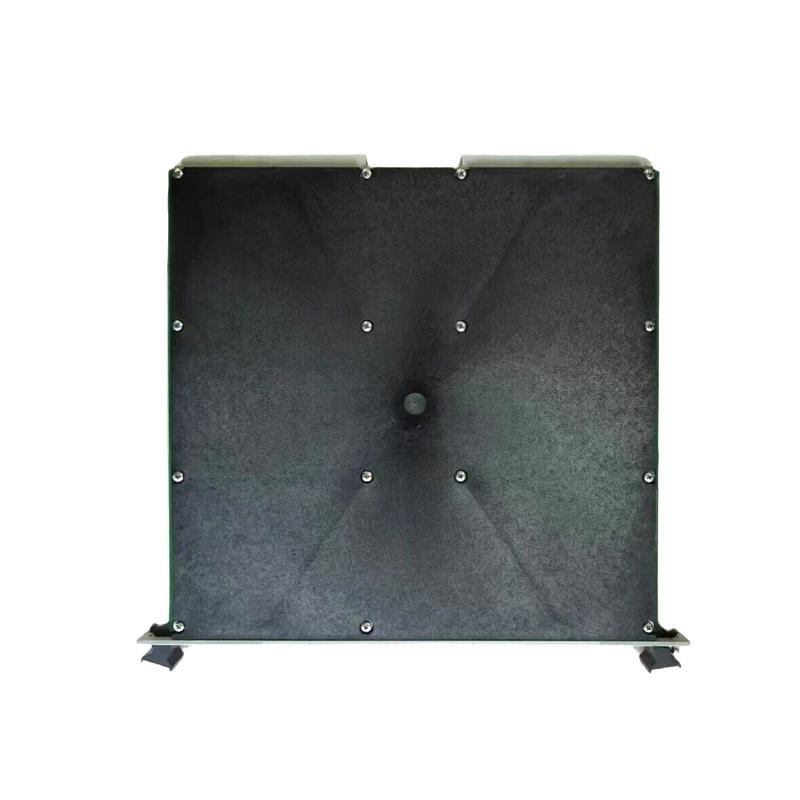

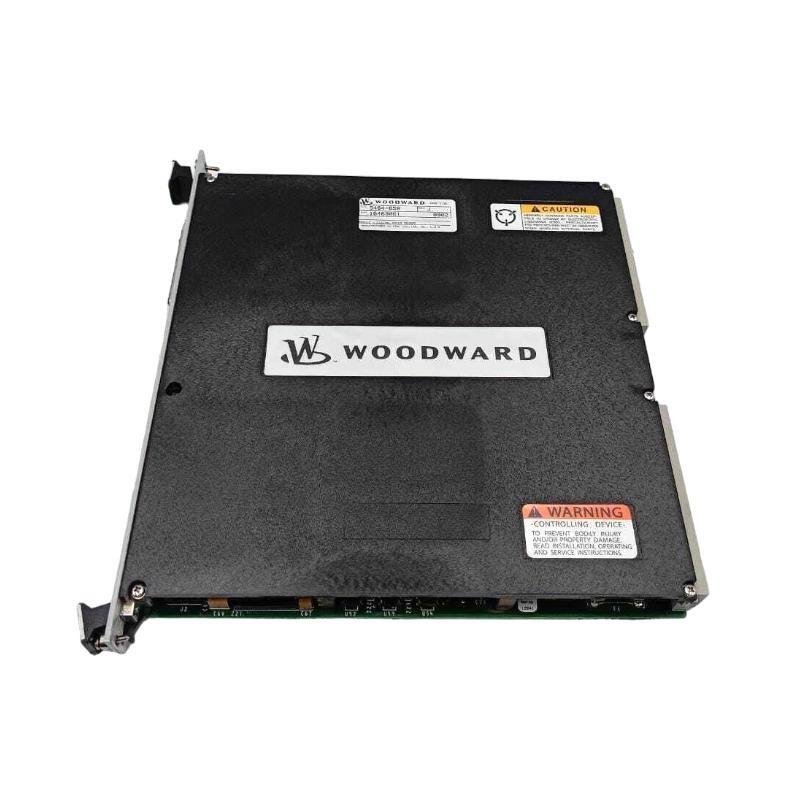

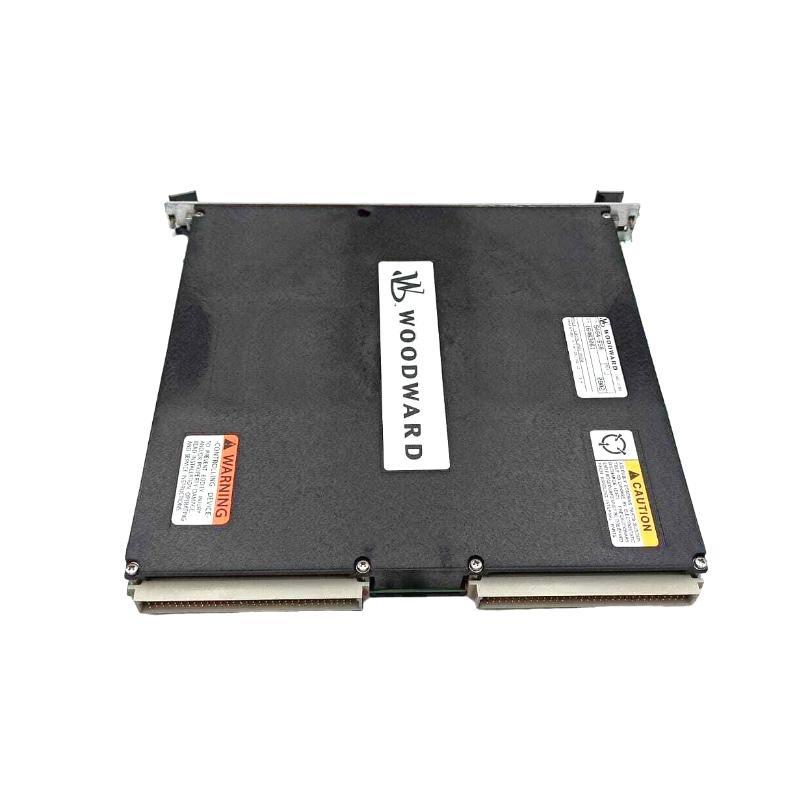

The Woodward 5464-658 Digital Speed Sensor Module is a high-performance device designed to measure rotational speed in industrial and power generation systems. This module provides accurate and reliable speed sensing by converting mechanical movement into an electrical signal that can be used for monitoring, control, and diagnostic purposes.
Built to operate in demanding environments, the 5464-658 is engineered to work seamlessly with various types of rotational machinery, including gas and steam turbines, diesel engines, and other critical rotating equipment. The module offers exceptional precision, high-speed performance, and robust durability, making it an ideal solution for industries that require precise speed control and monitoring.
The device is part of Woodward’s suite of digital control systems, known for their integration capabilities, user-friendly setup, and high dependability. This speed sensor is ideal for applications where real-time, accurate speed data is crucial for performance optimization, equipment protection, and operational efficiency.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5464-658 |
| Input Type | Digital input signal from tachometers or encoders |
| Output Type | Digital pulse output (TTL compatible) |
| Operating Voltage | 12 VDC to 24 VDC |
| Signal Frequency Range | 0 to 10,000 RPM |
| Accuracy | ±0.1% of full scale |
| Temperature Range | -40°C to +85°C |
| Mounting | DIN rail compatible, screw mount |
| Dimensions (WxHxD) | 120 x 95 x 55 mm |
| Weight | 0.454 kg |
| Power Consumption | 3 W (typical) |
| Signal Conditioning | Built-in signal amplification and conditioning |
| Communication Interface | Digital pulse output (TTL) |
| Environmental Protection | IP65 (dustproof and waterproof) |
| Certification | CE, UL |
Product Applications
The Woodward 5464-658 Digital Speed Sensor Module is versatile and can be used in numerous applications across various industries. Key use cases include:
-
Power Generation: Essential for monitoring the speed of turbines in power plants to ensure efficient operation and prevent damage due to overspeed conditions.
-
Oil and Gas: Used for monitoring the rotational speed of pumps, compressors, and engines in both onshore and offshore operations.
-
Industrial Automation: Provides speed feedback in motor-driven systems for real-time adjustments and control.
-
Aerospace: Used in engines and other rotating equipment for precise monitoring during aircraft operation.
-
Marine: Speed sensing of engines, propellers, and other critical machinery to optimize performance and safety.
-
Renewable Energy: Monitoring the speed of wind turbines and other renewable energy generation equipment.
-
Transportation: Monitoring the speed of engines and other drive systems in trains, trucks, and buses.
Product Advantages
-
High-Speed Performance: Capable of detecting speeds up to 10,000 RPM, making it suitable for high-speed machinery.
-
Accurate Speed Measurement: Provides precise speed feedback with an accuracy of ±0.1% of full scale, essential for critical control applications.
-
Compact and Durable Design: Its small footprint and rugged construction make it ideal for harsh industrial environments.
-
Robust Environmental Protection: With an IP65 rating, the sensor is resistant to dust and water, ensuring reliable operation even in extreme conditions.
-
Flexible Power Supply: Compatible with a range of input voltages (12 VDC to 24 VDC), making it adaptable to various industrial setups.
-
Easy Integration: The digital output signal is compatible with TTL inputs, enabling seamless integration with other control systems.
-
Low Power Consumption: Consumes only 3 W (typical), ensuring low operational costs and energy efficiency.
-
Simple Installation: Mounting is straightforward with its DIN rail compatibility and screw mount options.
-
High Reliability: With CE and UL certifications, this module meets rigorous safety and quality standards.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum rotational speed the Woodward 5464-658 can measure?
A: The module can measure rotational speeds up to 10,000 RPM. -
Q: What is the output signal of the 5464-658?
A: It provides a digital pulse output that is TTL compatible. -
Q: Can the module operate with both 12V and 24V systems?
A: Yes, it can operate within a voltage range of 12 VDC to 24 VDC. -
Q: What is the environmental protection rating of the sensor?
A: The sensor is rated IP65, making it dustproof and waterproof. -
Q: Is the module suitable for high-speed machinery?
A: Yes, it can measure speeds up to 10,000 RPM, making it suitable for high-speed applications. -
Q: How does the Woodward 5464-658 ensure accurate speed measurement?
A: It has built-in signal amplification and conditioning to ensure precise and reliable speed feedback. -
Q: What industries use the 5464-658 Digital Speed Sensor Module?
A: It is used in power generation, oil and gas, industrial automation, aerospace, marine, renewable energy, and transportation sectors. -
Q: How is the module mounted?
A: The module is DIN rail compatible and can also be screw mounted. -
Q: What certifications does this product have?
A: It is CE and UL certified for safety and reliability. -
Q: What is the typical power consumption of the module?
A: It consumes around 3 W under typical conditions.
Related Models and Variants
| Model Number | Description | Key Feature |
|---|---|---|
| 5464-657 | Digital Speed Sensor Module with Extended RPM Range | Measures up to 20,000 RPM |
| 5464-659 | Speed Sensor with Analog Output | Includes analog output option |
| 5464-660 | Heavy-Duty Speed Sensor Module | Enhanced for extreme environments |
| 5464-661 | Compact Digital Speed Sensor Module | Smaller form factor for tight spaces |
| 5464-662 | Dual Channel Speed Sensor Module | Supports two independent speed channels |
| 5464-663 | Wireless Digital Speed Sensor Module | Includes wireless communication feature |
Popular Woodward Brand Models
| Model Number | Description | Application Focus |
|---|---|---|
| 5464-651 | Speed Control Module | Precision speed control |
| 5464-652 | Generator Control Module | Control and monitoring of generators |
| 5464-654 | Digital Load Sharing Module | Load sharing for multiple generators |
| 5464-655 | Digital Fuel Control Module | Fuel optimization for turbines and engines |
| 5464-656 | Turbine Protection Module | Protects turbines from operational faults |
| 5464-664 | Generator Synchronization Module | Ensures safe synchronization between generators |
