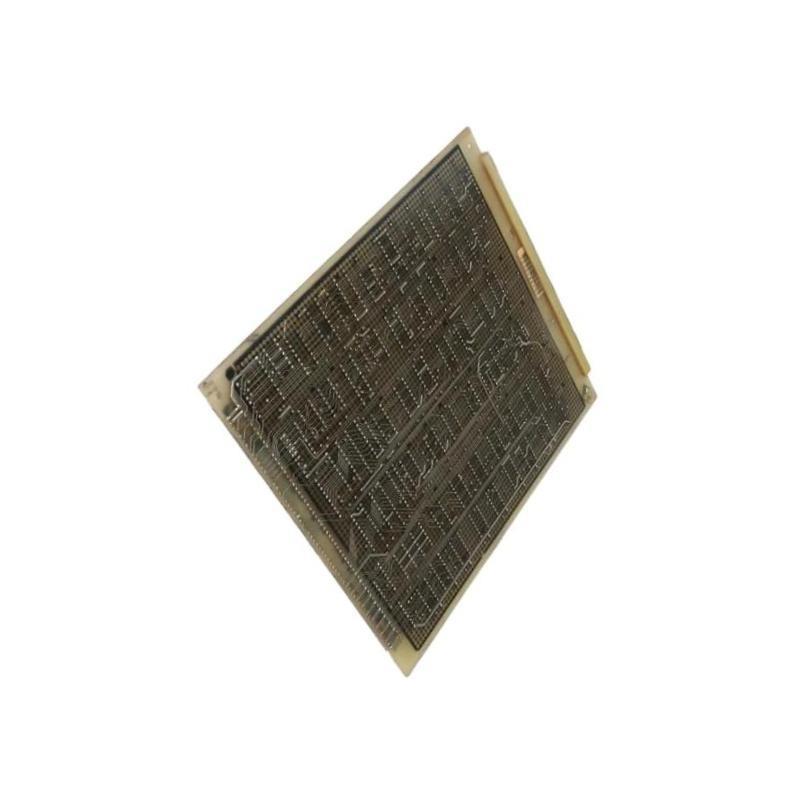

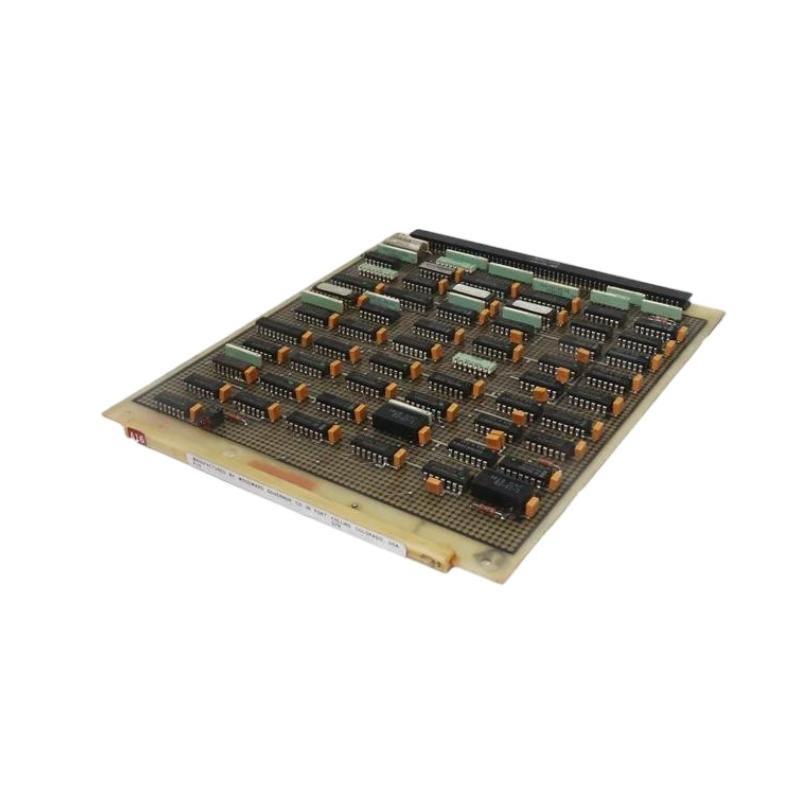

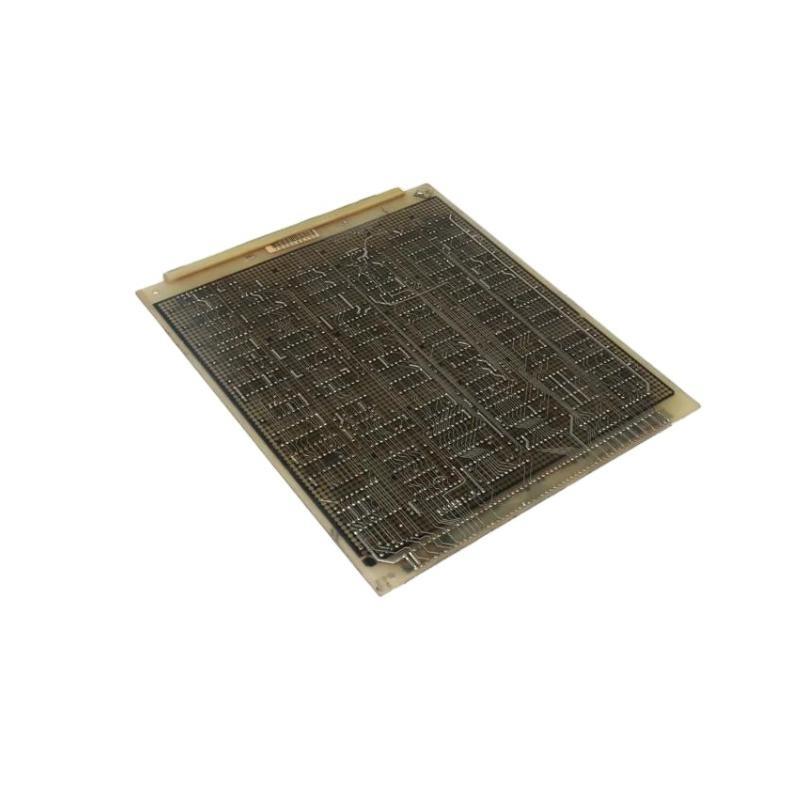

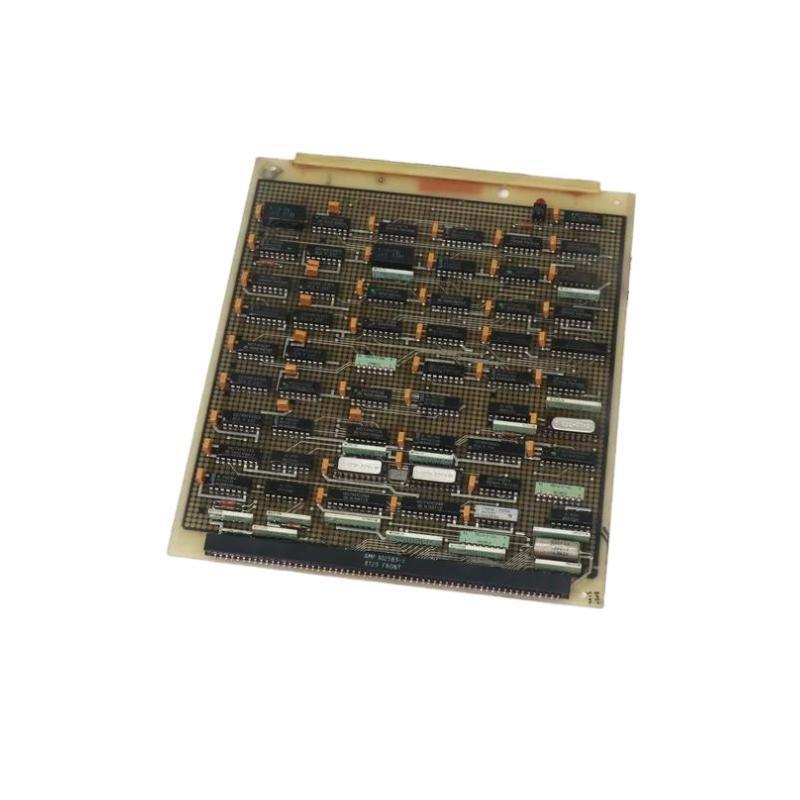

Product Overview
The Woodward 5462-916 I/O Module is a compact, high-reliability input/output interface designed for industrial automation and control systems. It enables efficient communication between control units and field devices by providing 8 inputs and 8 outputs for versatile signal management. The module supports RS-485 communication and is built to withstand harsh environments with an IP65 protection rating, making it suitable for both indoor and outdoor applications.
Its slim profile and lightweight design allow for easy installation in space-constrained control panels. This module is ideal for applications requiring robust, dependable data acquisition and control in power generation, manufacturing, process control, and building management systems.
Key Features and Advantages
-
Compact and Lightweight: Dimensions of 130 x 160 x 35 mm and weighing 0.6 kg facilitate installation in tight spaces.
-
Wide Operating Temperature Range: Operates reliably from -40°C to +70°C across various industrial environments.
-
Robust Protection: IP65 rating provides dust-tight and water-resistant protection, suitable for outdoor and harsh conditions.
-
Multiple I/O Channels: Equipped with 8 inputs and 8 outputs to handle diverse signal types.
-
Reliable Communication: Supports RS-485 protocol for seamless integration into control networks.
-
Low Power Consumption: Operates efficiently consuming less than 5 watts of power.
-
Durable Construction: Engineered to maintain long-term performance in industrial automation settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5462-916 |
| Dimensions | 130 x 160 x 35 mm |
| Weight | 0.6 kg |
| Operating Voltage | 220 V AC |
| Number of Inputs | 8 |
| Number of Outputs | 8 |
| Communication Interface | RS-485 |
| Operating Temperature Range | -40°C to +70°C |
| Protection Class | IP65 |
| Power Consumption | < 5 W |
Applications
-
Power generation control systems for turbines and generators
-
Manufacturing automation integrating sensors and actuators
-
Chemical and petrochemical process control
-
Building management systems including HVAC, lighting, and security control
-
Any industrial setting requiring reliable I/O expansion with environmental protection
Frequently Asked Questions (FAQ)
-
What is the voltage requirement for the 5462-916 module?
The module operates at 220 V AC. -
How many inputs and outputs does the module have?
It features 8 inputs and 8 outputs. -
Which communication protocol is supported?
The module supports RS-485 communication. -
What is the protection rating of the module?
The module has an IP65 rating, making it dust-tight and water-resistant. -
What is the operating temperature range?
It operates between -40°C and +70°C. -
What are the module’s physical dimensions?
The dimensions are 130 x 160 x 35 mm. -
How much does the module weigh?
The module weighs approximately 0.6 kg. -
Is the module suitable for outdoor applications?
Yes, its IP65 rating allows use in outdoor and harsh environments. -
What is the power consumption?
The module consumes less than 5 watts. -
Can this module be integrated into existing automation systems?
Yes, its RS-485 interface ensures compatibility with common industrial control systems.
Related and Similar Models
| Model Number | Description |
|---|---|
| 5462-917 | Advanced I/O Module |
| 5462-918 | High-Speed I/O Module |
| 5462-919 | Compact I/O Interface |
| 5462-920 | Modular I/O Expansion Module |
| 5462-921 | Industrial I/O Controller |
| 5462-922 | Distributed I/O Module |
