Product Introduction

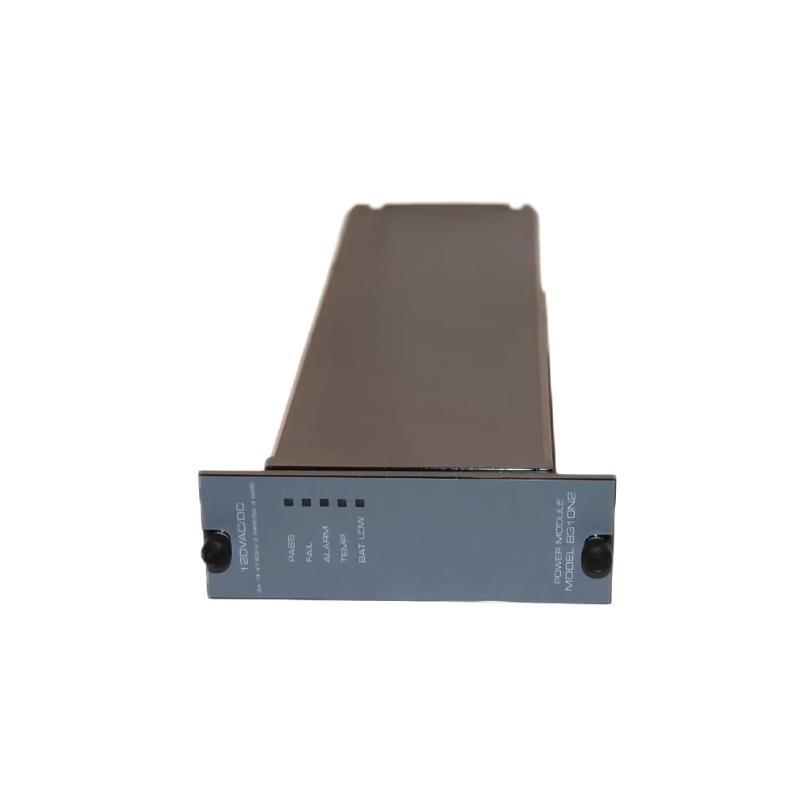

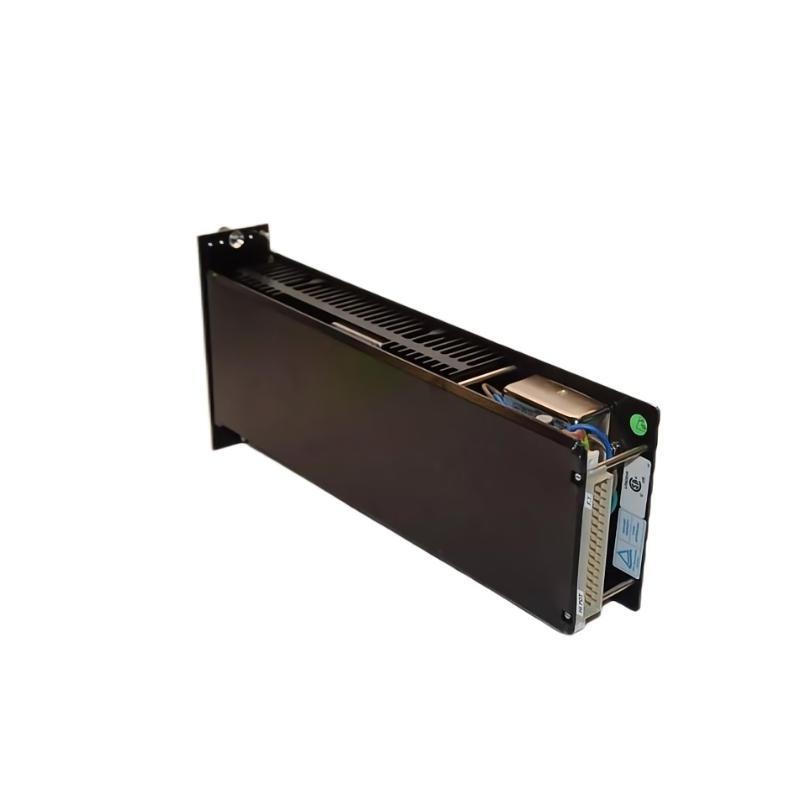

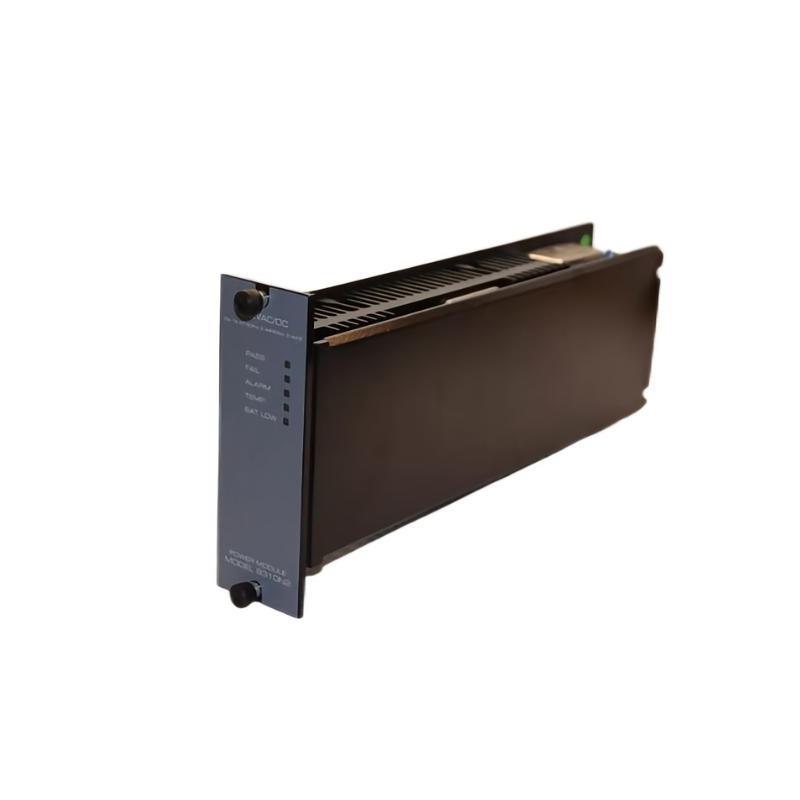

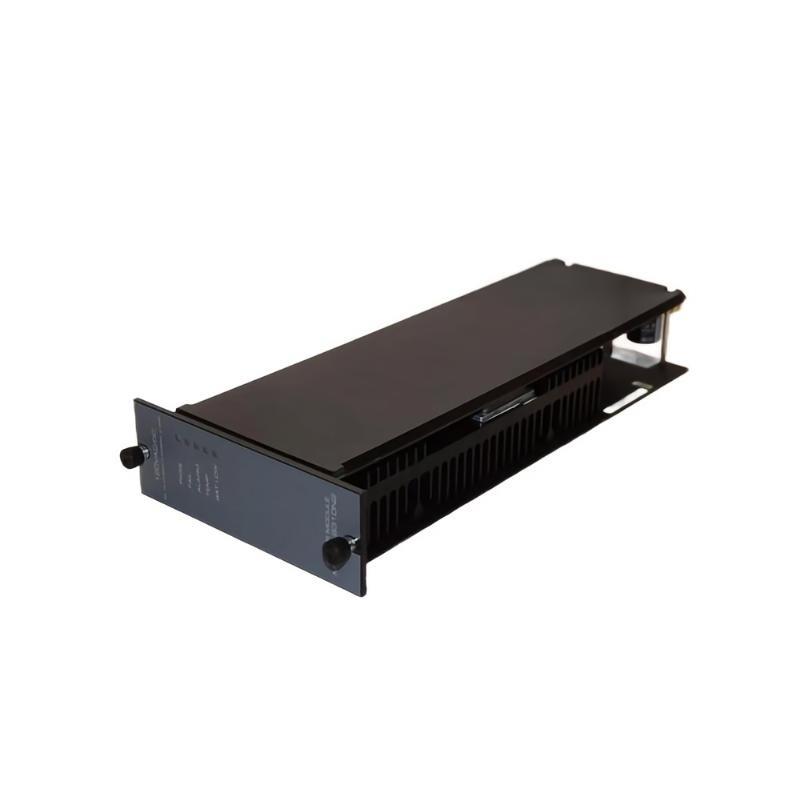

The Triconex 8310N Power Supply Module is a critical component designed to provide reliable and stable power within the Triconex safety systems. Manufactured by Schneider Electric, this module supports the robust and fault-tolerant architecture of the Triconex platform, known globally for its high integrity in safety instrumented systems.
The 8310N Power Supply Module converts AC power to the necessary DC power required to drive the Triconex controllers and associated modules. Its design emphasizes redundancy, robustness, and durability, ensuring that vital safety functions remain uninterrupted even under adverse conditions. The module is tailored for industrial environments, including oil and gas, chemical processing, and power generation sectors where safety and reliability are paramount.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | Triconex 8310N Power Supply Module |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Output Voltage | +5 V DC, +12 V DC (dual output) |
| Output Current | 5 A (5 V line), 3 A (12 V line) |
| Power Consumption | Max 70 W |
| Dimensions (H x W x D) | 369 x 156 x 88 mm |
| Weight | 3.67 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted module |
| Cooling | Forced air cooling recommended |
| Certifications | SIL 3 certified |
| Communication | None (power supply only) |
| Protection Features | Overvoltage, overload, and short-circuit protection |
Product Applications
-
Safety Instrumented Systems (SIS): Powers the core controllers and communication modules within Triconex SIS architectures to ensure continuous safety operation.
-
Process Control: Provides reliable power in high-demand environments such as chemical plants, refineries, and pharmaceutical manufacturing.
-
Power Generation: Used in nuclear, fossil, and renewable power plants to maintain the operational integrity of safety control systems.
-
Oil & Gas Industry: Integral to offshore platforms and pipelines where power stability and safety system availability are vital.
-
Critical Infrastructure: Applied in water treatment plants, transportation systems, and other infrastructure requiring high-availability safety solutions.
-
Redundant System Design: Supports redundant power configurations for fault tolerance and uninterrupted system operation.
Product Advantages
-
High Reliability: Designed to deliver continuous, stable power with multiple protection circuits to prevent failure.
-
SIL 3 Certification: Meets stringent safety requirements for high-integrity safety systems.
-
Dual Voltage Outputs: Supplies both +5 V and +12 V to meet diverse module power requirements.
-
Compact Rack Design: Fits seamlessly into standard Triconex rack assemblies, facilitating easy installation and replacement.
-
Wide Operating Temperature Range: Suitable for varied industrial environments.
-
Robust Protection: Built-in protections safeguard the module and connected equipment from electrical faults.
-
Low Maintenance: Engineered for durability with minimal upkeep required.
-
Global Support: Backed by Schneider Electric’s worldwide service and support network.
-
Reduced Downtime: Quick replacement and modular design reduce maintenance downtime.
-
Consistent Performance: Ensures steady power delivery even in harsh industrial settings.
Frequently Asked Questions (FAQ)
-
What is the input voltage range for the Triconex 8310N Power Supply Module?
The input voltage range is 100 to 240 VAC at 50/60 Hz. -
What output voltages does the module provide?
It provides +5 V DC and +12 V DC outputs simultaneously. -
What is the maximum output current for each voltage line?
The +5 V line supports up to 5 A, and the +12 V line supports up to 3 A. -
Is the 8310N module suitable for use in hazardous environments?
Yes, it is designed for safety-critical applications and is SIL 3 certified. -
Can the module be hot-swapped in the rack?
No, it is not designed for hot-swapping; power should be off before replacement. -
What kind of cooling does the module require?
Forced air cooling is recommended to maintain optimal operating temperature. -
What are the module’s dimensions and weight?
Dimensions are369 x 156 x 88 mm, weighing 3.67 kg. -
Does the module provide any communication capabilities?
No, this is a power supply module without communication functions. -
What protections are included in the module?
It features overvoltage, overload, and short-circuit protection. -
Is this power supply compatible with all Triconex safety systems?
It is compatible with Triconex rack-based systems requiring +5 V and +12 V power rails.
