Product Overview

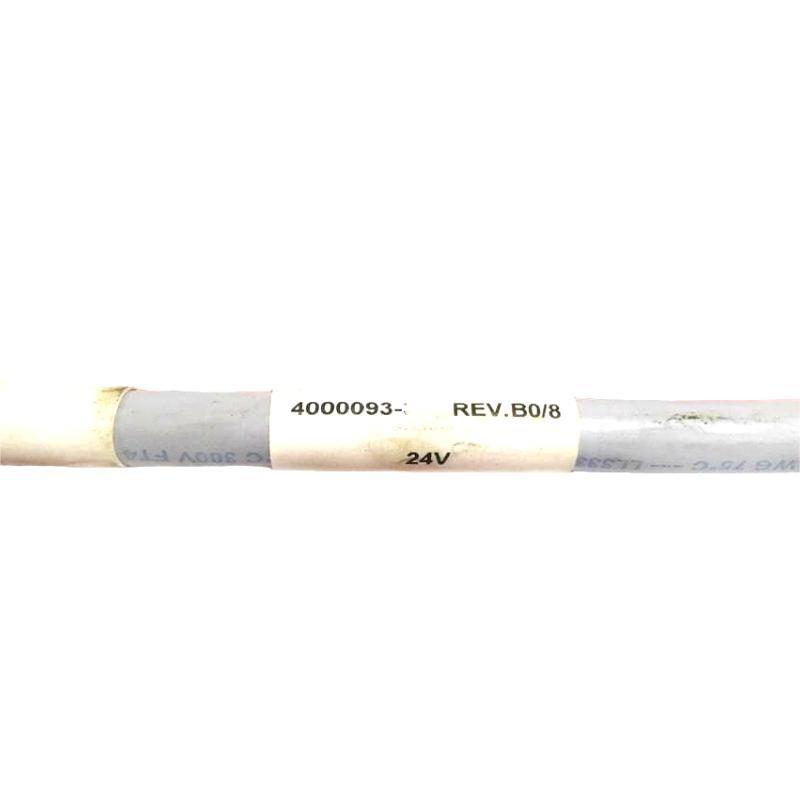

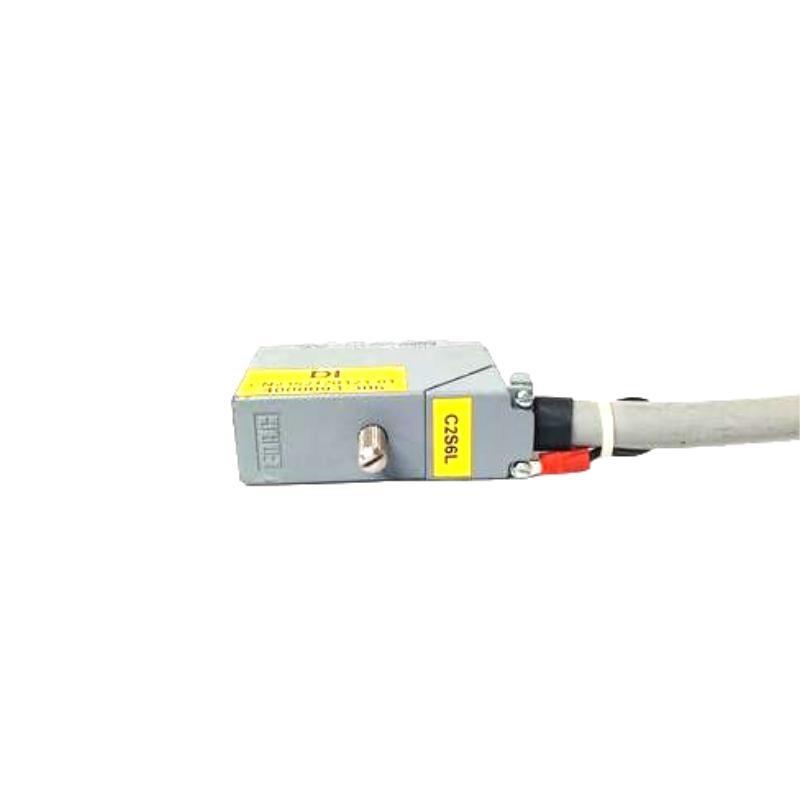

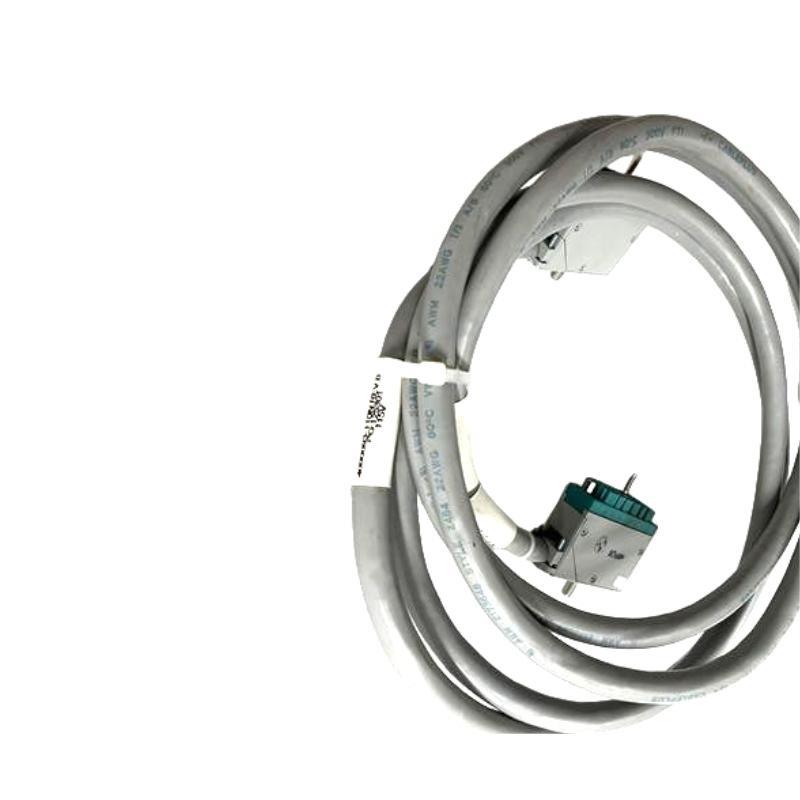

The Triconex 4000093-310 Input Terminal Cable Assembly is a specialized, high-reliability industrial-grade cable designed to interface Triconex input modules with field wiring. It is part of the Triconex TMR (Triple Modular Redundancy) safety system architecture, ensuring signal integrity, secure terminations, and ease of field installation in safety-critical automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 4000093-310 |
| Type | Input Terminal Cable Assembly |
| Connector Type | Pre-terminated with mating connectors |
| Compatibility | Triconex Input Modules |
| Cable Assembly Length | Factory pre-defined |
| Minimum Bend Radius | 14.224 cm |
| Jacket Type | Industrial-grade shielded insulation |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Weight (Packaged) | 3 kg |
| Application Use | Signal transmission for I/O terminations |
| Certifications | CE, UL, CSA (region dependent) |
Applications
-
Safety Instrumented Systems (SIS): Ensures reliable signal transfer in TMR architecture for process safety.
-
Industrial Automation: Used in chemical, oil & gas, power generation, and refining applications.
-
Mission-Critical Controls: Suitable for emergency shutdown systems and safety interlocks.
-
DCS/PLC Interfaces: Bridges signal integrity between input modules and field wiring junctions.
Product Advantages
-
Pre-Terminated Connections: Minimizes wiring errors and installation time.
-
High Signal Integrity: Industrial shielding reduces electromagnetic interference.
-
TMR-Compatible: Built for triple-redundancy systems, enhancing safety.
-
Rugged Construction: Designed to withstand harsh industrial conditions.
-
Standardized Assembly: Enables quick replacement and maintenance.
Frequently Asked Questions (FAQ)
Q1: What modules is the 4000093-310 cable compatible with?
A1: It is specifically designed for Triconex input modules that require terminal cable assemblies, ensuring signal compatibility and physical fit.
Q2: Is the cable pre-terminated or field-terminable?
A2: The cable is factory pre-terminated with connectors, simplifying installation and reducing configuration errors.
Q3: Can this cable be used in high-temperature environments?
A3: Yes, it supports operating temperatures from -20°C to +70°C.
Q4: What is the minimum bend radius of this cable?
A4: The minimum bend radius is 14.224 cm, which should not be exceeded during installation.
Q5: What safety standards does the cable comply with?
A5: It is typically compliant with CE, UL, and CSA standards, depending on the regional deployment.
Q6: Can I use this cable in a non-Triconex system?
A6: It is optimized for Triconex systems. Compatibility with other systems is not guaranteed.
Q7: What is the total shipping weight of the cable assembly?
A7: The packaged weight is approximately 3 kg.
Q8: Does the cable provide shielding against electrical noise?
A8: Yes, it is shielded to maintain high signal integrity in electrically noisy environments.
Q9: Is the cable suitable for outdoor installation?
A9: While it is rugged, it is primarily designed for indoor industrial control cabinets. Additional protection is needed for outdoor use.
Q10: How is this cable maintained or inspected?
A10: Visual inspection for connector integrity, shielding damage, and bend radius compliance is recommended during scheduled maintenance.
Related or Similar Models
| Model Number | Description | Cable Type | Weight | Bend Radius |
|---|---|---|---|---|
| 4000093-120 | Input Terminal Cable Assembly | Shielded | 2.8 kg | 13.5 cm |
| 4000093-320 | Input Terminal Cable Assembly | Shielded | 3.1 kg | 14.0 cm |
| 4000093-220 | Output Terminal Cable Assembly | Unshielded | 2.9 kg | 13.8 cm |
| 4000093-240 | Input/Output Combo Cable Assembly | Dual-core | 3.2 kg | 14.5 cm |
| 4000093-150 | Diagnostic Terminal Cable Assembly | Shielded | 2.7 kg | 13.2 cm |
| 4000093-330 | Enhanced Shielded Input Cable Assembly | High-durability | 3.3 kg | 14.5 cm |
Popular Triconex Models
| Model Number | Description | Function Type | Weight | Dimensions |
|---|---|---|---|---|
| Triconex 3008 | Main Processor Module | CPU | 0.9 kg | 280 x 50 x 200 mm |
| Triconex 3625 | Digital Input Module | 32-channel DI | 0.7 kg | 280 x 50 x 180 mm |
| Triconex 3664 | Digital Output Module | 32-channel DO | 0.8 kg | 280 x 50 x 180 mm |
| Triconex 4351B | Main Processor Module | TMR CPU | 1.0 kg | 280 x 50 x 220 mm |
| Triconex 3700A | Analog Input Module | 16-channel AI | 0.9 kg | 280 x 50 x 180 mm |
| Triconex 3721 | Analog Output Module | 8-channel AO | 0.8 kg | 280 x 50 x 180 mm |
