Product Introduction

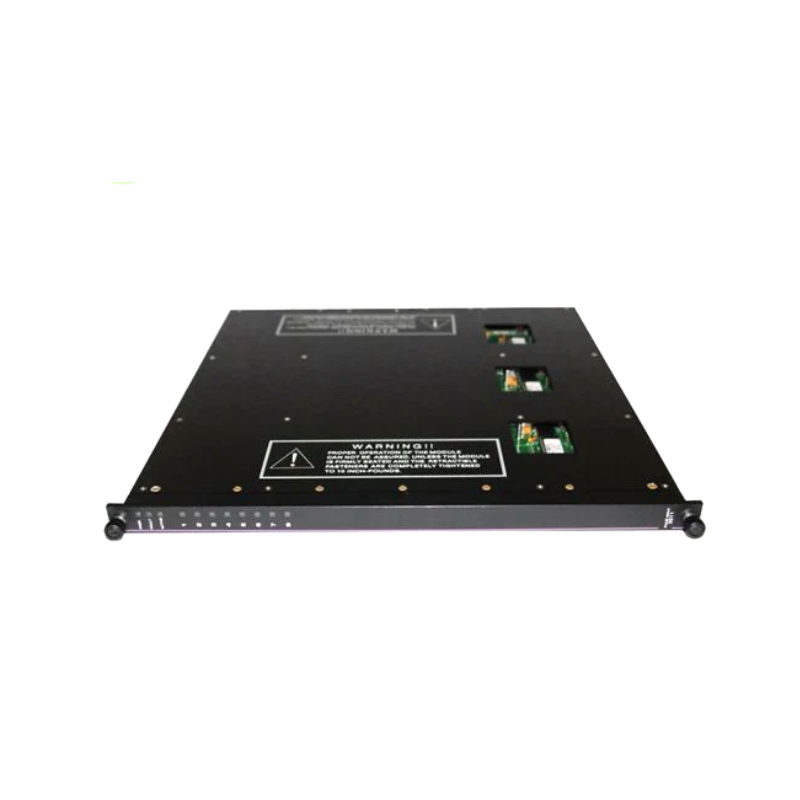

The Triconex 3706 Thermocouple Analog Input Module is a high-performance industrial module designed for precise temperature measurement in safety-critical applications. It is a crucial component of the Triconex Tricon safety system, widely used in industries that require extreme reliability, such as oil and gas, power generation, chemical processing, and pharmaceuticals.
This module supports multiple thermocouple types, ensuring broad compatibility with various industrial sensors. Featuring Triple Modular Redundancy (TMR), it provides superior fault tolerance, continuous self-diagnostics, and high-accuracy data acquisition. The 3706 module is engineered to operate in harsh environments, offering resistance to electrical noise, temperature fluctuations, and mechanical vibrations.
Product Specifications
The following table outlines the key technical specifications of the Triconex 3706 Thermocouple Analog Input Module:
| Specification | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model Number | 3706 |
| Module Type | Thermocouple Analog Input Module |
| Input Channels | 16 (independent channels) |
| Supported Thermocouple Types | J, K, T, E, R, S, B, N |
| Input Voltage Range | -10mV to +100mV |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Cold Junction Compensation | Yes |
| Update Rate | 20ms per channel |
| Redundancy | Triple Modular Redundancy (TMR) |
| Communication | Tricon System Bus |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Shock Resistance | 30G peak acceleration |
| Vibration Resistance | 2G RMS (10-500Hz) |
| Dimensions | 273 x 213 x 25 mm |
| Weight | 1.4 kg |
| Power Consumption | 6W |
Product Applications
The Triconex 3706 Thermocouple Analog Input Module is widely used in industries requiring accurate temperature monitoring and control. Common applications include:
-
Oil & Gas Industry – Used in refineries, pipelines, and drilling sites for temperature monitoring of critical processes.
-
Power Generation – Monitors turbine and boiler temperatures to optimize efficiency and ensure safe operation.
-
Chemical Processing – Ensures precise temperature control for chemical reactions and processing.
-
Petrochemical Industry – Monitors temperature variations in refining and gas processing facilities.
-
Water & Wastewater Treatment – Ensures proper temperature regulation in filtration and purification processes.
-
Steel & Metallurgy – Measures and controls temperatures in furnaces and casting operations.
-
Pharmaceutical Industry – Guarantees consistency in temperature-sensitive drug manufacturing processes.
-
Food & Beverage Industry – Maintains strict temperature control for food safety compliance.
Product Advantages
The Triconex 3706 Thermocouple Analog Input Module offers several key benefits:
-
Triple Modular Redundancy (TMR) – Provides fault tolerance and maximized system uptime.
-
High Accuracy & Stability – ±0.1% full-scale accuracy ensures precise temperature measurements.
-
Multi-Thermocouple Support – Compatible with J, K, T, E, R, S, B, N types for versatile applications.
-
Cold Junction Compensation (CJC) – Ensures reliable and stable temperature readings.
-
High-Resolution 16-bit ADC – Delivers fine measurement details for critical processes.
-
Fast Response Time – 20ms update rate per channel for real-time data acquisition.
-
Extreme Environmental Resistance – Designed for harsh conditions, including high shock and vibration environments.
-
Seamless Tricon Integration – Works effortlessly with Triconex Tricon safety and control systems.
Latest News Titles
-
“Triconex 3706: Enhancing Industrial Safety with Advanced Thermocouple Input Technology”
-
“Triconex 3706 Module Gains Certification for High-Reliability Temperature Monitoring”
-
“Upgrading Industrial Systems: How the Triconex 3706 Supports Modern Safety Standards”
-
“Schneider Electric Introduces Next-Generation Triconex Modules for Critical Applications”
-
“Ensuring Process Safety: The Role of Triconex 3706 in Hazardous Environments”
FAQ (Frequently Asked Questions)
-
What is the main function of the Triconex 3706 module?
-
It provides high-precision temperature measurement using thermocouples in industrial control systems.
-
-
Which thermocouple types does the module support?
-
It supports J, K, T, E, R, S, B, and N thermocouples.
-
-
What is the resolution of the 3706 module?
-
The module features a 16-bit resolution for detailed temperature measurements.
-
-
Does the module include Cold Junction Compensation (CJC)?
-
Yes, it includes CJC for accurate thermocouple readings.
-
-
What is the response time of the module?
-
The update rate is 20ms per channel.
-
-
What is the power consumption of the module?
-
The module consumes 6W of power.
-
-
Is the module suitable for hazardous environments?
-
Yes, it is designed for harsh industrial conditions with high safety and reliability requirements.
-
-
How does the module communicate with the system?
-
It communicates through the Tricon System Bus.
-
-
What are the module’s dimensions and weight?
-
The module measures 273 x 213 x 25 mm and weighs 1.4 kg.
-
-
Can the module be used in nuclear power plants?
-
Yes, it is commonly used in nuclear safety systems.
Related Models from the Same Series
| Model | Description |
|---|---|
| 3703E | Digital Input Module |
| 3704E | Analog Input Module |
| 3705E | Digital Output Module |
| 4351B | Main Processor Module |
| 4119A | Communication Module |
| 3721 | High-Density Analog Input Module |
| 3805E | High-Speed Digital Input Module |
| 3664 | Power Supply Module |
Popular Triconex Models
| Model | Description |
|---|---|
| 3008 | TMR Main Processor |
| 3503E | Analog Output Module |
| 3625 | Redundant Power Supply |
| 3604E | Digital Input Module |
| 8312 | TMR Network Interface Module |
| 9853 | High-Speed Serial Module |
| 4211 | Remote I/O Communication Module |
| 3664 | Power Supply Module |
