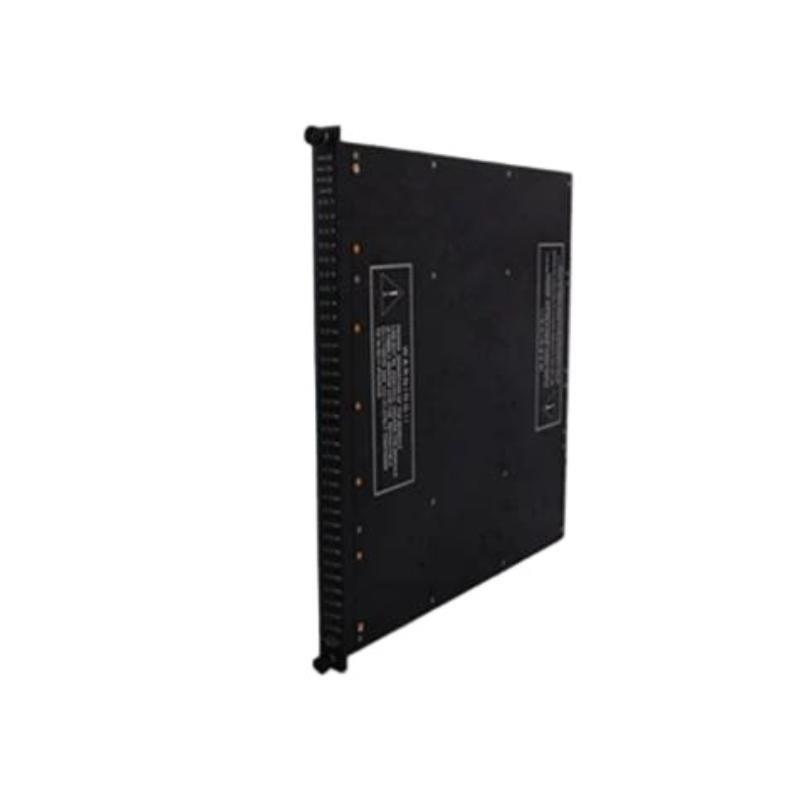

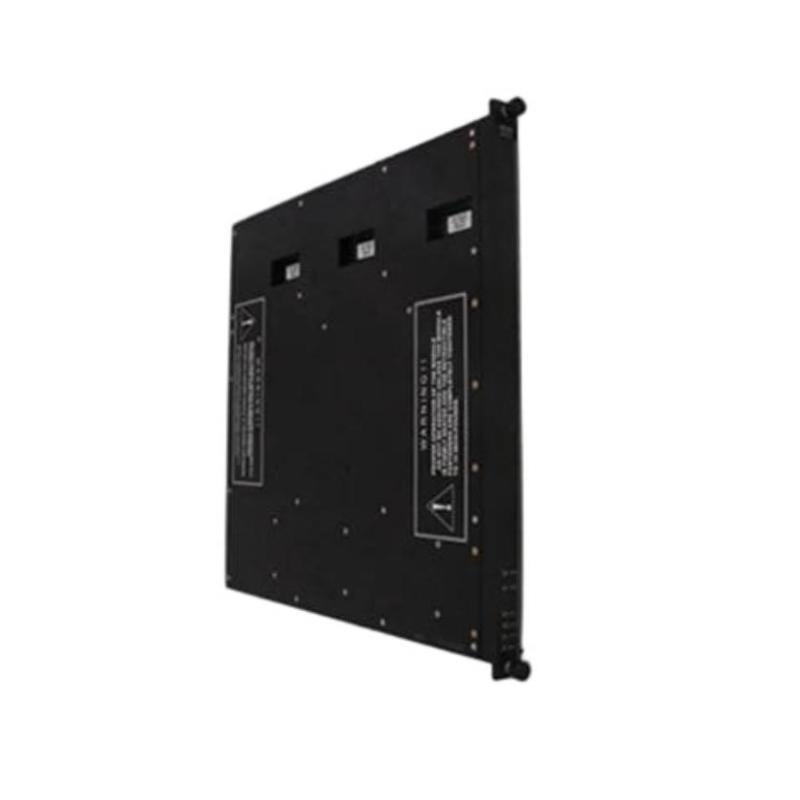

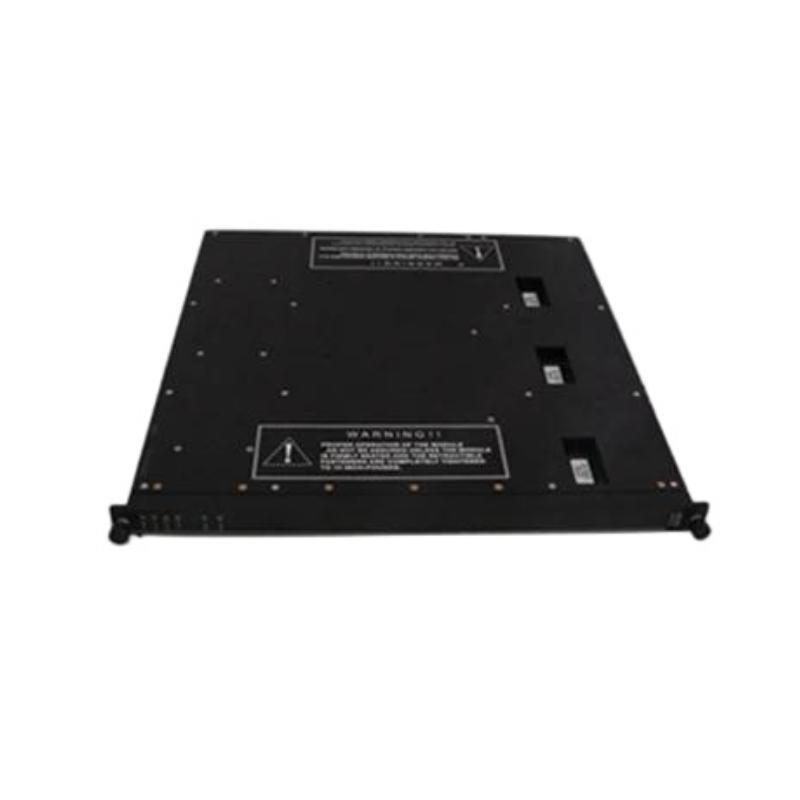

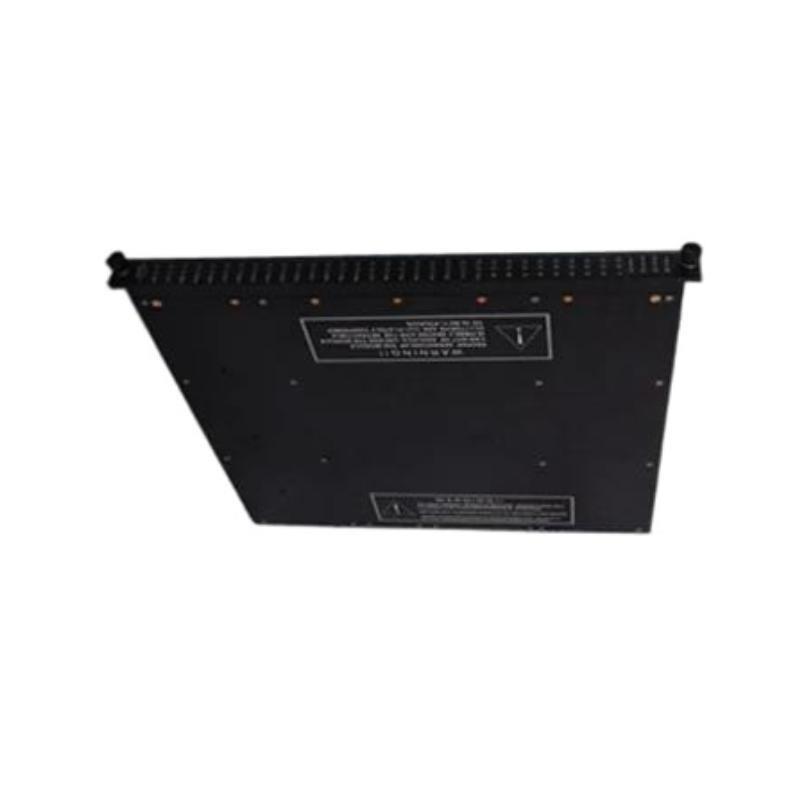

Product Overview
The Triconex 3000142-220 Power Module is an essential component in the Triconex safety and critical control system architecture. Designed for high reliability in industrial automation and safety systems, this module ensures continuous power delivery to the system’s logic and I/O components. It is a hot-replaceable module that supports system redundancy and improves overall system availability, commonly used in safety instrumented systems (SIS) across critical sectors such as oil & gas, petrochemical, and power generation.
Key Features
-
Redundant power supply support
-
Hot-swappable for non-disruptive maintenance
-
LED status indicators for module health
-
Designed for critical safety applications
-
Compatible with Tricon and Trident systems
-
High MTBF for extended system uptime
-
Surge and overvoltage protection
-
DIN rail or chassis mountable design
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Power Supply Module |
| Model Number | 3000142-220 |
| Manufacturer | Triconex (by Schneider Electric) |
| Input Voltage | 90 – 264 VAC / 125 – 300 VDC |
| Output Voltage | 5.1 VDC, 3.3 VDC, ±12 VDC |
| Power Rating | Up to 250 Watts |
| Power Redundancy | Yes (N+1 Supported) |
| Hot-Swappable | Yes |
| LED Indicators | Status, Fault, Power |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA, ATEX |
| Shock/Vibration Resistance | Industrial Grade |
| Mounting Type | Rack/Chassis Mounted |
| Dimensions | 350 x 130 x 40 mm |
| Weight | 1.4 kg |
Industry Applications
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
Fire and Gas Systems (F&G)
-
Turbomachinery Control Systems (TMC)
-
Pipeline and Compressor Safety Systems
-
Nuclear and Conventional Power Plants
-
Refining and Petrochemical Units
Product Advantages
-
Uninterrupted Power: Supports redundant power configurations for zero downtime.
-
Flexible Integration: Seamlessly integrates into Triconex platforms.
-
Enhanced Safety: Designed for critical safety applications, meeting international safety standards.
-
Low Maintenance: Hot-swappable design reduces repair time and ensures system continuity.
-
Diagnostics: Integrated LEDs provide immediate visual status feedback.
-
Compact Design: Optimized footprint for easy installation in control cabinets.
Frequently Asked Questions (FAQ)
1. Is the Triconex 3000142-220 hot-swappable?
Yes, it supports hot-swapping for ease of maintenance without system shutdown.
2. Can this module be used in redundant configurations?
Yes, it supports N+1 redundancy to ensure continuous operation.
3. What kind of power input does it support?
It supports a wide input range of 90–264 VAC or 125–300 VDC.
4. Does it offer LED indicators for diagnostics?
Yes, it includes LED indicators for power, fault, and operational status.
5. Which systems are compatible with this power module?
It is designed for Tricon and Trident systems by Triconex.
6. What protections are built into the module?
It includes surge protection, over-voltage, and over-current protection features.
7. What certifications does this module meet?
It complies with CE, UL, CSA, and ATEX certifications.
8. Is it suitable for use in safety instrumented systems?
Yes, it’s specifically designed for SIS applications.
9. Can the module operate in extreme temperatures?
Yes, it operates from 0°C to +60°C and can be stored from -40°C to +85°C.
10. How is the module typically mounted?
It is mounted in Triconex system racks or chassis configurations.
