Product Introduction

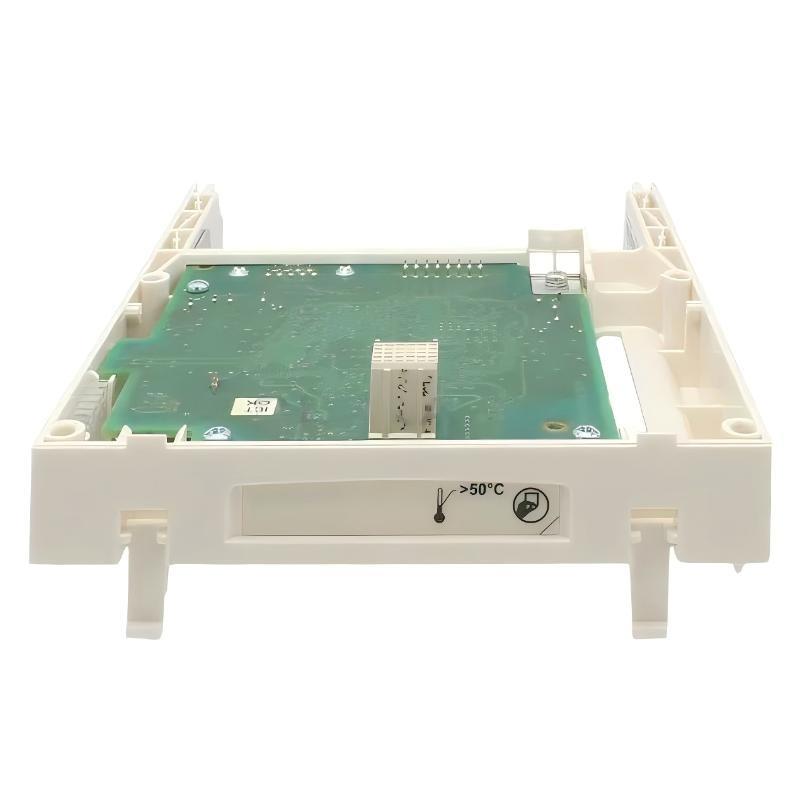

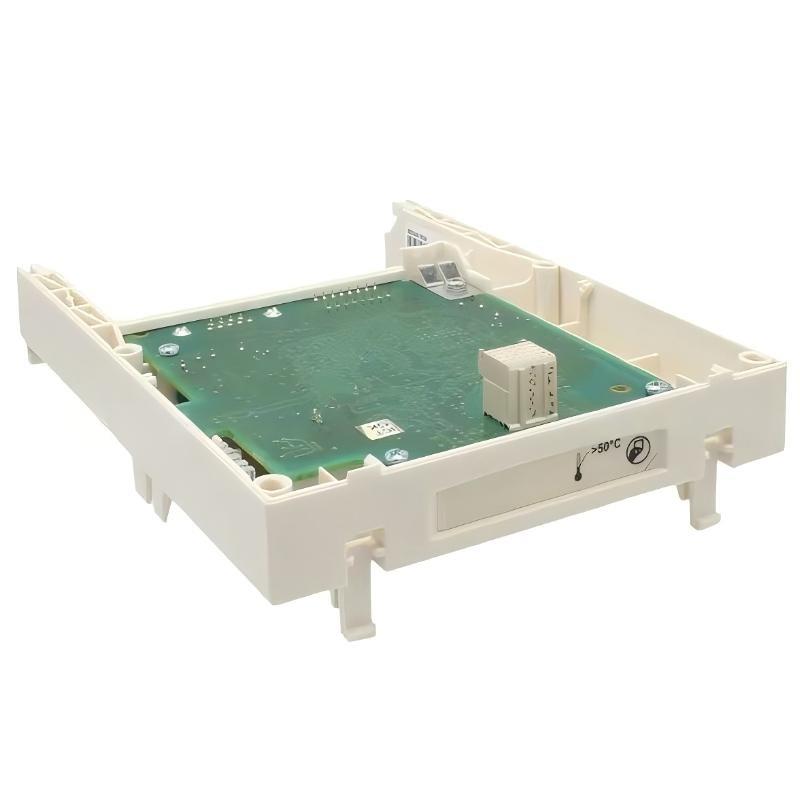

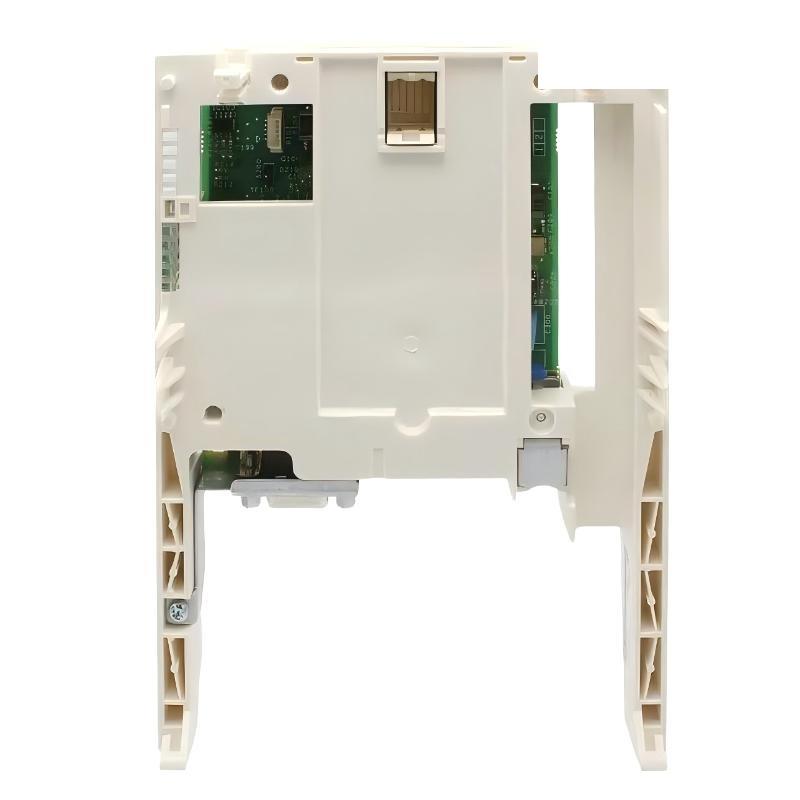

The Schneider VW3A3307 Profibus DP Communication Card is a high-performance Profibus DP V0 interface module specifically designed for Schneider Altivar variable speed drives, including the ATV61 and ATV71 series. It enables seamless integration of the drive into Profibus DP networks, allowing real-time data exchange with automation systems.

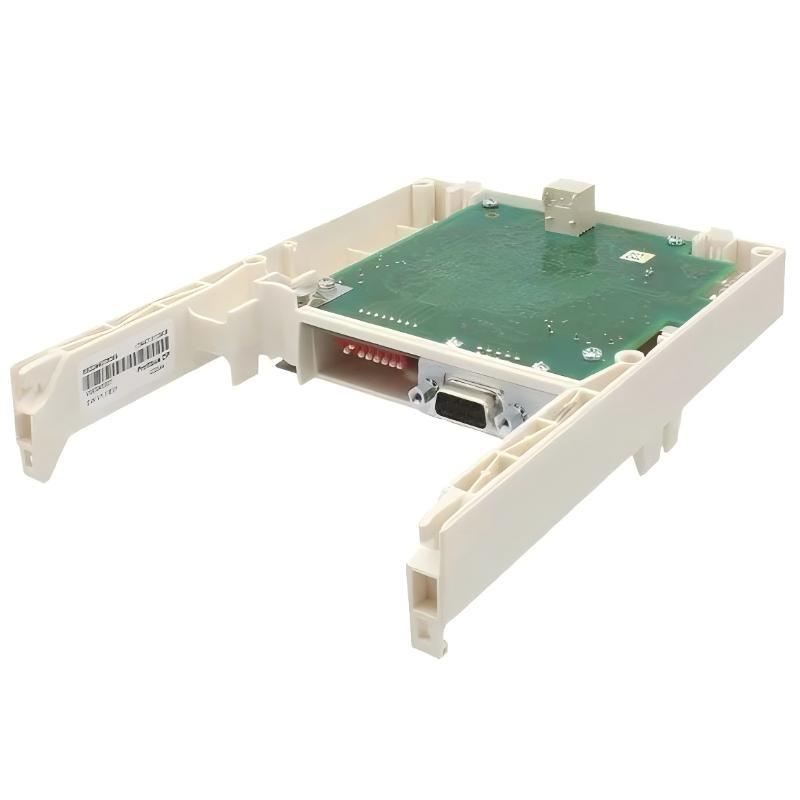

Equipped with a 9-pin SUB-D female connector, this card ensures reliable and robust communication with controllers and other networked devices. The VW3A3307 enhances the connectivity of Altivar drives, supporting efficient drive monitoring, parameter configuration, and network diagnostics.
This card is compact, robust, and engineered for industrial applications, providing stable and reliable communication even in electrically noisy environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Type | Profibus DP Communication Card |
| Compatible Drives | Altivar ATV61, ATV71 |
| Profibus Version | DP V0 |
| Connector Type | 9-pin SUB-D Female |
| Communication Speed | Up to 12 Mbps |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -40 to 85 °C |
| Dimensions | 120 × 100 × 20 mm |
| Weight | 0.3 kg |
Applications
• Drive Networking: Connects Altivar ATV61 and ATV71 drives to Profibus DP networks for centralized control.
• Real-Time Monitoring: Enables continuous monitoring of drive status and parameters through the Profibus DP network.
• Parameter Configuration: Allows remote configuration and tuning of drive settings via Profibus-enabled controllers.
• Automation Integration: Facilitates seamless communication with PLCs, SCADA, and other industrial automation systems.
• Diagnostics: Supports network diagnostics, error reporting, and status monitoring for efficient maintenance.
Advantages
• Reliable Communication: Ensures stable and high-speed data exchange between drives and automation systems.
• Easy Integration: Designed for straightforward installation with Altivar ATV61 and ATV71 drives.
• Robust Industrial Design: Maintains communication integrity in electrically noisy environments.
• Compact Form Factor: Minimizes space usage while maintaining full functionality.
• Enhanced Control: Improves overall automation efficiency by providing precise networked control.
• Standard Interface: Uses 9-pin SUB-D connector for compatibility with standard Profibus cabling.
