Product Overview

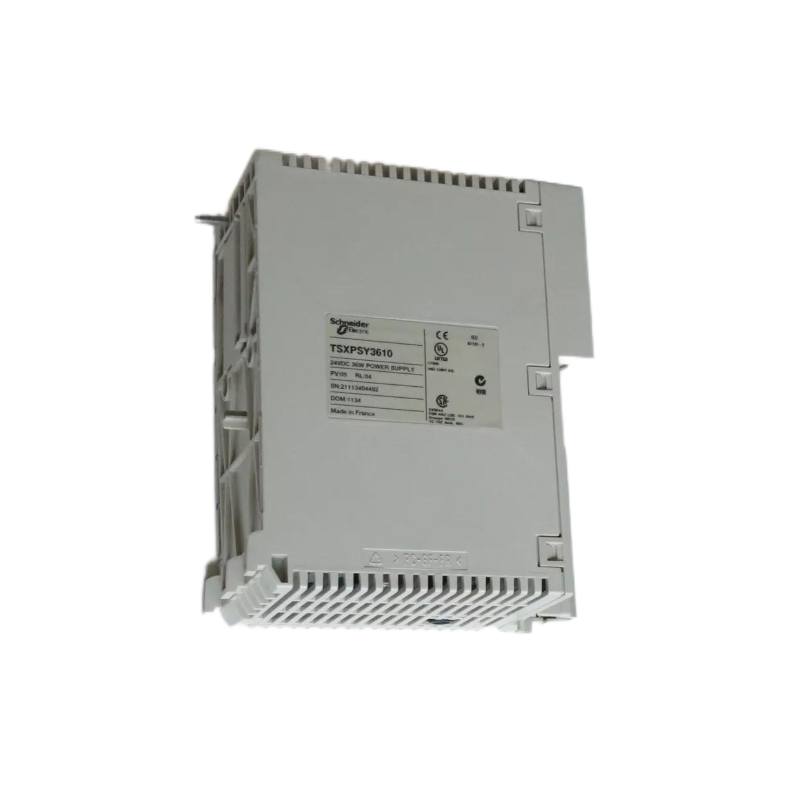

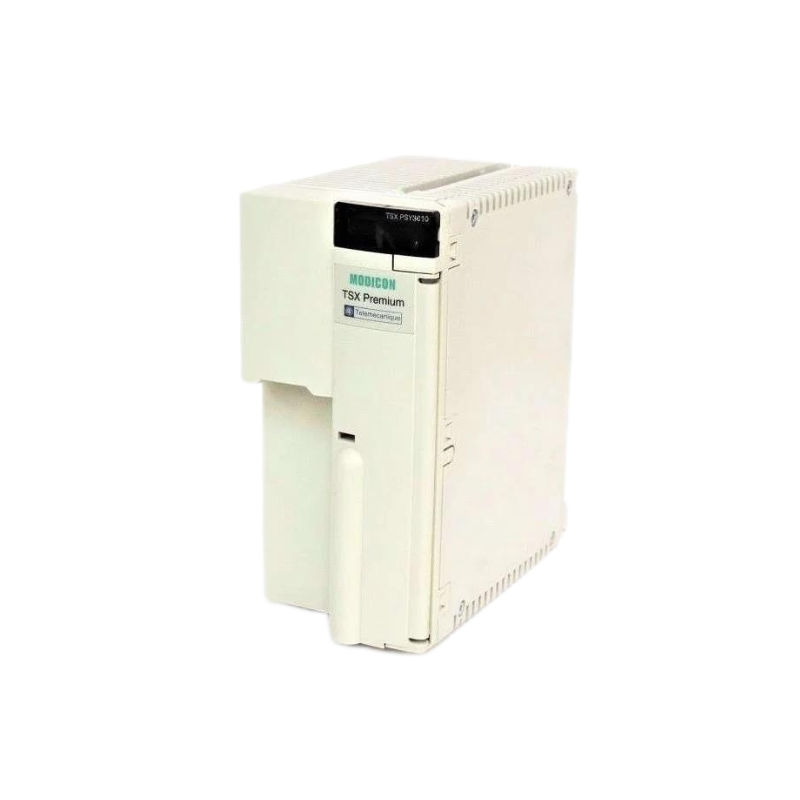

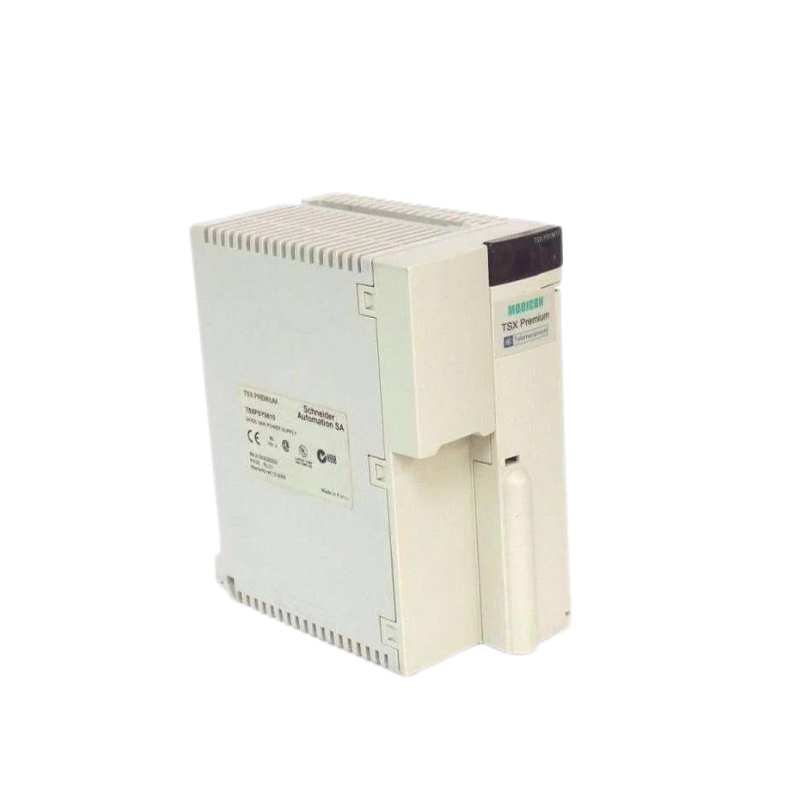

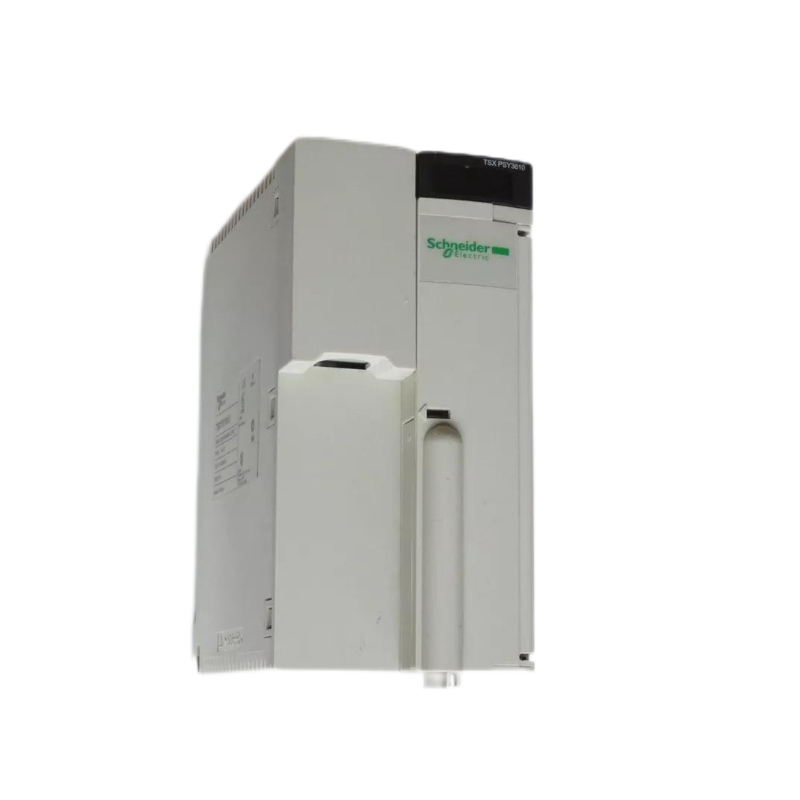

The Schneider TSXPSY3610 Power Module is a compact and efficient power supply designed specifically for Schneider Electric’s Modicon Premium PLC series. Engineered to deliver a steady 5 VDC output at 3 A, it provides the necessary power to ensure stable and continuous operation of the CPU and I/O modules housed in the same rack.
This power module is well-suited for medium-sized PLC systems and includes integrated protection mechanisms such as overload, short-circuit, and overvoltage safeguards. The TSXPSY3610 is easy to install on the Modicon Premium backplane, with LED indicators for straightforward monitoring. Designed to operate in demanding industrial environments, it ensures reliable power distribution in factory automation and process control applications.
Key Features
-
Universal AC input: 100–240 VAC, 50/60 Hz
-
Regulated 5 VDC output, up to 3 A
-
Internal protections against overloads, short circuits, and voltage spikes
-
Status LEDs for quick diagnostics
-
Passive cooling design for maintenance-free operation
-
Optimized for Modicon Premium PLC racks
-
Compact form factor for space-efficient cabinet installation
-
CE, UL, CSA, RoHS certified
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage Range | 100–240 VAC ±10%, 50/60 Hz |
| Output Voltage | 5 VDC |
| Maximum Output Current | 3 A |
| Maximum Output Power | 15 W |
| Inrush Current | ≤ 30 A |
| Efficiency | ≥ 70% |
| Protection Functions | Overload, short-circuit, overvoltage |
| LED Indicators | Power ON (green), Fault (red) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -25°C to +85°C (-13°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 95 x 180 x 260 mm |
| Weight | 0.62 kg |
| Mounting Type | Rack-mounted (Premium PLC backplane) |
| Certifications | CE, UL, CSA, RoHS |
Product Advantages
-
Stable Output: Consistent 5 VDC ensures uninterrupted PLC operation.
-
Built-In Protection: Automatic shutdown in case of electrical faults enhances safety.
-
Simplified Monitoring: LED indicators allow instant visual checks of power status.
-
Energy Efficient: Minimal power loss and no active cooling needed.
-
Modular Compatibility: Integrates seamlessly with Modicon Premium system architecture.
-
Compact Design: Saves valuable panel space while delivering reliable performance.
-
Global Compliance: Certified for international industrial applications.
-
Long-Term Durability: Industrial-grade build for extended operational life.
Industry Applications
-
Factory and machine automation
-
Automotive production systems
-
Process control in oil, gas, and chemicals
-
Water and wastewater treatment plants
-
Food and beverage manufacturing
-
Energy and utility management
-
Infrastructure and building automation
Frequently Asked Questions (FAQ)
-
Q: What is the main function of the TSXPSY3610 module?
A: It provides regulated 5 VDC power to Modicon Premium PLC systems. -
Q: Can this module be used with other PLC series?
A: No, it is specifically designed for use with Modicon Premium PLC racks. -
Q: What’s the maximum power output?
A: 15 W (5 VDC @ 3 A). -
Q: Is it hot-swappable?
A: No. The system should be powered down before installing or removing the module. -
Q: Are there visual indicators?
A: Yes, green for power ON and red for fault status. -
Q: What happens in case of overload or short-circuit?
A: The module shuts down to prevent damage and restarts after the fault is cleared. -
Q: Is it suitable for high-temperature environments?
A: Yes, up to +60°C operating temperature. -
Q: Does it support redundant power configuration?
A: No native support for redundancy; use a higher-end model like TSXPSY5500 for that. -
Q: What are the mounting options?
A: Rack-mounted installation on a Modicon Premium backplane. -
Q: Is it compliant with international standards?
A: Yes, it is CE, UL, CSA, and RoHS certified.
Related or Compatible Models (Same Series or Functionality)
| Model | Description |
|---|---|
| TSXPSY1610 | Entry-level 5 VDC 3 A power module for small PLC systems |
| TSXPSY2600M | Higher output 5 VDC 6 A module for larger Premium PLC setups |
| TSXPSY5500 | High-capacity power supply with dual output support |
| TSXP57103M | Modicon Premium CPU module with extended communication options |
| TSXDEY64D2K | 64-point digital input module for Premium PLCs |
| TSXSCY21601 | Serial communication module for Premium series integration |
Popular Schneider Models (Same Brand)
| Model | Description |
|---|---|
| TSXP573634M | Unity Processor for Modicon Premium with advanced I/O support |
| TSXP574823M | Electrically isolated dual-format Premium processor |
| TSXDSY16T2 | 16-point transistor digital output module |
| BMXP342020 | Powerful CPU for Modicon M340 with Ethernet and CANopen |
| TSXAEY414 | Analog input module for current/voltage signals |
| BMXNOE0100 | Ethernet module for Modicon M340/M580 networking |
