Product Overview

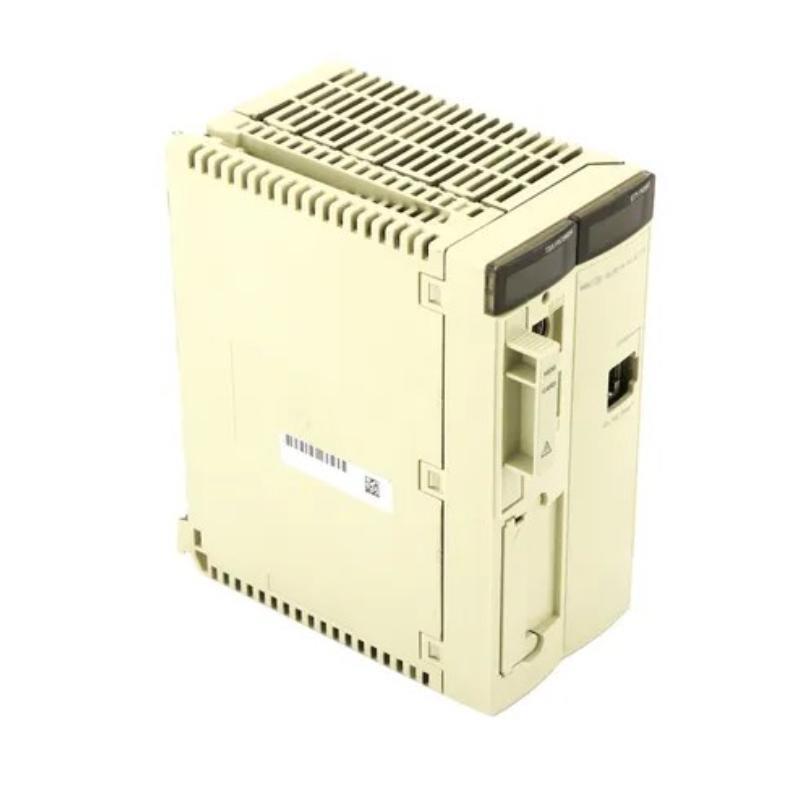

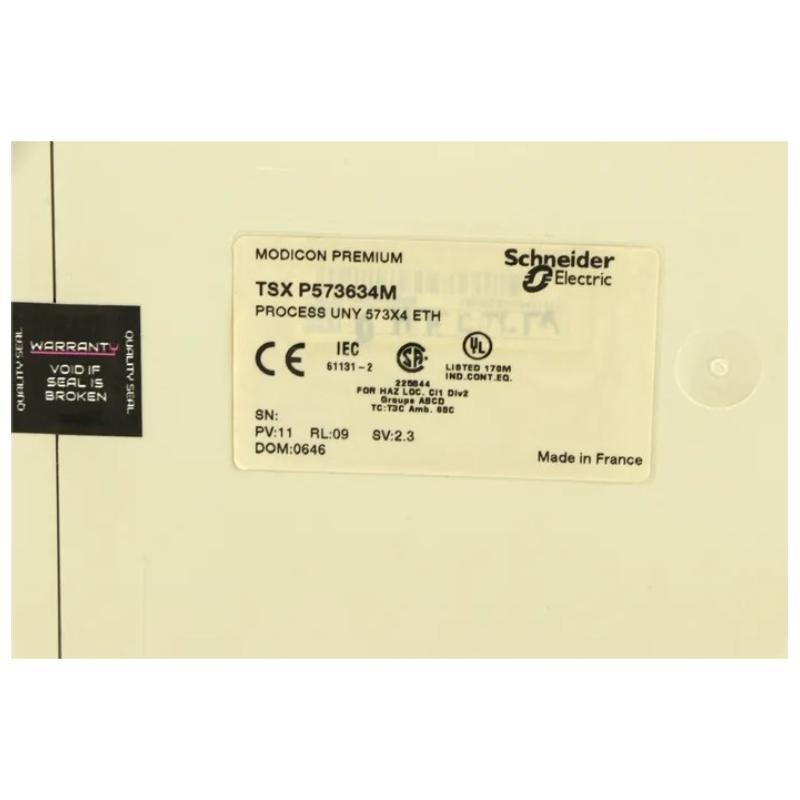

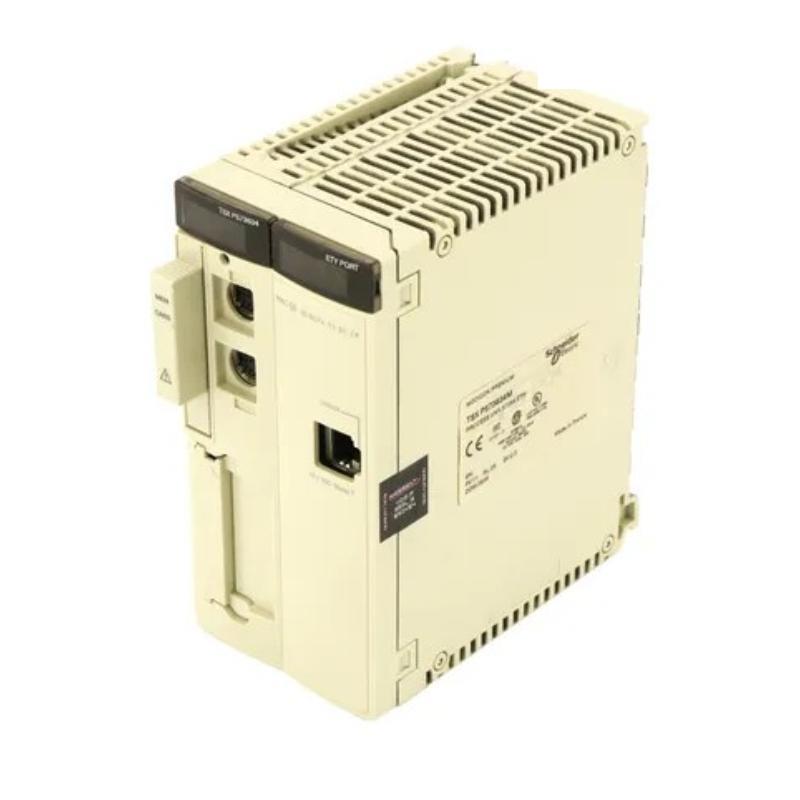

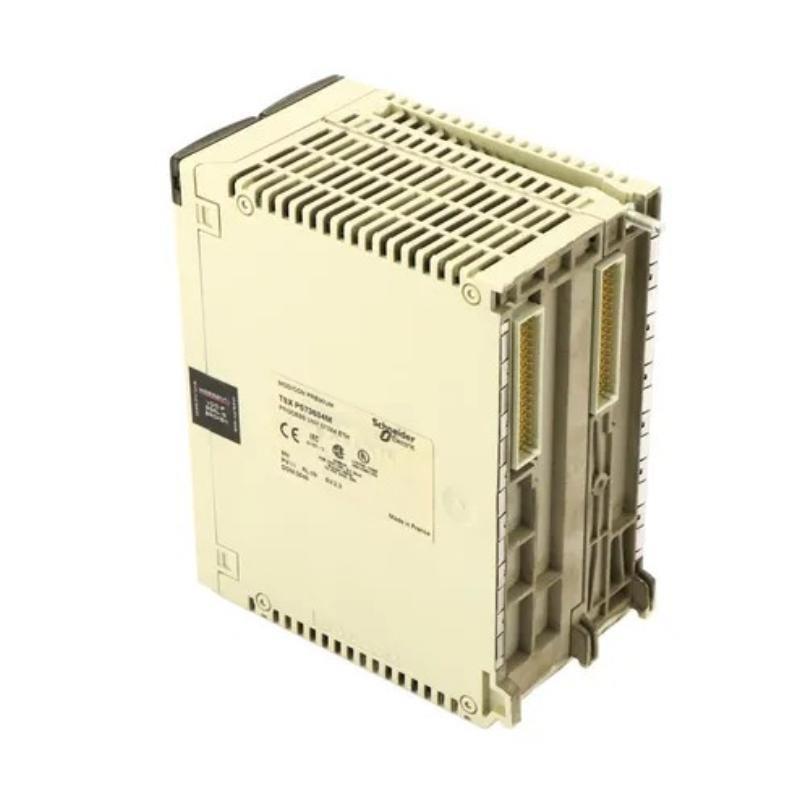

The Schneider TSXP573634M is a high-performance Unity Processor Module from the Modicon Premium PLC family, designed for advanced automation and control applications. With a 1 MB program memory and integrated Ethernet TCP/IP communication port, the TSXP573634M is ideal for complex process control, manufacturing automation, and SCADA systems.
It supports Unity Pro programming software, allowing structured programming with IEC 61131-3 languages, diagnostic features, and real-time performance. This processor is widely used in mission-critical industrial environments requiring fast cycle times, high memory capacity, and network connectivity.
Key Features
-
High-speed 66 MHz processor for real-time control
-
1 MB internal RAM for user programs
-
Integrated Ethernet TCP/IP port
-
Up to 64 distributed I/O racks
-
Compatible with Unity Pro software (IEC 61131-3 compliant)
-
Modbus, Ethernet, and Uni-Telway protocol support
-
Built-in diagnostics and real-time clock
-
Support for floating-point arithmetic
-
Expandable via multiple communication and I/O modules
-
Redundancy support for critical applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TSXP573634M |
| Product Type | Unity Processor Module |
| Processor Speed | 66 MHz |
| User Program Capacity | 1024 KB (1 MB) |
| Data Memory | 256 KB |
| Backup Memory | SRAM with battery |
| Number of I/O Points | Up to 2048 local, 64 racks |
| Programming Software | Unity Pro |
| Supported Languages | LD, FBD, ST, IL, SFC, CFC |
| Communication Ports | 1 × Ethernet TCP/IP, 1 × Modbus, 1 × USB |
| Communication Protocols | Modbus, Uni-Telway, TCP/IP, IEC 60870-5-104 (via modules) |
| Cycle Time | 0.1 ms/K instruction |
| Real-Time Clock | Integrated |
| Watchdog Timer | Yes |
| Dimensions | 95x 180x 260mm |
| Weight | 0.757 kg |
| Power Supply | Supplied through rack backplane |
| Operating Temperature | 0°C to +60°C |
| Certifications | CE, UL, CSA |
Industry Applications
-
Industrial Automation – Factory-level control, discrete and batch processing
-
Water Treatment – Pump and flow regulation, telemetry systems
-
Energy & Utilities – Substation automation, SCADA integration
-
Oil & Gas – Pipeline control, drilling equipment automation
-
Food & Beverage – High-speed packaging and process control
-
Pharmaceutical – Validated control systems and data logging
Product Advantages
-
High Performance – Fast processing and large memory for demanding logic
-
Scalability – Expandable architecture supporting thousands of I/O points
-
Network Integration – Native Ethernet for easy connectivity
-
Robust Programming – Unity Pro enables structured programming and debugging
-
Secure and Reliable – With built-in watchdog and error diagnostics
-
Modular Flexibility – Supports a wide range of I/O, communication, and motion modules
-
Proven Industrial Use – Trusted in complex and continuous process industries
Frequently Asked Questions (FAQ)
-
What software is used to program the TSXP573634M?
Unity Pro (now EcoStruxure Control Expert) is used for programming. -
Does it support Ethernet communication?
Yes, it has a built-in Ethernet TCP/IP port. -
Can I use Modbus communication with this CPU?
Yes, Modbus is supported via serial and Ethernet. -
How many I/O points are supported?
Up to 2048 discrete I/O points can be configured. -
Is redundancy supported?
Redundancy is supported with additional modules. -
What programming languages are compatible?
Supports all IEC 61131-3 standard languages: LD, FBD, ST, IL, SFC, and CFC. -
Does it support floating-point operations?
Yes, including real and double-precision floating-point. -
Is there a real-time clock included?
Yes, the module has an integrated RTC. -
What is the memory size of the program?
1 MB for user program, 256 KB data memory. -
What are the main differences between TSXP573634M and TSXP572634M?
TSXP573634M offers higher memory, faster processing, and better network capabilities.
