Processor Overview

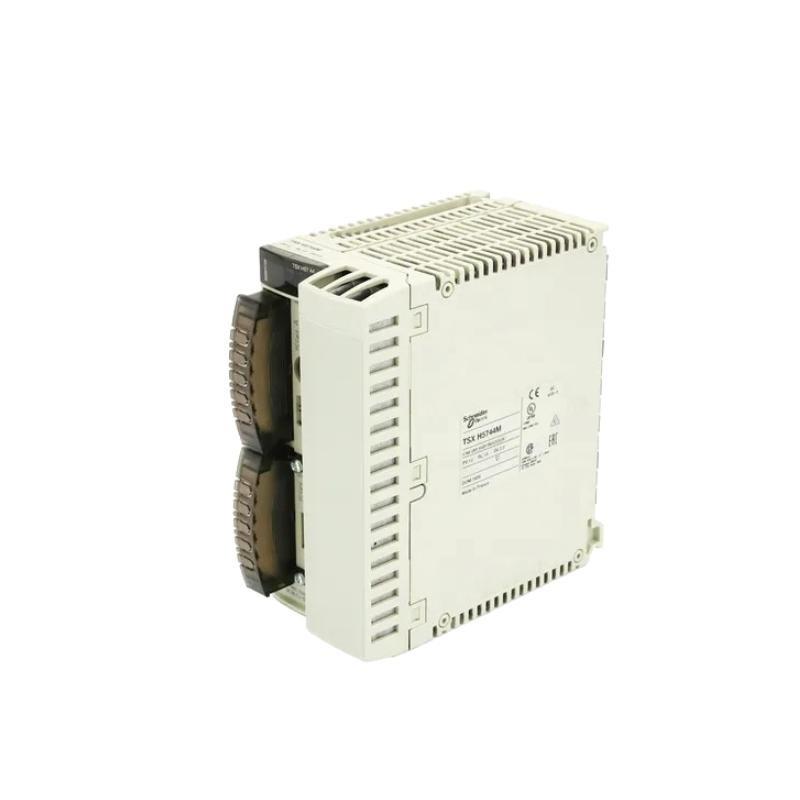

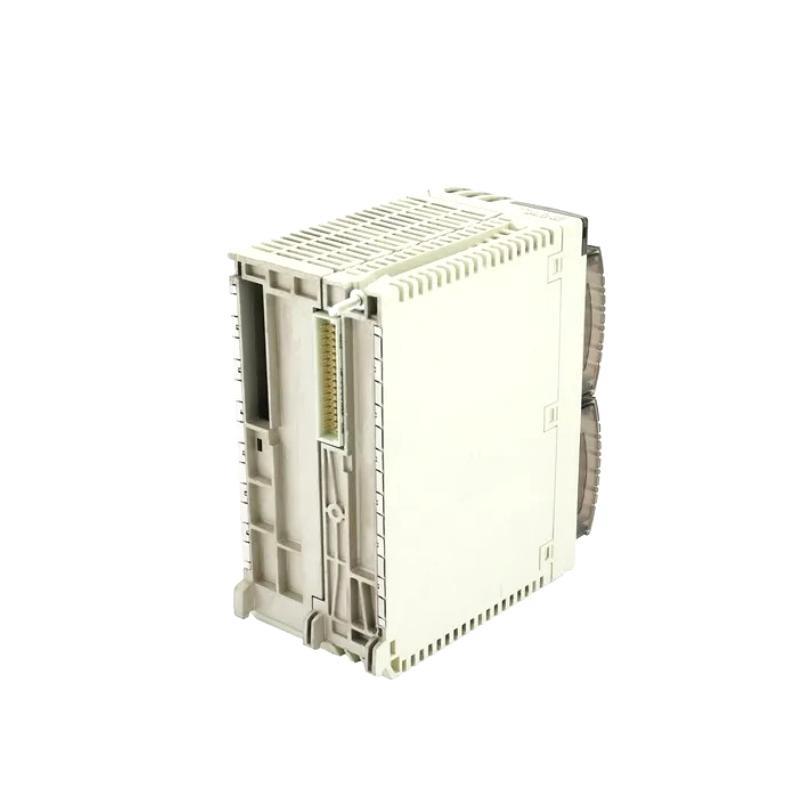

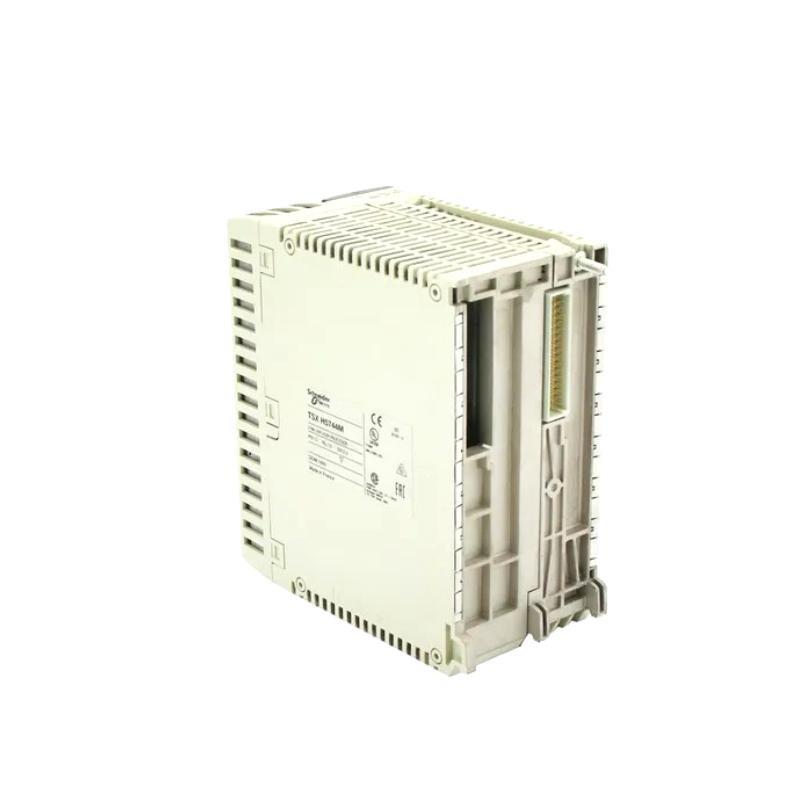

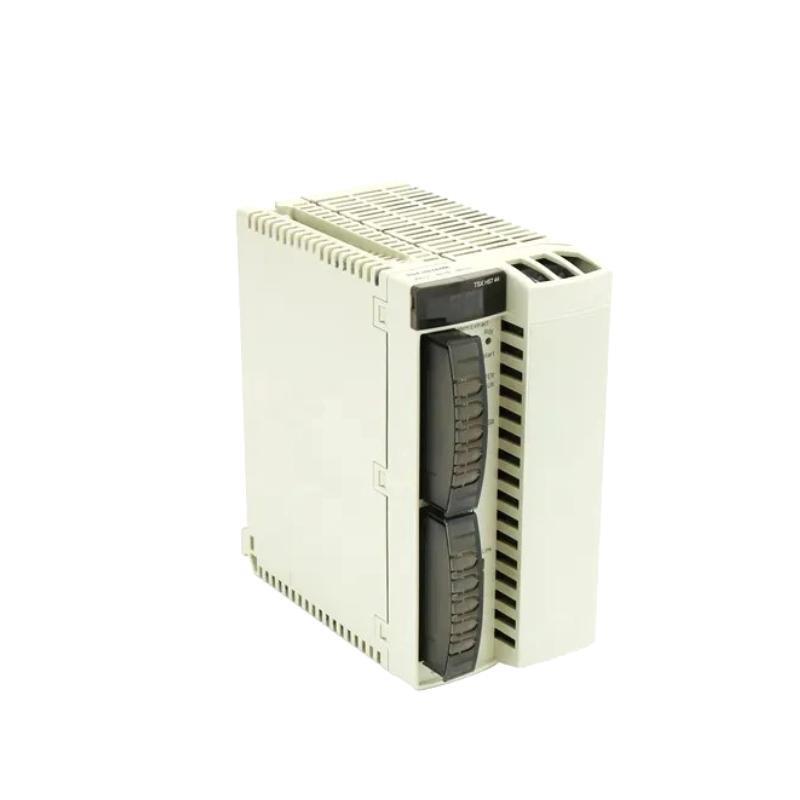

The Schneider TSXH5744M Unity Hot Standby Processor is part of the Schneider Electric Unity Quantum family, designed for high-availability applications that demand real-time processing, fault tolerance, and system redundancy. This processor is a crucial element in providing a hot standby configuration for mission-critical systems where continuous operation is vital.
This processor is used extensively in industrial automation systems requiring reliable redundancy solutions and continuous operation without the risk of downtime. It provides superior performance, stability, and is compatible with various Schneider Electric PLC platforms.
Product Specifications
Below are the specifications of the Schneider TSXH5744M Unity Hot Standby Processor:
| Parameter | Specification |
|---|---|
| Model Name | Schneider TSXH5744M |
| Processor Type | Hot Standby Processor |
| Compatibility | Unity Quantum PLC Systems |
| Redundancy | Supports Hot Standby for high availability |
| Power Supply | 24 V DC (Nominal) |
| Communication Ports | 2 x Ethernet, 2 x Serial, 1 x USB |
| Processor Speed | 1.5 GHz |
| RAM Size | 512 MB |
| Operating Temperature | 0°C to 60°C |
| Storage | 2 GB Flash Memory |
| Dimensions | 95 x 180 x 260 mm |
| Weight | 0.61 kg |
| Mounting | DIN Rail Mountable |
| Environmental Rating | IP20 |
Product Applications
The Schneider TSXH5744M Unity Hot Standby Processor is ideal for a variety of applications in the industrial automation sector, including:
-
Critical infrastructure: Ensuring system uptime in applications where any downtime could result in operational disruptions.
-
Manufacturing systems: Redundant controllers in automated production environments to maintain seamless operations.
-
Energy management: For use in energy grids or power plants where uninterrupted control is crucial.
-
Process control: In industries such as oil & gas, water treatment, and chemicals, where continuous monitoring and control are essential.
-
Building automation: Implemented in systems that require high availability to manage environmental controls, lighting, and security systems.
Product Advantages
-
High Availability: Designed with a hot standby configuration, ensuring that a backup processor is immediately available in case the primary processor fails.
-
Improved Fault Tolerance: The system automatically switches to the backup processor without any manual intervention, reducing downtime to a minimum.
-
Easy Integration: Easily integrates with Schneider Electric’s Unity and Quantum series of PLCs, providing a seamless automation experience.
-
Advanced Diagnostics: Equipped with advanced diagnostic capabilities to monitor system health and ensure long-term reliability.
-
Compact Design: Despite its advanced features, the processor’s compact size allows it to be integrated into systems with limited space.
-
Energy Efficient: Consumes minimal power while offering maximum performance, which is beneficial in environments where energy costs are a concern.
FAQ (Frequently Asked Questions)
-
What is a Hot Standby Processor?
-
A Hot Standby Processor is a redundant system designed to provide backup processing capabilities. If the primary processor fails, the backup processor takes over seamlessly, ensuring no system downtime.
-
-
Can the TSXH5744M be used in outdoor environments?
-
No, the TSXH5744M has an IP20 rating, which means it is designed for indoor use only. It should be installed in a protected environment.
-
-
What is the power supply requirement for the TSXH5744M?
-
The processor operates on a 24 V DC power supply.
-
-
How does the redundancy feature work in the TSXH5744M?
-
The TSXH5744M provides automatic failover, where the backup processor takes over immediately if the primary processor fails.
-
-
Can the TSXH5744M be used with any other Schneider PLCs?
-
It is specifically designed for the Unity Quantum PLC platform, but may also be compatible with other systems in the Schneider family.
-
-
What types of communication ports does the TSXH5744M offer?
-
It comes with 2 Ethernet ports, 2 Serial ports, and 1 USB port for flexible communication options.
-
-
Is the TSXH5744M suitable for use in hazardous environments?
-
No, it is designed for standard industrial environments with an operating temperature range of 0°C to 60°C.
-
-
What is the storage capacity of the TSXH5744M?
-
The processor is equipped with 2 GB of Flash Memory for data storage.
-
-
Can I mount the TSXH5744M on a DIN rail?
-
Yes, it is designed to be mounted on a standard DIN rail for ease of installation in industrial panels.
-
-
What kind of diagnostics are available for the TSXH5744M?
-
The processor features comprehensive diagnostics that can detect and alert you to any potential system issues, ensuring quick resolution.
-
Recommended Related Models (Same Series)
| Model | Description | Key Features |
|---|---|---|
| TSXH5744 | Quantum Hot Standby Processor | Hot Standby, higher RAM, extended diagnostics |
| TSXH5745M | Quantum Redundant Processor | Similar features with enhanced networking capabilities |
| TSXH5700 | Quantum Standard Processor | Non-redundant version, cost-effective for simple systems |
| TSXH5774M | Advanced Hot Standby Processor | Enhanced storage and real-time control features |
| TSXH5712 | Quantum High-Speed Processor | Faster processing for time-critical applications |
| TSXH5768 | Quantum PLC for Complex Automation | Higher I/O capacity and processing capabilities |
Popular Models from Schneider Electric
| Model | Description | Key Features |
|---|---|---|
| Modicon M340 | Mid-Range PLC | Compact design, cost-effective, ideal for medium-scale automation |
| Modicon M580 | High-Performance Ethernet PLC | Powerful, fully integrated, for complex industrial applications |
| Modicon TM241 | Compact PLC for small to medium applications | Easy configuration, flexible for smaller automation systems |
| Modicon X80 | Modular PLC for complex control | Flexible modularity, ideal for large-scale installations |
| Altivar 71 | Variable Frequency Drive | Energy-efficient motor control solutions for a wide range of applications |
| Compact 140 | Versatile PLC for industrial systems | Easy installation, modular, and scalable for diverse automation needs |
