Product Introduction

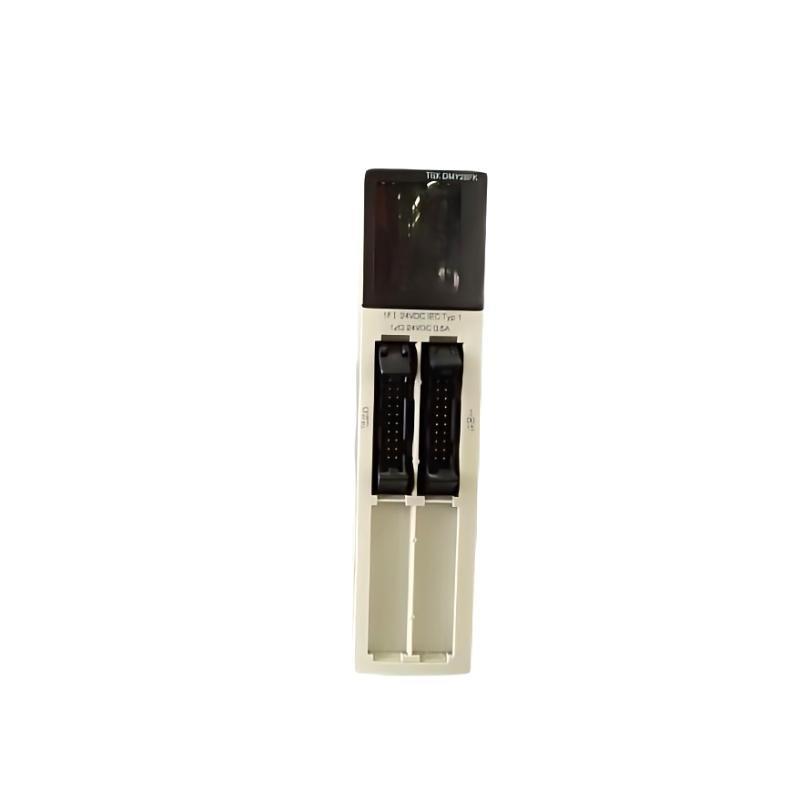

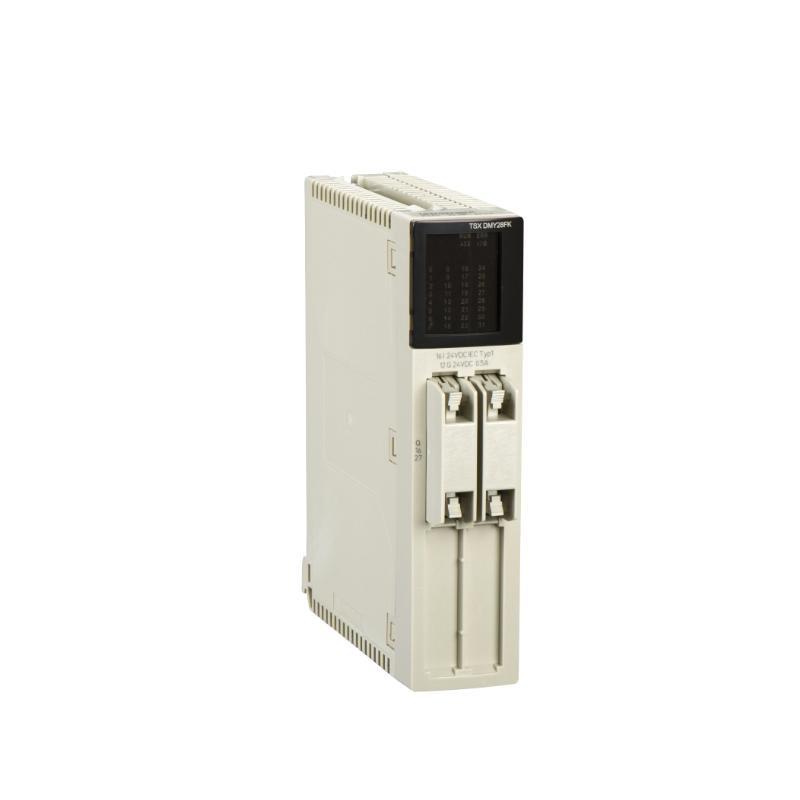

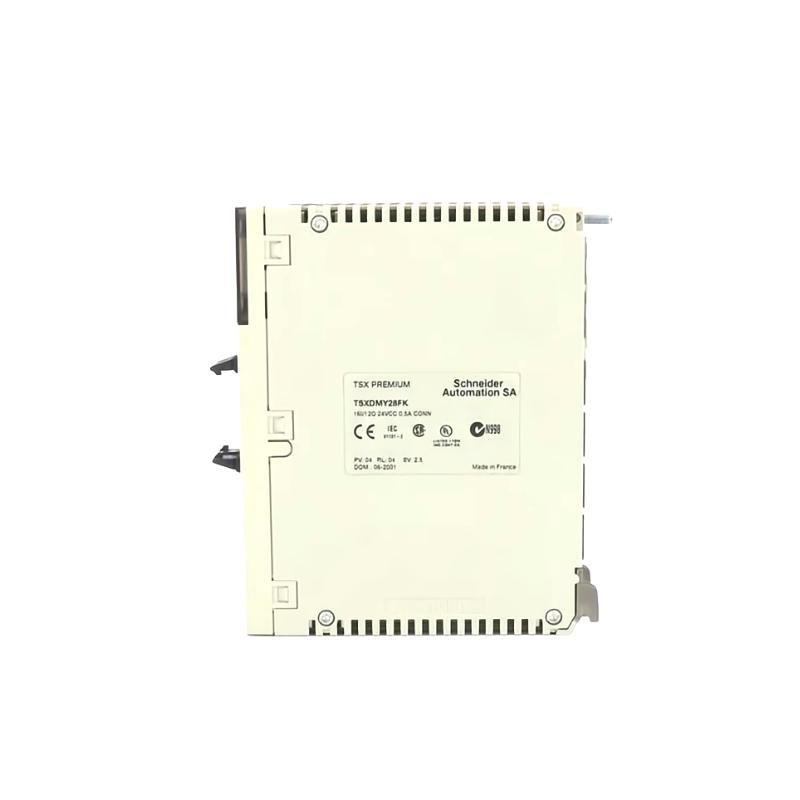

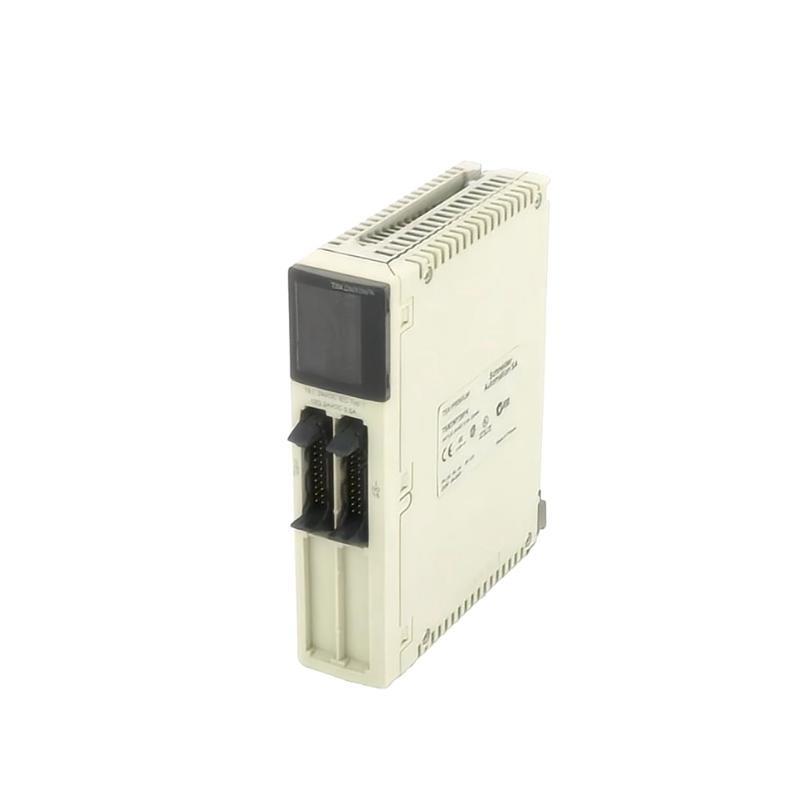

The Schneider TSXDMY28FK is a discrete output module designed for Modicon Premium programmable logic controllers (PLCs). This module is engineered to offer robust and flexible digital output capabilities in industrial automation environments. It belongs to the Telemecanique TSX series and is particularly known for its reliability, compact design, and easy integration with Schneider Electric automation systems.
The TSXDMY28FK features 24 VDC source-type transistor outputs, supporting fast switching for high-speed logic control, making it a valuable component for applications that demand precision and responsiveness.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | TSXDMY28FK |
| Brand | Schneider Electric |
| Product Type | Discrete Output Module |
| Series | Modicon TSX / Premium |
| Number of Channels | 28 discrete outputs |
| Output Type | Transistor (source) |
| Voltage Range | 24 VDC |
| Max Current per Channel | 0.5 A |
| Max Current per Module | 8 A total |
| Isolation Voltage | 500 V between channels and logic |
| Response Time | ≤ 1 ms (ON/OFF) |
| Connection Type | 40-pin connector |
| Mounting Type | DIN Rail or Panel Mount |
| Diagnostics | Short-circuit detection, overload protection |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 55 × 180 × 260 mm |
| Weight | 0.32 kg |
| Compliance | CE, UL, CSA, RoHS |
Product Applications
The Schneider TSXDMY28FK module is widely used in various industrial sectors that require reliable digital output control. Common application areas include:
-
Automated Manufacturing Systems: Control of actuators, solenoids, and relays.
-
Packaging Lines: Fast switching for high-speed packaging equipment.
-
Material Handling Systems: Output control for conveyors and motors.
-
Energy Management Systems: Switch control in smart grid setups.
-
Water and Wastewater Treatment Plants: Managing pumps and valve actuators.
-
Building Automation: Lighting and HVAC control.
Product Advantages
-
High Density Output: With 28 discrete outputs in a compact form factor, it optimizes cabinet space.
-
Fast Response Time: Suitable for time-critical industrial processes requiring real-time switching.
-
Enhanced Diagnostics: Short-circuit and overload detection improves system reliability and safety.
-
Flexible Mounting: Compatible with both DIN rail and panel mounting systems.
-
Wide Compatibility: Seamless integration with Modicon Premium PLCs and Schneider automation systems.
-
Rugged Design: Built to withstand harsh industrial environments with temperature and humidity resilience.
-
Energy Efficient: Optimized for low power consumption and minimal heat dissipation.
Frequently Asked Questions (FAQ)
-
Q: What type of output does the TSXDMY28FK module provide?
A: It provides 24 VDC source-type transistor outputs. -
Q: Can this module be used with TSX57 PLCs?
A: Yes, it is fully compatible with TSX57 series Modicon Premium PLCs. -
Q: What is the response time of the outputs?
A: The switching response time is less than or equal to 1 ms. -
Q: Is there short-circuit protection on this module?
A: Yes, each output channel has integrated short-circuit and overload protection. -
Q: How many outputs can be active simultaneously?
A: All 28 channels can be used concurrently, with a total module output current limit of 8 A. -
Q: What is the operating voltage range for this module?
A: It operates at 24 VDC nominal voltage. -
Q: What kind of connector does it use?
A: It uses a 40-pin front connector. -
Q: What is the IP rating of this module?
A: It has an IP20 rating, suitable for installation inside control cabinets. -
Q: Can it be hot-swapped during operation?
A: No, this module is not designed for hot swapping. Power down the system before removal. -
Q: Is it suitable for outdoor use?
A: No, it is designed for indoor industrial environments.
Related Models in the Same Series (TSX / Premium Series)
| Model | Description | Outputs/Inputs | Voltage Type |
|---|---|---|---|
| TSXDMY28TK | 28-channel sink-type transistor output module | 28 outputs | 24 VDC |
| TSXDEY16D2K | 16-channel discrete input module | 16 inputs | 24 VDC |
| TSXDSY16R5K | 16-channel relay output module | 16 relay outputs | 24 VDC/AC |
| TSXAEY414 | 4-channel analog input module | 4 analog inputs | ±10V, 4–20mA |
| TSXASY410 | Analog output module | 4 analog outputs | 0-10V, 4–20mA |
| TSXP573623M | CPU module with extended memory and Ethernet | CPU + communication | — |
Popular Schneider Models Across Automation Product Lines
| Model | Product Type | Description | Series |
|---|---|---|---|
| BMXDDO1602 | Discrete Output Module | 16-channel digital output, sink type | Modicon M340 |
| TM221CE16T | PLC CPU Module | 16 I/O, Ethernet, CAN support | Modicon M221 |
| BMXP342020 | Processor Module | Mid-range CPU with 2 MB memory | Modicon M340 |
| ATV320U07M2B | Variable Speed Drive | 0.75 kW motor drive for automation applications | Altivar 320 |
| LXM32MU60N4 | Servo Drive | 6.0 kW servo motor drive for motion control | Lexium 32 |
| HMISTU655 | Touchscreen HMI | 5.7″ touchscreen display with Ethernet | Magelis STU Series |
