Product Introduction

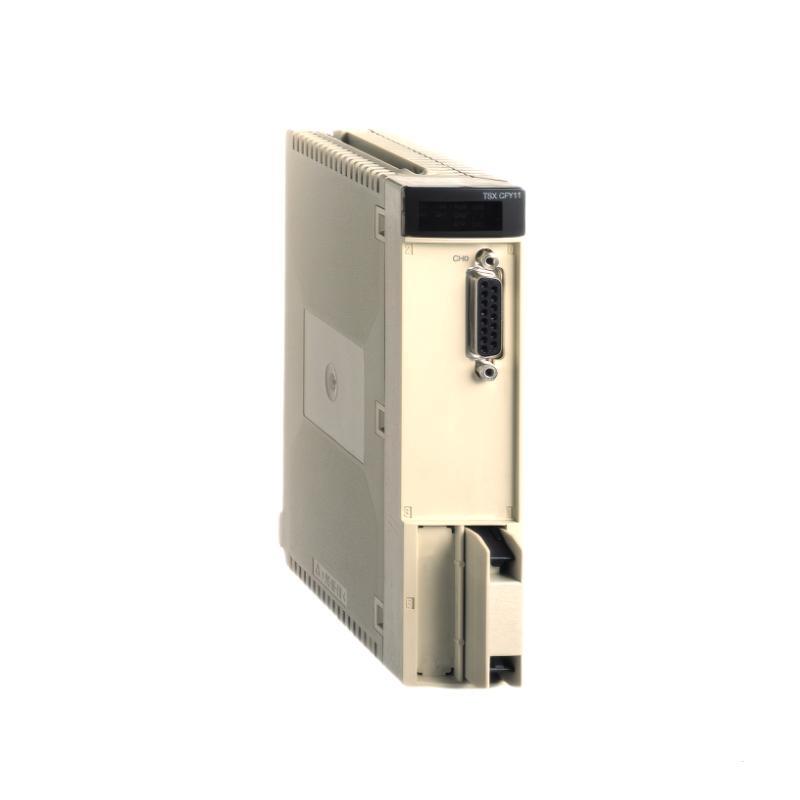

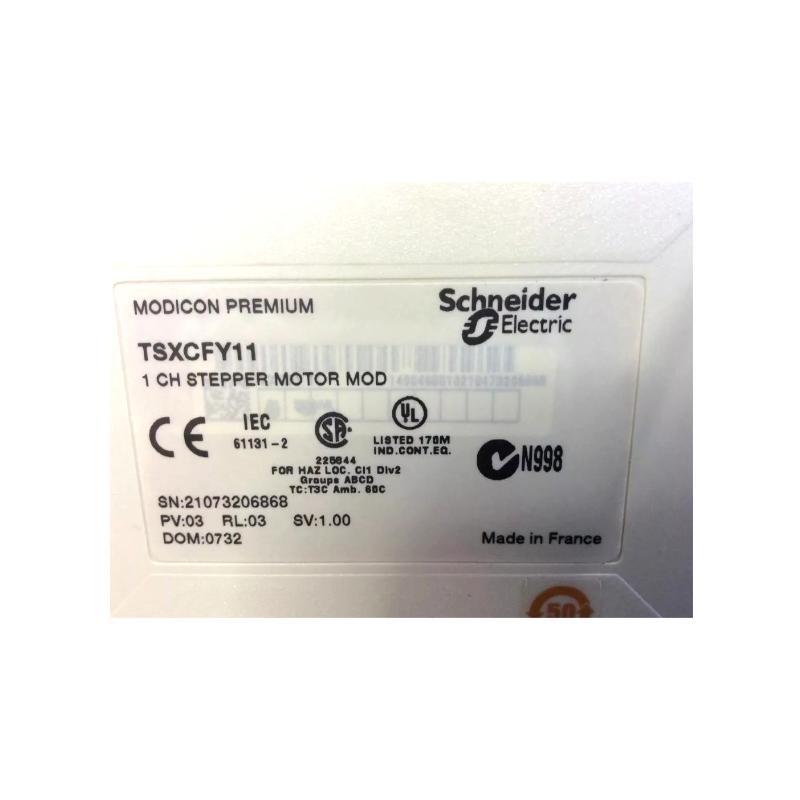

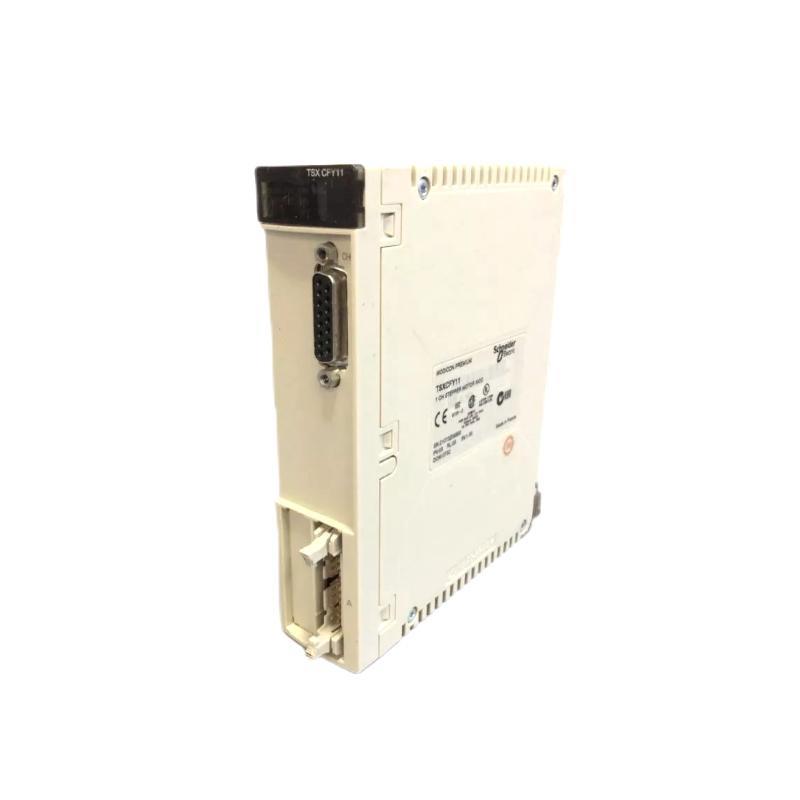

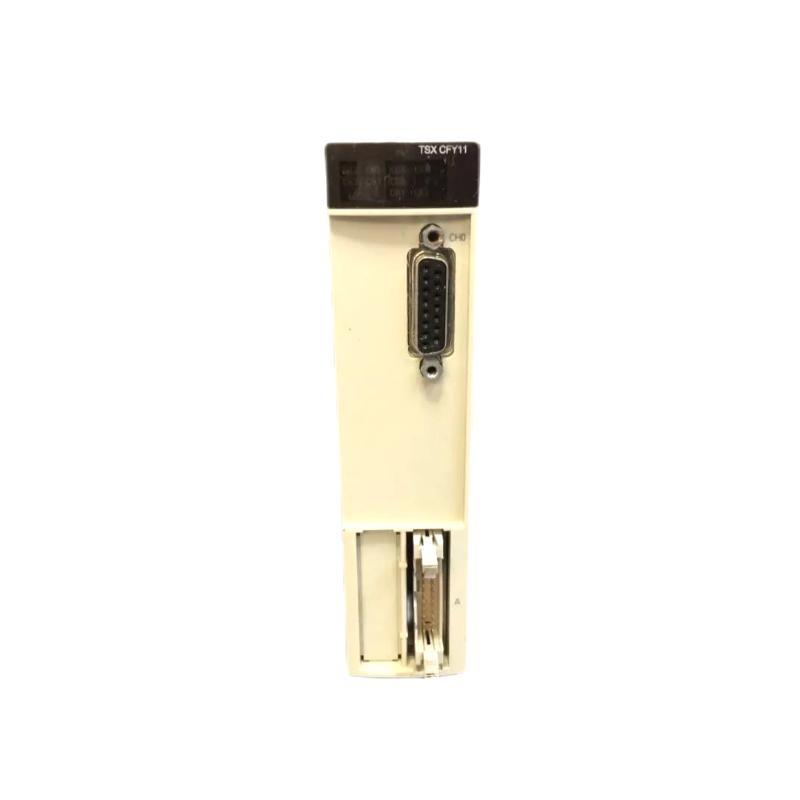

The Schneider Electric TSXCFY11 is a motion control module designed for precise control of stepper motors within the Modicon Premium Automation platform. It facilitates single-axis motion control, making it ideal for applications requiring accurate positioning and speed regulation. This module integrates seamlessly with Unity Pro software, ensuring efficient programming and operation.
Product Specifications:
| Parameter | Details |
|---|---|
| Product Range | Modicon Premium Automation platform |
| Product Type | Motion control module |
| Application | For stepper motors |
| Software Compatibility | Unity Pro |
| I/O Modularity | 1 axis |
| Maximum Pulse Frequency | 187 kHz |
| Power Dissipation | 3.8 W |
| Input Type | Current sink auxiliary input EN/IEC 61131 type 2 |
| Electrical Connection | 1 connector HE-10 (20 pins), 1 connector SUB-D (15 pins) |
| Current Consumption | 510 mA at 5 V DC; 50 mA at DC |
| Module Format | Standard |
| Dimensions | 200 x 151.5 mm |
| Weight | 0.44 kg |
Applications:
The TSXCFY11 module is utilized in various industrial automation scenarios, including:
-
Material Handling Systems: Ensures precise control of conveyors and sorting mechanisms.
-
Packaging Machinery: Facilitates accurate positioning for filling, sealing, and labeling processes.
-
Assembly Lines: Enhances the precision of component placement and fastening operations.
Advantages:
-
Seamless Integration: Designed specifically for the Modicon Premium platform, ensuring compatibility and ease of use.
-
High Precision: Offers a maximum pulse frequency of 187 kHz, enabling accurate control of stepper motors.
-
Efficient Programming: Compatible with Unity Pro software, streamlining the development and deployment of motion control applications.
Frequently Asked Questions (FAQ)
-
What types of motion control applications is the TSXCFY11 suitable for?
The TSXCFY11 is ideal for positioning control of stepper and servo motors in packaging, assembly, and material handling systems. It supports single-axis motion and is typically integrated into Modicon Premium PLC environments. -
Can the TSXCFY11 module be configured using Unity Pro software?
No, TSXCFY11 is not compatible with Unity Pro. It is programmed and configured using PL7 software, which is tailored for the Modicon Premium PLC family. -
How is synchronization between axes handled if I use multiple TSXCFY11 modules?
Synchronization can be achieved through the use of master-slave logic implemented in the PLC program, though the TSXCFY11 itself does not natively support multi-axis synchronization or interpolation. -
What communication interface does the TSXCFY11 use with the CPU?
The module uses the internal backplane bus of the Premium PLC to communicate with the CPU, ensuring fast data exchange and efficient operation within the local rack. -
Is the TSXCFY11 compatible with all Premium CPU models?
The TSXCFY11 is compatible with most TSX Premium PLC CPUs that support motion control modules. However, users should confirm exact compatibility in the module’s installation manual or technical datasheet. -
Does TSXCFY11 support encoder feedback for closed-loop control?
No, TSXCFY11 is a basic motion module designed for open-loop stepper motor control. For closed-loop applications, modules like TSXCCY series or Lexium servo systems should be used. -
What are the I/O requirements for using TSXCFY11 effectively?
External digital I/O modules may be needed for limit switches, start/stop signals, or homing sensors. Proper wiring and signal conditioning must be ensured to avoid interference in motion commands. -
How is motion profile data managed in TSXCFY11?
Motion profiles (acceleration, deceleration, speed, and position) are configured in the PLC software and downloaded to the module. Execution is controlled via ladder logic or function blocks. -
What diagnostics features does TSXCFY11 offer for troubleshooting?
LED status indicators and error codes via the PLC can help identify issues like power faults, communication problems, or incorrect parameter configuration. -
Can the TSXCFY11 be hot-swapped during system operation?
No, the TSXCFY11 does not support hot-swapping. Always power down the system before installing or removing the module to avoid damage and ensure operator safety.
