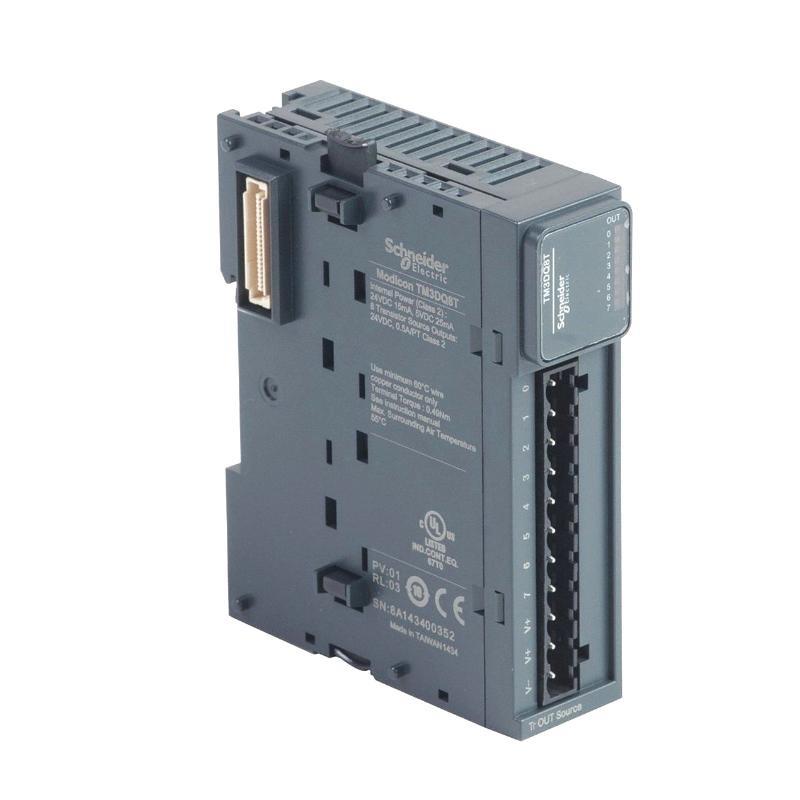

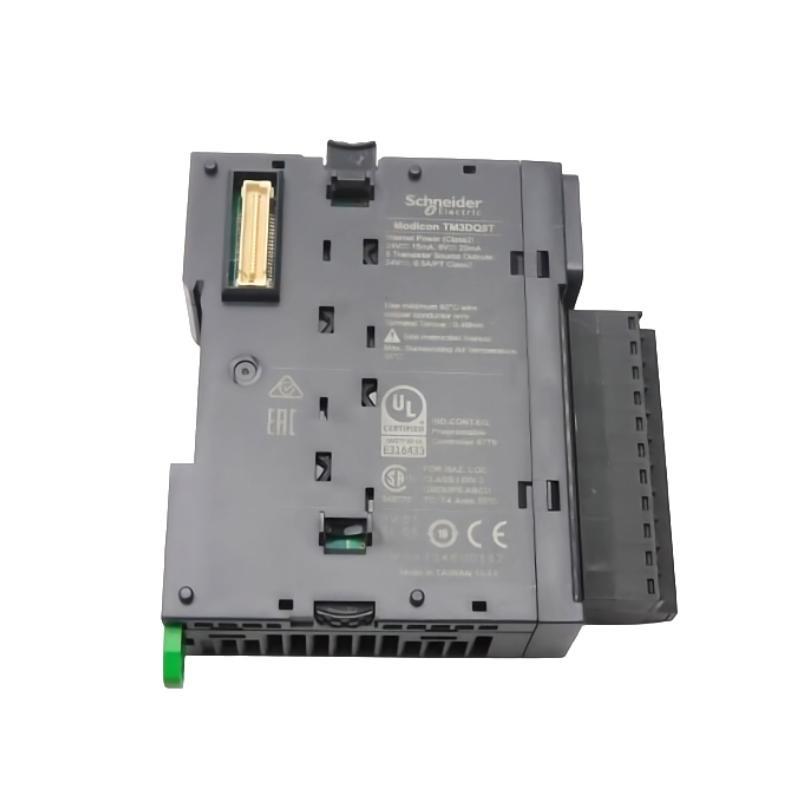

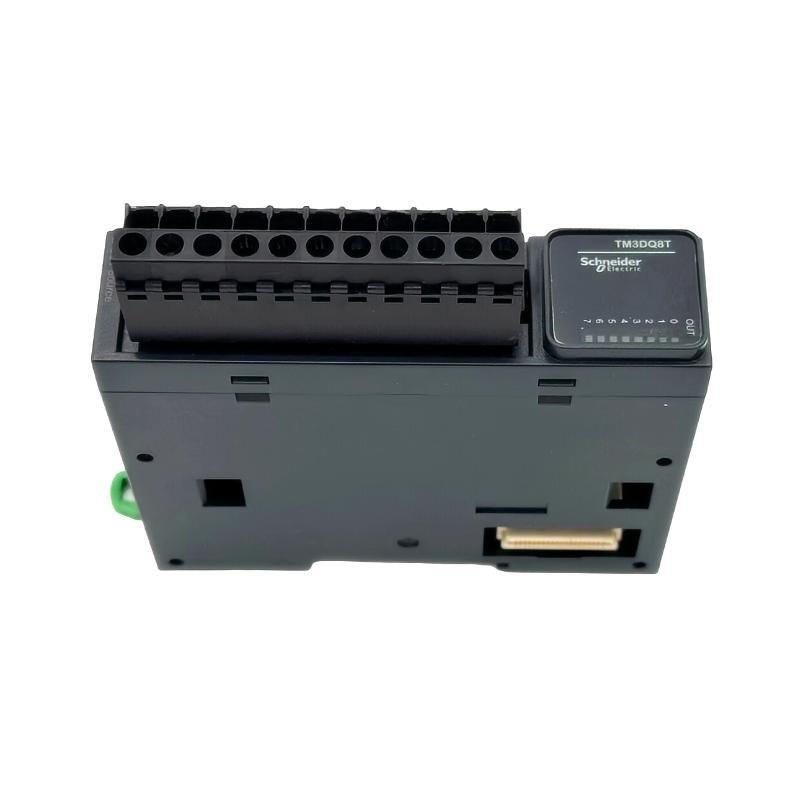

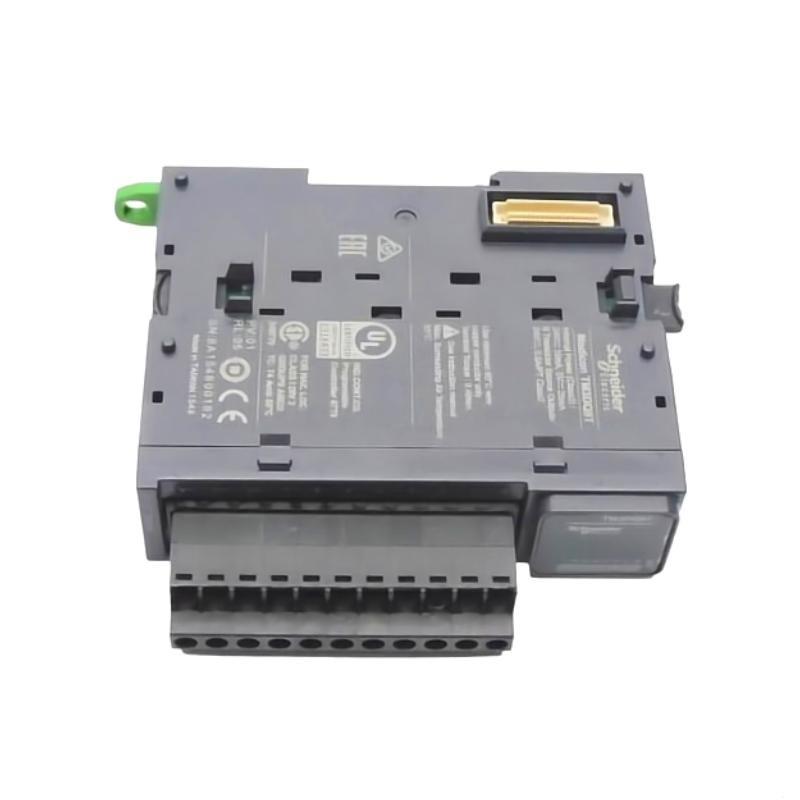

Schneider TM3DQ8T Discrete Output Module

Product Introduction

The Schneider TM3DQ8T Discrete Output Module is a high-performance module designed for industrial automation systems, primarily for controlling digital devices such as motors, relays, solenoids, and other equipment that require on/off control. It is part of the TM3 I/O series from Schneider Electric and is optimized for applications where space-saving, flexibility, and reliable operation are key requirements. This module is ideal for controlling outputs in systems that need fast and accurate on/off switching, such as PLC-based control systems, factory automation, and energy management applications.

The TM3DQ8T module provides 8 discrete output channels, each capable of switching 24V DC devices. It integrates seamlessly into Schneider Electric’s TM3 I/O system, providing a compact solution that offers efficient control while maintaining flexibility for expanding or modifying the system as needed. The TM3DQ8T supports Modbus communication protocols, making it compatible with a wide range of automation systems.

Product Specifications

Product Applications

The Schneider TM3DQ8T Discrete Output Module is designed for use in a variety of industrial applications that require precise control of on/off operations. Here are some of its common applications:

• PLC Systems: This module is widely used in programmable logic controller (PLC) systems to control digital devices such as relays, motors, and other output devices that require on/off switching.

• Industrial Automation: In industrial automation, the TM3DQ8T is used to control discrete devices such as solenoids, actuators, and valves, where reliable and fast switching is critical.

• Energy Management Systems: The TM3DQ8T is also used for controlling energy distribution devices such as circuit breakers, lighting control systems, and energy meters in both industrial and commercial facilities.

• Factory and Building Automation: It can control systems such as HVAC, lighting, and other automation systems where on/off control is required for efficient operation.

• Process Control Systems: The module is useful in process control environments, where it ensures accurate switching of devices like pumps, valves, and other critical equipment.

Product Advantages

1. High Output Density: With 8 discrete outputs in a compact form factor, the TM3DQ8T provides high-density control in a small space, ideal for installations where space is limited.

2. Fast Response Time: The module is designed for high-speed switching, ensuring that there is minimal delay between control signals and the activation of connected devices.

3. Easy Integration: It supports Modbus RTU and Modbus TCP protocols, allowing easy integration with other automation devices and systems, providing seamless communication and control.

4. Energy Efficiency: With a low power consumption of only 2.5W, the module helps minimize energy usage in control systems, contributing to more efficient overall system operation.

5. Robust and Reliable: Designed for industrial environments, the TM3DQ8T is built with industrial-grade components, ensuring durability and reliability even in challenging conditions.

6. DIN Rail Mounting: The module can be easily mounted on a DIN rail, simplifying installation in control panels and offering flexibility for system configuration.

FAQs

1. What is the main purpose of the Schneider TM3DQ8T Discrete Output Module?
   The TM3DQ8T module is designed to control digital devices requiring on/off switching, such as solenoids, motors, and relays, in industrial automation systems.

2. How many discrete outputs does the TM3DQ8T provide?
   The module provides 8 discrete outputs, which can be used to control various devices simultaneously.

3. What communication protocols are supported by the TM3DQ8T?
   The module supports Modbus RTU and Modbus TCP communication protocols, ensuring compatibility with a wide range of industrial automation systems.

4. What is the maximum current rating for each output channel?
   Each output channel supports up to 0.5A, making it suitable for controlling a variety of low-power devices in industrial applications.

5. Can the TM3DQ8T be used in distributed control systems?
   Yes, the module is ideal for use in distributed control systems (DCS), providing reliable on/off control of devices at remote locations.

6. What is the operating voltage for the TM3DQ8T?
   The module operates at 24V DC, a standard voltage used in many industrial automation and control systems.

7. How is the TM3DQ8T mounted in control panels?
   The module is designed to be mounted on a DIN rail, which allows for easy installation and integration into control panels and cabinets.

8. What is the power consumption of the TM3DQ8T?
   The power consumption is only 2.5W, making it an energy-efficient solution for controlling digital outputs.

9. What types of devices can the TM3DQ8T control?
   The TM3DQ8T can control a wide range of digital devices, such as relays, solenoids, valves, actuators, and other on/off devices commonly found in industrial applications.

10. Is the TM3DQ8T module compliant with industry safety standards?
    Yes, the TM3DQ8T is CE, UL, and CSA certified, ensuring that it meets international safety and quality standards.
