Product Introduction

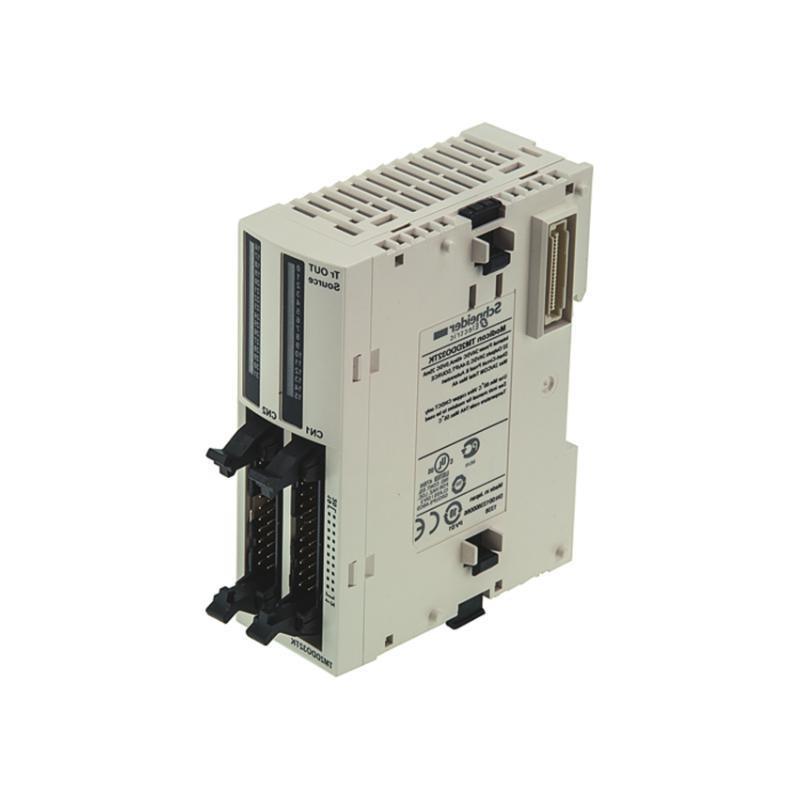

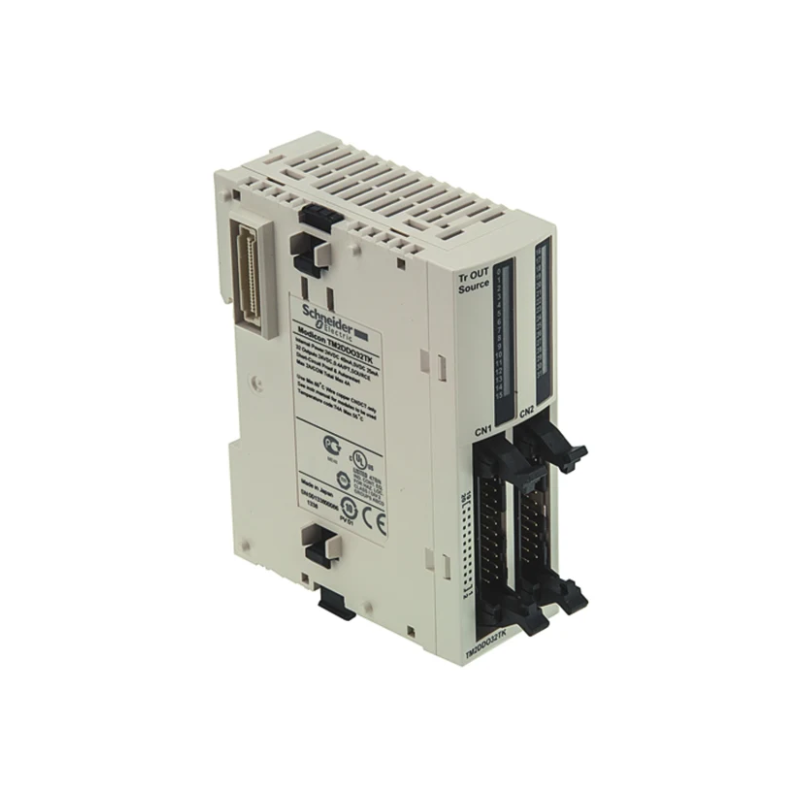

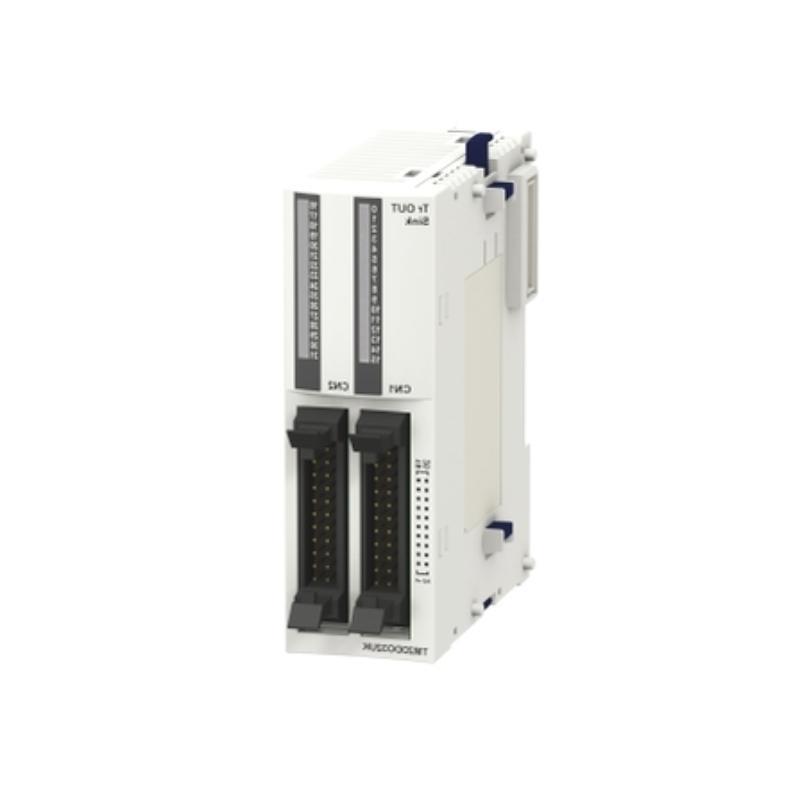

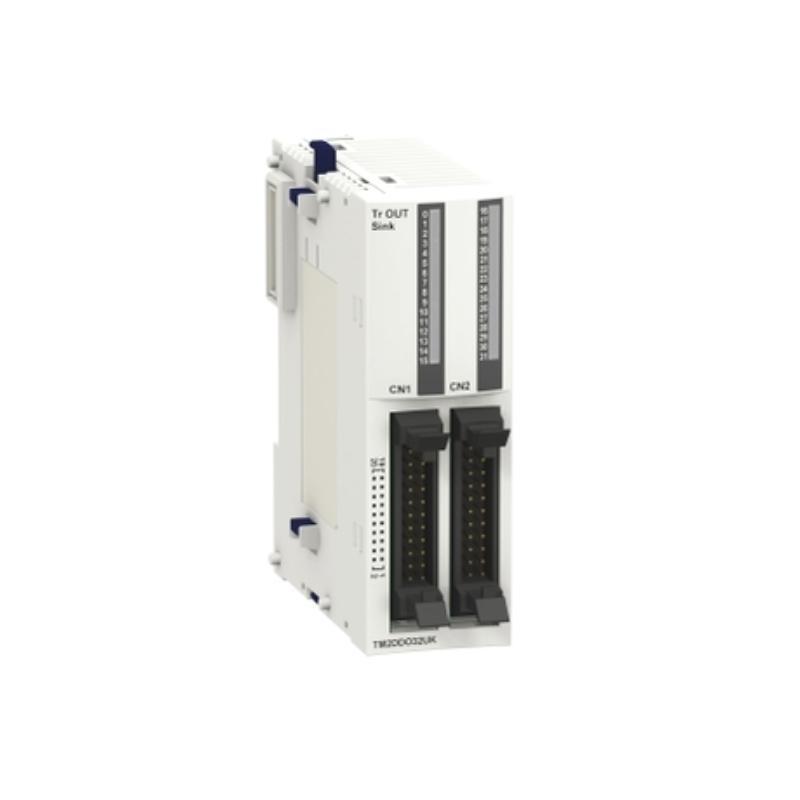

The Schneider TM2DDO32UK is a discrete output expansion module designed to seamlessly integrate with Schneider Electric’s Modicon range of PLCs, such as the M221, M241, and M251 series. It provides users with a practical and efficient solution to extend digital output capabilities without compromising on reliability or installation space.
Engineered with industrial demands in mind, the TM2DDO32UK delivers consistent and robust output switching performance, making it ideal for a wide variety of automation and machine control tasks.
Product Parameters
| Specification | Details |
|---|---|
| Module Type | Discrete output module |
| Number of Outputs | 32 |
| Output Type | Transistor (sink/source) |
| Nominal Supply Voltage | 24 V DC |
| Output Current per Channel | 0.5 A |
| Total Output Current (per common) | 4 A |
| Isolation | 500 V AC between input/output and internal logic |
| Response Time | Typically < 1 ms |
| Dimensions | 81.3x 90x 33.5mm |
| Weight | 0.105 kg |
| Connector Type | Removable screw terminal |
| Mounting | DIN rail |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | -25°C to +70°C |
| Protection | Short-circuit and overload protection |
| Certifications | CE, UL, CSA |
Product Applications
The TM2DDO32UK is widely used in:
-
Industrial automation systems requiring a large number of discrete outputs.
-
Machine control and packaging machinery.
-
Conveyor systems and sorting lines.
-
Process control applications.
-
Lighting and energy distribution systems.
-
Building automation projects.
-
Robotics and handling systems.
-
OEM machine manufacturing where space-saving output expansion is required.
Its compatibility with Modicon PLCs ensures seamless system integration for diverse industries.
Product Advantages
-
Compact Design: Slim and lightweight, saving valuable cabinet space.
-
High Channel Density: 32 outputs per module minimize hardware footprint.
-
Flexible Compatibility: Works seamlessly with several Modicon PLC ranges.
-
Quick Wiring: Removable terminal blocks make wiring and maintenance faster.
-
Fast Response: <1 ms switching speed ensures high-performance control.
-
Industrial Durability: Certified to meet rigorous industrial standards.
-
Enhanced Safety: Built-in short-circuit and overload protection.
-
Cost-Effective: Extends system capability without requiring additional CPUs.
FAQs (Frequently Asked Questions)
Q1: What PLC series is the TM2DDO32UK compatible with?
A1: It is compatible with Schneider Electric’s Modicon M221, M241, and M251 series.
Q2: Can I combine it with analog modules?
A2: Yes. TM2 series modules can be freely combined to suit your application, including analog and digital modules.
Q3: Does it support hot-swapping?
A3: No, it must be powered down before adding or removing the module.
Q4: Is the module suitable for fast pulse outputs?
A4: It’s suitable for standard digital outputs; for high-speed pulse trains, specialized modules should be used.
Q5: What is the response time?
A5: Typically less than 1 ms, which is excellent for most industrial applications.
Q6: How do I wire the module?
A6: Wiring is done via removable screw terminals, making installation straightforward.
Q7: Does it require external power?
A7: Yes, it needs a 24 V DC external power supply for the outputs.
Q8: Is programming done directly on the module?
A8: No. Programming is done on the main PLC; the TM2DDO32UK acts as an expansion.
Q9: What protection features does it include?
A9: It has overload and short-circuit protection to protect the system and wiring.
Q10: What are the mounting options?
A10: Primarily DIN rail mounting, which ensures easy and standardized installation.
6 Recommended Same-Series or Related Models
-
TM2DDO16UK – 16 digital outputs, transistor type.
-
TM2DRA16RT – 16 relay outputs.
-
TM2DDI32DK – 32 digital inputs.
-
TM2DDI16DK – 16 digital inputs.
-
TM2AMM6HT – 6-channel analog mixed module.
-
TM2ALM3LT – 3-channel analog output module.
These models offer a balanced range of input, output, and mixed analog/digital expansion for TM2-compatible systems.
6 Popular Schneider Models (with specs)
| Model | Type | Channels | Voltage | Size (W x H x D) | Weight |
|---|---|---|---|---|---|
| TM2DDO16UK | Digital output module | 16 | 24 V DC | 45 x 90 x 81 mm | ~160 g |
| TM2DRA16RT | Relay output module | 16 | 24 V DC | 45 x 90 x 81 mm | ~200 g |
| TM2DDI32DK | Digital input module | 32 | 24 V DC | 54 x 90 x 81 mm | ~180 g |
| TM2DDI16DK | Digital input module | 16 | 24 V DC | 45 x 90 x 81 mm | ~160 g |
| TM2AMM6HT | Analog mixed module | 6 | 24 V DC | 54 x 90 x 81 mm | ~190 g |
| TM2ALM3LT | Analog output module | 3 | 24 V DC | 45 x 90 x 81 mm | ~170 g |
