Product Overview

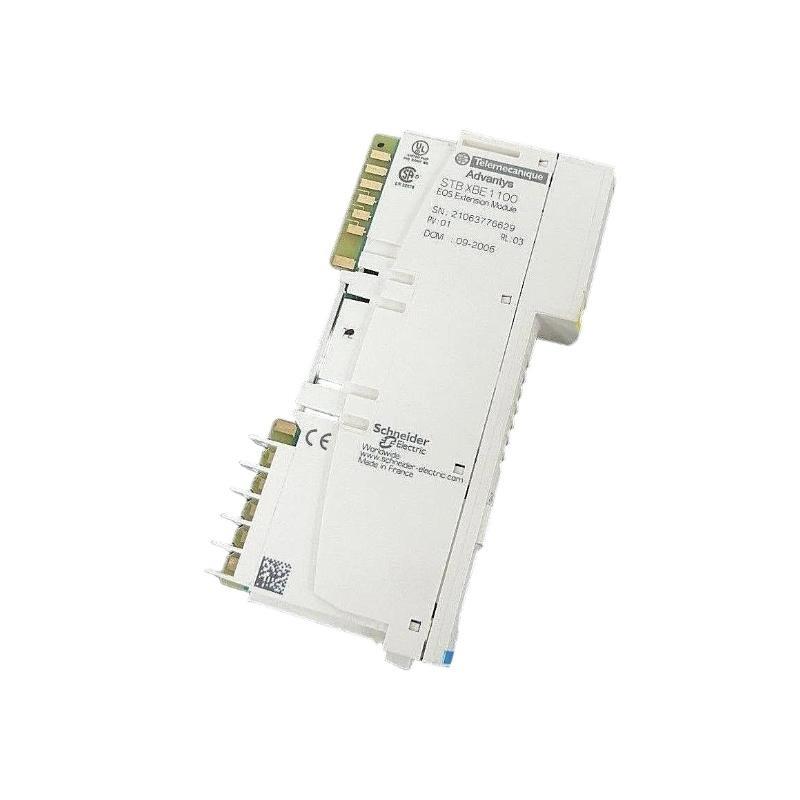

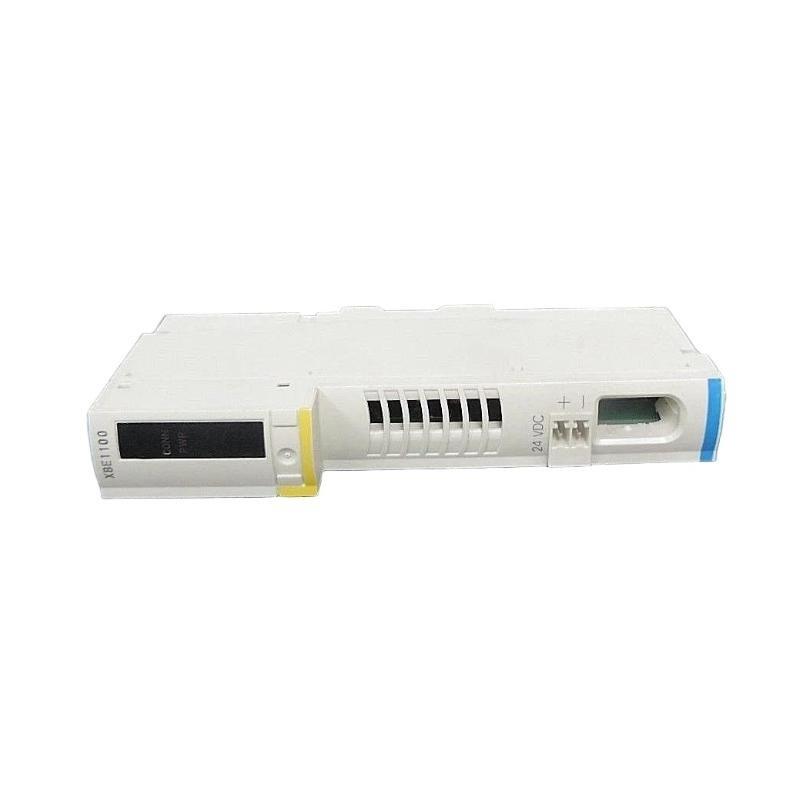

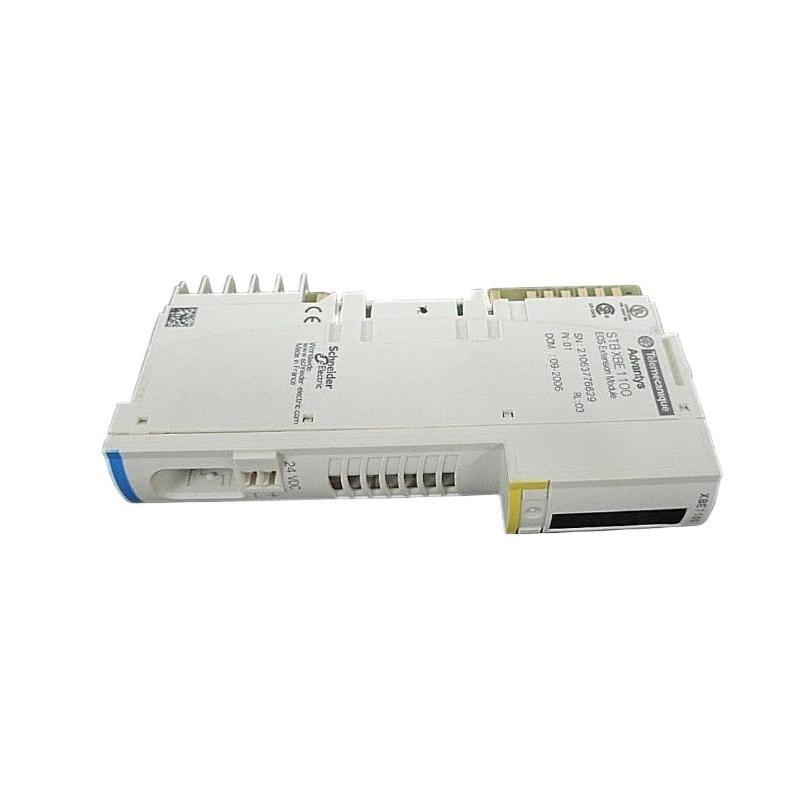

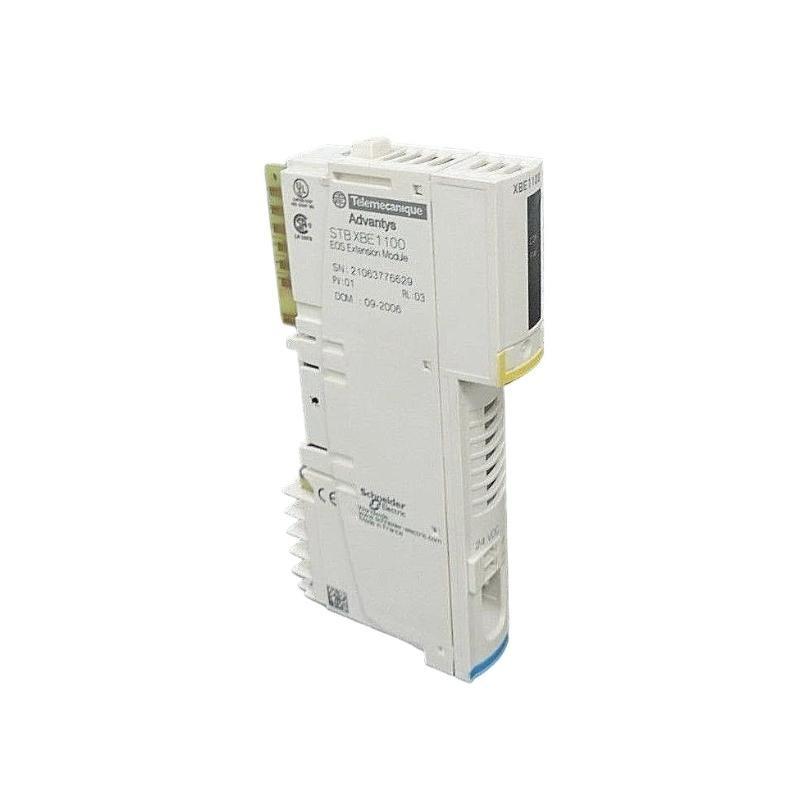

The Schneider Electric STBXBE1100 EOS Internal Bus Expansion Module is designed to extend the functionality and capacity of Schneider Electric’s Modicon M340 and Modicon M580 automation systems. This expansion module enables additional I/O or communication modules to be seamlessly integrated into the control system, enhancing overall system scalability and improving communication performance.
As part of Schneider Electric’s EOS (Ethernet on System) series, the STBXBE1100 module facilitates high-speed data transfer between the central processor and remote I/O modules, ensuring smooth operation and quick response times in critical applications. Its compact, modular design allows for easy installation in control cabinets and offers superior reliability and performance for demanding industrial environments.
Key Features
-
Internal Bus Expansion: Expands the internal bus of the Modicon M340/M580 controllers for increased I/O capacity and module integration.
-
High-Speed Communication: Utilizes high-speed data transfer over Ethernet for enhanced module communication.
-
Seamless Integration: Easily integrates with existing systems without major changes to the control architecture.
-
Modular Design: Compact and flexible design allows for straightforward installation and scalability.
-
Redundancy Support: Supports system redundancy configurations for increased reliability and uptime.
-
Easy Configuration: Simple setup via Unity Pro or EcoStruxure Control Expert programming software.
-
Robust and Reliable: Built for harsh industrial environments with excellent protection against electrical noise and temperature variations.
-
Compatibility: Compatible with Schneider Modicon M340 and M580 controllers for flexible system expansion.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Schneider Electric EOS Internal Bus Expansion Module |
| Model Number | STBXBE1100 |
| System Compatibility | Modicon M340, Modicon M580 Controllers |
| Bus Type | Internal Bus Expansion (Ethernet on System – EOS) |
| Communication Protocol | Ethernet (10/100 Mbps) |
| Power Supply | Powered by the host system via backplane connection |
| Module Slots | Supports up to 4 additional I/O or communication modules |
| Data Transfer Speed | High-speed Ethernet communication |
| Redundancy | Supports redundant system configurations |
| Programming Software | Unity Pro, EcoStruxure Control Expert |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Resistance | 5% to 95% non-condensing |
| Dimensions | 120 × 100 × 40 mm |
| Weight | 0.3 kg |
| Certifications | CE, UL, RoHS compliant |
Product Advantages
-
Scalability: The STBXBE1100 module provides an easy way to scale up Modicon M340 and M580 systems, allowing for the addition of more I/O and communication modules without needing major system redesigns.
-
Efficient Communication: High-speed Ethernet communication ensures seamless data transfer between connected modules, optimizing system performance in real-time applications.
-
Cost-Effective Expansion: Enables system expansion without replacing or upgrading the central processor, making it a cost-effective solution for growing automation systems.
-
Compact Design: Its compact, modular form factor allows for efficient use of space in control cabinets, making it ideal for space-constrained environments.
-
Redundancy Support: Supports system redundancy configurations, enhancing reliability and ensuring high availability for mission-critical operations.
-
Ease of Integration: Compatible with existing Modicon M340/M580 systems, ensuring smooth integration with minimal configuration changes.
-
Global Compatibility: Complies with international electrical standards, making it suitable for use in industrial applications worldwide.
Industry Applications
The Schneider Electric STBXBE1100 EOS Internal Bus Expansion Module is ideal for a variety of industries where modular control systems are required for large-scale automation and communication:
-
Manufacturing: Expanding automation systems for complex production lines, robotics, and automated assembly.
-
Oil & Gas: Enhancing communication and control between remote systems and centralized processing units in drilling and refining operations.
-
Water and Wastewater Treatment: Expanding system control for remote monitoring, water treatment plants, and pump stations.
-
Energy and Utilities: Enabling large-scale automation of power distribution, grid management, and substations.
-
Automotive: Extending the capabilities of automation systems for manufacturing processes, including assembly, painting, and testing.
-
Food and Beverage: Scaling up production line control and monitoring in food processing plants.
-
Pharmaceutical: Supporting complex control systems in pharmaceutical manufacturing and packaging.
-
Mining and Metals: Expanding system control for crushers, mills, and mineral processing equipment.
Frequently Asked Questions (FAQ)
Q1: What is the function of the STBXBE1100 module?
The STBXBE1100 is an internal bus expansion module that allows you to add more I/O or communication modules to your existing Modicon M340 or M580 system via high-speed Ethernet communication.
Q2: How many modules can the STBXBE1100 support?
It supports the addition of up to 4 additional I/O or communication modules, allowing for scalable expansion.
Q3: What are the system compatibility requirements for the STBXBE1100?
It is compatible with Schneider Electric’s Modicon M340 and Modicon M580 controllers.
Q4: Does the STBXBE1100 support system redundancy?
Yes, it supports redundancy configurations, enhancing system reliability and ensuring continuous operation.
Q5: What is the communication protocol used by the module?
The module utilizes high-speed Ethernet communication (10/100 Mbps) for fast and reliable data transfer.
Q6: What is the temperature range for the STBXBE1100 module?
The module operates within a temperature range of -10°C to +60°C, making it suitable for various industrial environments.
Q7: Can the STBXBE1100 module be integrated with existing systems easily?
Yes, the module is designed for seamless integration into existing Modicon M340 and M580 systems with minimal configuration changes.
Q8: What software is required for configuration and programming?
The module is configured and programmed using Unity Pro or EcoStruxure Control Expert programming software.
Q9: What is the size of the STBXBE1100 module?
The module has dimensions of 120 × 100 × 40 mm, making it compact and easy to integrate into control cabinets.
Q10: Is the STBXBE1100 module certified for global use?
Yes, the module is certified with CE, UL, and RoHS standards, ensuring it is suitable for use in global industrial applications.
Recommended Related Models
| Model Number | Description |
|---|---|
| STBXBE1200 | EOS Bus Expansion Module for Modicon M340 with higher module capacity |
| STBXBE1300 | EOS Bus Expansion Module with enhanced communication features |
| BMXXBP0800 | Modicon M580 Backplane Expansion for advanced system integration |
| BMXXBP0200 | Modicon M580 Compact Backplane for smaller systems |
| 140XBP00020 | Quantum Series Backplane for module expansion |
| BMXP342020 | Modicon M340 Expansion Processor with additional I/O channels |
