Product Introduction

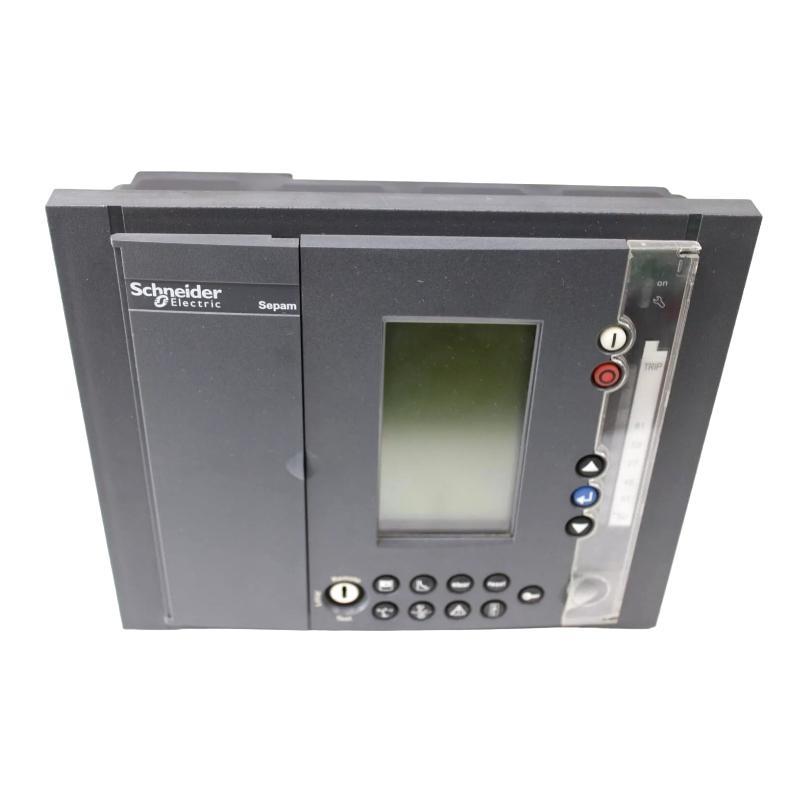

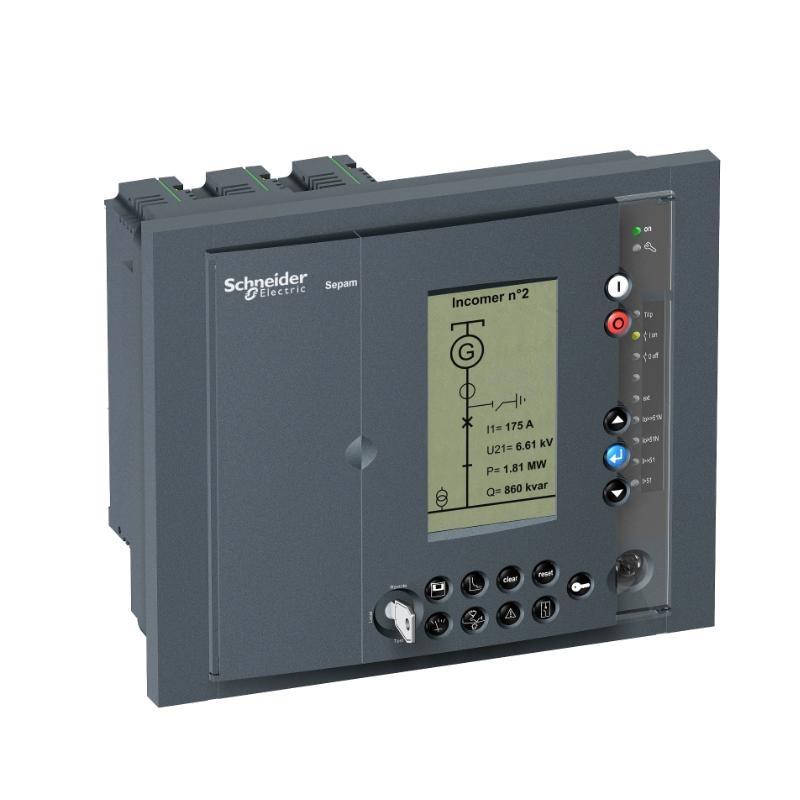

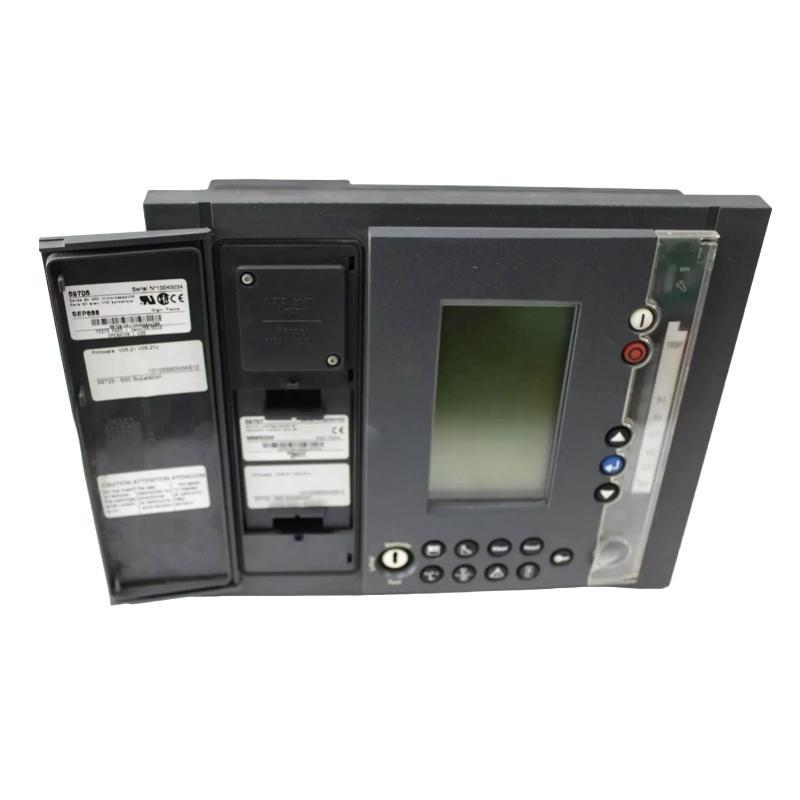

The Schneider SEP888 59705 base unit is a high-performance industrial control platform designed to serve as the foundational hardware for advanced automation systems. As a central processing and interface unit, the SEP888 series seamlessly integrates with Schneider Electric’s automation architecture, providing scalable connectivity, robust communication protocols, and a user-friendly display interface with a resolution of 128 × 240 pixels.
Designed for industrial-grade reliability, the SEP888 59705 is designed to handle demanding control tasks in the manufacturing, energy, and process industries. Its compact and robust design makes it suitable for panel mounting in both new and retrofit automation projects.
Product Specifications
| scope | value |
|---|---|
| model | SEP888 59705 |
| Manufacturer | Schneider Electric |
| Product Type | Industrial control system basic unit |
| Display resolution | 128 × 240 pixels |

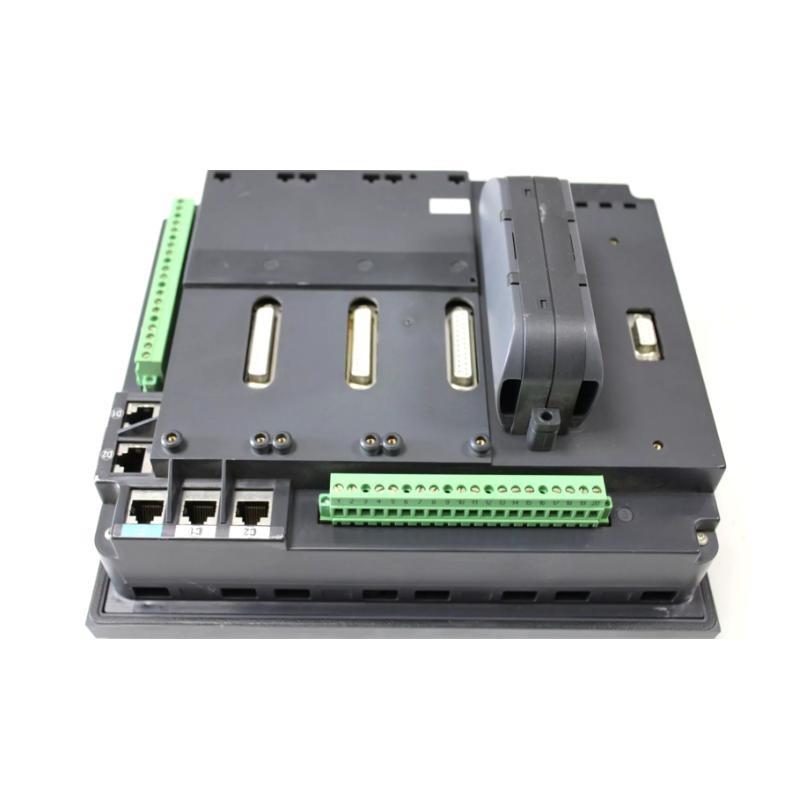

| Interface Port | Serial (RS-232/RS-485), Ethernet, USB (depending on model) |
| Supported protocols | Modbus, Modbus TCP/IP, Schneider proprietary protocol |
| Input voltage | 24 VDC nominal (18–30 VDC range) |
| Processing capabilities | Embedded high-speed processor, real-time control |
| Memory capacity | Onboard flash memory for configuration and application data |
| Communication bus | Integrated fieldbus and system backplane support |
| Installation Type | Panel or DIN rail mounted |
| Housing Material | Industrial-grade metal chassis |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| Protection Rating | IP20 (rear), IP65 (front panel) |
| Safety Certifications | UL, CE, CSA |
| Compliance Standards | IEC 61131-2, EN 61000-6-2, EN 61000-6-4 |
| Dimensions (W × H × D) | 222 x 264 x 89.7 mm |
| Weight | 4.22 kg |
Product Applications
-
Industrial Control Systems: Serves as the main processing and communication hub for automation systems.
-
Manufacturing Lines: Provides centralized control and data acquisition for machinery and robotics.
-
Process Automation: Suitable for chemical plants, oil & gas facilities, and water treatment systems.
-
Energy Management: Interfaces with power monitoring devices for efficient energy distribution control.
-
OEM Equipment: Acts as a base unit in custom-built machines requiring advanced PLC control.
-
Building Automation: Integrates with HVAC and lighting systems in industrial and commercial facilities.
Product Advantages
-
High-Resolution Display: The 128 × 240 pixel screen provides clear status and configuration feedback.
-
Robust Industrial Design: Heavy-duty construction ensures reliable operation in harsh environments.
-
Versatile Connectivity: Supports multiple industrial communication protocols and interfaces.
-
Modular Integration: Works seamlessly with Schneider Electric’s automation architecture.
-
Real-Time Processing: Optimized for high-speed control applications with minimal latency.
-
Easy Installation: Compact design supports both panel and DIN rail mounting options.
-
Scalable Architecture: Can be expanded with additional modules to suit future requirements.
-
Reliable Power Management: Operates efficiently with 24 VDC supply and built-in protection circuits.
FAQ
-
Which communication protocols does the SEP888 59705 support?
It supports Modbus RTU, Modbus TCP/IP, and Schneider proprietary communication standards. -
Can this base unit interface with third-party PLCs?
Yes, it supports standard protocols allowing integration with non-Schneider PLCs and devices. -
What is the function of the integrated display?
The 128 × 240 pixel display provides real-time system status, diagnostics, and configuration options. -
Does the SEP888 59705 require an external power supply?
Yes, it operates on an external 24 VDC supply within an 18–30 VDC range. -
Is the unit suitable for redundant control architectures?
Yes, it can be integrated into redundant control systems when paired with appropriate modules. -
Can this device store configuration data locally?
Yes, it has onboard flash memory for storing configuration files and application data. -
Does this model support Ethernet communications?
Yes, Ethernet availability depends on the configuration of the base unit. -
What types of I/O modules are compatible with SEP888 59705?
It is compatible with Schneider SEP888 series I/O expansion modules and field terminal units. -
Does it support remote diagnostics?
Yes, it supports remote monitoring and diagnostics via Ethernet or serial communication. -
Can the SEP888 59705 operate in high vibration environments?
Yes, it is designed to meet industrial vibration and shock standards to ensure reliable operation.
Recommended related models
| model | describe | Main Features |
|---|---|---|
| SEP888 59701 | Basic Unit | Standard base unit with basic I/O support |
| SEP888 59703 | Basic Unit | Enhanced communication interface |
| SEP888 59706 | Basic Unit | Extended memory and modular expansion |
| SEP888 59708 | Basic Unit | High-speed processing version |
| SEP888 59710 | Basic Unit | Redundant architecture support |
| SEP888 59712 | Basic Unit | Integrated advanced networking options |
Recommended popular Schneider models
| model | describe | Main Applications |
|---|---|---|
| 140CPU65160 | Modicon Quantum CPU modules | High-performance PLC processing |
| HMIGTO5310 | Magelis GTO touch screen human machine interface | Advanced visualization and control |
| 170AAI14000 | Momentum Series Analog Input Modules | Accurate process variable acquisition |
| TSXRKY8EX | 8-slot expandable rack | Modular PLC backplane for system integration |
| XBTF034110 | Magelis XBT-F touchscreen human-machine interface | 10.4-inch display for industrial automation |
| 140DDO35300 | Digital output modules | 32-channel digital output for PLC |
