Product Overview

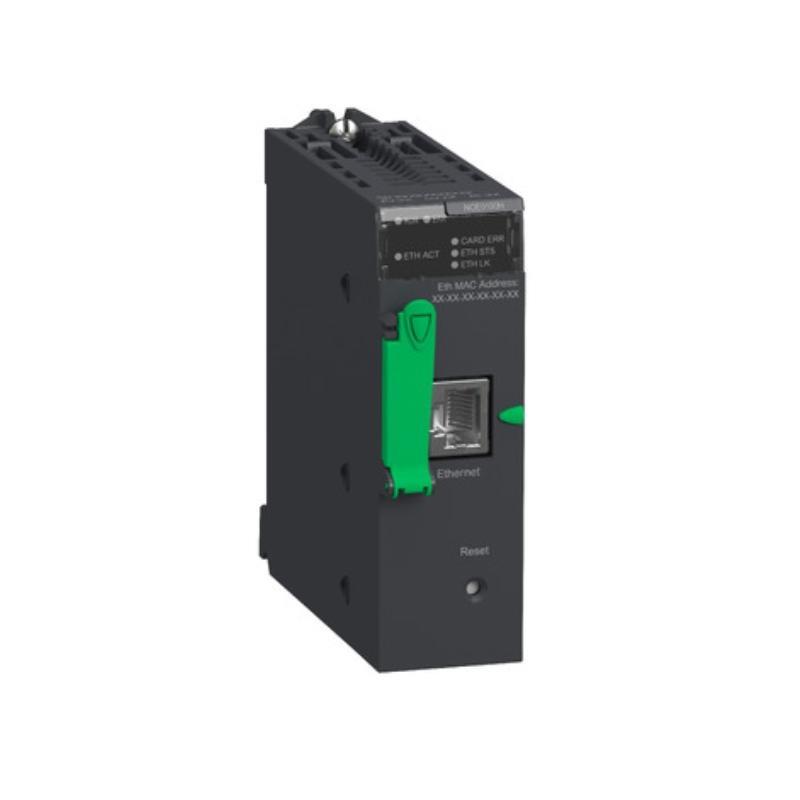

The Schneider Electric BMXNOE0100H is a reliable and compact Ethernet TCP/IP Network Module designed for the Modicon Premium and Quantum PLC families. This module facilitates seamless Ethernet communication, enabling PLCs to connect efficiently to industrial networks, including SCADA and HMI systems, via standard Ethernet TCP/IP protocols.
Engineered for demanding industrial environments, the BMXNOE0100H supports high-speed data transfer and provides real-time network diagnostics, ensuring continuous and secure communication essential for automation and control processes.
Key Features
-
Supports 10/100 Mbps Ethernet communication
-
Standard RJ45 connector for Ethernet interface
-
Compatible with Modicon Premium and Quantum PLCs
-
Supports TCP/IP, UDP, Modbus TCP protocols
-
Industrial-grade design with EMI/RFI protection
-
Diagnostic LEDs for network status and activity
-
Easy integration with Unity Pro software
-
Rack-mounted installation in standard PLC chassis
-
Supports network fault tolerance features
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Name | Ethernet TCP/IP Network Module |
| Model Number | BMXNOE0100H |
| Compatible PLCs | Modicon Premium, Quantum |
| Communication Speed | 10/100 Mbps |
| Network Interface | RJ45, Ethernet IEEE 802.3 |
| Protocols Supported | TCP/IP, UDP, Modbus TCP |
| Diagnostic Indicators | LEDs for Power, Link, Activity |
| Power Supply | Powered via PLC backplane |
| Mounting | Rack-mounted |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Package size 55 x 110 x 120mm |
| Weight | 0.2 kg |
| Certifications | CE, UL, CSA |
Industry Applications
-
Manufacturing Automation – Connects PLCs with control and monitoring systems across the factory floor.
-
Water & Wastewater – Enables Ethernet-based monitoring and control of treatment processes.
-
Oil & Gas – Supports secure and reliable process control communications.
-
Power Generation – Integrates distributed PLCs into plant Ethernet networks.
-
Building Automation – Provides centralized control for HVAC and lighting systems.
-
Food & Beverage – Facilitates batch process control and data collection.
Product Advantages
-
Reliable High-Speed Communication – Ensures fast and consistent data exchange.
-
Broad Protocol Support – Compatible with widely used Ethernet protocols.
-
Robust Industrial Design – Withstands harsh environmental conditions.
-
Easy Setup and Configuration – Works seamlessly with Unity Pro software.
-
Network Diagnostics – Provides real-time status via onboard LEDs.
-
Scalable Network Integration – Supports expansion of automation systems.
Frequently Asked Questions (FAQ)
-
Q: Which PLC models are compatible with the BMXNOE0100H?
A: It supports Modicon Premium and Quantum series PLCs. -
Q: What Ethernet speeds does the module support?
A: Both 10 Mbps and 100 Mbps Ethernet speeds are supported. -
Q: Which communication protocols are available?
A: The module supports TCP/IP, UDP, and Modbus TCP. -
Q: How is the module powered?
A: Power is supplied through the PLC backplane. -
Q: Can this module be hot-swapped?
A: Hot swapping depends on the PLC system configuration but is generally supported. -
Q: Are there diagnostic indicators on the module?
A: Yes, LEDs indicate power, link status, and network activity. -
Q: Is the module suitable for industrial environments?
A: Yes, it has an industrial-grade design with EMI/RFI protection. -
Q: How is the module configured?
A: Configuration is performed via Schneider’s Unity Pro or EcoStruxure Control Expert software. -
Q: Does the module support network redundancy?
A: Yes, it supports network fault tolerance and redundancy features. -
Q: What are the physical dimensions and weight?
A: Dimensions are Package size 55 x 110 x 120mm; weight approximately 0.2 kg.
Related Models
| Model | Description |
|---|---|
| BMXNOE0200 | Advanced Ethernet TCP/IP Communication Module |
| BMXNOC0401 | Ethernet TCP/IP Network Module |
| BMXP342020 | Modicon M340 CPU Module |
| BMXP572100 | Modicon Premium CPU Module |
| BMXP582040 | Modicon M580 Performance CPU |
| 140CPU65160S | Quantum Unity Security Processor |
Popular Schneider Electric Models
| Model | Description |
|---|---|
| 140CPU65160S | Quantum Unity Security Processor |
| 140CPU43412U | Mid-Range Quantum CPU with Ethernet and Modbus |
| 140CPS21400 | Quantum 24 VDC Power Supply Module |
| 140NOE77101 | Quantum Ethernet TCP/IP Communication Module |
| BMEP582040 | Modicon M580 High-Performance CPU |
| BMXP342020 | Modicon M340 Mid-Range CPU |
