Product Introduction

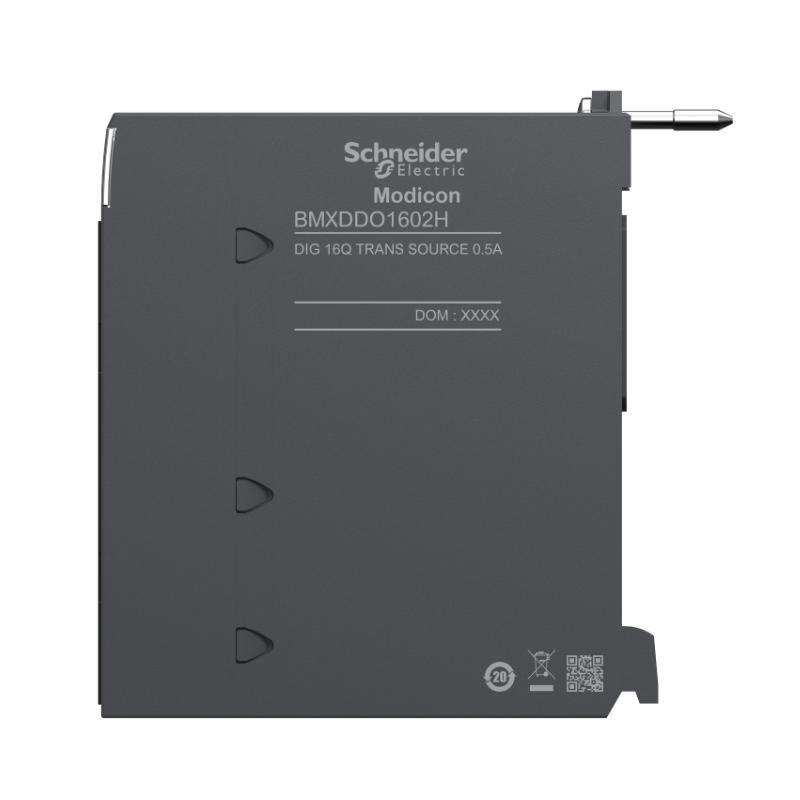

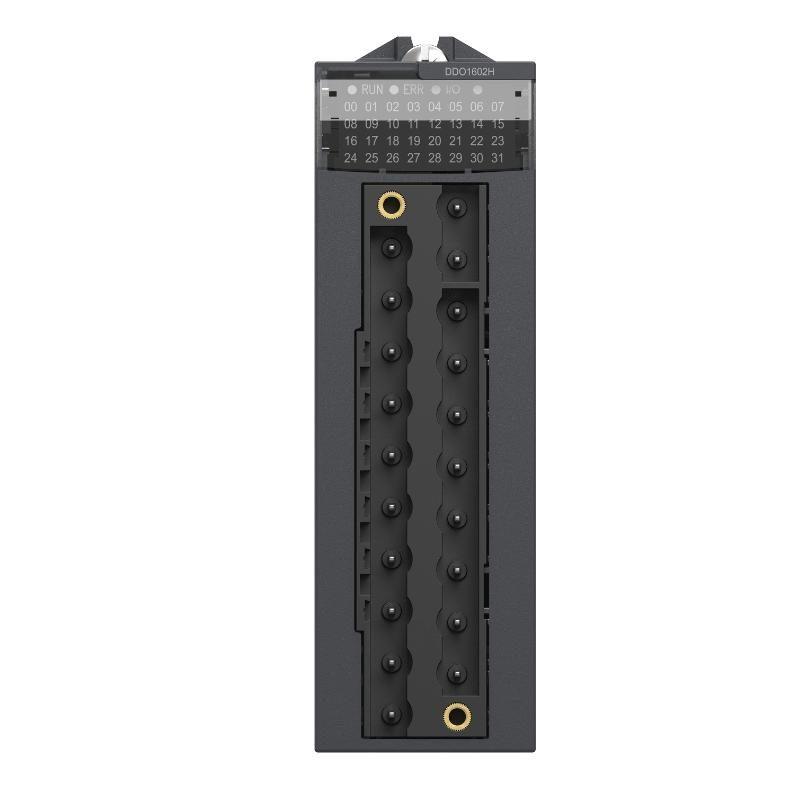

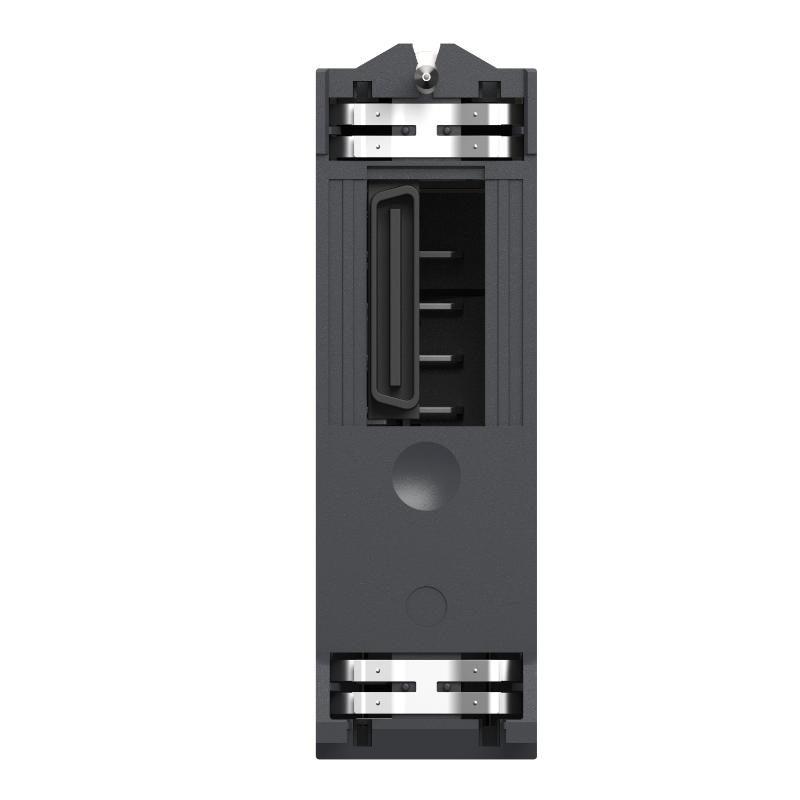

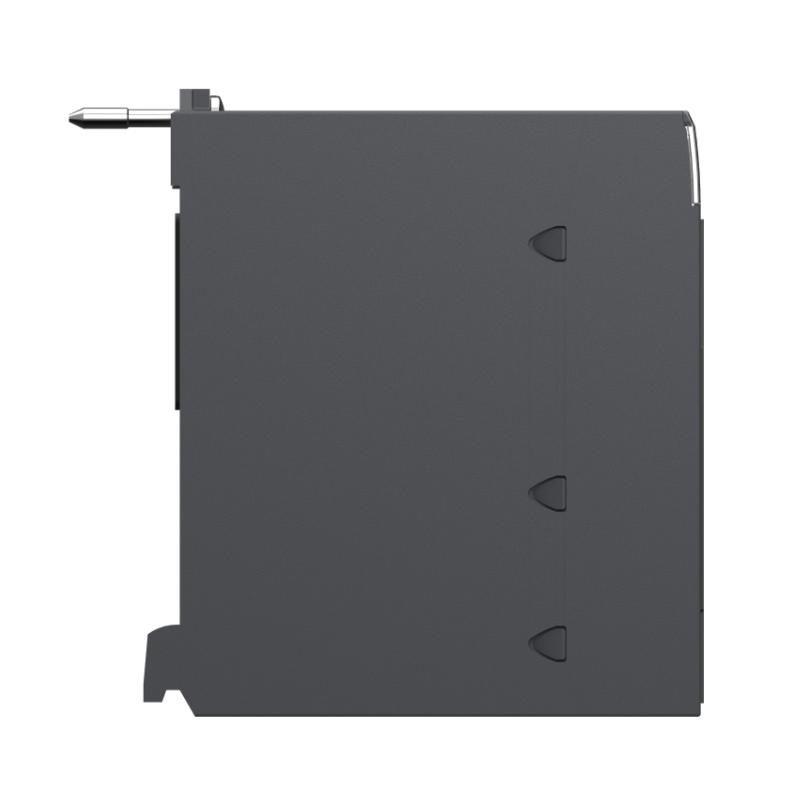

The Schneider BMXDDO1602H Discrete Output Module is a ruggedized digital output module from the Modicon X80 family, designed for use with Modicon M340 and Modicon M580 automation systems. The module provides reliable transistor-based output control for industrial applications that require dependable operation in harsh environmental conditions.
Equipped with 16 discrete output channels, the BMXDDO1602H enables efficient control of field devices such as contactors, relays, indicator lamps, solenoid valves, and other digital actuators. Operating with a 24V DC positive logic output configuration, the module is suitable for a wide range of industrial automation applications.
One of the key features of the BMXDDO1602H is its ruggedized design. Unlike standard digital output modules, this model is engineered to operate within an extended temperature range of -25°C to +70°C, making it ideal for installations exposed to extreme environmental conditions. This capability allows the module to be deployed in outdoor facilities, utility infrastructure, mining operations, and remote industrial sites where environmental reliability is essential.
The module also incorporates multiple protection mechanisms, including reverse polarity protection, short-circuit protection, overload protection, and overvoltage protection. These features help safeguard both the module and connected field devices, contributing to increased system reliability and reduced maintenance requirements.
As part of the Modicon X80 platform, the BMXDDO1602H benefits from a common architecture that supports simplified engineering, reduced spare parts inventory, and streamlined maintenance across Modicon M340 and Modicon M580 installations.
Product Specifications
| Parameter | Description |
|---|---|
| Model | Schneider BMXDDO1602H |
| Product Type | Discrete Transistor Output Module |
| Series | Modicon X80 |
| Compatible Platforms | Modicon M340, Modicon M580 |
| Number of Output Channels | 16 |
| Output Type | Transistor Output |
| Output Logic | Positive Logic |
| Supply Voltage | 24 VDC |
| Signal Type | Digital Output |
| Operating Temperature | -25°C to +70°C |
| Protection Features | Reverse Polarity, Short-Circuit, Overload, Overvoltage Protection |
| Protection Rating | IP20 |
| MTBF | 409,213 Hours |
| Compliance Standards | EN 61000-6-5, EN 61850-3, EN 61131-2 |
| Certifications | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy |
| Application Category | Rugged Industrial Automation |
| Dimensions | 100 × 32 × 86 mm |
| Weight | 0.12 kg |
Applications
• Water and Wastewater Treatment Plants – Controls pumps, valves, and field equipment in demanding environments.
• Power Generation Facilities – Supports digital control of auxiliary systems and plant infrastructure.
• Mining Operations – Provides reliable output control for conveyors, crushers, and processing equipment.
• Smart Infrastructure Projects – Integrates with building automation and utility management systems.
• Data Centers – Controls monitoring devices, alarms, and facility management equipment.
• Oil and Gas Installations – Suitable for remote and environmentally challenging applications.
• Consumer Packaged Goods Manufacturing – Supports packaging, conveying, and production automation systems.
• Transportation Infrastructure – Controls signaling, monitoring, and operational equipment.
• Industrial Manufacturing Plants – Interfaces with relays, contactors, and machine control devices.
• Remote Utility Stations – Operates reliably in locations exposed to extreme temperatures.
Advantages
• Ruggedized Industrial Design – Built for reliable operation in harsh environmental conditions.
• Extended Temperature Range – Supports operation from -25°C to +70°C.
• 16 Reliable Transistor Outputs – Provides dependable switching performance for digital control applications.
• Comprehensive Protection Functions – Includes reverse polarity, overload, overvoltage, and short-circuit protection.
• Improved System Reliability – Protection features help reduce equipment damage and downtime.
• 24V DC Positive Logic Design – Compatible with a wide variety of industrial devices.
• High Operational Availability – Long MTBF supports continuous industrial operation.
• Flexible Platform Compatibility – Works with both Modicon M340 and Modicon M580 systems.
• Reduced Maintenance Costs – Shared X80 architecture simplifies inventory and servicing requirements.
• Compact Installation Footprint – Delivers reliable output control while minimizing cabinet space usage.
