Product Introduction

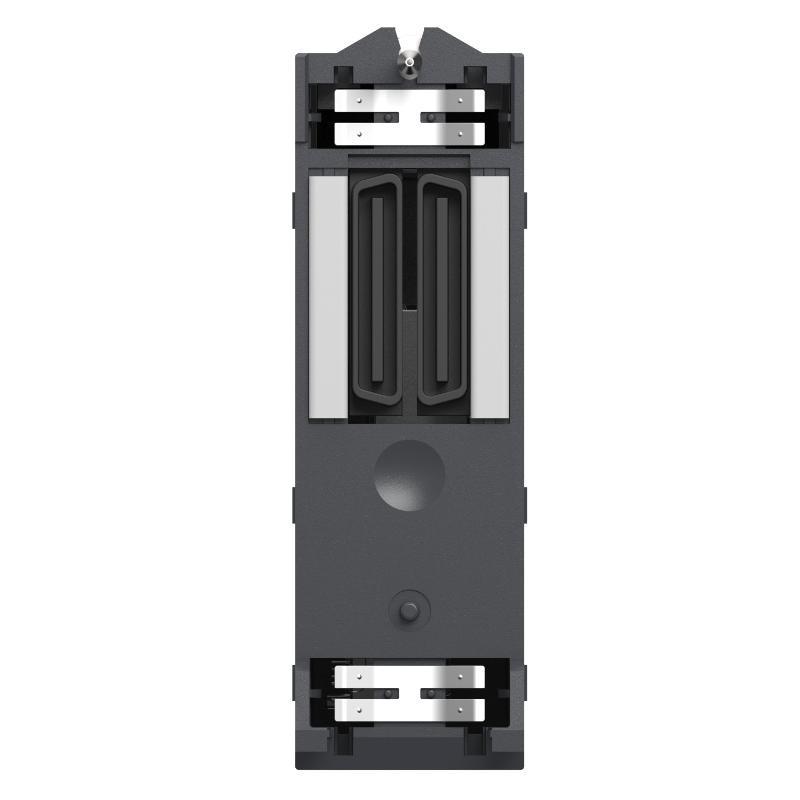

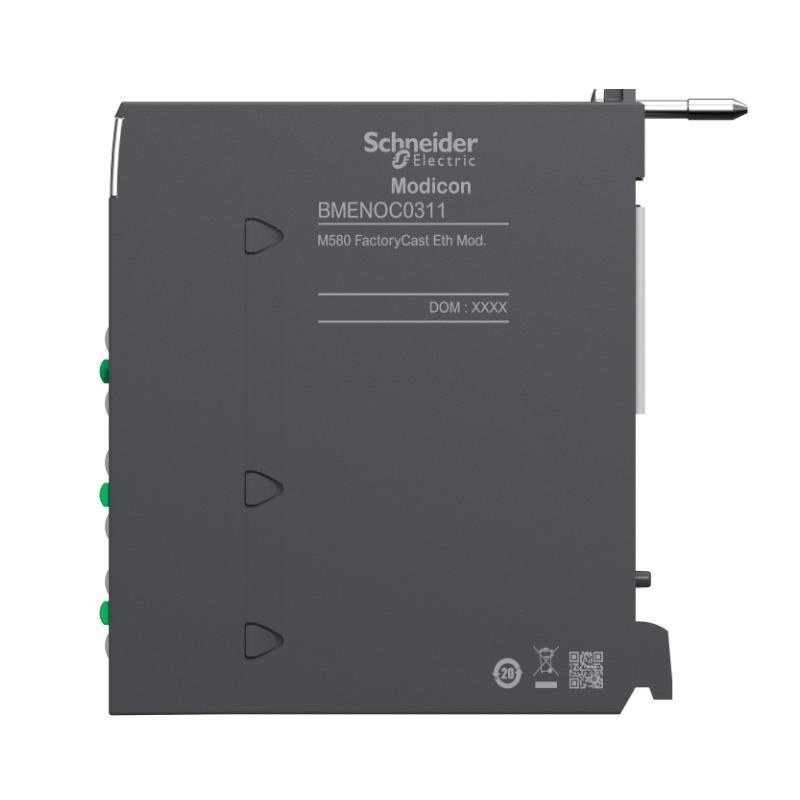

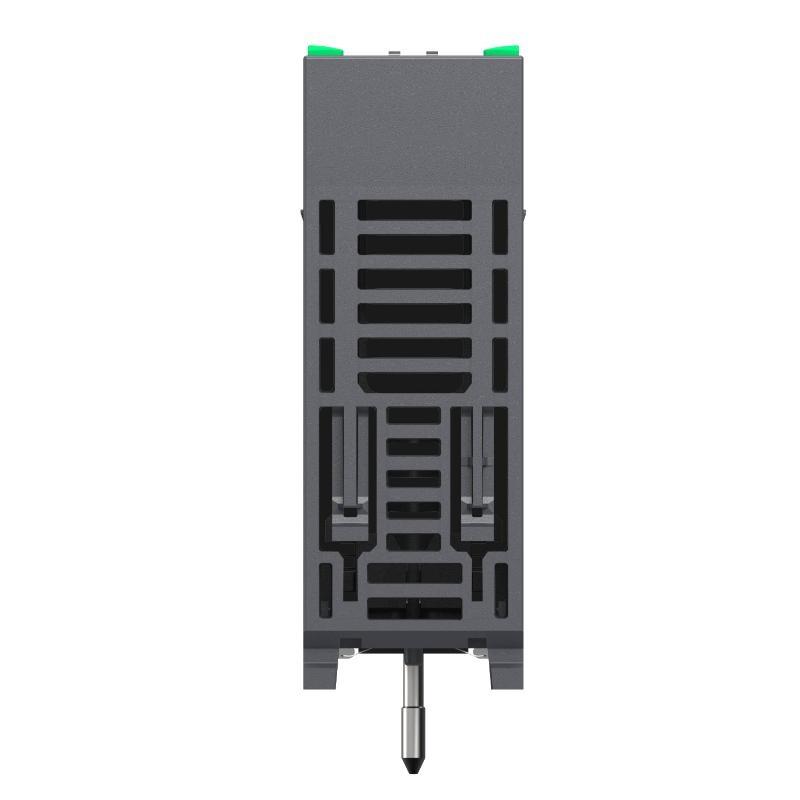

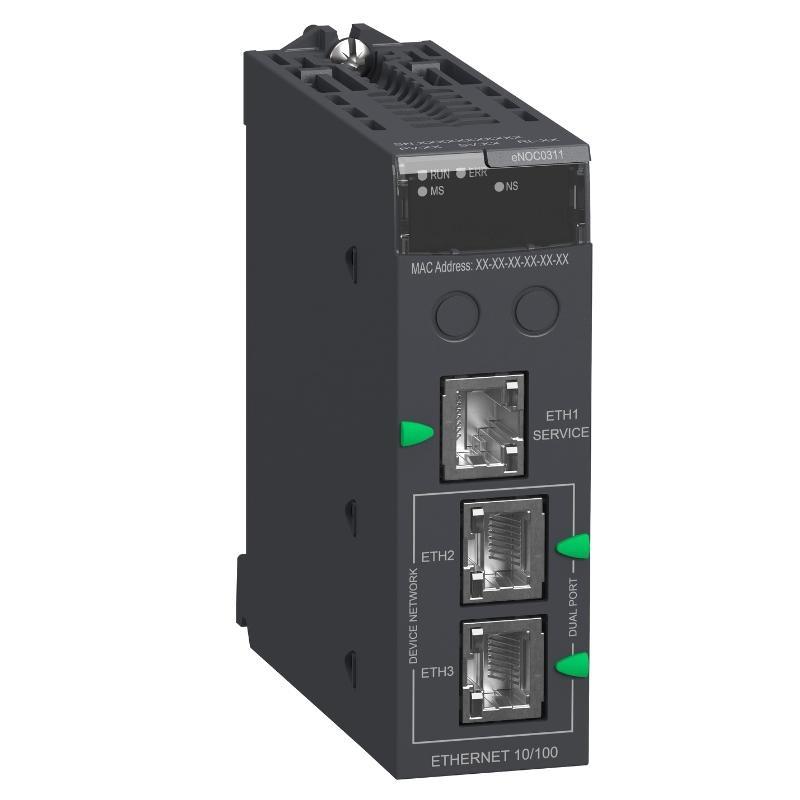

The Schneider BMENOC0311 Ethernet Communication Module is a high-performance communication interface designed for the Modicon M580 series. It enables robust network connectivity for medium to large-scale process automation systems, integrating multiple industrial protocols and advanced network management capabilities. The module facilitates seamless communication between controllers, I/O devices, and other networked components, ensuring reliable and efficient data exchange in distributed control architectures.
Equipped with three FactoryCast ports and three RJ45 Ethernet interfaces, the BMENOC0311 supports Modbus TCP I/O scanning, EtherNet/IP I/O scanning, and messaging services. An integrated 4-port Ethernet switch allows easy network expansion and redundancy. Advanced features such as RSTP (Rapid Spanning Tree Protocol), SNMP network management, and multi-port switching ensure high reliability, network resilience, and efficient traffic handling.
Product Specifications
| Parameter | Description |
|---|---|
| Module Type | Ethernet Communication Module |
| Series | Modicon M580 |
| Ethernet Ports | 3 x FactoryCast, 3 x RJ45 |
| Communication Services | Modbus TCP I/O scanning and messaging, EtherNet/IP I/O scanning and messaging, FDR server, bandwidth management |
| Integrated Switch | 4-port Ethernet switch, multi-port management |
| Network Features | RSTP (Rapid Spanning Tree Protocol), SNMP network management |
| Power Supply | Internal, 555 mA current consumption |
| Protection Rating | IP20 |
| Standards Compliance | EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201 |
| Certifications | CE, UL |
| Applications | Medium to large-scale process automation networks |
| Dimensions | 135 × 25 × 100 mm |
| Weight | 0.2 kg |
Applications
• High-speed Ethernet communication for Modicon M580 control networks
• Integration of Modbus TCP and EtherNet/IP I/O devices for distributed automation
• Bandwidth management and traffic optimization for critical industrial networks
• Redundant and resilient network topologies using RSTP and multi-port switching
• Network monitoring and management with SNMP support
• FactoryCast network interfacing for efficient device integration
• Medium to large-scale process automation in chemical, petrochemical, and utility plants
Advantages
• Multi-protocol support, including Modbus TCP, EtherNet/IP, and FactoryCast
• Integrated 4-port Ethernet switch simplifies network expansion and connectivity
• Advanced network management, including RSTP and SNMP for high reliability
• Compact and lightweight design, facilitating easy installation in control panels
• Industrial-grade IP20 protection, suitable for standard cabinet environments
• Certified for global industrial standards (CE, UL, EN series)
• Efficient bandwidth handling and FDR server support for data management
