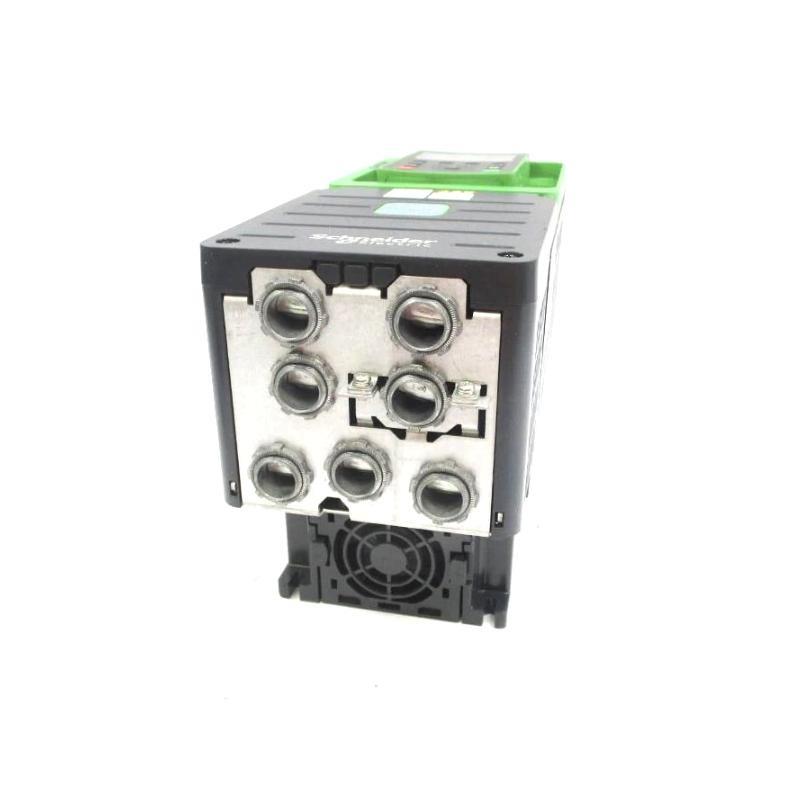

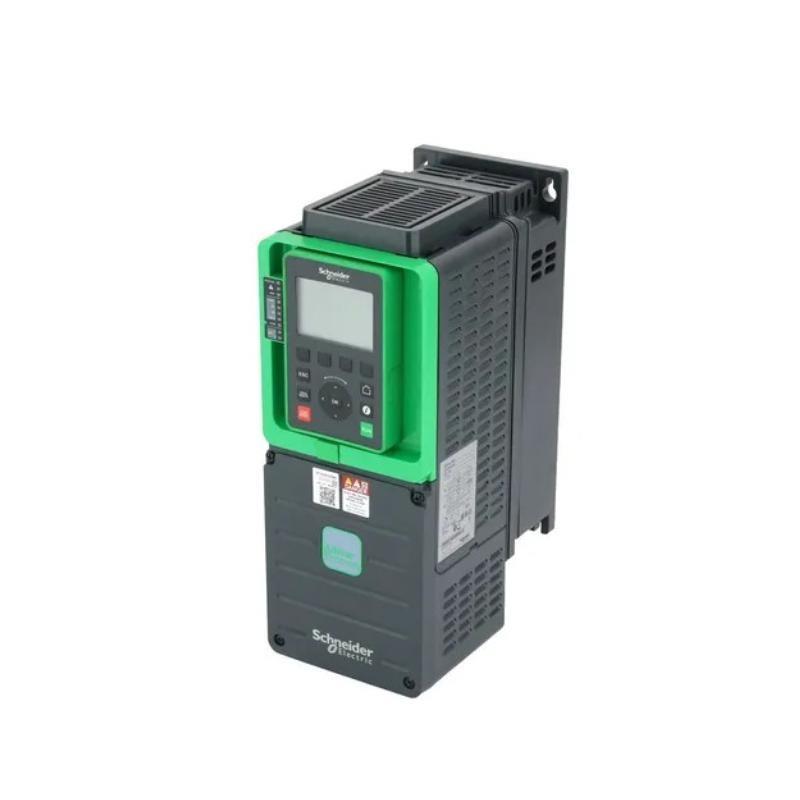

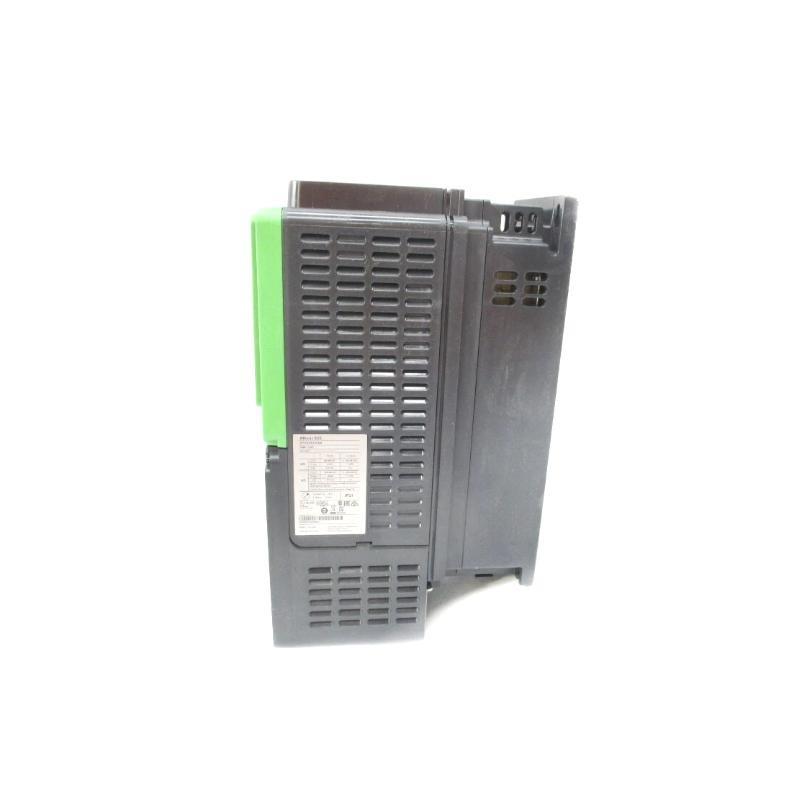

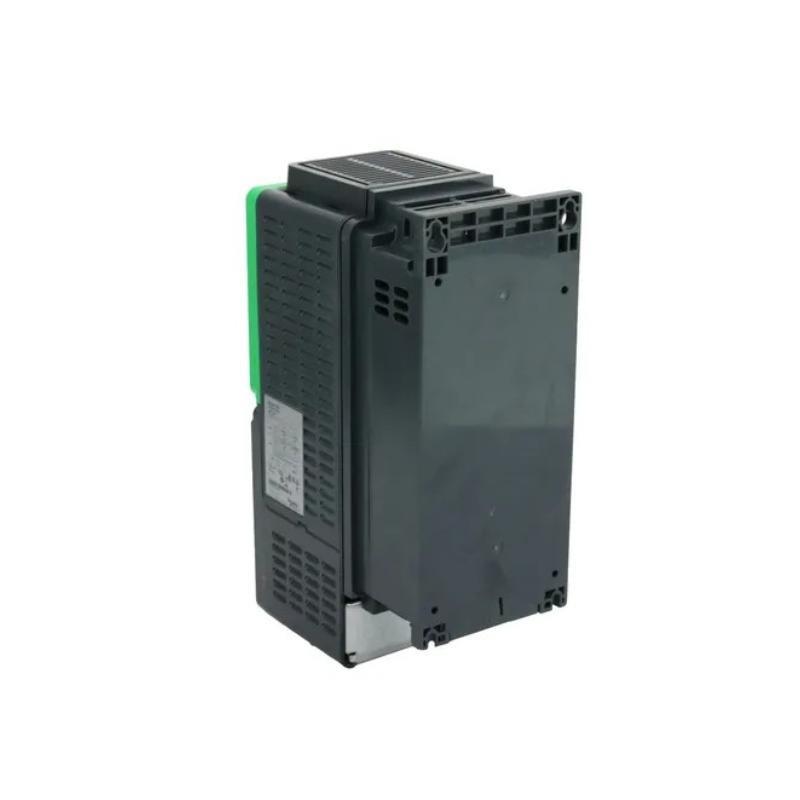

Schneider ATV930U30N4 Variable Speed Drive Introduction
The Schneider ATV930U30N4 is a high-performance variable speed drive designed for complex industrial applications. It offers precise motor control, high energy efficiency, and robust performance, making it ideal for demanding environments.
Product Specifications
| Parameter | Value |
|---|---|
| Model | ATV930U30N4 |
| Power Rating | 3 kW (4 HP) |
| Input Voltage | 380–480 V AC, 3-phase |
| Output Frequency | 0.1 to 599 Hz |
| Control Method | Sensorless Vector, Flux Vector |
| Dimensions (H x W x D) | 144 x 350 x 206 mm |
| Weight | 4.6 kg |
| Operating Temperature | -15°C to +50°C |
| Protection Class | IP21 |
| Communication Protocols | Modbus, Ethernet, CANopen |
Applications
The ATV930U30N4 is suited for pumps, fans, compressors, conveyors, mixers, and other heavy-duty industrial machinery where precision and reliability are critical.
Advantages
-
High energy efficiency for reduced operating costs
-
Advanced motor control for high torque at low speeds
-
Wide range of communication options for easy integration
-
Compact and robust design for harsh environments
-
Easy setup and maintenance
Frequently Asked Questions
Q1: What is the power rating of the ATV930U30N4?
A1: It has a power rating of 3 kW (4 HP).
Q2: Can it operate with single-phase input?
A2: No, it requires a 3-phase AC input.
Q3: What is the protection level of the drive?
A3: The drive is rated IP21.
Q4: Which control methods does it support?
A4: It supports Sensorless Vector Control and Flux Vector Control.
Q5: Is it suitable for pump and fan applications?
A5: Yes, it is specifically designed for such variable torque applications.
Q6: What is the maximum output frequency?
A6: The maximum output frequency is 599 Hz.
Q7: Can it be integrated into Ethernet networks?
A7: Yes, it supports Ethernet communication.
Q8: What is the weight of the unit?
A8: The drive weighs 4.6 kg.
Q9: Does it support regenerative braking?
A9: Yes, it is compatible with braking options.
Q10: Is it suitable for harsh environments?
A10: Yes, thanks to its robust design and wide operating temperature range.
Recommended Related Models
| Model | Power Rating | Voltage Range | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ATV930U22N4 | 2.2 kW | 380–480 V AC | 144 x 350 x 206 | 4.5 kg |
| ATV930U40N4 | 4 kW | 380–480 V AC | 144 x 350 x 206 | 4.8 kg |
| ATV930U55N4 | 5.5 kW | 380–480 V AC | 211 x 450 x 232 | 8.9 kg |
| ATV930U75N4 | 7.5 kW | 380–480 V AC | 211 x 450 x 232 | 9.1 kg |
| ATV930D15N4 | 15 kW | 380–480 V AC | 308 x 650 x 232 | 23 kg |
| ATV930D22N4 | 22 kW | 380–480 V AC | 308 x 650 x 232 | 27 kg |
Popular Schneider Models
| Model | Product Type | Power Rating / Feature | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ATV630U30N4 | Variable Speed Drive | 3 kW | 144 x 350 x 206 | 4.6 kg |
| ATV320U30N4B | Compact Drive | 3 kW | 143 x 216 x 182 | 3.5 kg |
| ATV930C11N4 | Variable Speed Drive | 11 kW | 211 x 450 x 232 | 12.5 kg |
| ATV630D18N4 | Variable Speed Drive | 18.5 kW | 308 x 650 x 232 | 25 kg |
| ATV12H075M2 | Basic Drive | 0.75 kW | 143 x 72 x 148 | 1.3 kg |
| Altivar Process 600 | Variable Speed Drive | 4 kW | 144 x 350 x 206 | 4.8 kg |
