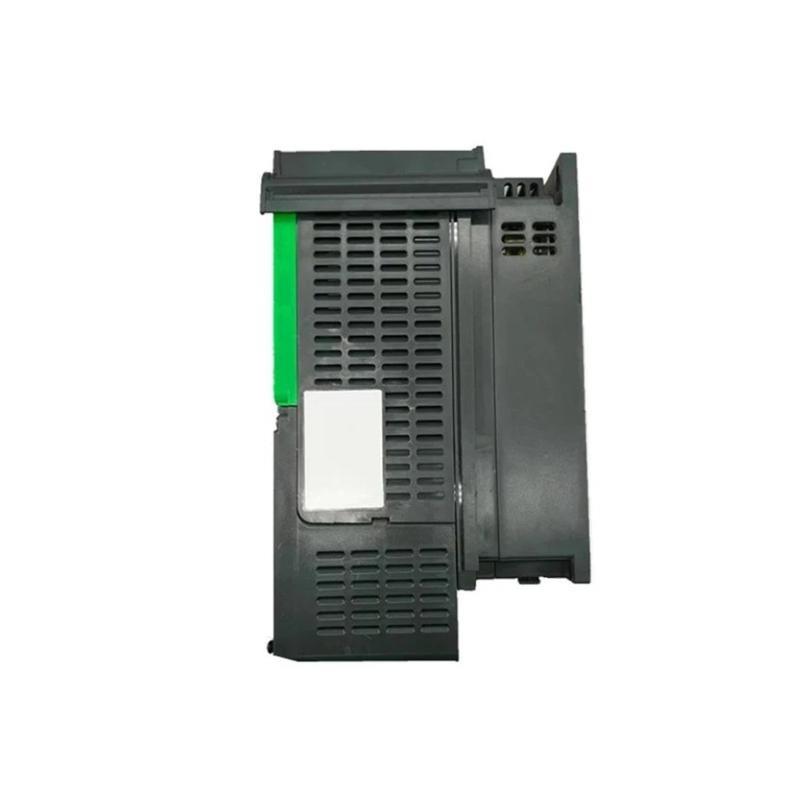

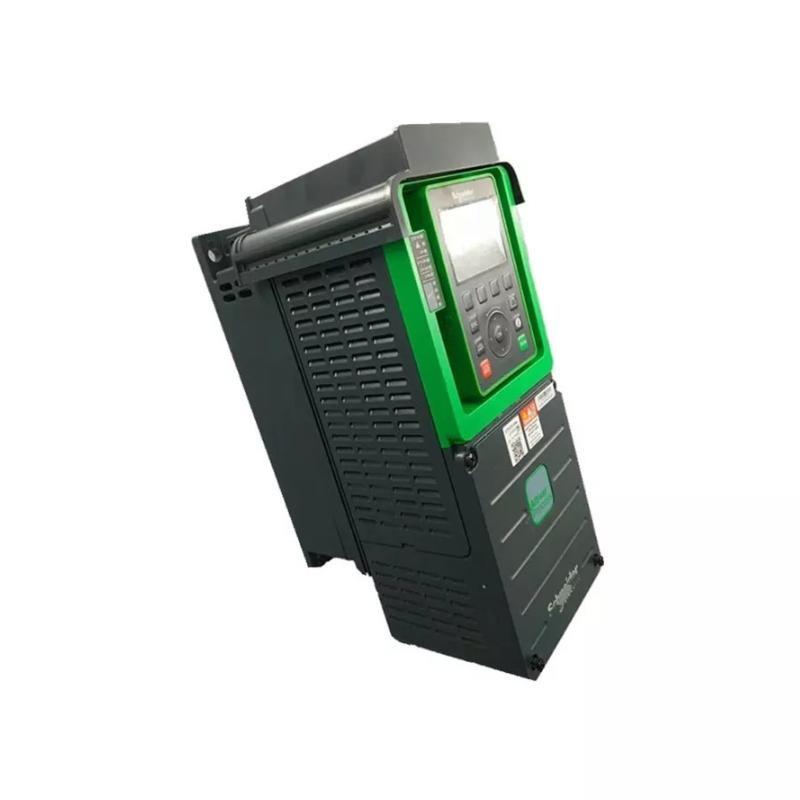

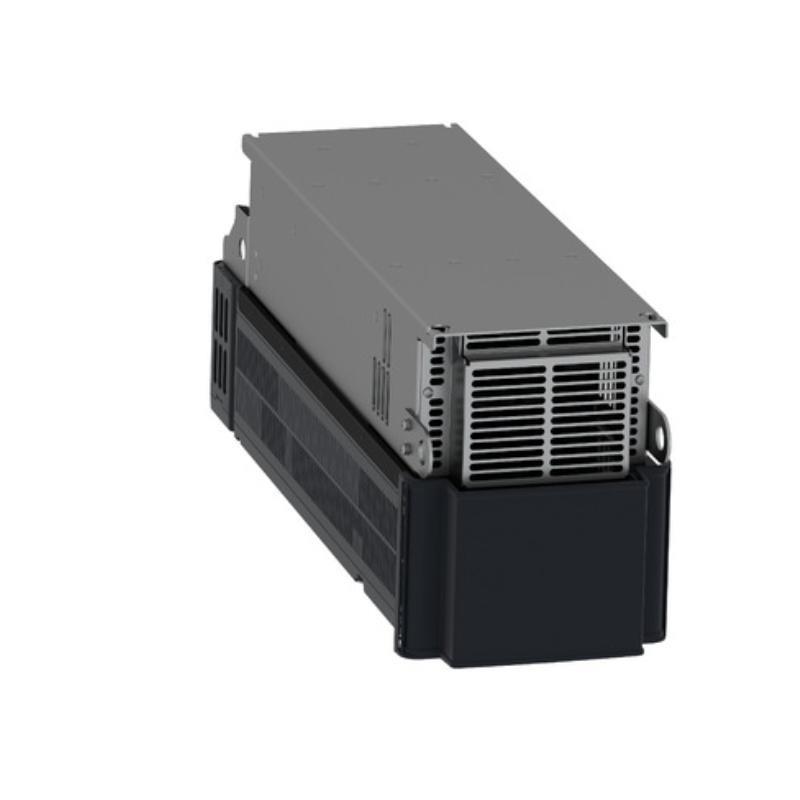

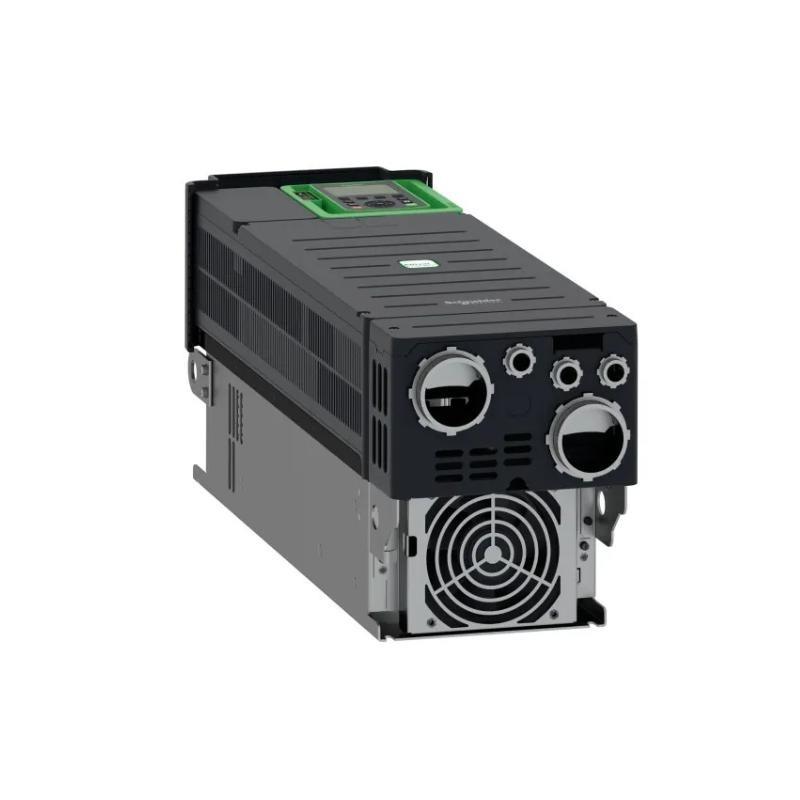

Schneider ATV630D30N4 Variable Speed Drive Introduction
The Schneider ATV630D30N4 is a robust and energy-efficient variable speed drive designed for controlling three-phase asynchronous and synchronous motors. It is ideal for industrial and commercial applications, delivering high performance, reliability, and easy integration into automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATV630D30N4 |
| Power Supply | 380…480 V, 50/60 Hz |
| Motor Power Range | 30 kW (40 HP) |
| Output Frequency | 0.1…500 Hz |
| Control Method | Vector control / V/F control |
| Communication Ports | Modbus, Ethernet (optional) |
| Protection Level | IP21 / UL Type 1 |
| Operating Temperature | -15°C to +50°C |
| Dimensions (W x H x D) | 226 x 673 x 271 mm |
| Weight | 28 kg |
Applications
-
HVAC systems (fans, pumps, compressors)
-
Water and wastewater treatment plants
-
Material handling systems
-
Food and beverage processing lines
-
General-purpose industrial automation
Advantages
-
High energy efficiency with advanced motor control
-
Built-in EMC filters and safety features
-
Flexible communication options for seamless integration
-
Intuitive HMI for easy configuration and monitoring
-
Robust design suitable for harsh environments
FAQ
Q1: What is the rated motor power supported?
A1: The ATV630D30N4 supports motors up to 30 kW (40 HP).
Q2: Can this drive operate in high humidity environments?
A2: Yes, it is designed with conformal coating and protection up to IP21, suitable for most indoor industrial environments.
Q3: Does it support synchronous motors?
A3: Yes, it can control both asynchronous and synchronous motors.
Q4: What is the maximum output frequency?
A4: The maximum output frequency is 500 Hz.
Q5: Is there a built-in EMC filter?
A5: Yes, it comes with integrated EMC filters to reduce harmonics.
Q6: Can it be connected to a building management system?
A6: Yes, via Modbus or optional Ethernet modules.
Q7: What kind of motor control methods are available?
A7: It supports both vector control and V/F control.
Q8: What is the cooling method of the drive?
A8: Forced air cooling with internal fans.
Q9: Can the drive be mounted in a vertical position?
A9: Yes, vertical mounting is recommended for proper ventilation.
Q10: Is it compliant with international standards?
A10: Yes, it complies with IEC, UL, and CE standards.
Recommended Related or Similar Models
| Model | Power Rating | Dimensions (mm) | Weight |
|---|---|---|---|
| ATV630D37N4 | 37 kW | 226 x 673 x 271 | 30 kg |
| ATV630D45N4 | 45 kW | 275 x 775 x 310 | 38 kg |
| ATV630D55N4 | 55 kW | 275 x 775 x 310 | 40 kg |
| ATV630D75N4 | 75 kW | 315 x 955 x 350 | 58 kg |
| ATV630D90N4 | 90 kW | 315 x 955 x 350 | 60 kg |
| ATV630D110N4 | 110 kW | 375 x 1165 x 435 | 85 kg |
Popular Schneider Models
| Model | Product Type | Dimensions (mm) | Weight |
|---|---|---|---|
| ATV930D22N4 | Variable Speed Drive | 226 x 673 x 271 | 26 kg |
| ATV320U15N4B | Compact Variable Drive | 142 x 184 x 153 | 5 kg |
| ATV12H075M2 | Small Variable Drive | 72 x 143 x 128 | 1.5 kg |
| ATV212HU22N4 | HVAC Variable Drive | 130 x 260 x 200 | 7 kg |
| ATV71HU55N4 | High-Performance Drive | 215 x 420 x 215 | 15 kg |
| ATV61HU30N4 | HVAC Variable Drive | 215 x 420 x 215 | 14 kg |
