Product Introduction

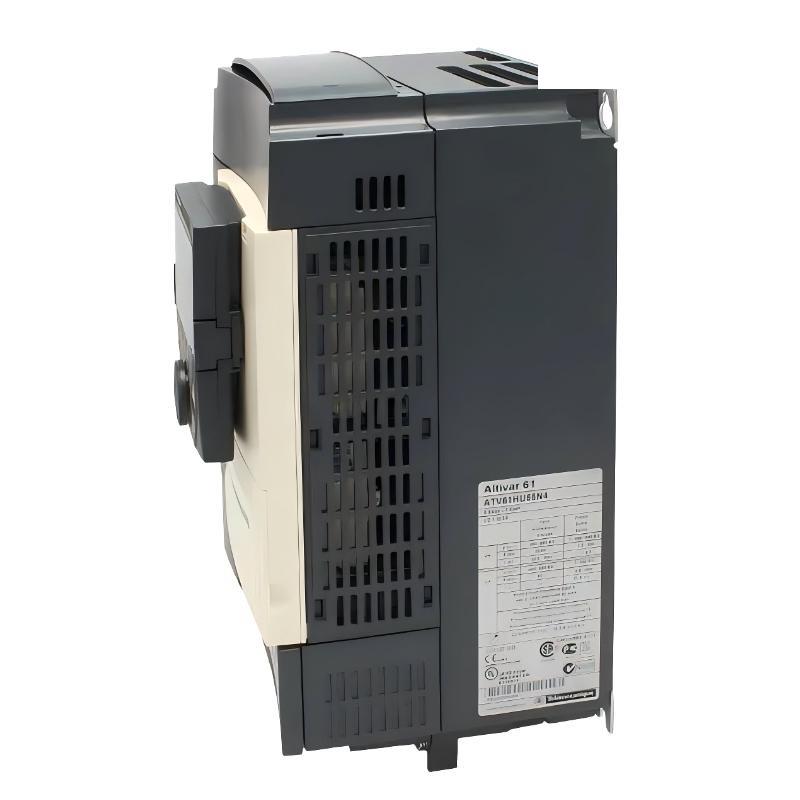

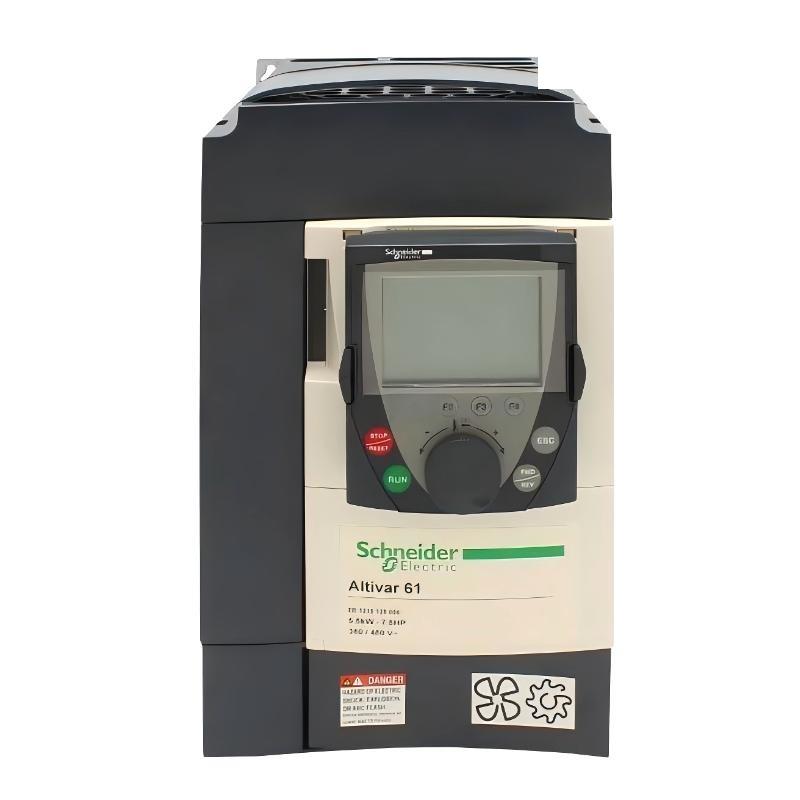

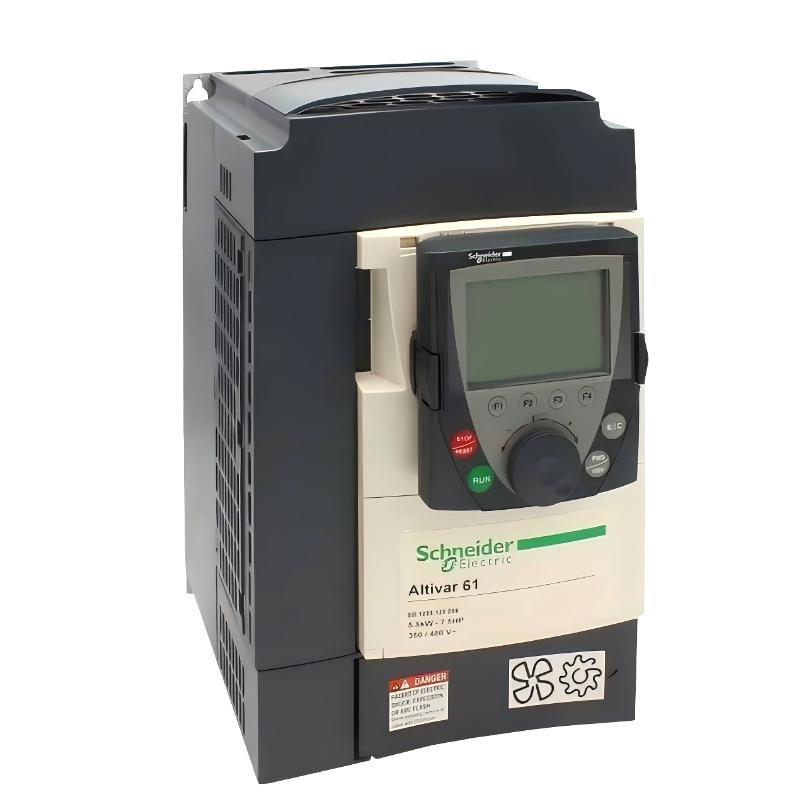

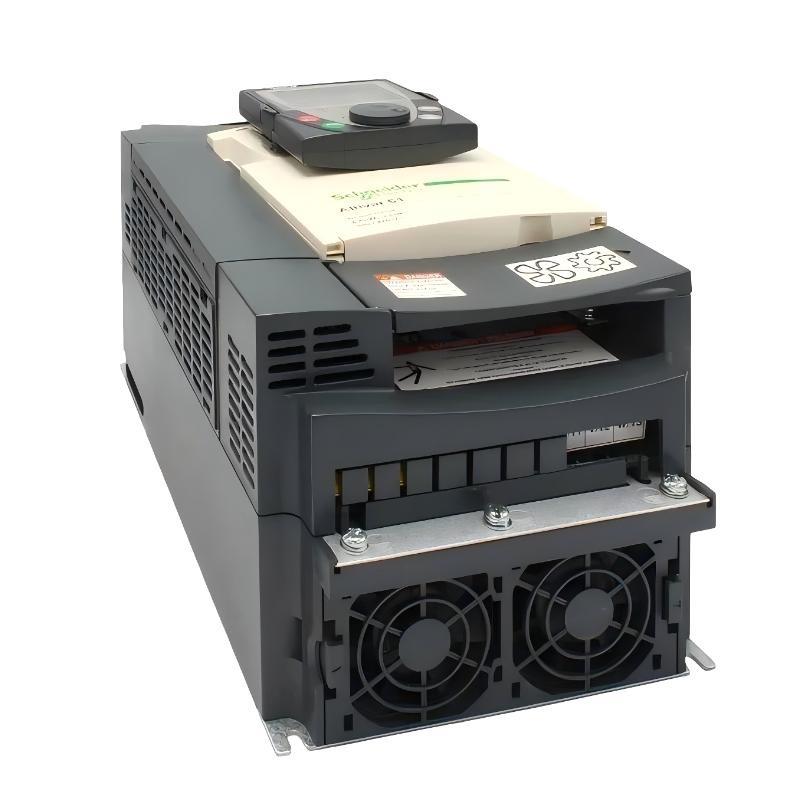

The Schneider Electric ATV61HU55N4 Variable Speed Drive is a higher-power AC drive within the Altivar 61 series, specifically designed for ventilation and pumping applications that demand reliable torque delivery and stable speed regulation. Supporting three-phase motors at 380…480 V, it is well suited for medium-capacity systems where efficiency and operational stability are critical.
This drive integrates advanced motor control functions with a Level 3 EMC filter and an effective heat-sink construction. These features allow continuous-duty operation while reducing electrical interference and maintaining thermal stability under varying load conditions. Smooth motor control helps minimize mechanical stress, contributing to longer equipment service life.
Designed for industrial and infrastructure environments, the unit is commonly used in HVAC systems, water handling installations, and process industries where consistent flow and pressure control are essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | Altivar 61 |
| Component Type | Variable Speed Drive |
| Product Application | Ventilation and pumping equipment |
| Component Name | ATV61 |
| Motor Power (kW) | 5.5 kW, 3-phase at 380…480 V |
| Motor Power (hp) | 7.5 hp, 3-phase at 380…480 V |
| Supply Voltage | 380…480 V (−15% / +10%) |
| Supply Phases | 3 phases |
| Line Current (480 V) | 17 A |
| Line Current (380 V) | 20.3 A |
| EMC Filter | Level 3 EMC filter |
| Construction Variant | With heat sink |
| Apparent Power | 13.4 kVA at 380 V, 3-phase |
| Maximum Presumed Line Isc | 22 kA, 3-phase |
| Maximum Transient Current | 17.1 A for 60 s |
| Nominal Switching Frequency | 12 kHz |
| Dimensions | 295 × 175 × 187 mm |
| Weight | 5.5 kg |
Applications
• Ventilation Systems
Controls fan speed accurately to maintain airflow, pressure balance, and energy efficiency.
• Pumping Systems
Optimizes pump performance by adjusting speed to match process demand.
• HVAC Installations
Used in heating, ventilation, and air-conditioning systems for stable and efficient motor control.
• Water and Wastewater Facilities
Supports reliable pump operation in treatment and distribution processes.
• Industrial Process Equipment
Applied where consistent motor speed is required to stabilize production processes.
• Infrastructure Projects
Commonly used in commercial buildings, utilities, and industrial plants.
Advantages
• Higher Power Capability
Supports 5.5 kW (7.5 hp) motors for medium-capacity pumping and ventilation tasks.
• Energy Optimization
Variable speed operation reduces energy consumption compared to fixed-speed systems.
• Integrated EMC Filtering
Level 3 EMC filter minimizes electromagnetic interference and simplifies compliance.
• Smooth and Quiet Operation
High switching frequency improves motor smoothness and reduces audible noise.
• Thermal Reliability
Heat-sink design ensures stable operation during continuous-duty cycles.
• Industrial-Grade Durability
Engineered for long-term use in demanding industrial environments.
