Product Introduction

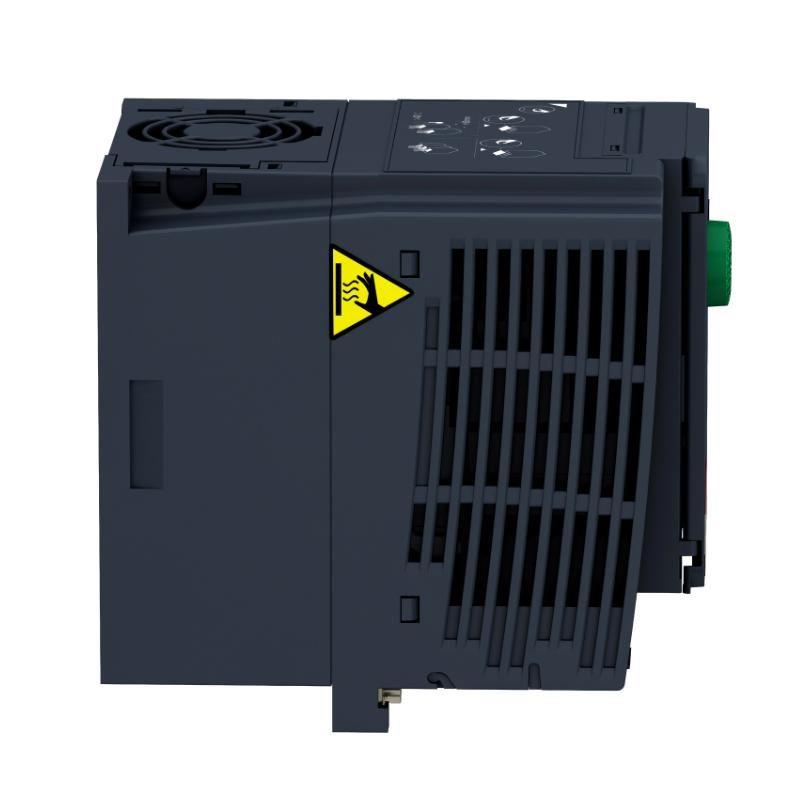

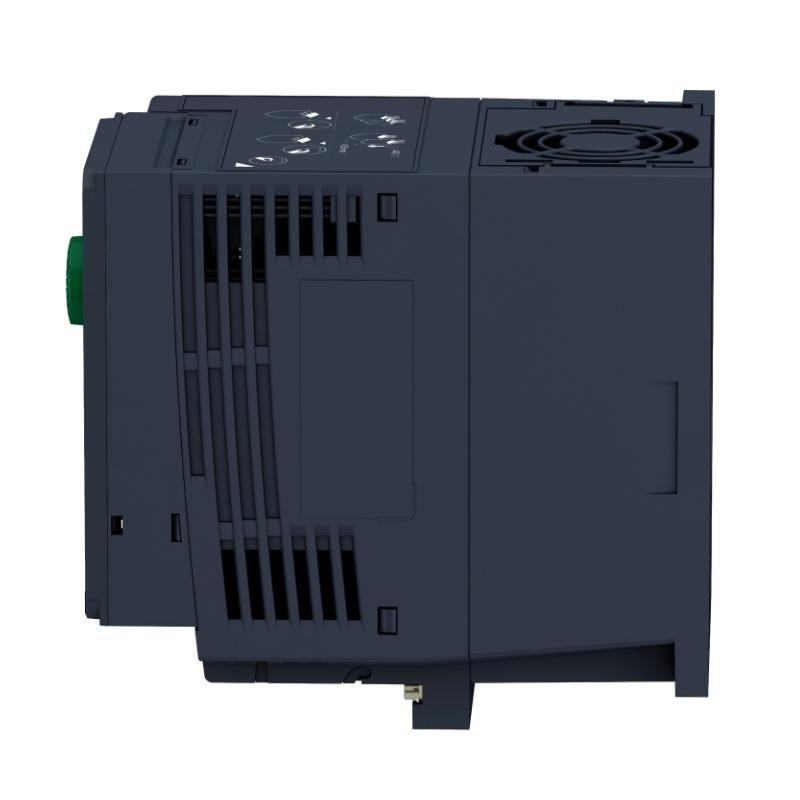

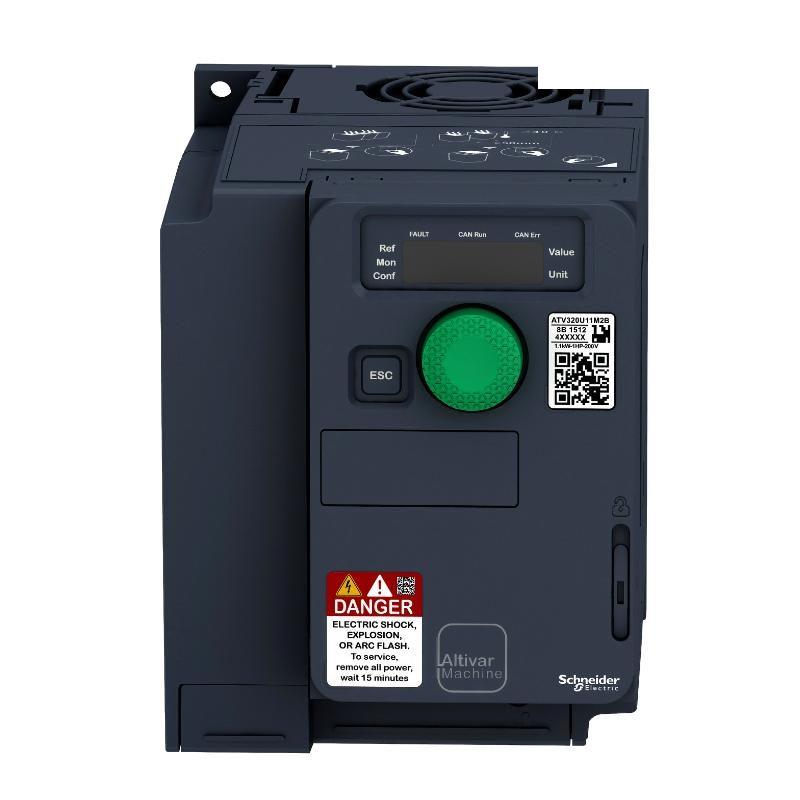

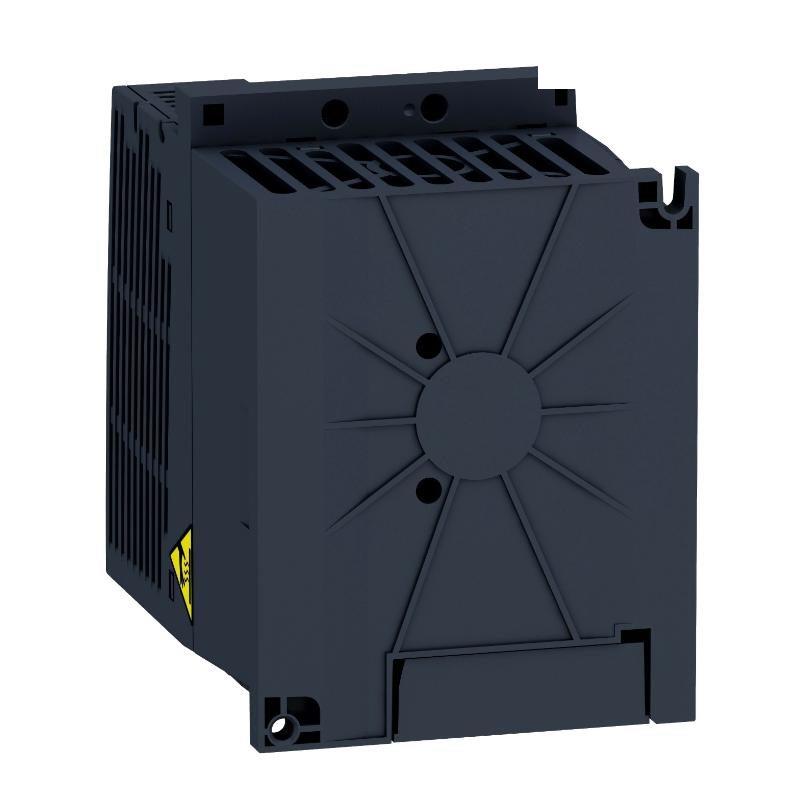

The Schneider ATV320U11M2C Variable Speed Drive is part of the Altivar Machine ATV320 series, designed for precise and efficient control of three-phase synchronous and asynchronous motors in compact OEM machinery. It delivers stable motor speed and torque regulation, improving process stability while reducing mechanical stress on equipment.
This model supports motor power up to 1.1 kW (1.5 hp) and operates on a 200V–240V AC three-phase supply. Its compact design allows vertical stacking inside machine frames, making it suitable for space-constrained machine layouts.
Built for industrial environments, the ATV320U11M2C uses coated printed circuit boards compliant with IEC 60721-3-3 class 3C3. This improves resistance to dust, humidity, and corrosive conditions, and supports operation up to 60°C without additional cooling in many applications.
It features sensorless flux vector control for precise low-speed performance, extended frequency operation for high-speed motors, and energy-saving functions for open-loop synchronous motors. It also includes five integrated safety functions configurable via SoMove software.
Product Specifications
| Parameter | Description |
|---|---|
| Model | Schneider ATV320U11M2C |
| Product Type | Variable Speed Drive |
| Series | Altivar Machine ATV320 |
| Motor Type | Three-phase synchronous / asynchronous motor |
| Rated Power | 1.1 kW / 1.5 hp |
| Rated Voltage | 200–240 V AC |
| Control Method | Sensorless flux vector control |
| Frequency Range | Extended frequency operation |
| Safety Functions | 5 integrated safety functions |
| Configuration Tool | SoMove software |
| Energy Saving Mode | Open-loop synchronous motor optimization |
| Parallel Motor Operation | Supported (application dependent) |
| PCB Protection Class | IEC 60721-3-3 Class 3C3 coated boards |
| Protection Rating | IP20 |
| Standards | IEC/EN 61800-5-1, IEC/EN 61800-3 |
| Certifications | CE, UL, CSA, NOM, EAC, RCM |
| Dimensions | 158 × 105 × 142 mm |
| Weight | 1.6 kg |
Applications
• Packaging Machines – Stable and precise speed control for sealing, labeling, and filling systems
• Conveyor Systems – Smooth material transport in automated production lines
• Textile Machinery – Controlled operation for spinning, weaving, and fabric processing equipment
• Material Handling Systems – Supports lifting, transport, and automated logistics operations
• Small Pumps and Fans – Improves efficiency and operational stability in HVAC systems
• OEM Machine Design – Ideal for compact industrial machines requiring integrated motor control
• Mechanical Actuators – Enables accurate motion control in automated systems
• Food Processing Equipment – Supports stable and hygienic production processes
• Light Industrial Automation – Suitable for general-purpose machine control applications
• General Manufacturing Systems – Used across a wide range of compact automation equipment
Advantages
• Compact OEM Design – Allows vertical stacking and space-saving installation in control cabinets
• High Low-Speed Torque Stability – Maintains smooth and stable motor operation under varying load conditions
• Sensorless Vector Control – Provides precise motor control without encoder feedback
• Improved Environmental Resistance – Coated PCB technology enhances durability in harsh environments
• Energy Efficiency Optimization – Reduces power consumption under partial load conditions
• Flexible Motor Compatibility – Supports both synchronous and asynchronous motors
• Integrated Safety Functions – Helps meet machine safety compliance requirements
• Simple Commissioning with SoMove – Reduces setup time and configuration complexity
• High Ambient Temperature Operation – Supports operation up to 60°C in suitable conditions
• Wide Industrial Application Range – Suitable for multiple OEM and automation industries
