Product Introduction

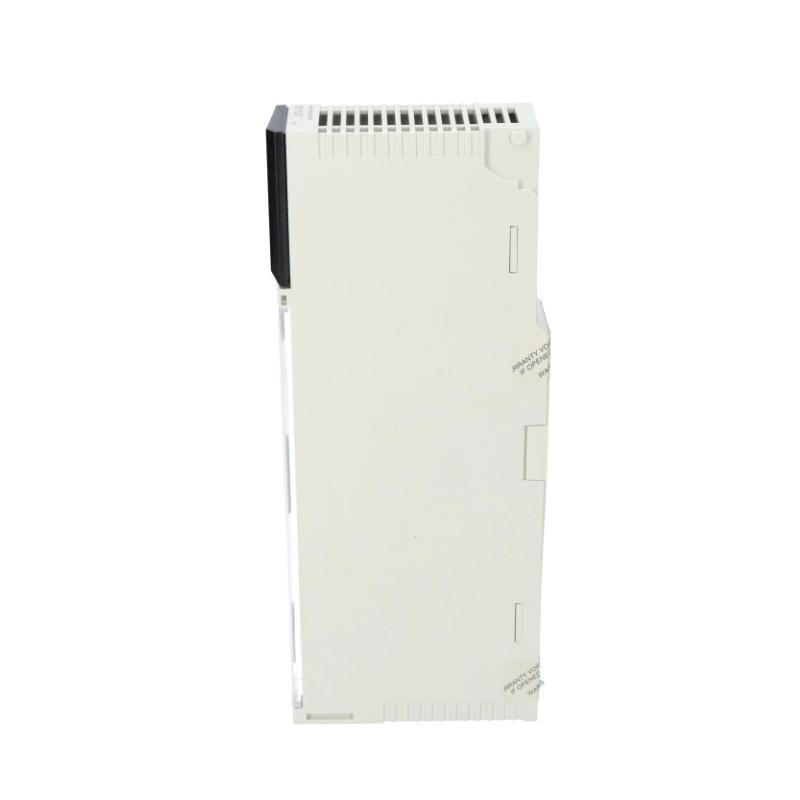

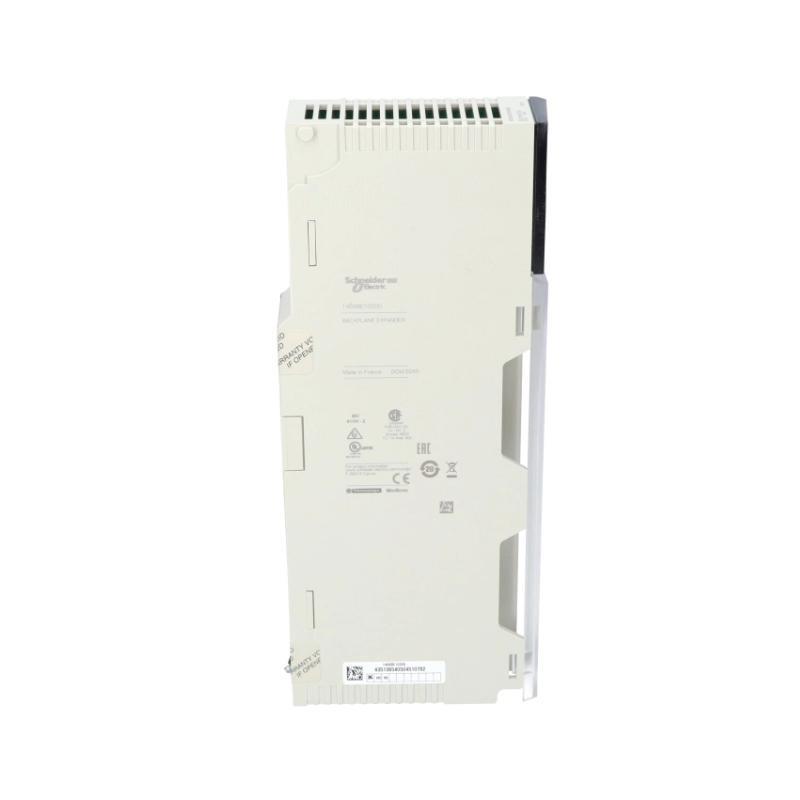

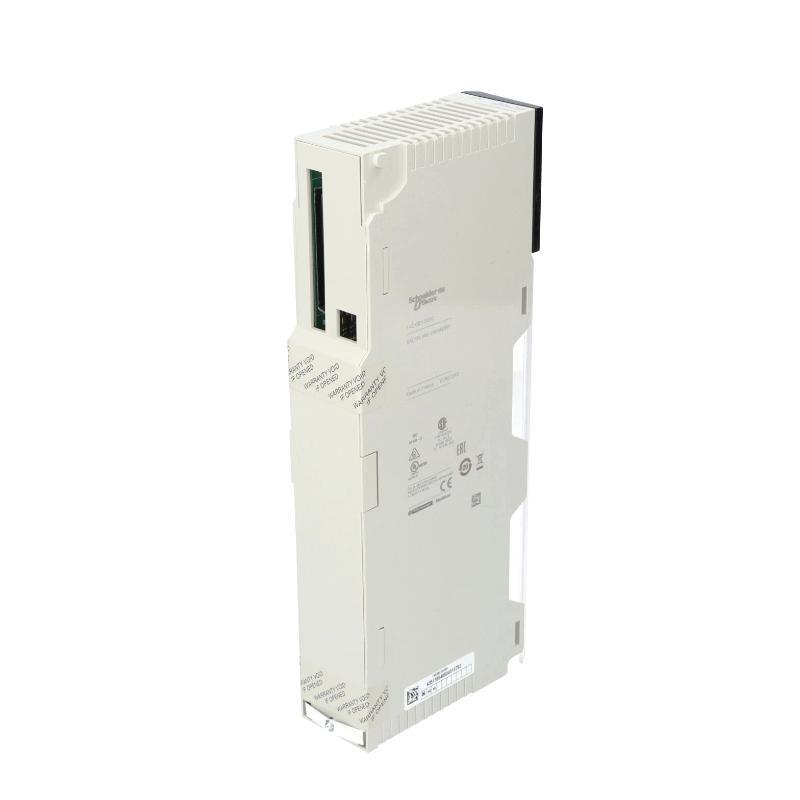

The Schneider 140XSM40020 A is a precision testing and simulation module designed for use in Modicon PLC systems and related automation networks. This simulator provides a reliable way to generate analog signals for testing, calibration, and troubleshooting of analog input modules, controllers, and instrumentation. With accurate signal generation and flexible configuration, the 140XSM40020 allows engineers and technicians to verify system performance under controlled conditions without requiring physical sensors or process connections. This module is essential for ensuring accurate measurement, control, and safe operation in complex automation environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Analog Simulator Module |
| Model Number | 140XSM40020 |
| Output Signals | Configurable analog signals: 0–10 V, 0–20 mA, 4–20 mA |
| Output Resolution | 12-bit |
| Accuracy | ±0.2% of full scale |
| Channel Count | Single or dual channel configuration |
| Output Load | 500 Ω maximum for voltage output, 600 Ω minimum for current output |
| Update Rate | 10 ms typical |
| Input Simulation Modes | Ramp, step, square wave, and custom programmable waveforms |
| Power Supply | 24 V DC from system or dedicated power module |
| Power Consumption | Approx. 3 W |
| Status Indicators | LED indicators for output status and fault conditions |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.5 kg |
| Mounting | Standard Modicon rack or panel mounting |
| Certifications | CE, UL, CSA, RoHS compliant |
Applications
The 140XSM40020 Analog Simulator is used extensively in industrial automation and laboratory environments:
-
PLC and I/O Module Testing: Simulates analog signals to verify functionality and calibration of PLC input modules.
-
Process Control System Validation: Allows testing of control loops and tuning of PID controllers without physical process connections.
-
Training and Education: Provides a safe and repeatable way to teach analog signal interpretation and control system troubleshooting.
-
Laboratory and R&D: Facilitates research and development by generating precise analog waveforms for testing and evaluation.
-
Maintenance and Diagnostics: Helps technicians identify system errors or sensor faults by simulating expected analog conditions.
Advantages
-
Accurate Analog Simulation: High-precision output ensures reliable testing and calibration.
-
Flexible Signal Types: Supports voltage and current outputs, as well as configurable waveforms including step, ramp, and square.
-
User-Friendly Operation: Easy configuration via software or front-panel interface.
-
LED Status Indicators: Clear visual feedback for output status and fault detection.
-
Compact Modular Design: Fits standard Modicon racks for integration with existing systems.
-
Industrial-Grade Reliability: Designed to operate in demanding environments with consistent performance.
-
Supports System Validation: Enables thorough testing of PLC systems without the need for physical sensors.
FAQ
-
What types of output signals does the 140XSM40020 support?
The module can generate voltage signals (0–10 V) and current signals (0–20 mA or 4–20 mA), making it suitable for a wide range of analog input testing. -
What is the resolution and accuracy of the simulated outputs?
The simulator provides 12-bit resolution with an accuracy of ±0.2% of full scale for precise signal generation. -
Can the module simulate multiple channels simultaneously?
Yes, it supports single or dual channel operation, depending on system configuration. -
Which waveforms can the module generate for testing purposes?
The 140XSM40020 can generate ramp, step, square, and custom programmable waveforms to simulate real process conditions. -
What is the maximum load allowed for current and voltage outputs?
For voltage output, the maximum load is 500 Ω, and for current output, the minimum load is 600 Ω to maintain accurate signal levels. -
How fast does the simulator update output signals?
The typical update rate is 10 ms, allowing real-time testing and dynamic signal simulation. -
Can the simulator be integrated into existing Modicon PLC racks?
Yes, it is designed for standard Modicon rack or panel mounting, making integration straightforward. -
Does the module provide status feedback for outputs?
Yes, LED indicators show output activity and highlight any fault conditions for easier troubleshooting. -
What power supply is required for the simulator?
The module can operate on 24 V DC from the system or a dedicated power supply, providing flexibility in installation. -
Is this module suitable for laboratory and R&D testing?
Absolutely, it is ideal for R&D, process validation, and education where precise and repeatable analog signal generation is required.
Related Models (Same Series/Family)
| Model Number | Description | Key Feature |
|---|---|---|
| 140XSM40010 | Analog Simulator | Single-channel voltage and current output |
| 140XSM40030 | High-Precision Analog Simulator | Enhanced resolution and waveform flexibility |
| 140XSM40040 | Multi-Channel Analog Simulator | Supports 4 channels for simultaneous testing |
| 140XSM40050 | Advanced Analog Simulation Module | Custom waveform programming |
| 140XSM40060 | Compact Analog Simulator | Small form factor for panel mounting |
| 140XSM40070 | Industrial Analog Simulator | Rugged design for harsh environments |
