Product Introduction

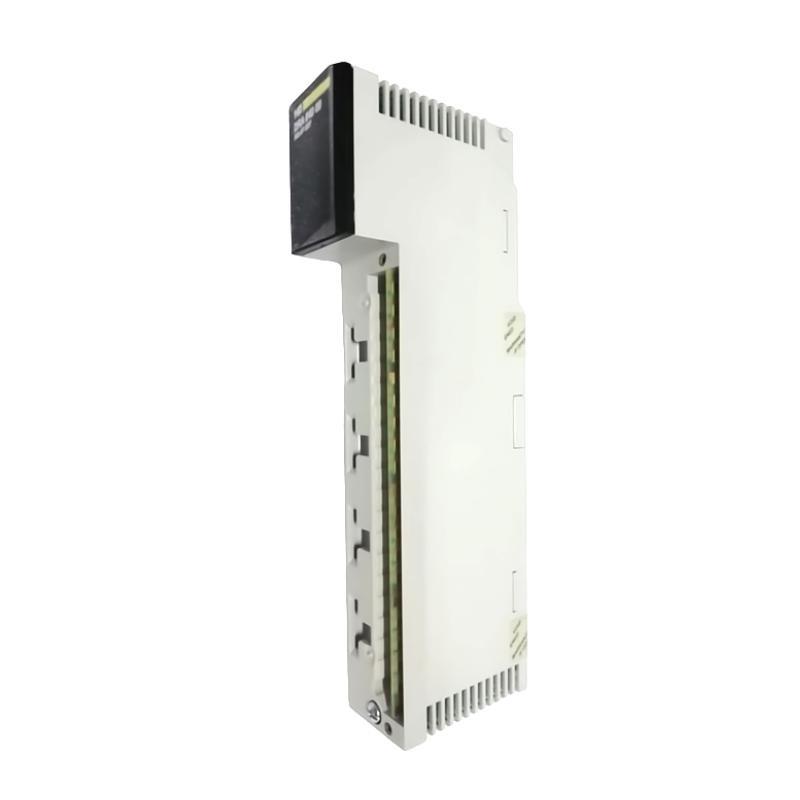

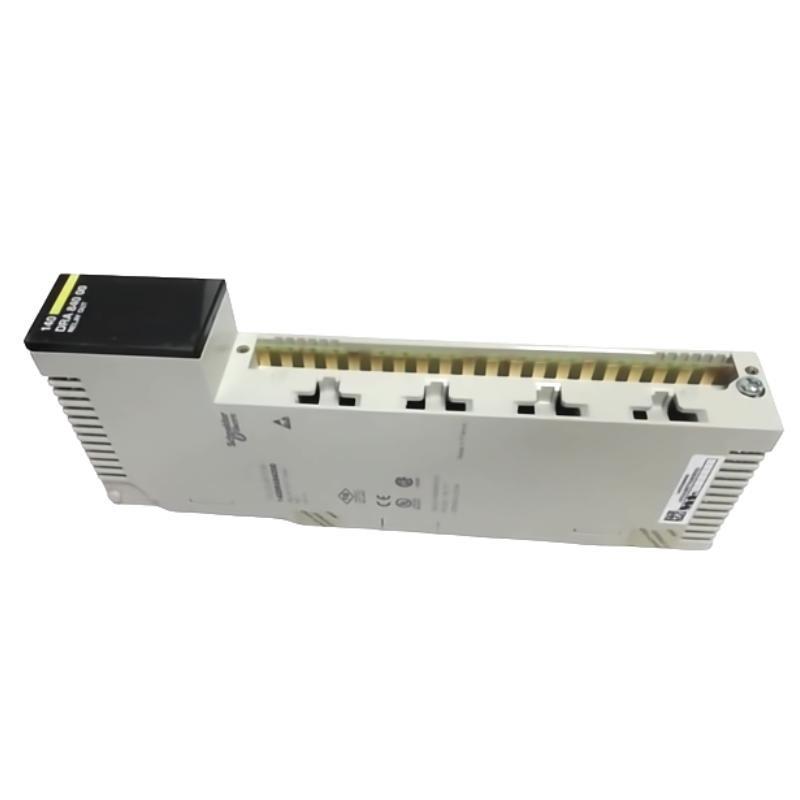

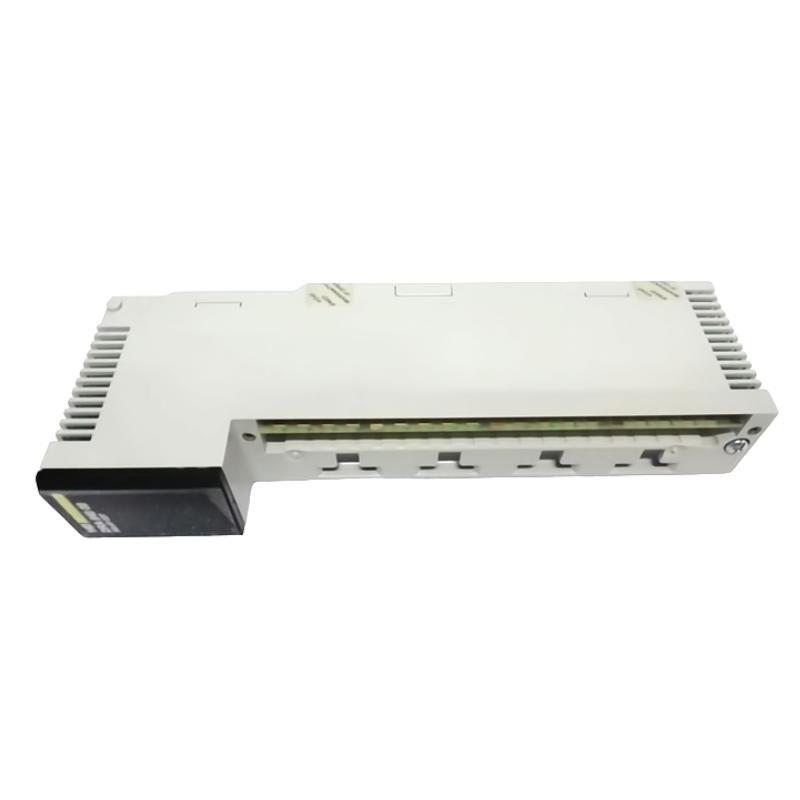

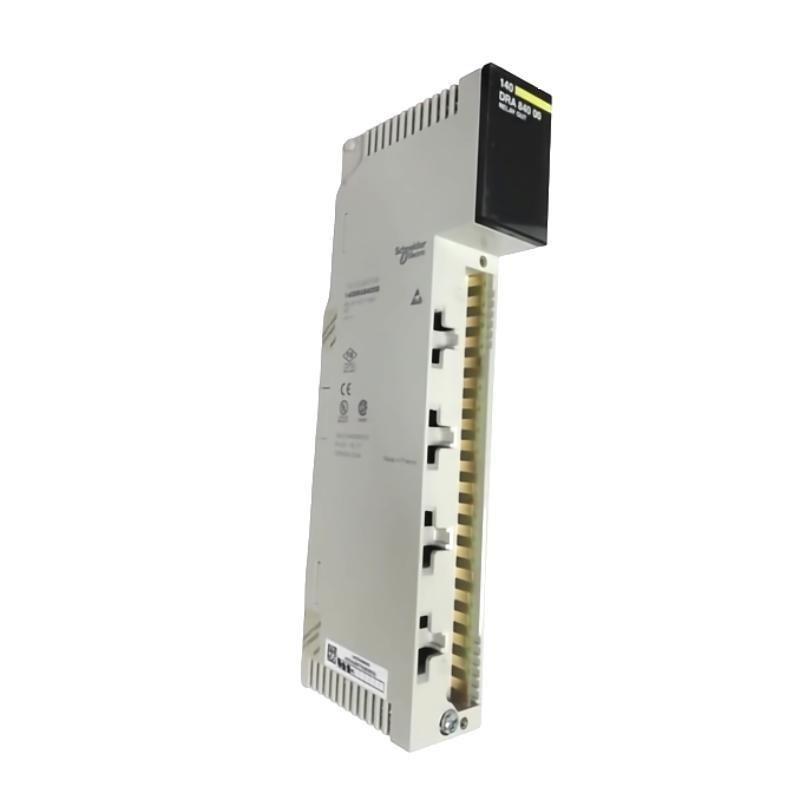

The Schneider 140EDK77100 is a high-performance programmable module designed for use in Modicon Quantum automation platforms. This module acts as a programming interface kit and is primarily used to support application development, configuration, and diagnostics in industrial environments. With robust build quality and compatibility with Quantum PLC racks, it provides a reliable communication pathway between engineering software and the automation hardware. The 140EDK77100 is well-suited for use in complex automation networks where stable performance, seamless integration, and ease of programming are crucial.
Built by Schneider Electric, a leader in industrial automation and energy management, this module reflects high standards of quality, long-term durability, and compliance with global industrial standards.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Schneider Electric 140EDK77100 |
| Product Type | Programmable Module |
| Series | Modicon Quantum |
| Function | Programming interface kit |
| Mounting Type | Rack-mounted (Quantum Rack) |
| Communication Interface | RS-232/RS-485 (via programming port) |
| Programming Support | Unity Pro / EcoStruxure Control Expert |
| LED Indicators | Status and communication indication |
| Power Supply | Supplied via backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Compliance | CE, UL, CSA, ATEX, RoHS |
| Dimensions (W×H×D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
Applications
The 140EDK77100 module is widely used across various industries that rely on automation systems, including:
-
Manufacturing Plants – For real-time machine programming and control.
-
Oil & Gas Facilities – Ensuring secure communication for hazardous zone controllers.
-
Power Generation Units – Programming and diagnostics of control systems.
-
Water Treatment Plants – Custom logic control and data acquisition.
-
Food & Beverage Processing – For adaptive process control and integration with SCADA.
-
Pharmaceutical Industries – Where GMP-compliant programmable logic is essential.
Its flexibility and compatibility with the Modicon Quantum system make it ideal for medium to large-scale automation infrastructures.
Product Advantages
-
Seamless Integration: Fully compatible with Schneider’s Modicon Quantum series and Unity Pro software.
-
Rugged Design: Engineered to withstand harsh industrial environments.
-
User-Friendly: Easy to install and configure with standard programming tools.
-
Efficient Troubleshooting: Built-in diagnostic LEDs provide quick operational feedback.
-
Reliable Communication: Stable interface with minimal latency for real-time operations.
-
Long Lifecycle: Designed for long-term use in mission-critical control systems.
-
Global Certifications: Certified to international industrial and safety standards.
Frequently Asked Questions (FAQ)
-
What is the main purpose of the Schneider 140EDK77100?
It serves as a programming interface module for the Modicon Quantum automation system, enabling configuration and diagnostics. -
Can I use Unity Pro software with the 140EDK77100 module?
Yes, the module is fully compatible with Unity Pro (now EcoStruxure Control Expert). -
What type of connection does it provide?
It supports RS-232/RS-485 serial communication via a standard programming port. -
Is it hot-swappable?
No, the module should be inserted or removed only when the rack is powered down. -
Can this module be used for remote configuration?
It can be used for local configuration via a connected engineering workstation; for remote, additional networking equipment is required. -
What is the operating temperature range for this module?
It operates effectively between 0°C and 60°C. -
How is the module powered?
It is powered directly via the Quantum rack backplane. -
Is the module firmware upgradable?
No, the 140EDK77100 itself does not support firmware upgrades. It functions as a hardware interface. -
Which environments require the use of this module?
It’s suitable for development environments, diagnostics labs, and commissioning tasks in industrial automation. -
What certifications does it meet?
CE, UL, CSA, RoHS, and ATEX for safe industrial usage.
Related Models (Same Series or Interface Compatible)
| Model Number | Description | Communication | Weight | Dimensions (mm) |
|---|---|---|---|---|
| 140CPU65160 | Quantum CPU with Ethernet & Modbus | Ethernet/RS-485 | 1.0 kg | 66 × 261 × 142 |
| 140CPU67260 | High-end Quantum CPU, Unity Pro compatible | Ethernet | 1.3 kg | 66 × 261 × 142 |
| 140NOC77100 | Quantum Ethernet Communication Module | Dual Ethernet | 0.9 kg | 66 × 261 × 142 |
| 140NOE77101 | Ethernet TCP/IP communication module | Ethernet TCP/IP | 0.85 kg | 66 × 261 × 142 |
| 140DDO36400 | 64-point discrete output module | – | 0.6 kg | 40 × 100 × 200 |
| 140DIO85300 | 32-point discrete input/output module | – | 0.6 kg | 40 × 100 × 200 |
Popular Models from Schneider Electric
| Model Number | Product Description | Application | Weight | Dimensions (mm) |
|---|---|---|---|---|
| BMXP342020 | M340 Processor, 2MB | Mid-range automation controller | 0.6 kg | 60 × 140 × 100 |
| TM241CE40T | Modicon M241 logic controller, Ethernet enabled | Compact automation systems | 0.7 kg | 90 × 130 × 100 |
| TM221C24T | Modicon M221 logic controller, 24 I/O | Small machine control | 0.45 kg | 80 × 130 × 100 |
| BMXCPS3500 | Power Supply module for M340 | PLC Power management | 0.5 kg | 40 × 140 × 100 |
| TSXDEY64D2K | Digital Input Module, 64-pt | Large I/O systems | 0.6 kg | 60 × 120 × 130 |
| BMEP582040 | Modicon M580 PAC Processor | High-end automation control | 0.9 kg | 100 × 160 × 120 |
