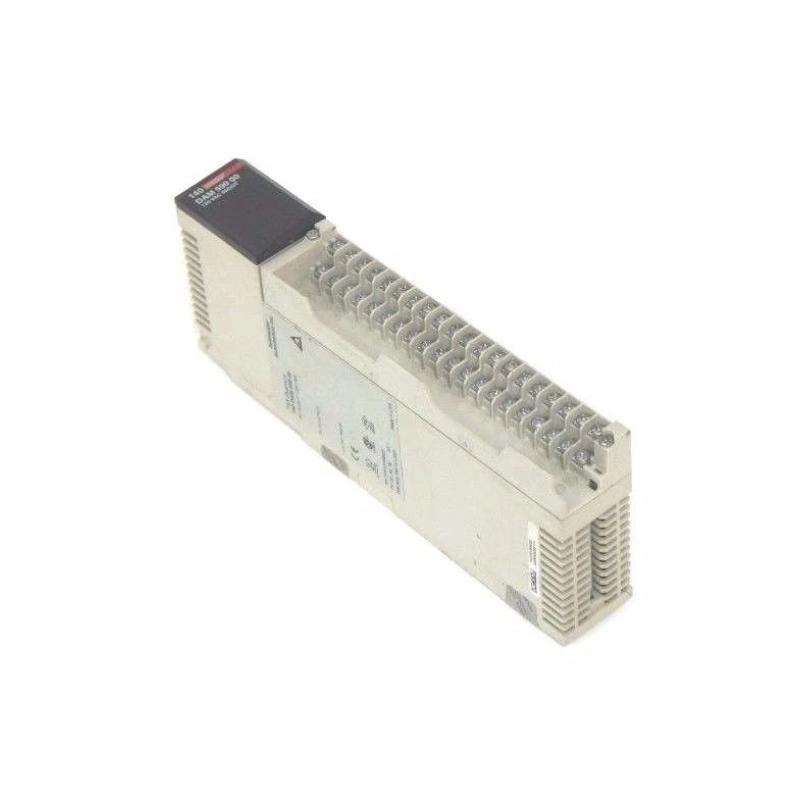

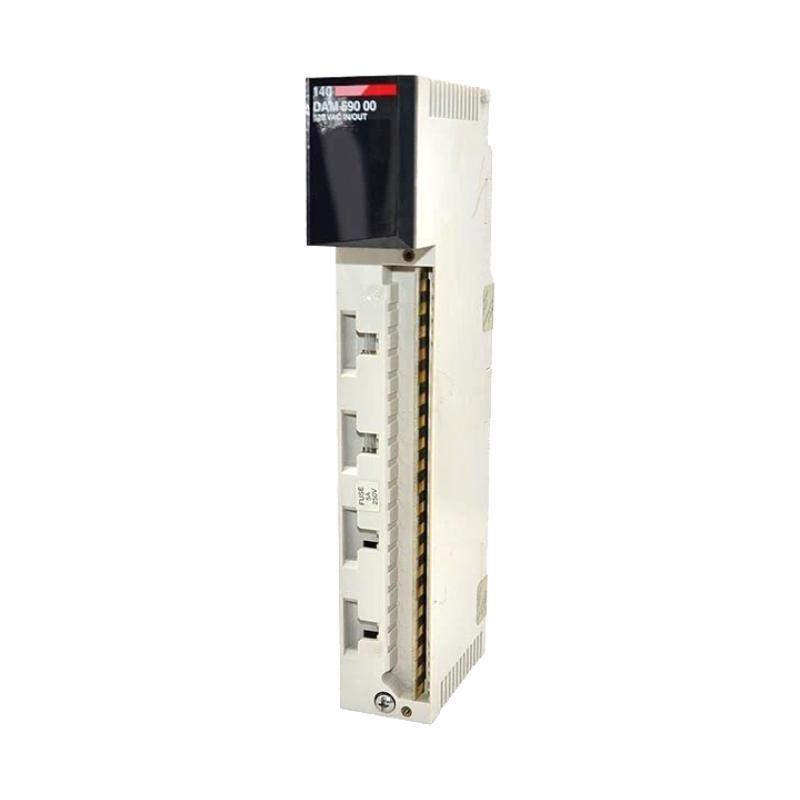

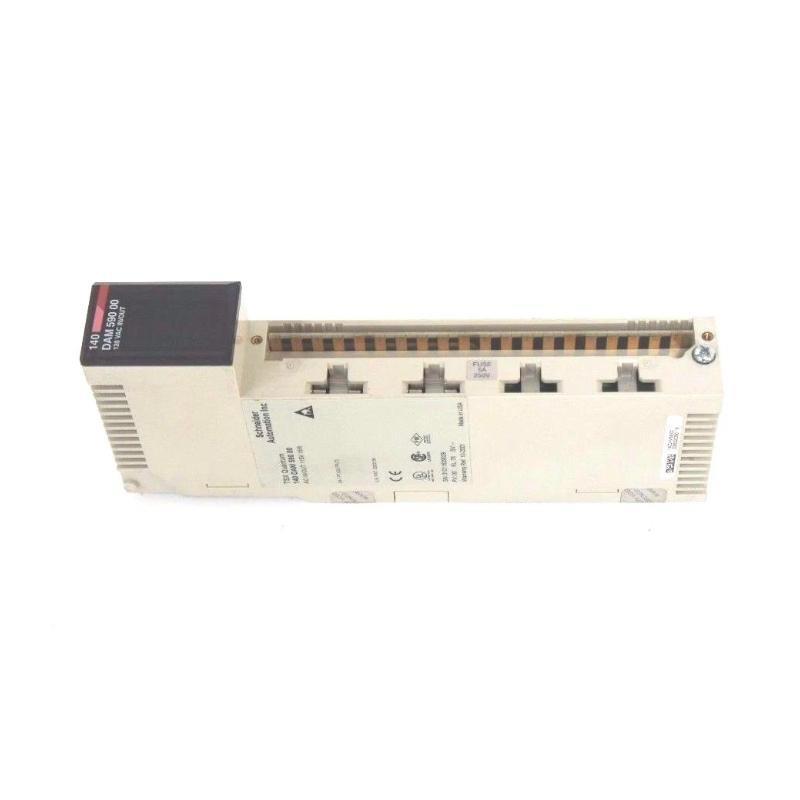

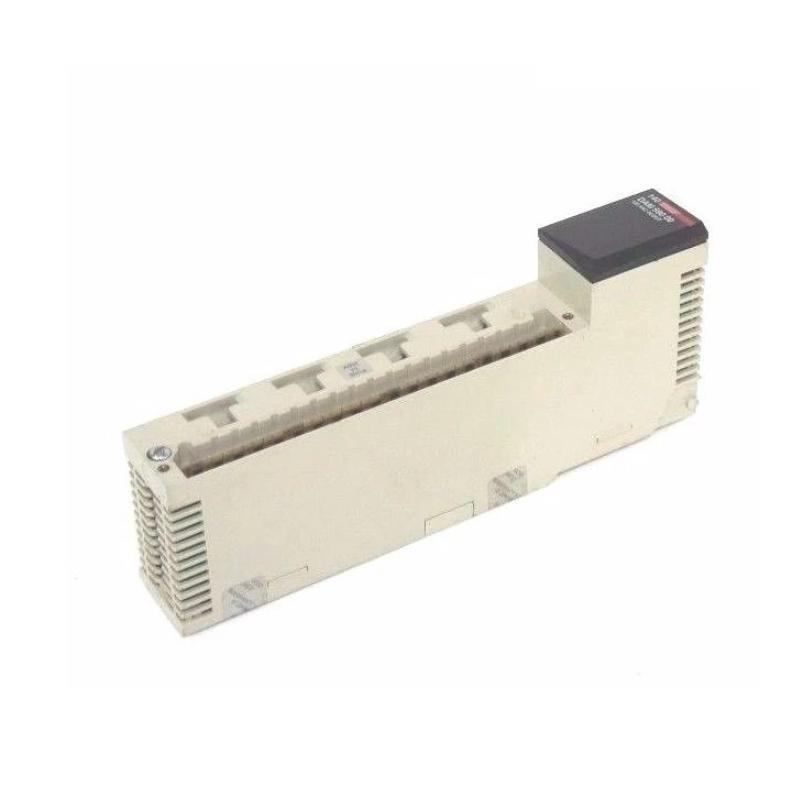

Schneider 140DAM59000C Discrete I/O Module Overview
The Schneider 140DAM59000C is a discrete I/O module designed for Modicon Quantum PLC systems. It offers reliable digital input and output operations in industrial automation applications, ensuring stable and accurate signal processing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete I/O Module |
| Input Channels | 32 |
| Output Channels | 32 |
| Input Voltage | 24 VDC |
| Output Voltage | 24 VDC |
| Isolation | Optical isolation |
| Response Time | ≤ 1 ms |
| Dimensions (W×D×H) | 103.9 × 40.3 × 250 mm |
| Weight | 0.45 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
Applications
The 140DAM59000C is widely used in:
-
Factory automation systems
-
Packaging machinery
-
Process control environments
-
Material handling systems
-
Energy management solutions
Advantages
-
High-density I/O in a compact design
-
Fast and reliable signal processing
-
Easy integration with Modicon Quantum PLCs
-
Robust optical isolation for protection
-
Minimal response delay enhances system efficiency
FAQ
Q1: How many channels does the 140DAM59000C provide?
A1: It offers 32 input and 32 output channels.
Q2: What is the input voltage specification?
A2: The module operates at 24 VDC input voltage.
Q3: Can this module be used in harsh environments?
A3: Yes, it is designed to operate between 0°C and 60°C, and can be stored at -40°C to 85°C.
Q4: Is the module hot-swappable?
A4: No, power must be turned off before replacing the module.
Q5: What kind of isolation does it use?
A5: Optical isolation is used to protect the circuits.
Q6: How fast is the response time?
A6: The response time is less than or equal to 1 millisecond.
Q7: Does it support Modicon Quantum PLC systems?
A7: Yes, it is fully compatible with Modicon Quantum platforms.
Q8: Is it suitable for high-vibration areas?
A8: Yes, its robust construction supports use in industrial environments.
Q9: Can it handle mixed signals?
A9: No, it is designed for discrete digital signals only.
Q10: What is its weight?
A10: The module weighs approximately 0.45 kg.
Recommended Related or Same Series Models
| Model | Input Channels | Output Channels | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 140DAO84000 | 16 | 16 | 103.9 × 40.3 × 250 | 0.42 kg |
| 140DAI74000 | 32 | 0 | 103.9 × 40.3 × 250 | 0.40 kg |
| 140DAO84200 | 32 | 0 | 103.9 × 40.3 × 250 | 0.43 kg |
| 140DAO85300 | 0 | 16 | 103.9 × 40.3 × 250 | 0.44 kg |
| 140DAO84100 | 0 | 32 | 103.9 × 40.3 × 250 | 0.46 kg |
| 140DAI74010 | 16 | 16 | 103.9 × 40.3 × 250 | 0.41 kg |
