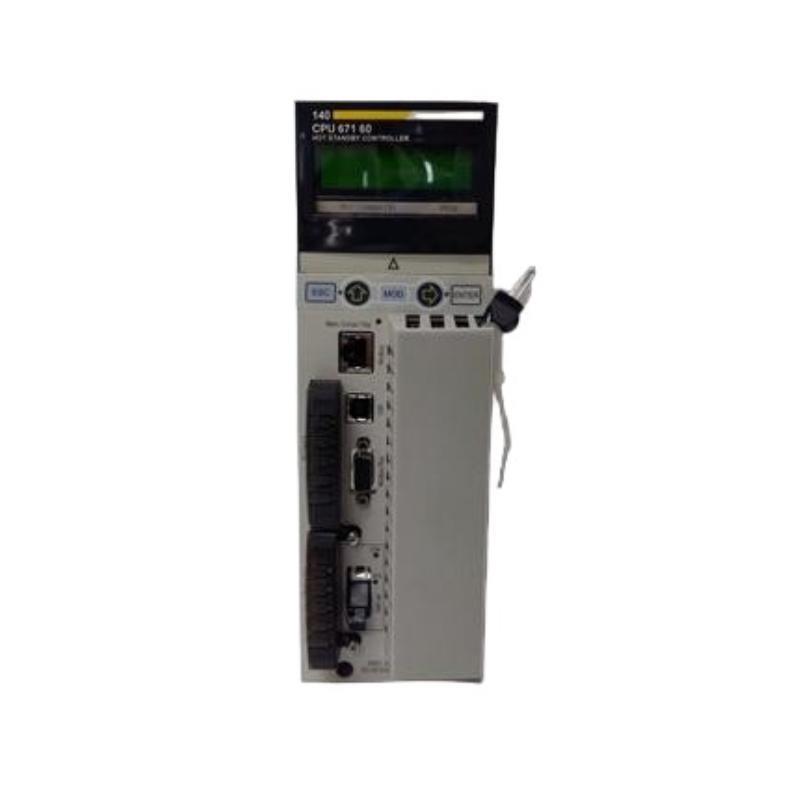

Product Introduction: Schneider 140CPU67160C
The Schneider 140CPU67160C is a high-performance central processing unit (CPU) module designed for the Modicon Quantum series programmable logic controllers (PLCs). Engineered for large-scale and mission-critical automation systems, this module offers advanced computing power, high-speed execution, and a wide range of communication capabilities.
It is ideal for applications requiring fast control loops, extensive I/O management, and robust network integration. With its advanced functionality, the 140CPU67160C supports complex logic, real-time data processing, and deterministic control, making it a core component in modern industrial automation and process control systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 140CPU67160C |
| Product Series | Modicon Quantum |
| Processor Type | 486 DX2, 66 MHz |
| Memory – RAM | 4 MB (Expandable via PCMCIA slot) |
| Memory – Flash | 768 KB |
| Integrated Ports | 1x Modbus, 1x Modbus Plus, 1x Ethernet TCP/IP (via NOE module) |
| Programming Language | Ladder Logic, Structured Text, Function Block |
| Instruction Execution Speed | 0.05 μs per boolean instruction |
| Backplane Current Draw | 1200 mA at 5 V DC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack-mounted (Quantum chassis) |
| Dimensions | 110 x 190 x 325 mm |
| Weight | 1.412kg |
| Certifications | CE, UL, CSA, ATEX, IEC |
| Power Supply Requirements | 5 V DC supplied via Quantum backplane |
Product Advantages
-
High-Speed Processing: The 140CPU67160C executes logic instructions at an impressive speed of 0.05 μs, allowing for high-precision, time-sensitive control in complex systems.
-
Modular Expandability: Supports PCMCIA memory cards and various communication modules, enabling flexible system upgrades without replacing the core CPU.
-
Integrated Communication: Built-in Modbus and Modbus Plus connectivity facilitates seamless integration with SCADA, HMIs, and distributed control components.
-
Proven Reliability: Designed for critical environments such as power plants, chemical industries, and large manufacturing systems, it ensures system stability under extended operation.
-
Compatibility with Legacy and Modern Systems: Backward compatibility with existing Quantum I/O and forward compatibility with Ethernet/IP infrastructure.
-
Extended Environmental Tolerance: Operates reliably in industrial conditions with wide temperature ranges and high humidity.
Product Applications
The Schneider 140CPU67160C is widely used across a variety of industrial sectors:
-
Oil & Gas Facilities: For process automation, pressure control, and safety interlocking.
-
Power Generation Plants: Handles critical systems in DCS and energy distribution.
-
Water and Wastewater Treatment: Manages pump stations, chemical dosing, and SCADA communications.
-
Food & Beverage Production: Facilitates batch processing and packaging automation.
-
Pharmaceutical Manufacturing: Supports GMP-compliant operations with deterministic control.
-
Automotive Assembly Lines: Orchestrates robotics, conveyor systems, and quality checks.
Frequently Asked Questions (FAQ)
Q1: What distinguishes the 140CPU67160C from other Quantum CPUs?
A1: The 140CPU67160C features a powerful 66 MHz processor, fast instruction execution (0.05 µs), and enhanced memory support, making it ideal for large-scale, mission-critical applications.
Q2: Can I use Ethernet communication directly on this CPU?
A2: The CPU does not have native Ethernet; however, it supports Ethernet via an additional NOE module, allowing integration with TCP/IP networks.
Q3: Is this CPU compatible with Unity Pro software?
A3: No, the 140CPU67160C is programmed using Concept or ProWORX 32 software. It is not compatible with Unity Pro, which is for Modicon M340/M580.
Q4: What is the memory capacity, and can it be expanded?
A4: The CPU comes with 4 MB RAM and supports additional memory via a PCMCIA card, allowing configuration backups and application data storage.
Q5: How many I/O modules can be connected to this CPU?
A5: The CPU supports up to 64 local I/O modules on the Quantum backplane, with the ability to expand via remote I/O architecture.
Q6: Can this CPU operate in outdoor environments?
A6: While it is robust, it is designed for indoor industrial environments. For outdoor use, proper enclosures and environmental protection are necessary.
Q7: What power supply is required for this CPU?
A7: The CPU requires a 5 V DC supply, provided through the Quantum rack’s backplane. Power modules like the 140CPS11420 can be used.
Q8: Is hot-swapping supported?
A8: Yes, the Modicon Quantum platform allows for hot-swapping of I/O modules, though the CPU itself should not be removed during live operation.
Q9: What programming languages are supported?
A9: Ladder Diagram, Function Block, and Structured Text are supported via compatible software platforms like Concept.
Q10: How is the firmware updated?
A10: Firmware updates can be performed through a PCMCIA memory card or via serial connection using Concept software, following Schneider’s official update procedure.
Recommended Related or Same-Series Models (Quantum Series)
-
140CPU65150 – Mid-range CPU with 25 MHz processor
-
140CPU67160 – Similar model without “C” variant (legacy)
-
140CPU43412A – Basic CPU with built-in Modbus
-
140CPU67260 – Enhanced model with additional RAM
-
140CPU11303 – Entry-level Quantum CPU
-
140CPU65260 – Balanced performance and memory capacity
Popular Schneider Models (Same Brand)
| Model Number | Description | Processor Speed | Memory | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 140CPU43412A | Quantum CPU with built-in Modbus | 25 MHz | 512 KB RAM | 398×214×85 | 1.6 kg |
| 140CPU65260 | Mid-range CPU, high memory | 50 MHz | 1 MB RAM | 398×214×85 | 1.65 kg |
| 140CPU11303 | Compact entry-level Quantum CPU | 10 MHz | 64 KB RAM | 198×114×70 | 0.9 kg |
| 140CPS11420 | Power Supply Module, 115/230V AC input | – | – | 198×114×85 | 1.1 kg |
| 140NOE77101 | Ethernet Communication Module | – | – | 198×114×85 | 1.0 kg |
| 140DDO35300 | 32-Point Digital Output Module | – | – | 198×114×70 | 0.8 kg |
| 140DAO84000 | 8-Channel Analog Output Module | – | – | 198×114×85 | 0.85 kg |
| 140XBP01600 | 16-Slot Quantum Backplane | – | – | 698×114×50 | 2.5 kg |
