Product Overview

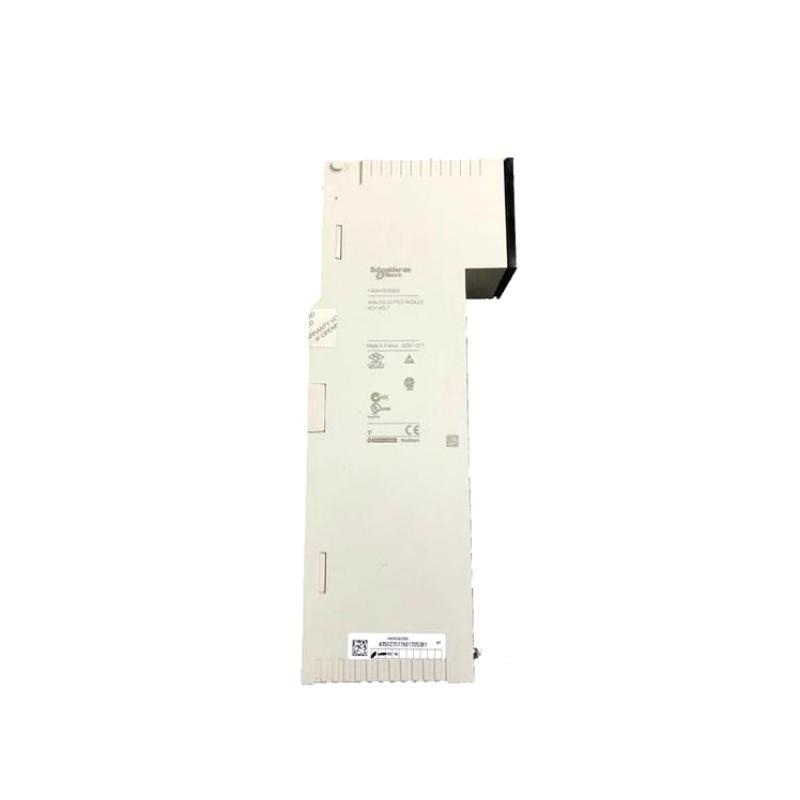

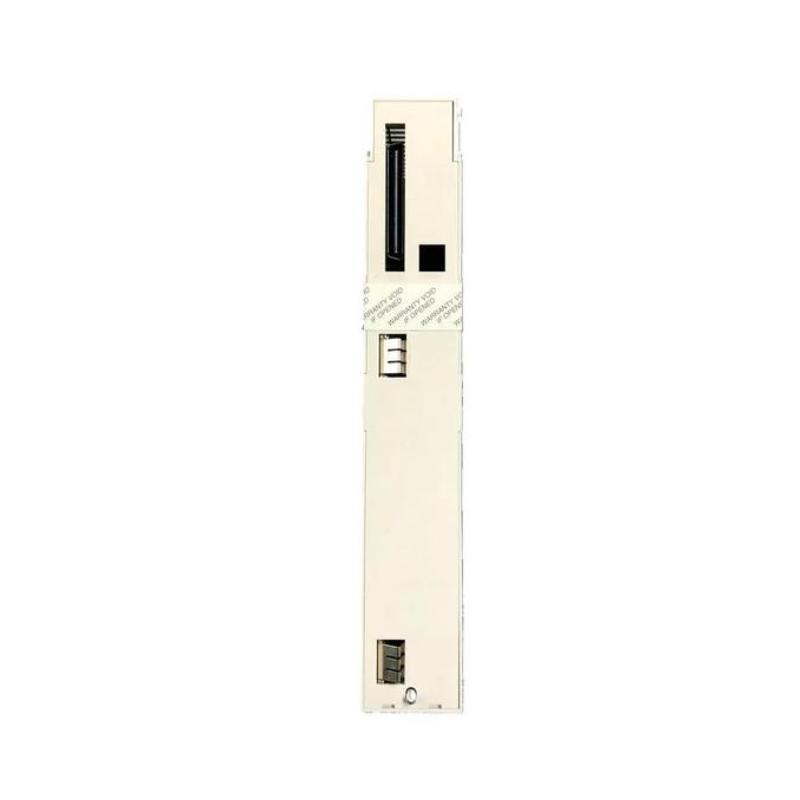

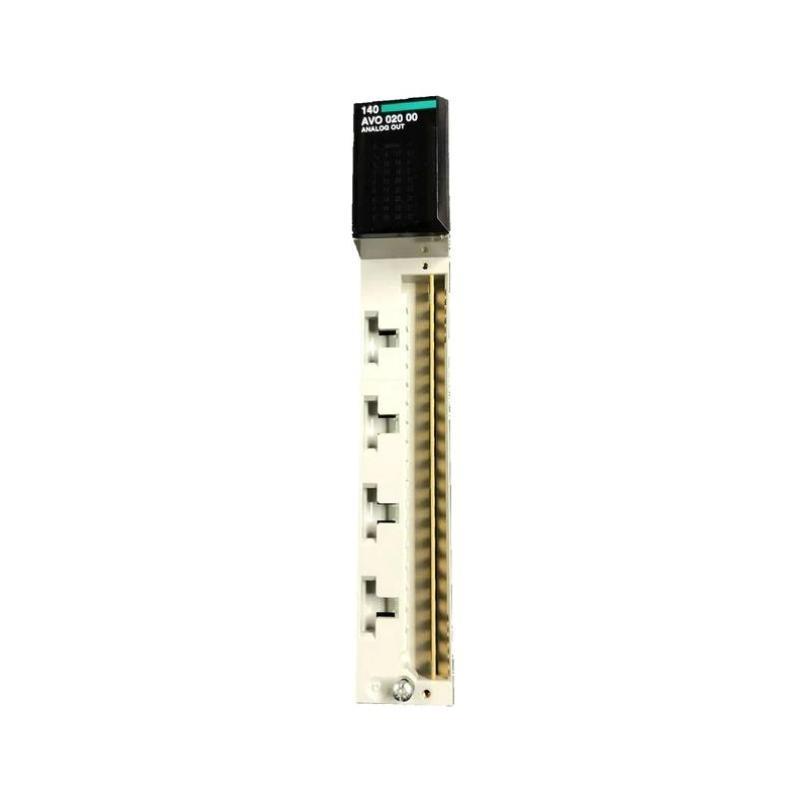

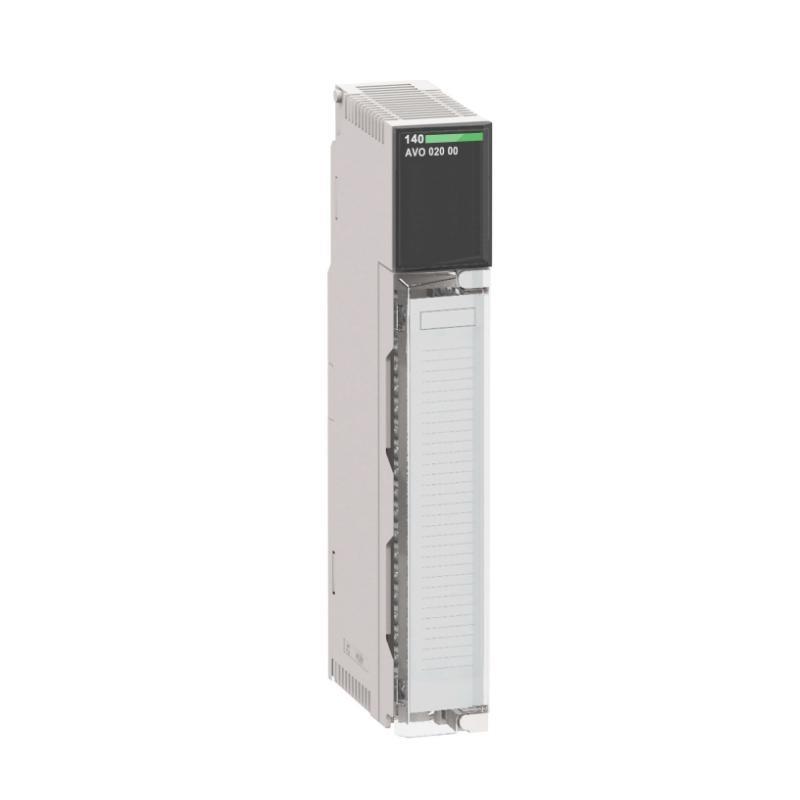

The Schneider Electric 140AVO02000 is an analog output module from the Modicon Quantum series, designed to convert digital signals from a Programmable Logic Controller (PLC) into analog voltage signals. This functionality is essential for controlling various industrial processes that require precise voltage modulation.
Product Specifications
| Parameter | Specification |
|---|---|
| Analog Output Channels | 4 |
| Output Voltage Ranges | ±10 V (≥ 1000 Ω load), ±5 V (≥ 500 Ω load), 0–10 V (≥ 1000 Ω load), 0–5 V (≥ 500 Ω load) |
| Resolution | 12 bits |
| Accuracy Error | ±0.15% of full scale at 25°C |
| Linearity | ±1 Least Significant Bit (LSB) |
| Temperature Drift | 0.003% of full scale/°C (unipolar), 0.004% of full scale/°C (bipolar) |
| Channel Isolation | 500 V AC for 1 minute |
| Bus Isolation | 780 V AC for 1 minute |
| Update Time | 3 ms |
| Setting Time | 700 µs to ±0.1% of final value |
| Bus Current Requirement | 700 mA |
| Power Dissipation | 4.5 W |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Operating Temperature | 0–60°C |
| Storage Temperature | -40–85°C |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 5000 m |
| Certifications | FM Class 1 Division 2, cUL |
| Standards Compliance | UL 508, CSA C22.2 No 142 |
Product Applications
The 140AVO02000 module is utilized in various industrial applications, including:
-
Process Control Systems: Regulating variables such as temperature, pressure, and flow rate by providing precise analog voltage outputs to actuators and control valves.
-
Motion Control: Controlling the speed and position of motors in automation systems through accurate voltage signals.
-
Data Acquisition Systems: Interfacing with sensors and transducers to monitor and control industrial processes.
Product Advantages
-
High Precision: With a 12-bit resolution and minimal accuracy error, the module ensures precise control over analog outputs.
-
Robust Isolation: Channel and bus isolation enhance system reliability by protecting against electrical interference.
-
Fast Response: Quick update and setting times enable real-time control in dynamic industrial environments.
-
Environmental Resilience: Designed to operate in a wide range of temperatures and humidity levels, suitable for harsh industrial conditions.
Latest News Headlines:
- “Schneider Electric Introduces Advanced Analog Modules for Process Control Applications”
- “Enhancing Industrial Automation with Schneider’s New 140AVO02000 Analog I/O Modules”
- “Schneider’s Modicon Series Expands with High-Precision Analog I/O Modules”
- “140AVO02000 Revolutionizes Signal Processing in Manufacturing and Energy Systems”
- “Schneider Electric’s Latest Analog I/O Modules Offer Unmatched Versatility and Precision”
- “Modicon PLCs Now Equipped with New Analog I/O Modules for Greater Control”
- “Schneider Electric Leads Innovation in Analog Control for Industrial Applications”
- “Empowering Industrial Control with Schneider Electric’s New Analog Input/Output Module”
- “Schneider Electric’s 140AVO02000 Module Enhances Safety and Efficiency in Critical Processes”
- “Upgrade Your Process Control with Schneider Electric’s Latest Analog I/O Technology”
Frequently Asked Questions (FAQs)
-
What is the primary function of the 140AVO02000 module?
The module converts digital signals from a PLC into analog voltage outputs to control various industrial devices.
-
How many analog output channels does the module provide?
It offers four independent analog output channels.
-
What voltage ranges are supported by the outputs?
The outputs support ±10 V, ±5 V, 0–10 V, and 0–5 V ranges, depending on the load resistance.
-
Is the 140AVO02000 module still available for purchase?
No, it was discontinued on December 31, 2022. The recommended replacement is the BMXAMO0410 module.
-
What is the resolution of the analog outputs?
The module provides a 12-bit resolution for analog outputs.
-
How does the module ensure signal accuracy?
It maintains an accuracy error of ±0.15% of full scale at 25°C and offers robust isolation between channels and the bus.
-
What is the update time for the analog outputs?
The module has an update time of 3 milliseconds.
-
Can the module operate in high-humidity environments?
Yes, it supports relative humidity levels up to 95% without condensation.
-
What are the dimensions and weight of the module?
The module measures 103.9 × 40.3 × 250 mm, and weighs 0.3 kg.
-
What certifications does the module hold?
It is certified for FM Class 1 Division 2 and cUL, complying with UL 508 and CSA C22.2 No 142 standards.
