Product Introduction

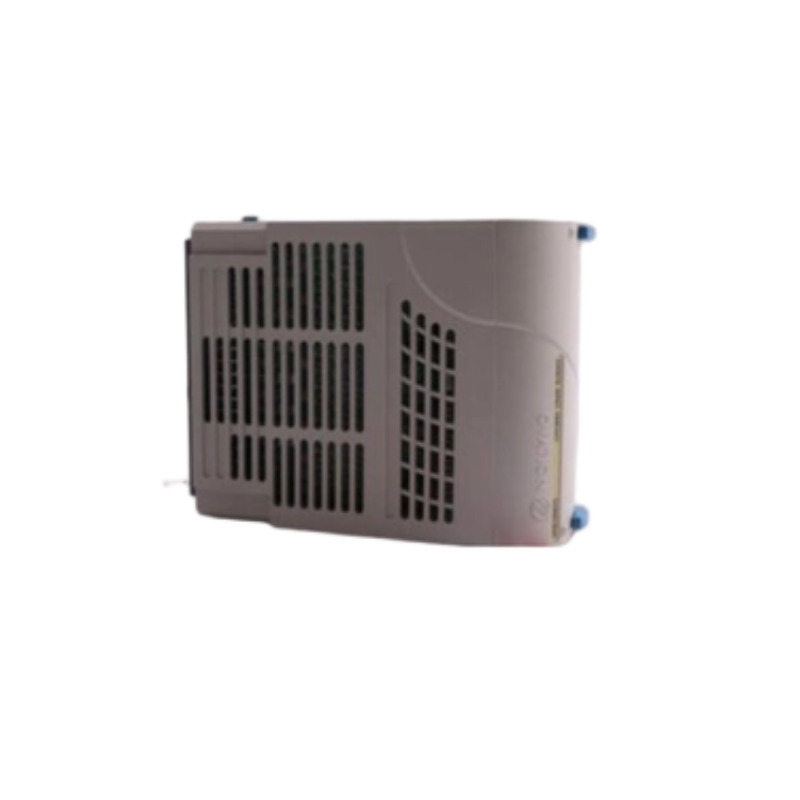

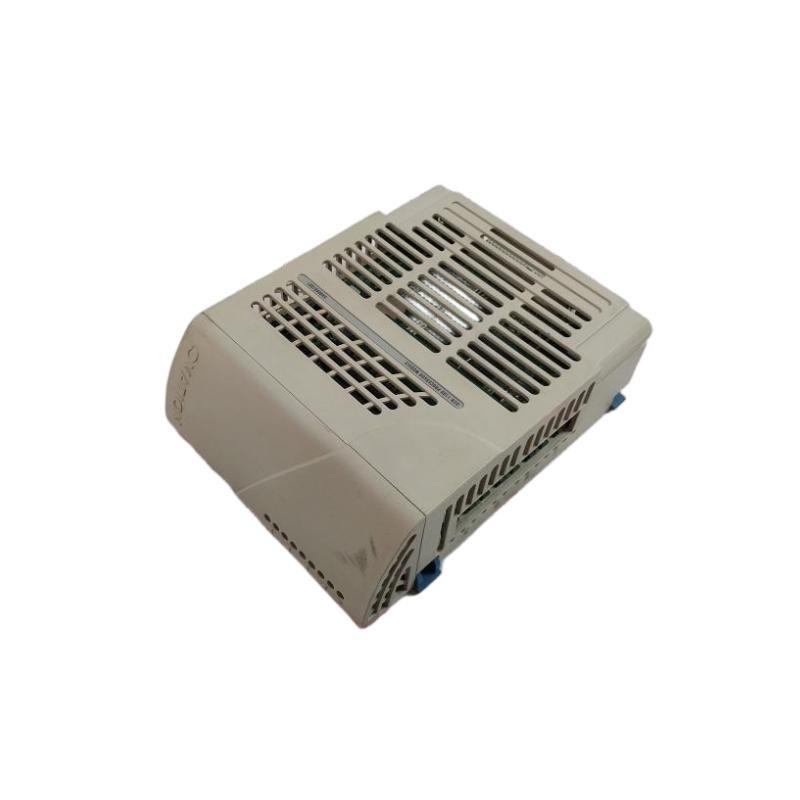

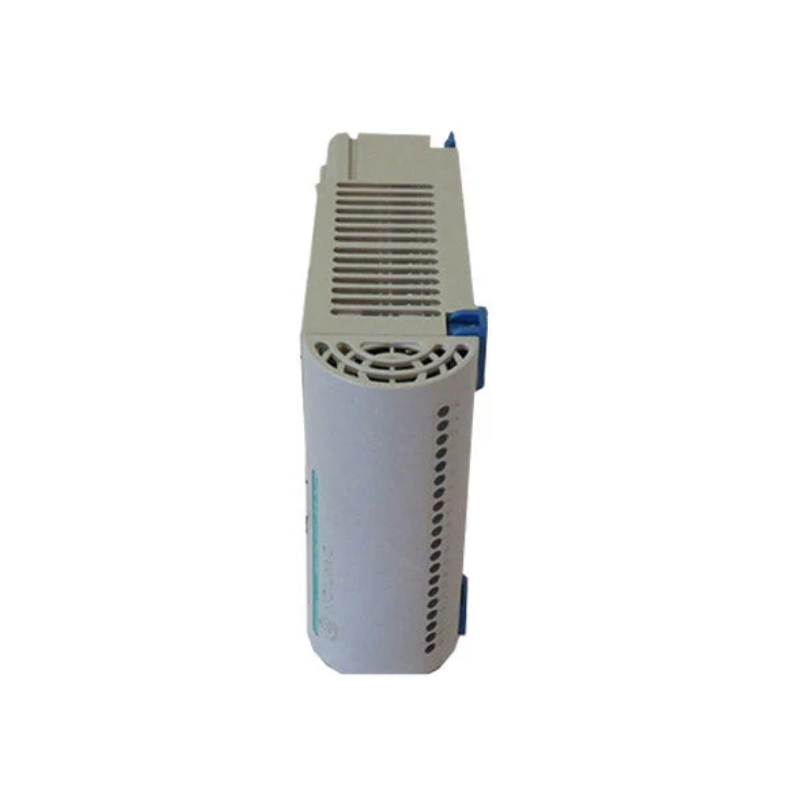

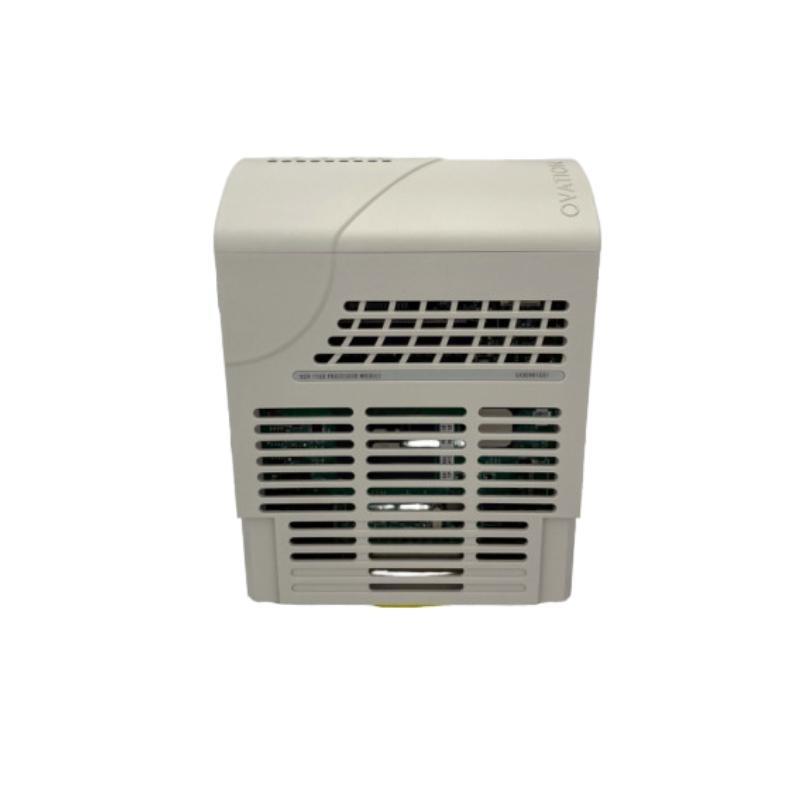

The OVATION 5X00481G01 is a high-performance input/output module designed for Emerson’s Ovation Distributed Control System (DCS). This module plays a critical role in process automation by providing reliable signal acquisition, control interfacing, and data transmission within power generation and industrial plant environments. It is built with Emerson’s proven technology to ensure accuracy, reliability, and compatibility with the Ovation control architecture. Whether integrated into a legacy system or part of a newly deployed automation network, the 5X00481G01 helps ensure seamless process control.
Product Advantages
-
High Reliability: Designed to operate in demanding industrial environments with minimal maintenance.
-
Seamless Integration: Fully compatible with Ovation control platforms, allowing plug-and-play functionality.
-
Long Lifecycle: Supports Emerson’s long product lifecycle strategy for DCS systems, reducing upgrade frequency.
-
Advanced Diagnostics: Enables real-time monitoring and fault detection to reduce downtime.
-
Wide Signal Support: Handles a variety of input and output signal types for flexible application.
-
EMC Protection: Excellent shielding against electromagnetic interference for stable operation.
-
Secure Communication: Built-in error detection and data integrity verification mechanisms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5X00481G01 |
| Manufacturer | Emerson |
| System Compatibility | Ovation Distributed Control System |
| Module Type | I/O Module (Input/Output Module) |
| Communication Protocol | Ovation-specific digital communication |
| Number of Channels | Typically 8 or 16 channels (varies by config) |
| Input/Output Type | Analog / Digital I/O support |
| Operating Voltage | 24 VDC typical |
| Power Consumption | < 4 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Style | DIN rail or chassis-mount |
| Dimensions | 150 x 100 x 50 mm |
| Weight | 0.5 kg |
| Certifications | CE, UL, RoHS |
| Diagnostics Support | Yes – LED status indicators |
Product Applications
-
Power Generation Plants: Steam, gas, hydro, and combined-cycle facilities.
-
Water Treatment Facilities: Monitoring of pumps, sensors, flow systems.
-
Chemical and Petrochemical Plants: Process automation and control loops.
-
Metallurgy and Mining: Data collection from field instruments.
-
Oil & Gas Processing Units: Supports upstream and downstream control systems.
-
Industrial Automation Systems: Integration with SCADA and other DCS platforms.
Compatible or Supporting Models
The 5X00481G01 module is commonly used in combination with the following Ovation system components:
-
5X00357G01 – Controller Assembly
-
5X00106G01 – Power Supply Module
-
5X00167G01 – Analog Input Module
-
5X00330G01 – Digital Output Module
-
5X00119G01 – Communication Processor
-
5X00288G01 – Terminal Assembly
These models function together to form a complete Ovation DCS architecture.
Installation Instructions
-
Preparation:
Power down the associated Ovation chassis or cabinet before beginning installation. Confirm you are properly grounded using a wrist strap to prevent electrostatic discharge. -
Module Insertion:
Insert the 5X00481G01 module into the designated slot. Ensure the connectors align securely with the backplane. -
Connection:
Attach I/O wiring to the corresponding terminal blocks or connectors, based on whether analog or digital signals are being used. -
Verification:
After installation, power up the chassis and check LED indicators for normal operation. Perform software-level diagnostics to confirm communication with the control system. -
Commissioning:
Use the Ovation software suite to configure signal ranges, perform loop tests, and map channel assignments.
Related Models (Same Series or Functional Family)
| Model | Description |
|---|---|
| 5X00480G01 | Ovation I/O Module with similar channel type |
| 5X00456G01 | Digital Input Module for Ovation |
| 5X00300G01 | High-Speed Counter Input Module |
| 5X00288G01 | Terminal Block Assembly for I/O modules |
| 5X00167G01 | Analog Input Module |
| 5X00357G01 | Ovation Controller Assembly |
Popular Models from Emerson (Same Brand)
| Model Number | Description | Dimensions (mm) | Weight (kg) | Voltage |
|---|---|---|---|---|
| 5X00357G01 | Ovation Controller Module | 220×140×45 | 0.6 | 24 VDC |
| 5X00106G01 | Ovation Power Supply Unit | 160×120×35 | 0.8 | 24 VDC |
| 5X00288G01 | I/O Terminal Assembly | 180×90×40 | 0.4 | Passive |
| 5X00330G01 | Digital Output Module | 180×120×40 | 0.5 | 24 VDC |
| 5X00119G01 | Communication Processor | 200×130×50 | 0.7 | 5 VDC |
| 5X00454G01 | Analog Output Module | 180×120×40 | 0.55 | 24 VDC |
| 5X00411G01 | Field Interface Module | 190×130×45 | 0.6 | 24 VDC |
| 5X00489G01 | Expansion Interface Module | 190×110×50 | 0.65 | 24 VDC |
FAQs – Realistic Q&A Style
Q1: What type of I/O signals does the 5X00481G01 support?
A1: It supports both analog and digital input/output signals, depending on its configuration. You can check the channel mapping via the Ovation software.
Q2: Is the 5X00481G01 hot-swappable?
A2: Yes, when used in a properly configured Ovation chassis, the module can be replaced without shutting down the system.
Q3: How can I verify the module is functioning correctly?
A3: Use the onboard LED indicators and run system diagnostics from the Ovation control interface to check real-time health status.
Q4: What is the average lifespan of this module?
A4: Under normal operating conditions, it typically lasts over 5 years with proper maintenance.
Q5: Does it require any firmware updates?
A5: Occasionally, Emerson may release firmware updates to improve performance or security, which can be installed through the system interface.
Q6: Can this module be used outside the Ovation system?
A6: No, it is specifically engineered for Emerson’s Ovation DCS and is not compatible with third-party platforms.
Q7: What environmental conditions should be avoided?
A7: Avoid exposure to moisture, direct sunlight, corrosive chemicals, and temperatures outside its 0–60°C operating range.
Q8: How do I configure signal types for each channel?
A8: Configuration is done via the Ovation system’s engineering workstation using predefined channel templates.
Q9: What happens if the module fails during operation?
A9: The Ovation system detects the failure and triggers alarms. The module can then be hot-swapped and replaced with minimal downtime.
Q10: Is there a warranty provided with this module?
A10: Emerson typically offers a 1-year limited warranty, but extended service plans may be available depending on your supplier or service contract.
