Product Introduction

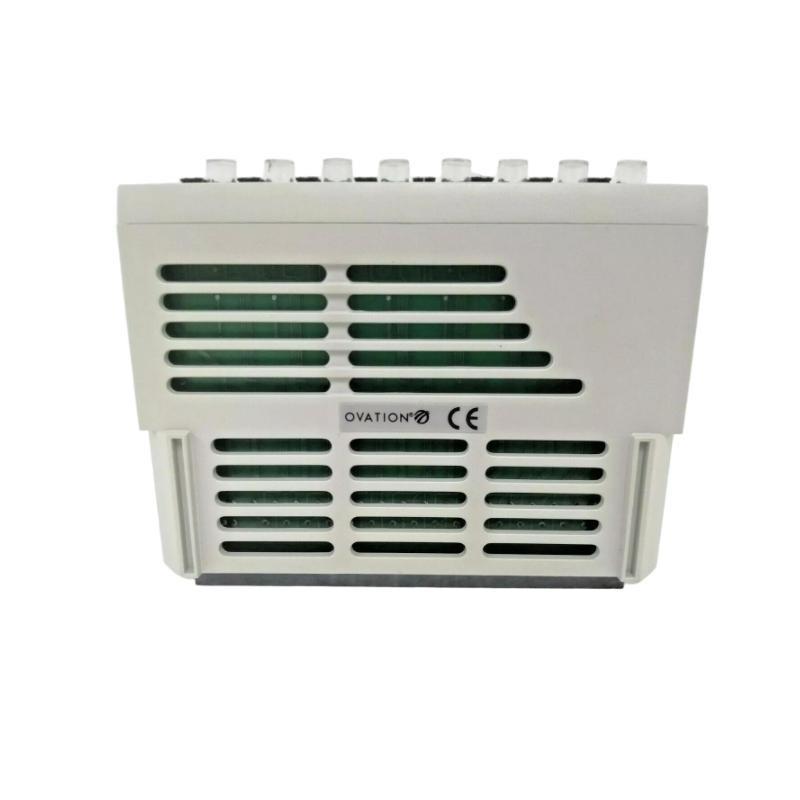

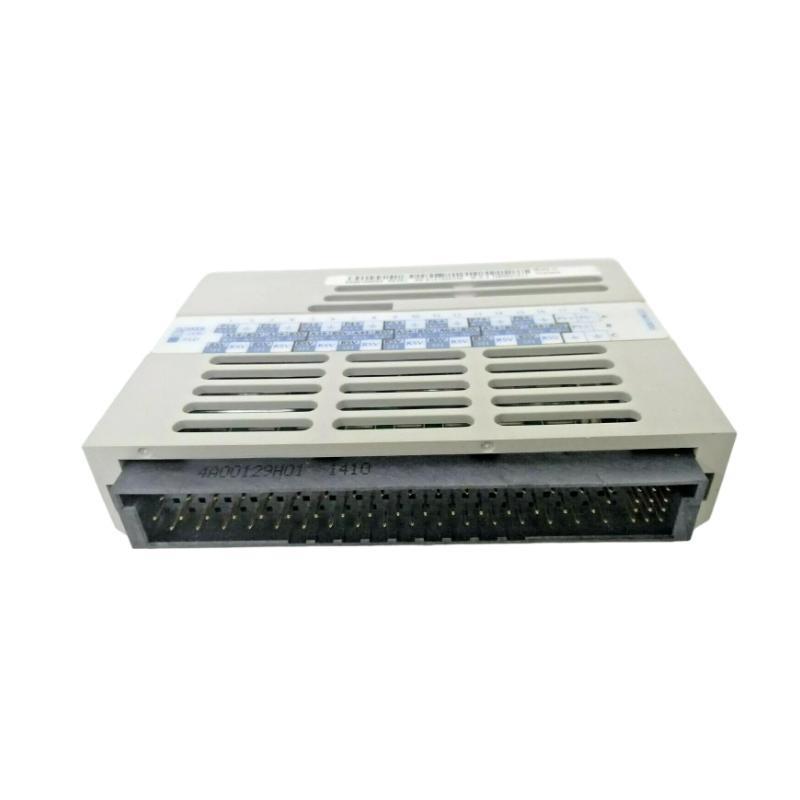

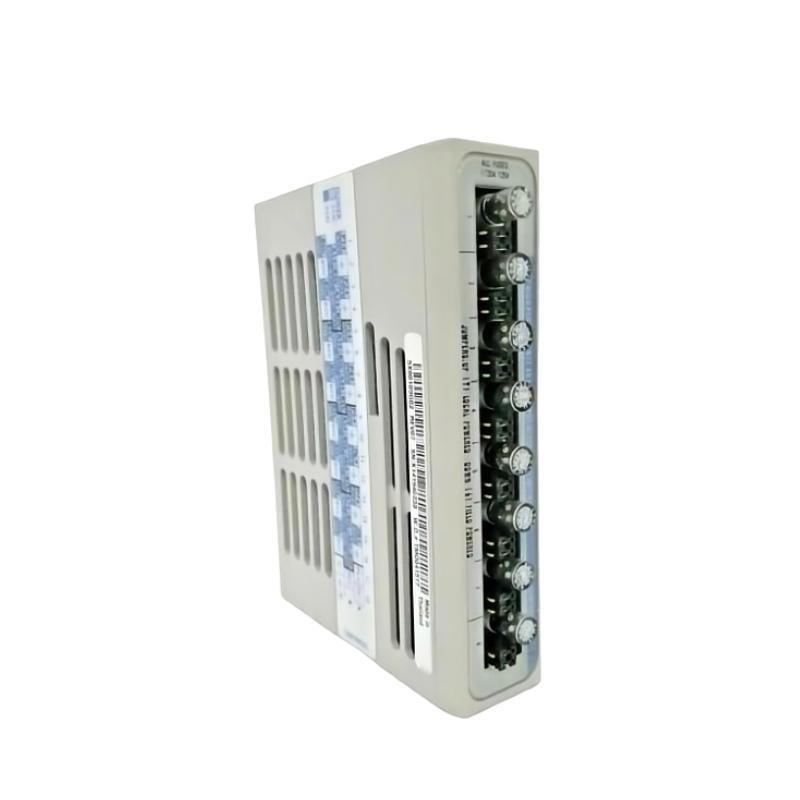

The Ovation 5X00109G02 is a high-performance analog input module designed for Emerson’s Ovation Distributed Control System (DCS). This module is engineered to provide precise and reliable acquisition of analog signals from industrial process instruments. It enhances signal integrity and accuracy by employing advanced conversion technology, making it ideal for critical control applications where data quality and reliability are paramount.
With support for multiple analog input types and increased resolution, the 5X00109G02 is widely used in demanding environments such as power generation, water treatment, and chemical processing. Its robust design, combined with tight integration into the Ovation ecosystem, ensures seamless communication and easy maintenance.
This module is built for long-term operational stability, providing operators with consistent real-time data necessary for optimizing process control and achieving high efficiency.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Ovation High Performance 8-Channel Analog Input Module |
| Model Number | 5X00109G02 |
| Manufacturer | Emerson / Westinghouse |
| Number of Channels | 8 analog input channels |
| Supported Input Signals | 0–5 V, 0–10 V, 4–20 mA (configurable per channel) |
| Input Impedance | > 250 Ohms for current inputs; > 10 kOhms for voltage inputs |
| Resolution | 16-bit ADC resolution |
| Accuracy | ±0.05% of full scale typical |
| Sampling Rate | Up to 20 samples/sec/channel (software configurable) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| LED Indicators | Module status, channel status, fault indication |
| Diagnostics | Built-in self-test, overrange detection |
| Hot Swappable | Yes |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting Type | Ovation I/O rack slot |
| Certifications | CE, RoHS, FCC Part 15 Class A |
| Dimensions (L × W × H) | 100 x 160 x 220 mm |
| Weight | 0.145 kg |
Product Applications
The Ovation 5X00109G02 module is designed for precision signal acquisition in various demanding industrial scenarios:
-
Power Generation Facilities
Monitors key analog parameters like temperature, pressure, and flow in turbines, boilers, and cooling systems. -
Water and Wastewater Treatment
Supports real-time measurement of chemical concentrations, flow rates, and pH levels for treatment optimization. -
Oil & Gas Industry
Interfaces with field instruments measuring pressure and temperature in pipelines, compressors, and storage tanks. -
Chemical and Petrochemical Processing
Captures accurate signals from reactors, distillation columns, and dosing pumps to control complex processes. -
Environmental Monitoring
Records temperature, humidity, and other environmental parameters for regulatory compliance. -
Industrial Automation Systems
Provides analog inputs for controlling machinery, actuators, and feedback loops.
Product Advantages
-
Superior Accuracy
Enhanced 16-bit resolution delivers precise measurement and reduces noise for better control decisions. -
High Sampling Rate
Fast sampling ensures timely data updates, supporting dynamic process control. -
Excellent Isolation
Each channel is isolated, protecting against interference and cross-talk between signals. -
Reliable Diagnostics
Self-test and fault detection improve system uptime and ease troubleshooting. -
Compact and Modular
Space-efficient form factor enables high channel density within Ovation I/O racks. -
Easy Integration
Fully compatible with Ovation DCS software and hardware, supporting hot-swappable operation.
Frequently Asked Questions (FAQ)
-
What input signal types does the 5X00109G02 support?
It supports standard analog signals: 0–5 V, 0–10 V, and 4–20 mA. -
Is each input channel configurable independently?
Yes, channels can be configured individually for different signal types and ranges. -
Can the module be replaced without shutting down the system?
Yes, it supports hot-swapping in the Ovation I/O rack. -
How does the module indicate a fault condition?
Status LEDs on the module and Ovation system alarms signal faults or channel failures. -
What is the typical accuracy of this module?
The module typically achieves ±0.05% of full scale accuracy. -
Does it offer any protection against electrical noise?
Yes, it provides isolation between channels and shielding to reduce noise impact. -
What is the recommended maintenance routine?
Periodic inspection of connections and verifying calibration at system intervals is recommended. -
Can it be used in harsh industrial environments?
Yes, it operates reliably in temperatures from 0°C to 60°C and is designed for industrial use. -
How often should the module be calibrated?
Factory calibration is stable, but annual system calibration ensures continued accuracy. -
Is firmware update required or supported on this module?
Firmware management is handled at the controller or system level rather than the module itself.
Related Models from the Same Series
| Model | Description | Channels | Signal Type | Weight |
|---|---|---|---|---|
| 5X00109G01 | Standard 8-Channel Analog Input Module | 8 | Analog Input | 300 g |
| 5X00110G01 | 4-Channel RTD Temperature Input Module | 4 | RTD Input | 295 g |
| 5X00111G01 | 8-Channel Thermocouple Input Module | 8 | Thermocouple | 305 g |
| 5X00108G01 | 16-Channel Analog Output Module | 16 | Analog Output | 310 g |
| 5X00419G01 | 16-Channel Isolated Analog Input Module | 16 | Analog Input | 325 g |
| 5X00107G01 | 8-Channel Digital Output Module | 8 | Digital Output | 300 g |
Popular Emerson / Ovation Models
| Model | Description | Application Area | Weight |
|---|---|---|---|
| 1C31116G01 | Ovation CPU Processor Module | Central processing unit | 450 g |
| 1C31113G01 | Ovation Power Supply Module | Rack power supply | 460 g |
| 5X00357G01 | Ethernet I/O Interface Module | Network communications | 350 g |
| 1C31238H01 | 32-Channel Digital Output Module | High-density digital output | 340 g |
| 5X00167G31 | Analog Multiplexer Interface | Signal multiplexing | 300 g |
| 1C31125G02 | 24 V DC Power Supply Module | Auxiliary power supply | 420 g |
